via https://www.teslarati.com/tesla-cybertruck-solar-panel-tonneau-cover-patent-elon-musk/

Tesla Cybertruck’s Solar Panel Tonneau Cover comes to life in new patent

May 27, 2021

The Tesla Cybertruck’s many features are now appearing as patents that the automaker has submitted to the United States Patent Office, and one of the most notable is the tonneau, or truck bed cover. While the retractable design of the tonneau provides convenience at the touch of a button for owners, it will protect any goods or cargo that drivers will store in the Cybertruck’s massive bed. However, the design is now hinting toward even more versatility and usefulness as the patent describes the potential use as a solar panel that will provide range for the all-electric truck by capturing the sun’s energy.

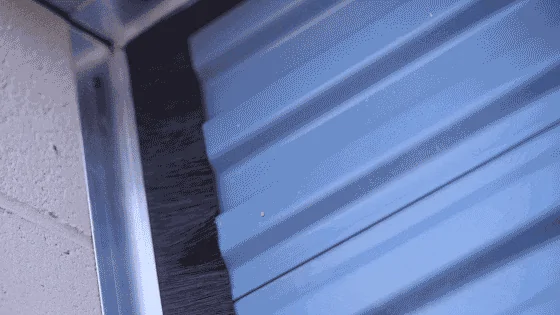

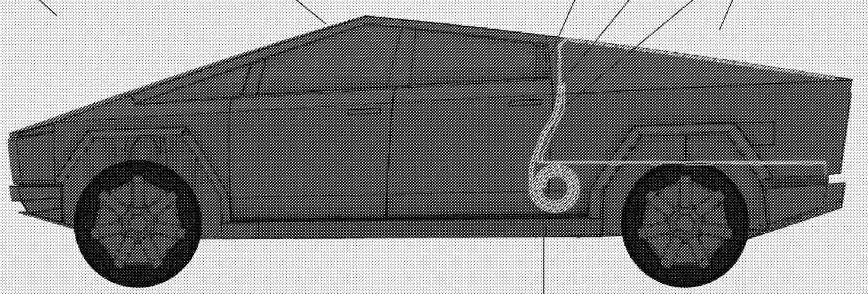

In Tesla’s newly published “Integrated Tonneau Cover for a Vehicle” patent, several inventors submit their idea and designs for the Cybertruck’s fully mechanical tonneau cover. Guided along a set of channels in the bed of the truck, the tonneau cover will provide protection for any cargo that is stored in the back of the vehicle. Whether it be tools or luggage, the tonneau cover is Tesla’s way of giving owners a way to protect their belongings without having to purchase expensive aftermarket bed covers, which other trucks do not provide. The retractable tonneau is shown in the images below.



“In order to mitigate the possibility of such damage, many truck owners install aftermarket truck bed covers that cover the bed of their truck,” the patent states. “However, not only may such aftermarket truck bed covers be difficult to install, they also may not fit exactly with the specifications of the truck beds of different models of trucks. If a truck bed cover does not have an accurate fit it can leak rain or snow through the gaps between the truck bed cover and the walls around the truck bed, and cause cargo damage. In addition, not only are many aftermarket truck bed covers difficult to install and inconvenient to use, but they also take up space in the truck beds and reduce the overall utility of the trucks.”

The tonneau, in a revolutionary new design, will also be able to recharge the vehicle’s battery pack thanks to 110 solar electric cells that are electrically connected to a photovoltaic charging system and battery. “When the tonneau cover is deployed to cover the bed and the solar electric cells that make up the slats are facing the sun, the battery within the electric vehicle can be charged by solar electric cells,” the patent states.

While solar panels on an electric vehicle have been looked at as a possibility in the past, the idea has never come to fruition due to ineffectiveness. Because a car doesn’t provide much surface area, to begin with, the contribution of charge from solar panels would be minimal, and it would require extremely clear and favorable weather conditions to provide any effective additional range to the vehicle. However, CEO Elon Musk hinted just days after the Cybertruck’s unveiling event in November 2019 that Tesla would be adding an option to add solar power that could generate up to 15 miles per day. Musk also hinted toward “fold-out solar wings” that could generate an additional 30-40 miles per day, which could alleviate the need to stop at a Supercharger for some owners.

Screen Shot 2021-05-27 at 9.09.50 AM.jpg


The tonneau would be completely covered in solar electric cells, and the patent claims that when the “truck bed cover is in a closed position, it is configured to recharge the battery pack, the closed position of the truck bed cover enabling the plurality of solar electric cells to face a sun.”

Musk also hinted toward the possibility of installing solar cells on the roof of a potential Tesla van with Joe Rogan in a podcast interview earlier this year. Musk said that the van would be a favorable design due to its “big, flat area,” and “solar could start to make a little more sense.” Because the tonneau is flat and covers a considerable surface area, there is some potential for it to be just as effective as Musk’s idea for the van.

The full patent document is available below.






Advertisement



keyhere

Well-known member
First Name
Key
Joined
Dec 18, 2019
Messages
55
Reaction score
111
Location
Nova Scotia
Vehicles
Civic, KLX250S
Occupation
EE
Country flag
I see door handles still....
It was filed 19 November 2020, so probably was still part of the design then.

I looked at the proportions, assuming the bottom of the bed that's highlighted is 6.5', and it comes out to the total length being 234". For reference the F-150 (SuperCrew 5.5' bed) is 231.7 " long.

Last edited:

nitrohuck

Well-known member
Joined
Feb 15, 2021
Messages
86
Reaction score
268
Location
Colorado Springs, CO
Vehicles
Tri Motor Cybertruck
Country flag
Well, the patent doesn't show it fully ducking past the seats. Which means the wall sorta hasta be there.

I hope they figure out a mid-gate. And that solar controller.

-Crissa

Hopefully the patent images are just old and they have since figured out a way to make the mid-gate happen


VI Tesla

Well-known member
First Name
David
Joined
Nov 29, 2019
Messages
201
Reaction score
344
Location
Nanaimo
Vehicles
Model 3, Cybertruck
Country flag
👏
wow, just so happens I am getting a quote tomorrow to have the tree removed that overhangs my driveway.
One of my worries is that fir/pine needles muck-up the works for the rolling cover. Guess I'll just have to stay on top of keeping the channels clean.


VI Tesla

Well-known member
First Name
David
Joined
Nov 29, 2019
Messages
201
Reaction score
344
Location
Nanaimo
Vehicles
Model 3, Cybertruck
Country flag

CoyoteJim

Well-known member
Joined
Nov 19, 2019
Messages
63
Reaction score
148
Location
Carmichael
Vehicles
Model 3, i3, Zero DS, F-250, CT & Aptera res
Occupation
Oracle Database Developer
Country flag
Mid gate would be nice but highly doubt it will be in the final design... seems like a big challenge for the engineers. Could see it causing more problems than it's worth.
Mid gate could still be easy if the opening is within the vertical tonneau tracks and the tonneau rolls up below the bed level. Add a sensor to deactivate tonneau operation when the mid gate is open.
Also, the promised vault environmental control seems like it would be harder to achieve without a mid gate. But maybe the vault will have it's own a/c vents.


keyhere

Well-known member
First Name
Key
Joined
Dec 18, 2019
Messages
55
Reaction score
111
Location
Nova Scotia
Vehicles
Civic, KLX250S
Occupation
EE
Country flag
One of my worries is that fir/pine needles muck-up the works for the rolling cover. Guess I'll just have to stay on top of keeping the channels clean.
That and ice/snow are my concerns too. They will have to have a brush type seal along to it remove the majority of debris. They really need to make it easily serviceable to open up that storage area and use a vacuum/compressed air to clean it out.


Last edited:

firsttruck

Well-known member
Joined
Sep 25, 2020
Messages
632
Reaction score
722
Location
mx
Vehicles
none
Country flag
It was filed 19 November 2020, so probably was still part of the design then.

I looked at the proportions, assuming the bottom of the bed that's highlighted is 6.5', and it comes out to the total length being 234". For reference the F-150 (SuperCrew 5.5' bed) is 231.7 " long.
It is easy for Cybertruck to fit in 6.5ft bed.

For that length the Cybertruck has room for a 6.5ft bed because Cybertruck does not have a huge brick wall like box in the front like do the F-150 ICE or F-150 Lightning.
