11.5 kw 48A not adding 46 mile per hour

smggsm

Well-known member
First Name
matt
Joined
Dec 9, 2023
Threads
13
Messages
77
Reaction score
90
Location
california
Vehicles
Mclaren fisker sig fisker Echochic
Country flag

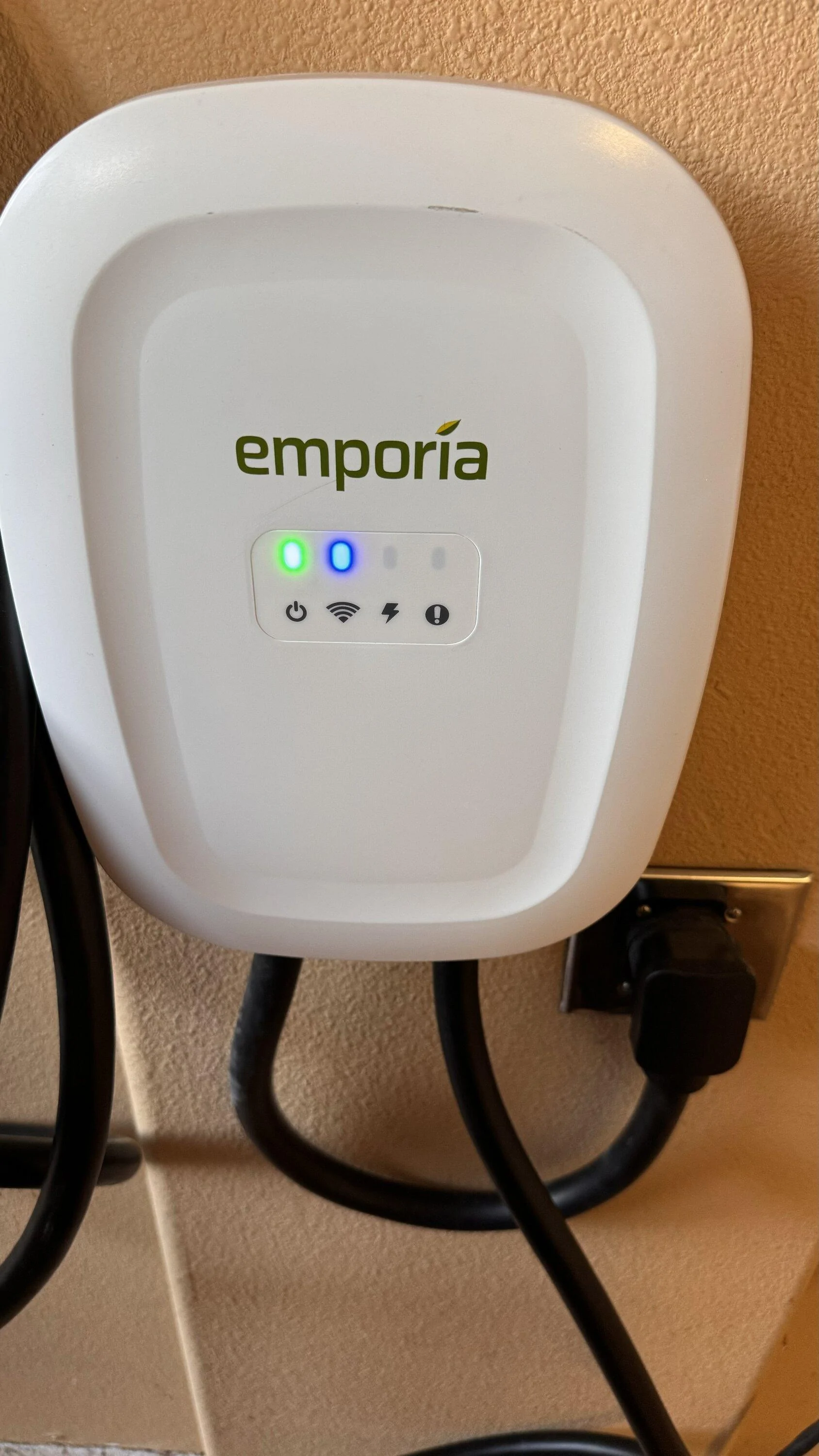

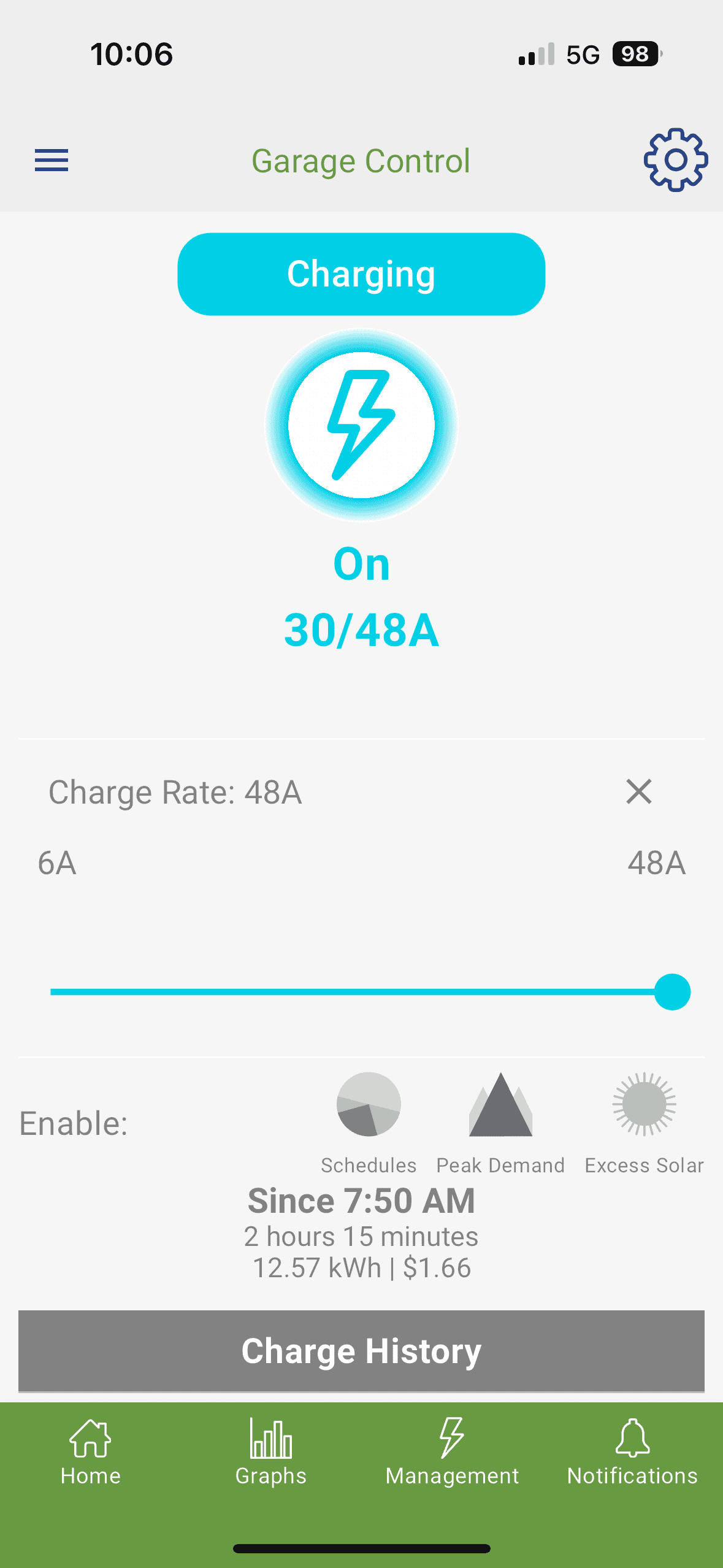

I it this charger it’s really good happy with it.. lot of charger for the money WiFi you can monitor and adjust the charging rate ..

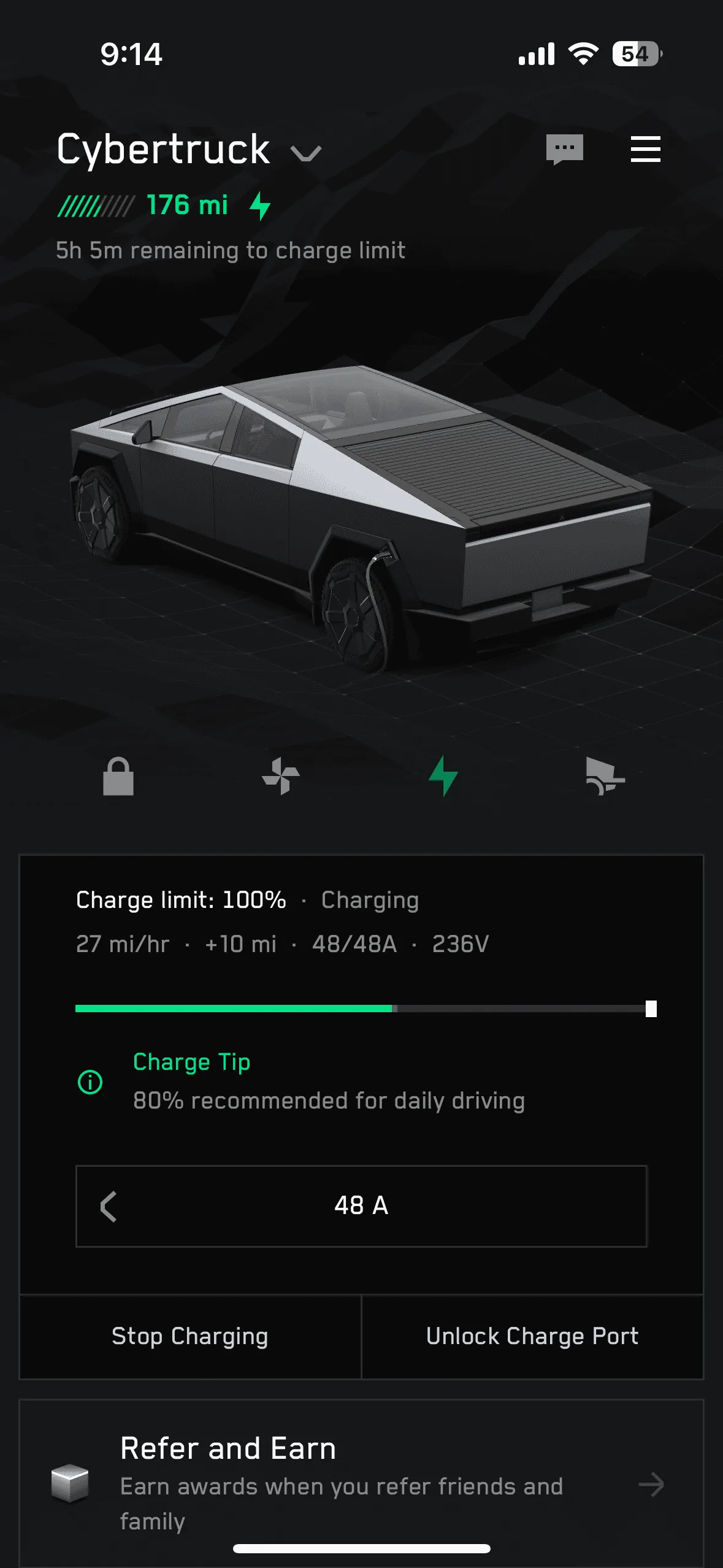

my issue It show 48A max but I’m only at this rate should add at least 40 mile per hour but I’m only 27mile per hour .. I’m using 14-50 plug ..

Tesla Cybertruck 11.5 kw 48A not adding  46 mile per hour IMG_7020


Tesla Cybertruck 11.5 kw 48A not adding  46 mile per hour IMG_7030


Tesla Cybertruck 11.5 kw 48A not adding  46 mile per hour IMG_7057
Sponsored



agordon117

Well-known member
Joined
Jan 11, 2024
Threads
6
Messages
1,096
Reaction score
1,827
Location
Ohio
Vehicles
cybertruck foundation awd
Country flag
First, you should not be running a nema 14-50 above 40A continuous. That's dangerous.

Second, nothing anywhere said 40 miles per hour for home charging with regard to cybertruck.

Some quick math says 29 miles per hour would be the expected if there were no losses, so 27 miles seems exactly correct.

OP
OP

smggsm

Well-known member
First Name
matt
Joined
Dec 9, 2023
Threads
13
Messages
77
Reaction score
90
Location
california
Vehicles
Mclaren fisker sig fisker Echochic
Country flag
Thank you
What the amp rate should be ? It been set on 48a for a month over 1000 mile charged


agordon117

Well-known member
Joined
Jan 11, 2024
Threads
6
Messages
1,096
Reaction score
1,827
Location
Ohio
Vehicles
cybertruck foundation awd
Country flag
Thank you
What the amp rate should be ? It been set on 48a for a month over 1000 mile charged
For hard wired you can do the full 48. But for a plug, you are not supposed to charge above 80% of the current rating. So 40A would be maximum safe current on a nema 14-50.

OP
OP

smggsm

Well-known member
First Name
matt
Joined
Dec 9, 2023
Threads
13
Messages
77
Reaction score
90
Location
california
Vehicles
Mclaren fisker sig fisker Echochic
Country flag
I thought This battery need to be balanced to charge 100% at least once a month ,That why I heard from service



agordon117

Well-known member
Joined
Jan 11, 2024
Threads
6
Messages
1,096
Reaction score
1,827
Location
Ohio
Vehicles
cybertruck foundation awd
Country flag
I thought This battery need to be balanced to charge 100% at least once a month ,That why I heard from service
I am not referring to charge percentage of the pack. I am referring to safe charging limits through a plug in the wall. Outlets were never designed to be used at their full current rating for 14 hours at a time. So the safe limit on a nema 14-50 is 80% of the 50A current limit, or 40A.


Also, the batteries in cybertruck are not LFP cells, so whoever gave you that guidance was incorrect. This is the second time I've heard someone say that service told them to charge to 100% once a month, but it is not needed for these cells as they are not LFP. Only charge to 100% when you need it. Otherwise keep your range limit at 80%.


Gigahorse

Banned
Well-known member
Banned
Joined
Dec 19, 2023
Threads
7
Messages
1,656
Reaction score
1,590
Location
USA
Vehicles
1 Million Miles on ICE Toyotas, Waiting for CT
Thank you
What the amp rate should be ? It been set on 48a for a month over 1000 mile charged
40 Amps, also be sure that the plug is inserted firmly and not unplugged a lot (to the Nema).
It is going to take a long time to charge the CT at 40amps, basically overnight in most cases. This will be true until the new battery version comes out that allows better density and charging rates.

OP
OP

smggsm

Well-known member
First Name
matt
Joined
Dec 9, 2023
Threads
13
Messages
77
Reaction score
90
Location
california
Vehicles
Mclaren fisker sig fisker Echochic
Country flag
thank you do the info , if make sense I probably need to wire it .. to be safe
What LFP stand for?


agordon117

Well-known member
Joined
Jan 11, 2024
Threads
6
Messages
1,096
Reaction score
1,827
Location
Ohio
Vehicles
cybertruck foundation awd
Country flag
thank you do the info , if make sense I probably need to wire it .. to be safe
What LFP stand for?
LiFePO4, or "Lithium Ion Phosphate"

These batteries are used in the standard range vehicles outside of the few 4680 model Ys they made at giga texas. The cells are cheaper, and less energy dense, which makes them a good candidate for the standard range vehicles.

OP
OP

smggsm

Well-known member
First Name
matt
Joined
Dec 9, 2023
Threads
13
Messages
77
Reaction score
90
Location
california
Vehicles
Mclaren fisker sig fisker Echochic
Country flag
I have 2 Fiskers with 23kw batteries I think they come with LifePO4. For these cars balancing a must
100k miles now so far still strong ..
So I wasn’t Surprised when they recommended the balancing ..



Bamaboy007

Well-known member
First Name
John
Joined
Apr 3, 2020
Threads
2
Messages
53
Reaction score
85
Location
Alabama
Vehicles
Tesla Model 3
Country flag
27 to 29 mph is the fastest that a cybertruck is going to charge on a full 48 amp


agordon117

Well-known member
Joined
Jan 11, 2024
Threads
6
Messages
1,096
Reaction score
1,827
Location
Ohio
Vehicles
cybertruck foundation awd
Country flag
Is the the highest rate available for in-house wall charger ?
Yes, for a hard wired one that doesn't use a nema 14-50. The charge rate is not limited by the wall charger to 48A, but by the internal charger in the truck. The wall charger is basically just a switch that allows power to flow into the charging circuit inside of the truck.

OP
OP

smggsm

Well-known member
First Name
matt
Joined
Dec 9, 2023
Threads
13
Messages
77
Reaction score
90
Location
california
Vehicles
Mclaren fisker sig fisker Echochic
Country flag
You mean onboard charger limit 27 mile/hr ?
My question how the super charger push 250 mile?
