4-Wheel steering

firsttruck

Well-known member
Joined
Sep 25, 2020
Messages
783
Reaction score
963
Location
mx
Vehicles
none
Country flag
Will Quadrasteer have a second life for Extreme Towing and Handling & ** crab steer **
Quadrasteer, it was a travesty the way Delphi and GM dropped the ball on the greatest truck improvement ever invented. MrTruck tells the story of Quadrasteer. ZF has a rear steer project that may finish the job Quadrasteer started.
MrTruckTV
Sep 7, 2019

MrTruckTV wrote several articles about Quadrasteer, see this one: https://mrtruck.com/qstour1.htm had a website QuadrasteerClub.com, See Andre Smirnov's review of ZF rear steer:
ZF produces steering systems for cars, trucks & buses
Twice the steering power: ZF launches next generation AKC active rear axle steering system in volume production
Latest Generation AKC offers rear steering angle of up to ten degrees
Steer-by-wire" rear axle steering improves agility of longer electric vehicles
2020-Oct-14
https://press.zf.com/press/en/releases/release_20547.html
Advertisement


Last edited:

alan auerbach

Well-known member
Joined
Feb 15, 2020
Messages
431
Reaction score
338
Location
Waterloo, Ontario (West of Toronto)
Vehicles
'90 Isuzu PU (has to last until my CT arrives), '91 Grand Marquis, '02 Grand Cherokee (I'm so grand I can't stand it), e-bike.
Occupation
Retired prof.
Country flag
I tried to find a video of this, but failed. Maybe the 3 point tractor turn has another name?

I kept getting videos about 3 point hitches on tractors...
Never heard "3-pt turn" ON A TRACTOR but sometimes "brake turn." Whatever it's called, the shorter the wheelbase the more effective the technique -- and wheelbase is short on tractors, long on the CT.

Last edited:

Luke42

Well-known member
Joined
Aug 10, 2020
Messages
654
Reaction score
1,142
Location
Illinois, USA
Vehicles
GMC Sierra Hybrid (2-Mode)
Country flag
Never heard "3-pt turn" but sometimes "brake turn." Whatever it's called, the shorter the wheelbase the more effective the technique -- and wheelbase is short on tractors, long on the CT.
As a licensed driver, you've likely performed a 3-point turn, even if you call it something else:


alan auerbach

Well-known member
Joined
Feb 15, 2020
Messages
431
Reaction score
338
Location
Waterloo, Ontario (West of Toronto)
Vehicles
'90 Isuzu PU (has to last until my CT arrives), '91 Grand Marquis, '02 Grand Cherokee (I'm so grand I can't stand it), e-bike.
Occupation
Retired prof.
Country flag
I tried to find a video of this, but failed. Maybe the 3 point tractor turn has another name?

I kept getting videos about 3 point hitches on tractors...
Be glad to explain.

Tractors have huge rears usually with aggressive tread, often with weights. That's what gives them the traction that their name comes from. The fronts are more car-size, and lightly loaded. So making a sharp turn, especially a 180, depends on those little fronts.

So most tractors have brakes on the rears only, and (except for the non-serious ones) have two side-by-side brake pedals, one for each rear, that can be linked (so pressing either pedal operates both brakes) or separated (so you press either one to brake on that side only). To make a tractor turn, you'd brake-lock the "inner" rear, which then serves as a pivot.

This differential braking works less effectively on relatively long vehicles like the CT and those lacking the extra traction in the rears, so I doubt I'd pay extra to have it. Even on my tractor I use it maybe once a year.


alan auerbach

Well-known member
Joined
Feb 15, 2020
Messages
431
Reaction score
338
Location
Waterloo, Ontario (West of Toronto)
Vehicles
'90 Isuzu PU (has to last until my CT arrives), '91 Grand Marquis, '02 Grand Cherokee (I'm so grand I can't stand it), e-bike.
Occupation
Retired prof.
Country flag
One poster above listed higher payload as one advantage of rear steer. I can't see that because fixed wheels are less delicate and therefore can carry more weight than movable ones. That's why your car's front end often needs service whereas the back end hardly ever does, and why the load-bearing wheels on forklifts are not the ones that steer.


Crissa

Well-known member
First Name
Crissa
Joined
Jul 8, 2020
Messages
5,980
Reaction score
7,890
Location
Santa Cruz
Vehicles
2014 Zero S, 2013 Mazda 3
Country flag
Fixed are less delicate, but... that goes out the window with air shock suspension. I don't know how load limit is determined, but I'm told that control is a part of it, not just good ol' dumb stiffness.

-Crissa


firsttruck

Well-known member
Joined
Sep 25, 2020
Messages
783
Reaction score
963
Location
mx
Vehicles
none
Country flag
One poster above listed higher payload as one advantage of rear steer. I can't see that because fixed wheels are less delicate and therefore can carry more weight than movable ones. That's why your car's front end often needs service whereas the back end hardly ever does, and why the load-bearing wheels on forklifts are not the ones that steer.
The main truck example is GM Quadrasteer. If you ordered the Quadrasteer for GM Sierra/Chev Silverado the max payload & towing limits were higher than if you did not buy the option. Other options lowered the limits.


jhogan2424

Well-known member
First Name
Jason
Joined
Apr 24, 2021
Messages
244
Reaction score
278
Location
USA
Vehicles
Moped
Fixed are less delicate, but... that goes out the window with air shock suspension. I don't know how load limit is determined, but I'm told that control is a part of it, not just good ol' dumb stiffness.

-Crissa
Yes this is correct. Max load rating has other factors involved such as trailer sway at X speed with X tongue weight etc. The 4WS can help correct trailer sway to a certain degree so that adds to the maximum.


firsttruck

Well-known member
Joined
Sep 25, 2020
Messages
783
Reaction score
963
Location
mx
Vehicles
none
Country flag
Yes this is correct. Max load rating has other factors involved such as trailer sway at X speed with X tongue weight etc. The 4WS can help correct trailer sway to a certain degree so that adds to the maximum.

Is 4WS really correcting sway? I think of it more as 4WS helps prevent sway from happening because the 4WS movement is easier for the trailer to follow without over shooting the path.


Crissa

Well-known member
First Name
Crissa
Joined
Jul 8, 2020
Messages
5,980
Reaction score
7,890
Location
Santa Cruz
Vehicles
2014 Zero S, 2013 Mazda 3
Country flag
Is 4WS really correcting sway? I think of it more as 4WS helps prevent sway from happening because the 4WS movement is easier for the trailer to follow without over shooting the path.
There's threads from last year showing quadrasteer trucks doing evasive maneuvers.

-Crissa


ldjessee

Well-known member
First Name
Lloyd
Joined
Apr 22, 2020
Messages
751
Reaction score
744
Location
Indiana, USA
Vehicles
reservation for 2 motor Cybertruck, Nissan Leaf, Subau Outback, Kawasaki Vulcan 1700 Vaquero ABS
Occupation
programmer
Country flag
I want 4WS for towing, how much easier it is to back a trailer around, etc.

Offroading would be number two...

And making it easier to park in tight parking lots is a consideration as well.


kev12345

Well-known member
First Name
Kevin
Joined
May 16, 2020
Messages
223
Reaction score
476
Location
Canada
Vehicles
Ram 1500
Country flag
ZF produces steering systems for cars, trucks & buses
Twice the steering power: ZF launches next generation AKC active rear axle steering system in volume production
Latest Generation AKC offers rear steering angle of up to ten degrees
Steer-by-wire" rear axle steering improves agility of longer electric vehicles
2020-Oct-14
https://press.zf.com/press/en/releases/release_20547.html
didn't realize rear wheel steering offered such a huge benefit to sway control. anyone who has ever been whipped around by their trailer would gladly pay extra for this safety feature. I know I would!


jcryer3

Member
First Name
John
Joined
Dec 9, 2019
Messages
23
Reaction score
15
Location
Houston
Vehicles
Tesla S, Ram Promaster
Occupation
Architect
Country flag
A tight turning radius is extremely important. I do not care how they achieve it.


rr6013

Well-known member
First Name
Rex
Joined
Apr 22, 2020
Messages
683
Reaction score
609
Location
Piedras Gordas Panama
Website
shorttakes.substack.com
Vehicles
1997 Tahoe 2 door 4x4
Occupation
Retired software developer and heavy commercial design builder
Country flag

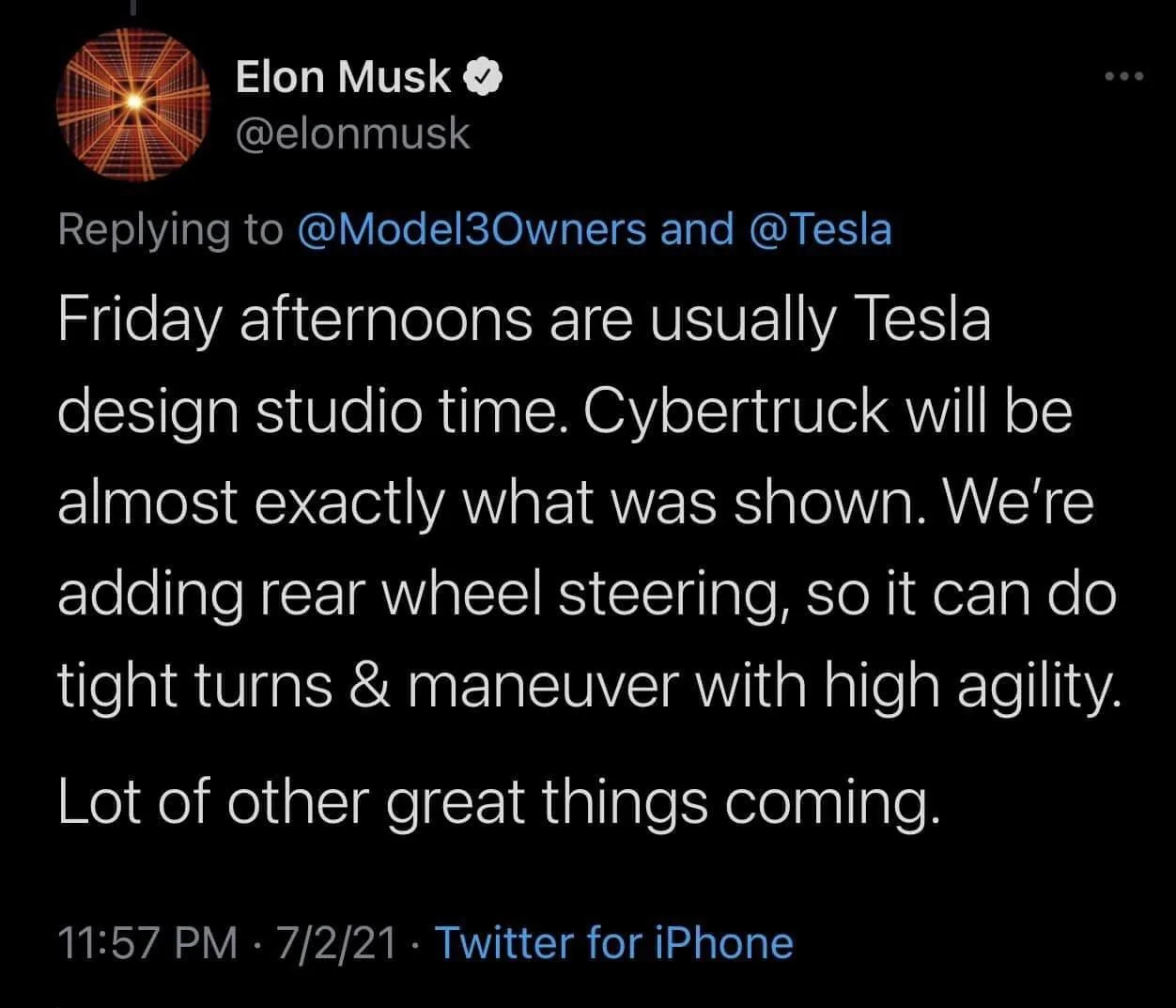

Rear Wheel Steering(RWS) didn’t see it coming. Useful? Sure. $2k useful - no.

The BIG utility gained by Jeep is it has 21’ turning radius(‘03 Rubicon). That changed my offroad experience compared to wrangling turnaround in tight places. SO YES. Cybertruck RWS with 21’ turning radius! Bring it.

Otherwise, why go to the trouble, expense and complication to implement RWS half-assed. Its a truck. It’ll have to be treated as a truck, instead of out turning the Jeeps.
