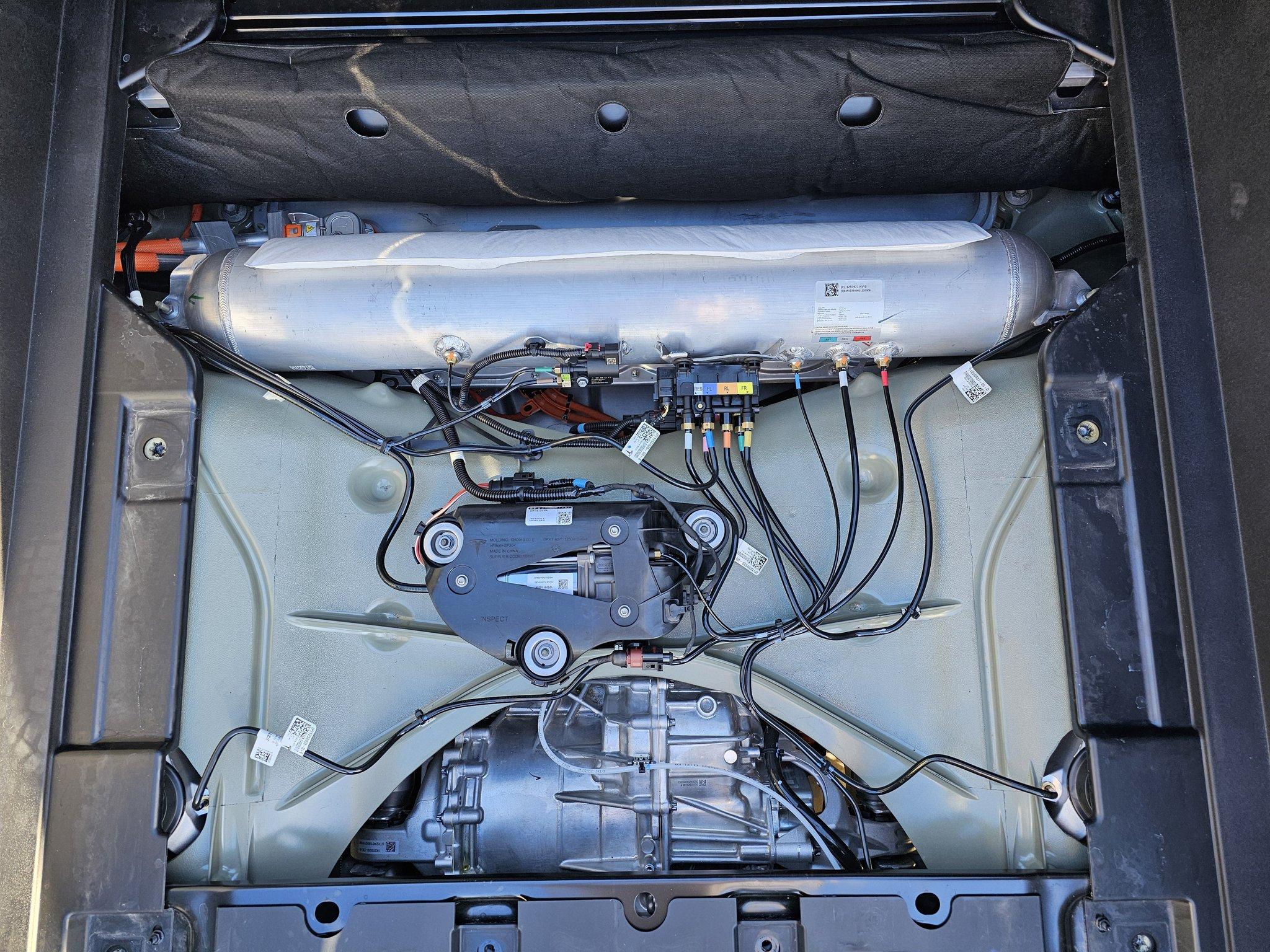

The way that I had heard some of the Tesla discussions made it sound like there was more pump than reservoir. This looks to be a decent size reservoir.


countryboy

Well-known member
Joined
Jan 25, 2024
Threads
2
Messages
175
Reaction score
371
Location
East TN
Vehicles
Tesla M3 | Cybertruck FS AWD
Country flag

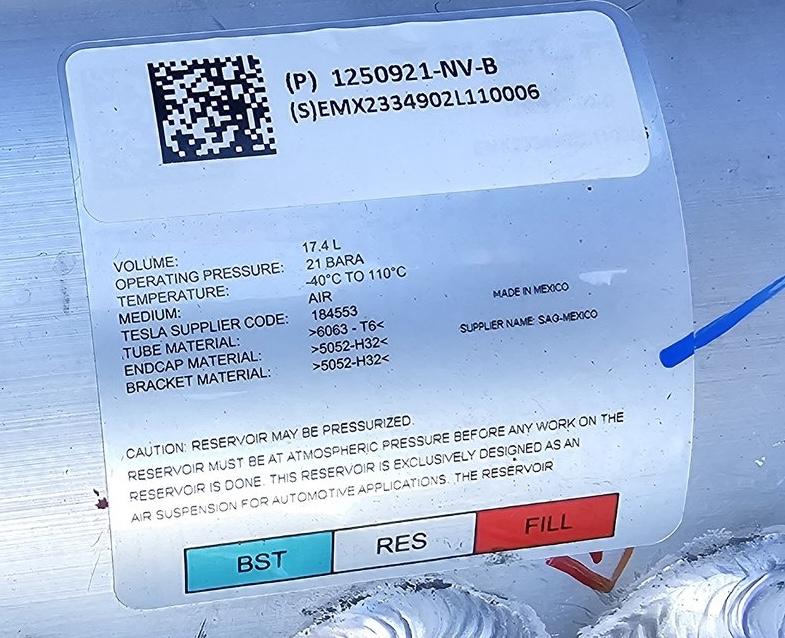

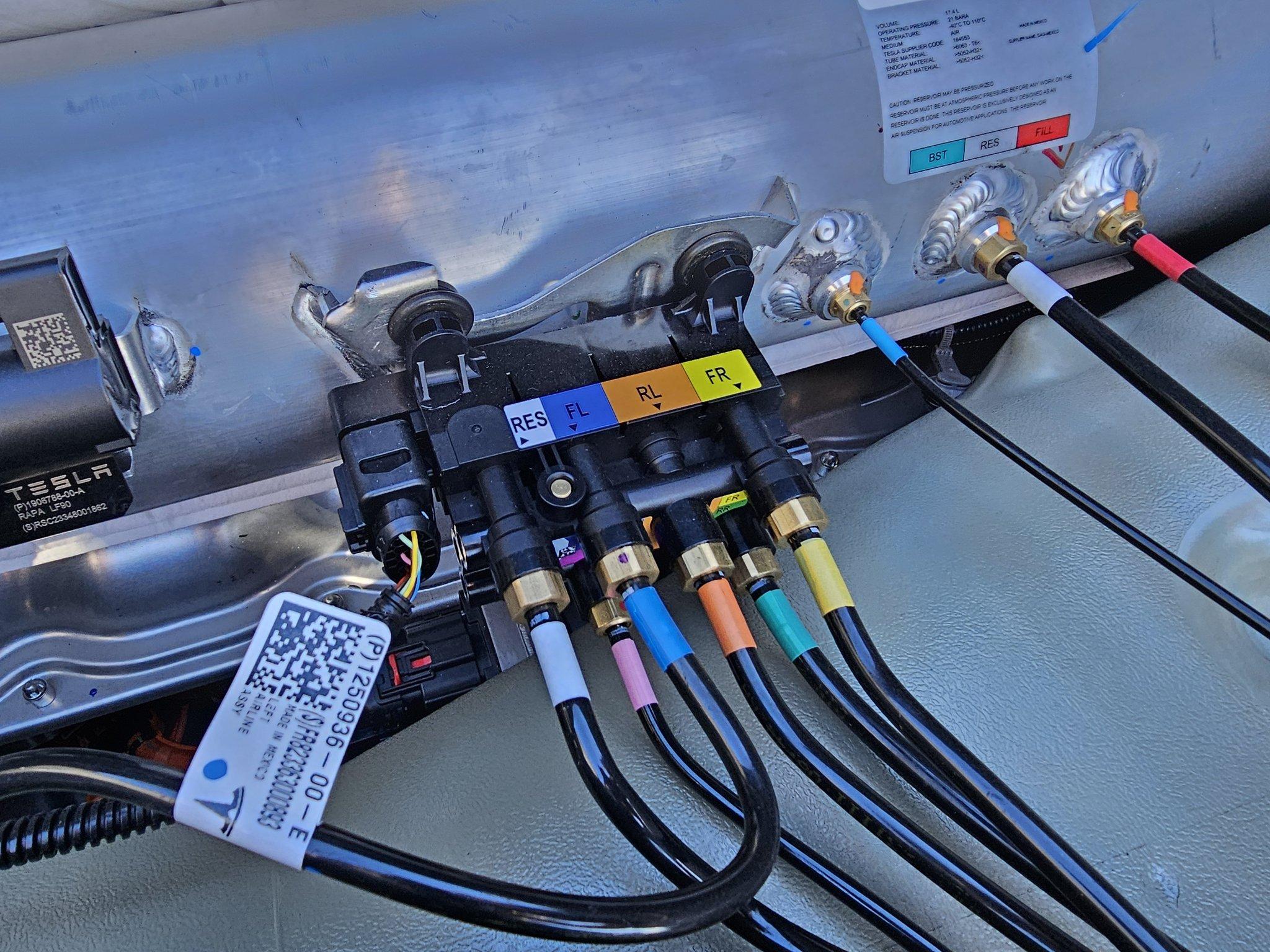

Nice, this is helpful! I see the tank is rated for ~300 psi but curious what pressure it normally operates at... any chance this is shown in service mode? Wondering if someone could just tee into that light gray line with a check valve and plumb to a connector somewhere for airing up tires...

  • Like
Reactions: REM

Woodrick

Well-known member
First Name
Ed
Joined
Dec 30, 2023
Threads
5
Messages
2,661
Reaction score
3,139
Location
Gainesville Ga
Vehicles
Model 3, Model Y, Cybertruck AWD
Occupation
Consultant
Country flag
Nice, this is helpful! I see the tank is rated for ~300 psi but curious what pressure it normally operates at... any chance this is shown in service mode? Wondering if someone could just tee into that light gray line with a check valve and plumb to a connector somewhere for airing up tires...
I don't really disagree with you, but it's listed as "Operating Pressure" not "Max Pressure". That suggested to me that it may be operating at 300 psi. But I really don't know.

I did hear that it didn't have enough to fill a tire, which is why they don't make it available to fill tires.



countryboy

Well-known member
Joined
Jan 25, 2024
Threads
2
Messages
175
Reaction score
371
Location
East TN
Vehicles
Tesla M3 | Cybertruck FS AWD
Country flag
I don't really disagree with you, but it's listed as "Operating Pressure" not "Max Pressure". That suggested to me that it may be operating at 300 psi. But I really don't know.

I did hear that it didn't have enough to fill a tire, which is why they don't make it available to fill tires.
On a tank, operating pressure means do not exceed, so "max operating pressure". Not sure I understand how it couldn't "have enough" to fill a tire. The pump would be either "not fast enough" or "not duty rated enough". I doubt a pump meant to operate air shock for the life of vehicle can't handle filling tires once in a while. My bet is they left the option unavailable because people would try running air tools or other high demand high duty cycle things and either be disappointed or cause a premature failure. I'll be careful not to do that. :)


Woodrick

Well-known member
First Name
Ed
Joined
Dec 30, 2023
Threads
5
Messages
2,661
Reaction score
3,139
Location
Gainesville Ga
Vehicles
Model 3, Model Y, Cybertruck AWD
Occupation
Consultant
Country flag
On a tank, operating pressure means do not exceed, so "max operating pressure". Not sure I understand how it couldn't "have enough" to fill a tire. The pump would be either "not fast enough" or "not duty rated enough". I doubt a pump meant to operate air shock for the life of vehicle can't handle filling tires once in a while. My bet is they left the option unavailable because people would try running air tools or other high demand high duty cycle things and either be disappointed or cause a premature failure. I'll be careful not to do that. :)

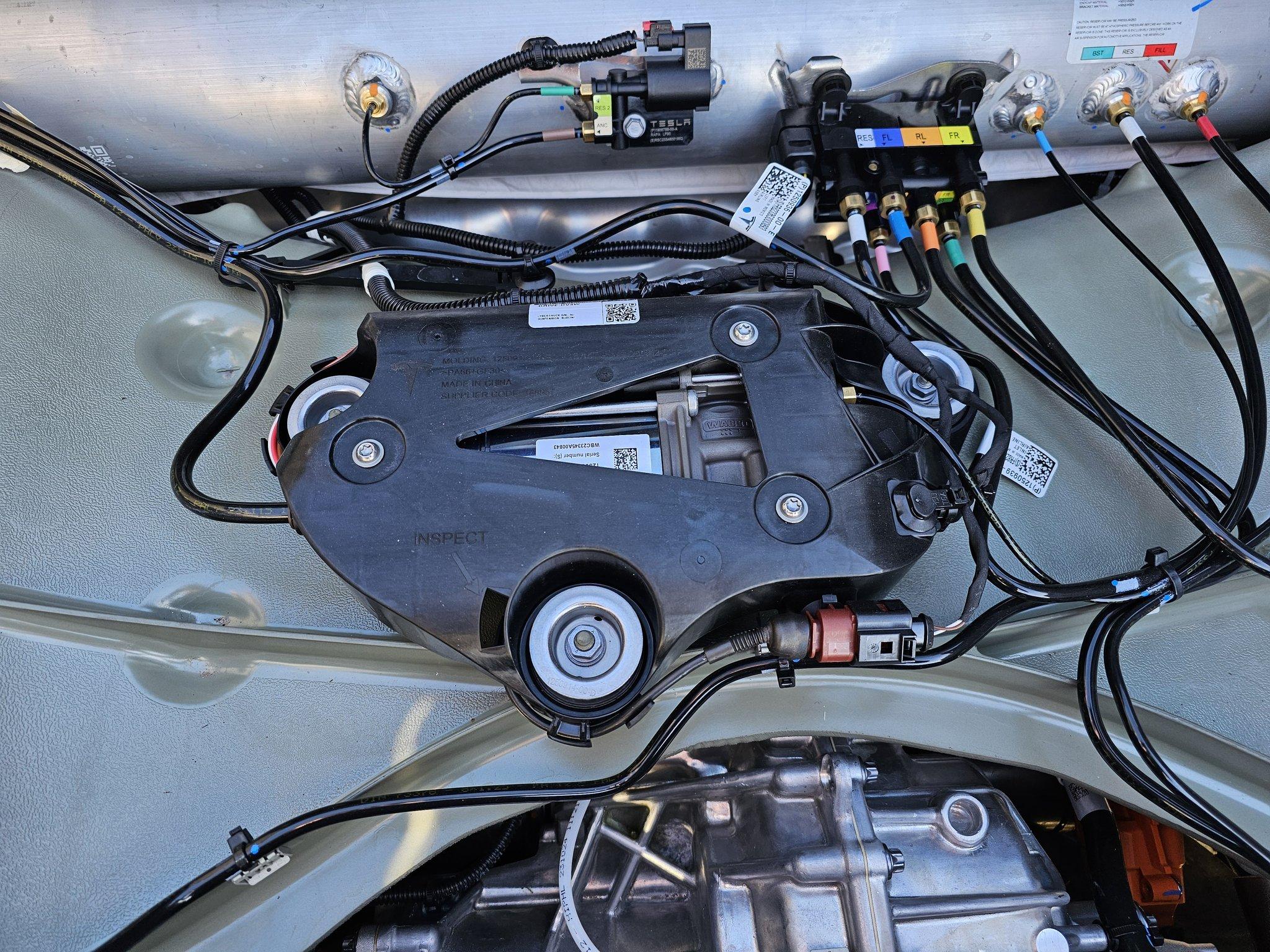

There's supposedly not enough air in the tank to fill the tire and supposedly it would take a long time for the pump to catch up to complete filling.


Mini2nut

Well-known member
Joined
Apr 2, 2020
Threads
92
Messages
2,427
Reaction score
4,475
Location
CA
Vehicles
2022 R1T
Country flag
A great example of designers and engineers working with the service center team. Super easy access to diagnose/repair failed component's.



scottf200

Well-known member
Joined
Jul 31, 2021
Threads
44
Messages
1,596
Reaction score
2,550
Location
Chicagoland
Vehicles
Tesla Model X
Country flag
On a tank, operating pressure means do not exceed, so "max operating pressure". Not sure I understand how it couldn't "have enough" to fill a tire. The pump would be either "not fast enough" or "not duty rated enough".
It was explained on the Leno interview with two execs that it was too slow.

  • Like
Reactions: Jow

Gigahorse

Banned
Well-known member
Banned
Joined
Dec 19, 2023
Threads
7
Messages
1,657
Reaction score
1,580
Location
USA
Vehicles
1 Million Miles on ICE Toyotas, Waiting for CT
It was explained on the Leno interview with two execs that it was too slow.
To slow to quickly air up tires on the fly.
But if you are out somewhere with a flat slow n steady is better than waiting for help. 300 PSI even at very low volume of compression will fill a tire, and having the option would sure be nice.
