Apple wins a Project Titan Patent related to an Advanced Nighttime Sensing System with 3X the Power of Traditional Headlights


Today the U.S. Patent and Trademark Office officially granted Apple a patent that relates to Project Titan and more specifically to multi-modal sensing for nighttime autonomous driving object detection and recognition. The superiority of the new system over traditional headlights when driving at night is going to save a lot of lives in the future.

Overall Apple's invention covers implementations of multi-modal sensing for nighttime autonomous driving object detection and recognition.

Apple explains that nighttime or low-light environments present challenges for automated vehicle control systems. For example, the illumination level provided by headlights on a vehicle at night may be limited by laws or regulations, which may in turn limit the effective range of a visible spectrum sensor (e.g., a camera) used for detecting objects in or near the path of the vehicle.

Having a limited effective range (e.g., about 60 meters = 180 feet) for detecting and or classifying objects can reduce safety and/or reduce the speed at which the vehicle can travel safely.

A combination of multiple complimentary image sensing technologies may be employed to address the challenges of nighttime or low-light environment object detection and classification. For example, there may be looser or no restrictions on the illumination level of a near infrared illuminator mounted on a vehicle.

A near infrared sensor with a near infrared illuminator can be configured to capture high resolution image information about objects in or near a path of the vehicle out to a significantly longer range (e.g., 200 meters = 600 feet) from the vehicle.

The techniques described in Apple's patent application may provide improvements over prior computer vision systems for automated vehicles. Some implementations may increase the effective range at which objects in or near the path of a vehicle may be detected and classified. Some implementations may more accurately classify objects in a low-light environment. Safety of an automated vehicle control system may be improved and/or the maximum safe speed in low-light environments may be increased.

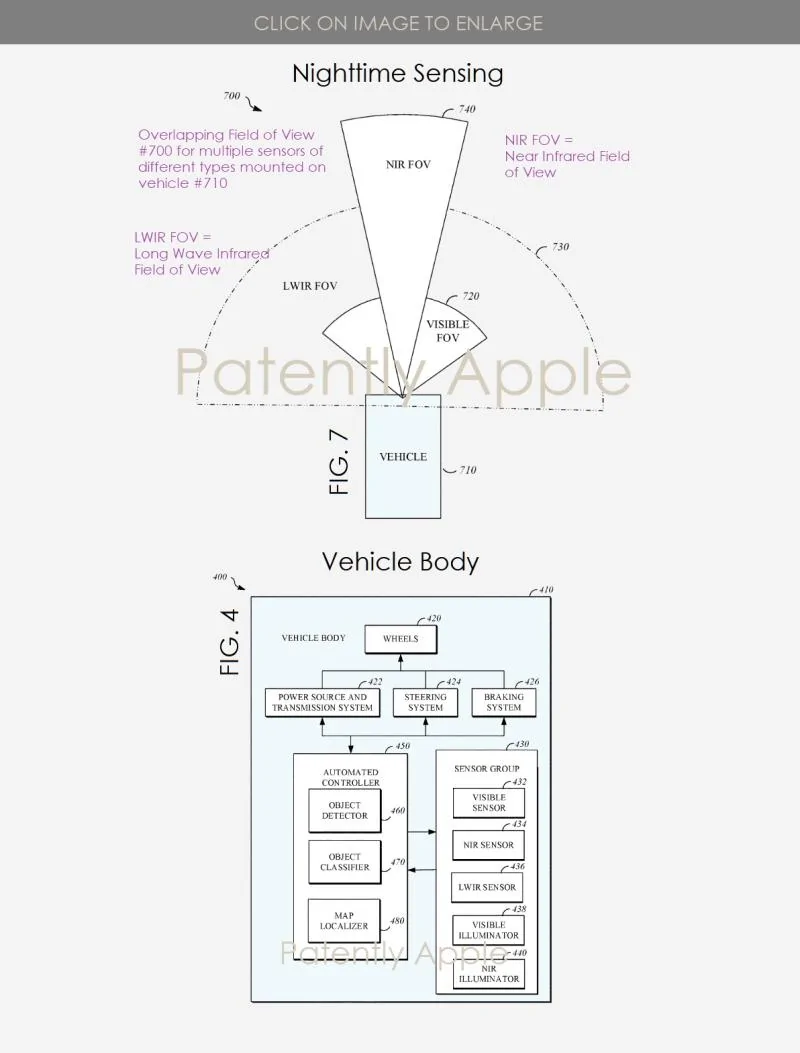

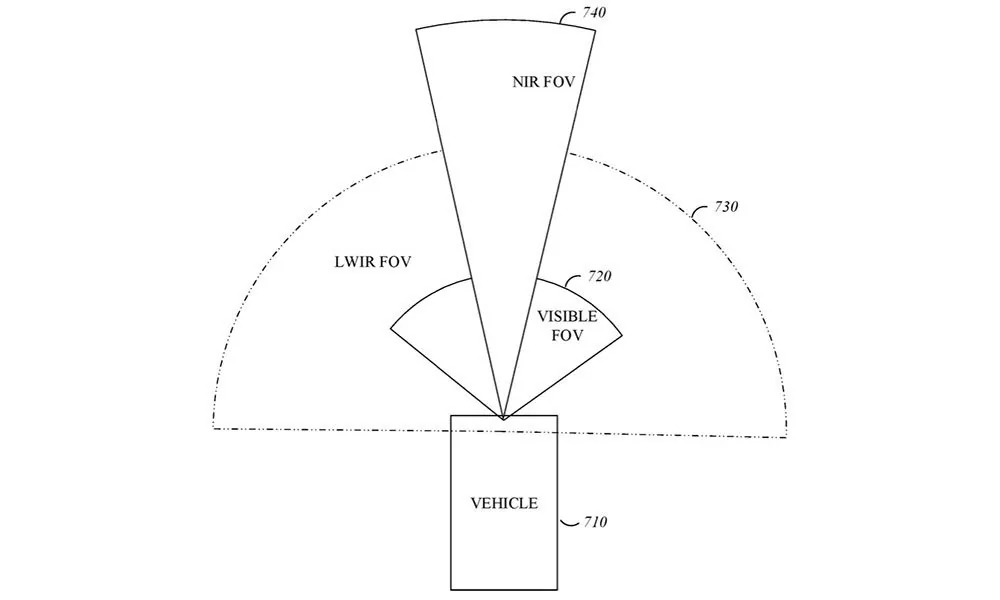

Apple's patent FIG. 4 below is a block diagram of an example of a vehicle configured for multi-modal sensing for nighttime autonomous object detection and recognition; FIG. 7 is a diagram of an example of overlapping fields of view for multiple sensors of different types mounted on a vehicle.




Yesterday the US Patent & Trademark Office published a patent application from Apple relating to Project Titan and more specifically to multi-modal sensing for nighttime autonomous driving object detection and recognition. The superiority of the new system over traditional headlights when driving at night is going to save a lot of lives in the future.

Some automated systems gather process large quantities of sensor data to identify objects in the surrounding environment. The processing of sensor data is often subject to a real-time constraint to facilitate navigation and/or robust control of the automated system. This is what Apple's invention is trying to improve upon.

Overall Apple's invention covers implementations of multi-modal sensing for nighttime autonomous driving object detection and recognition.

Apple explains that nighttime or low-light environments present challenges for automated vehicle control systems. For example, the illumination level provided by headlights on a vehicle at night may be limited by laws or regulations, which may in turn limit the effective range of a visible spectrum sensor (e.g., a camera) used for detecting objects in or near the path of the vehicle.

Having a limited effective range (e.g., about 60 meters = 180 feet) for detecting and or classifying objects can reduce safety and/or reduce the speed at which the vehicle can travel safely.

A combination of multiple complimentary image sensing technologies may be employed to address the challenges of nighttime or low-light environment object detection and classification. For example, there may be looser or no restrictions on the illumination level of a near infrared illuminator mounted on a vehicle.

A near infrared sensor with a near infrared illuminator can be configured to capture high resolution image information about objects in or near a path of the vehicle out to a significantly longer range (e.g., 200 meters = 600 feet) from the vehicle.

This may enable earlier detection and classification of objects as the vehicle moves and improve safety and/or maximum speed. Near infrared illuminators may project near infrared light in a relatively narrow field of view (e.g., a 30-degree cone).

Although their range may be relatively limited, visible spectrum sensors can provide high resolution image data in multiple color channels (e.g., red, green, and blue). Visible spectrum sensors also may provide a wider field of view (e.g., a 120-degree field of view) of the path in front of a vehicle.

Long wave infrared sensors (LWIR) capture naturally occurring thermal radiation from objects in the environment around a vehicle and therefore do not rely on an illuminator. The effective range of a long wave infrared sensor may be limited by the sensor resolution and the resolution requirements for object detection and/or classification.

A long wave infrared sensor, which may include an array of component sensors, may provide a wide field of view around the vehicle (e.g., a 180-degree field of view). Long wave infrared sensors may provide images of objects in the environment that are of relatively low resolution.

In some implementations, objects detected based on low resolution image data from a long wave infrared sensor are classified by adjusting control parameters for other sensing modalities and/or image processing resources to focus computer vision resources of the vehicle on a region of interest associated with the detected objects.

For example, an integration time, an aperture size, a filter, or a gain for a sensor (e.g., a near infrared sensor or a visible spectrum sensor) may be adjusted to enhance a portion of a captured image associated with a region of interest.

For example, a power level or a field of view for an illuminator (e.g., a near infrared illuminator or a visible spectrum illuminator) may be adjusted to enhance a portion of a captured image associated with a region of interest. For example, a computational control parameter (e.g., a resolution used for image processing or a count of image processing passes) may be adjusted and applied to an image portion associated with a region of interest.

For more details, you could review our original patent application report here or review Apple's granted patent 10,949,679.


SOURCE: Patently Apple



Apple Car could see three times farther at night by using infrared headlights




Infrared headlights could allow an Apple Car autonomous driving system to “see” three times farther at night than a human driver.

Apple was today granted a patent for the night vision system that combines visible light, near-infrared (NIR), and long-wave infrared (LWIR) sensors for a comprehensive view of what lays ahead …

Apple’s patent explains that self-driving cars have the same limitations as human drivers when it comes to seeing at night, citing the typical 60-meter (200 feet) range of car headlights.

Nighttime or low-light environments present challenges for automated vehicle control systems. For example, the illumination level provided by headlights on a vehicle at night may be limited by laws or regulations, which may in turn limit the effective range of a visible spectrum sensor (e.g., a camera) used for detecting objects in or near the path of the vehicle. Having a limited effective range (e.g., about 60 meters) for detecting and or classifying objects can reduce safety and/or reduce the speed at which the vehicle can travel safely.
Apple notes that the law limiting the power of headlights applies only to visible light, so infrared ones could be more powerful.

A combination of multiple complimentary image sensing technologies may be employed to address the challenges of nighttime or low-light environment object detection and classification. For example, there may be looser or no restrictions on the illumination level of a near infrared illuminator mounted on a vehicle. A near infrared sensor with a near infrared illuminator can be configured to capture high resolution image information about objects in or near a path of the vehicle out to a significantly longer range (e.g., 200 meters) from the vehicle. This may enable earlier detection and classification of objects as the vehicle moves and improve safety and/or maximum speed. Near infrared illuminators may project near infrared light in a relatively narrow field of view (e.g., a 30-degree cone).
The patent notes that visible light provides the highest resolution; near-infrared provides the greatest range; and long-wave infrared provides the widest field of view. Combining input from all three would give the car the best possible model of what is in front of and around it at night.


Some existing cars use infrared imaging to provide additional range to the driver’s view of the road ahead, highlighting pedestrians and other hazards that lay beyond the range of the headlights. The system shown above is a Porsche one.

Apple’s car plans are still unclear, though if the company intends to sell a complete vehicle, one existing manufacturer warned the company that it will need to be ready to provide 40 years of support. Apple typically declares products obsolete five to seven years after they are discontinued, at which point no further parts or repair services are offered.

Via Patently Apple


SOURCE: 9to5mac.com
