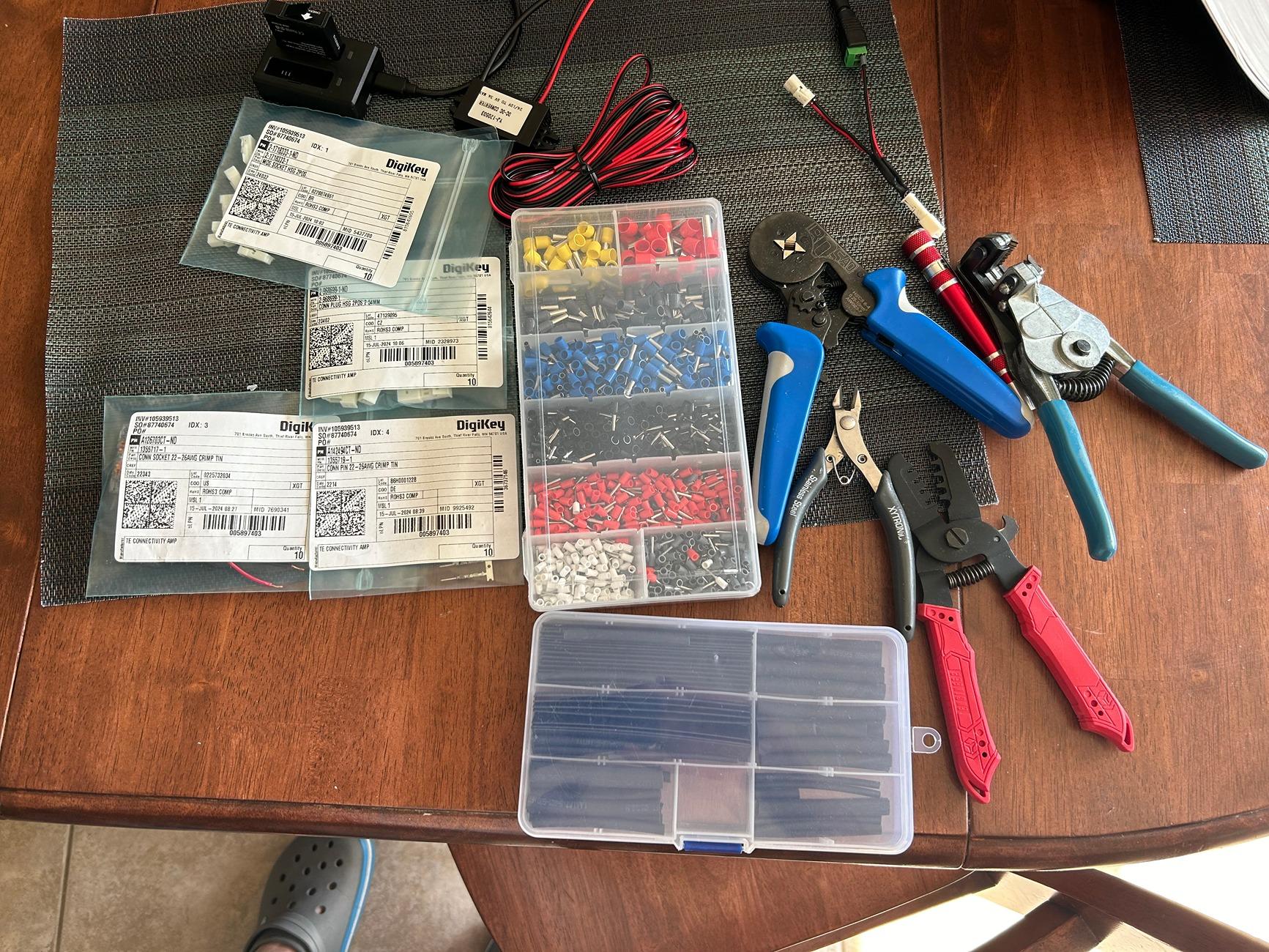

I followed the everyday chris video to remove the mirror and to open the autopilot housing. Inside there is a red and black wire 2 pin connector. I found the connector in the tesla schematic and ordered parts from digikey to make an inbetween connector. This connector then "T"'s the red and black signals to a DC barrel jack. This way if there is an issue in the future I can totally disconnect the power and voltage step down. Here are some photos of the process.

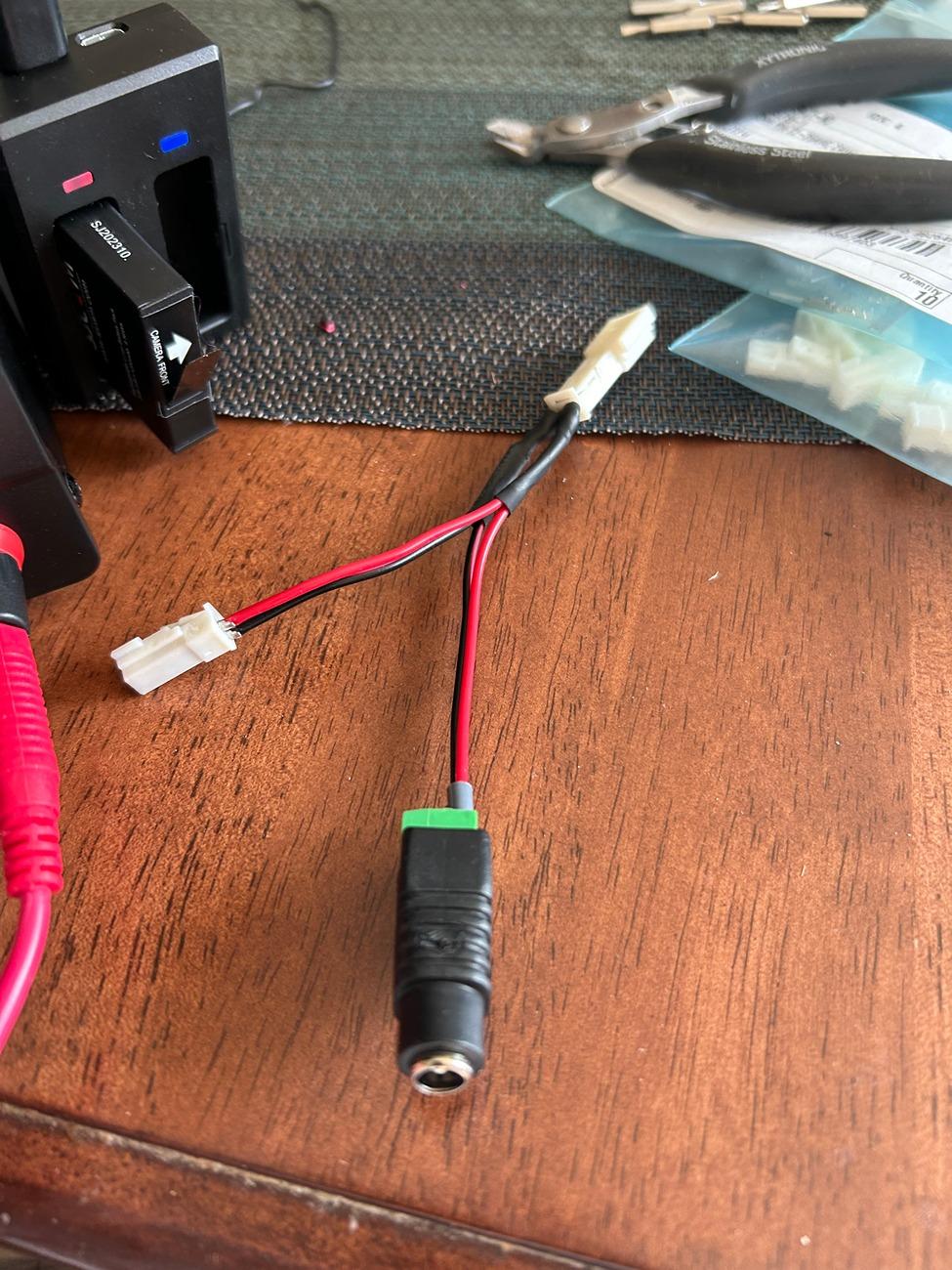

Below is the cable assembly. It is about 2-3 inches in length which was just enough to exit the housing cleanly.
Tesla Cybertruck CarPlay Rearview Mirror - Power Tap IMG_1107


Tesla Cybertruck CarPlay Rearview Mirror - Power Tap IMG_1106


Tesla Cybertruck CarPlay Rearview Mirror - Power Tap IMG_1113

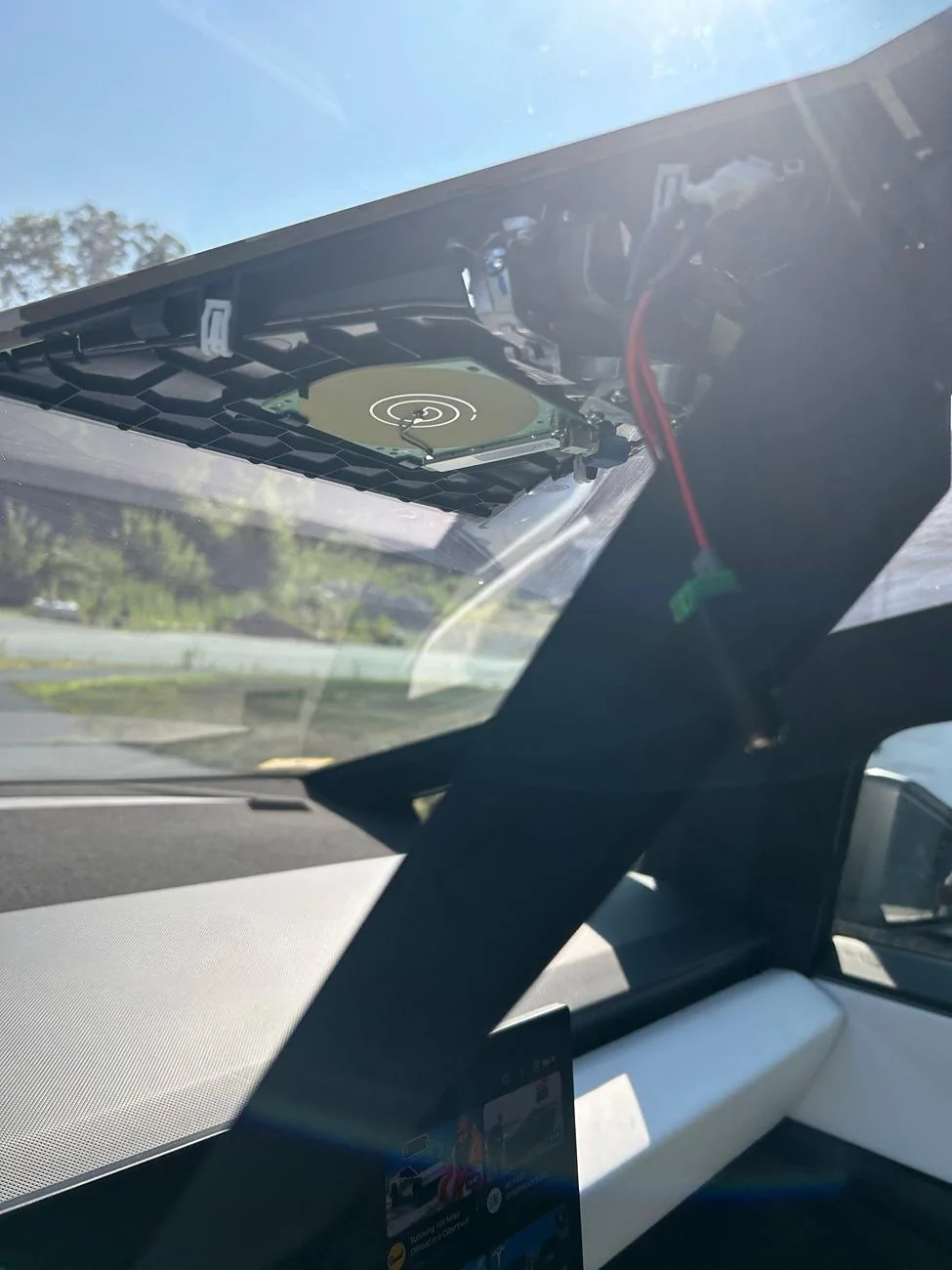

I disconnected the red/black wire housing from the clip in the triangle cover. Then put the dongle inbetween the two connectors. Then I closed it up without pinching any wires.
Tesla Cybertruck CarPlay Rearview Mirror - Power Tap IMG_1139

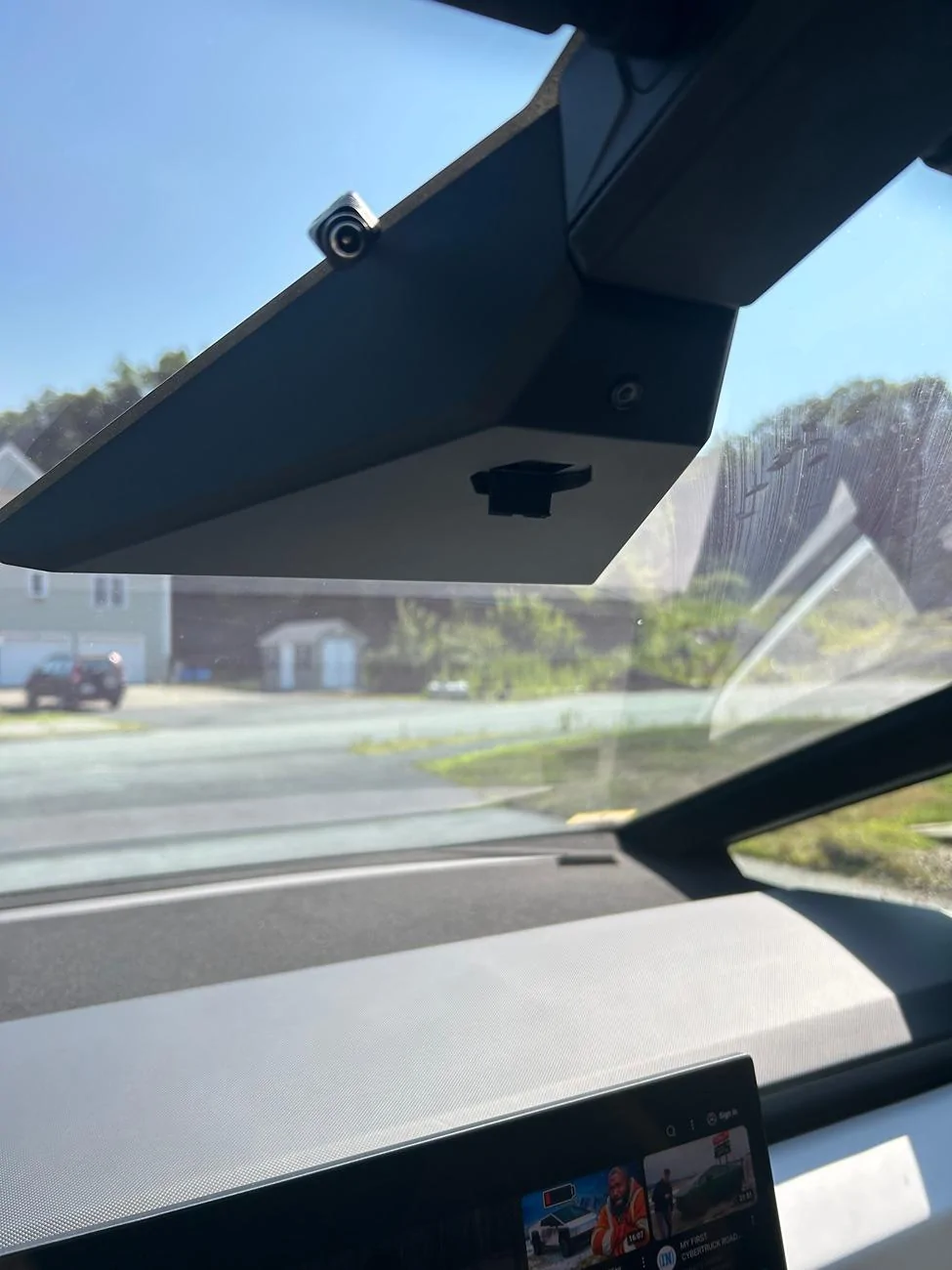

The DC barrel jack sticks out, I can use some black electrical tape or 3M tape to secure it if it bothers me. So far I don't notice it.

Tesla Cybertruck CarPlay Rearview Mirror - Power Tap IMG_1140

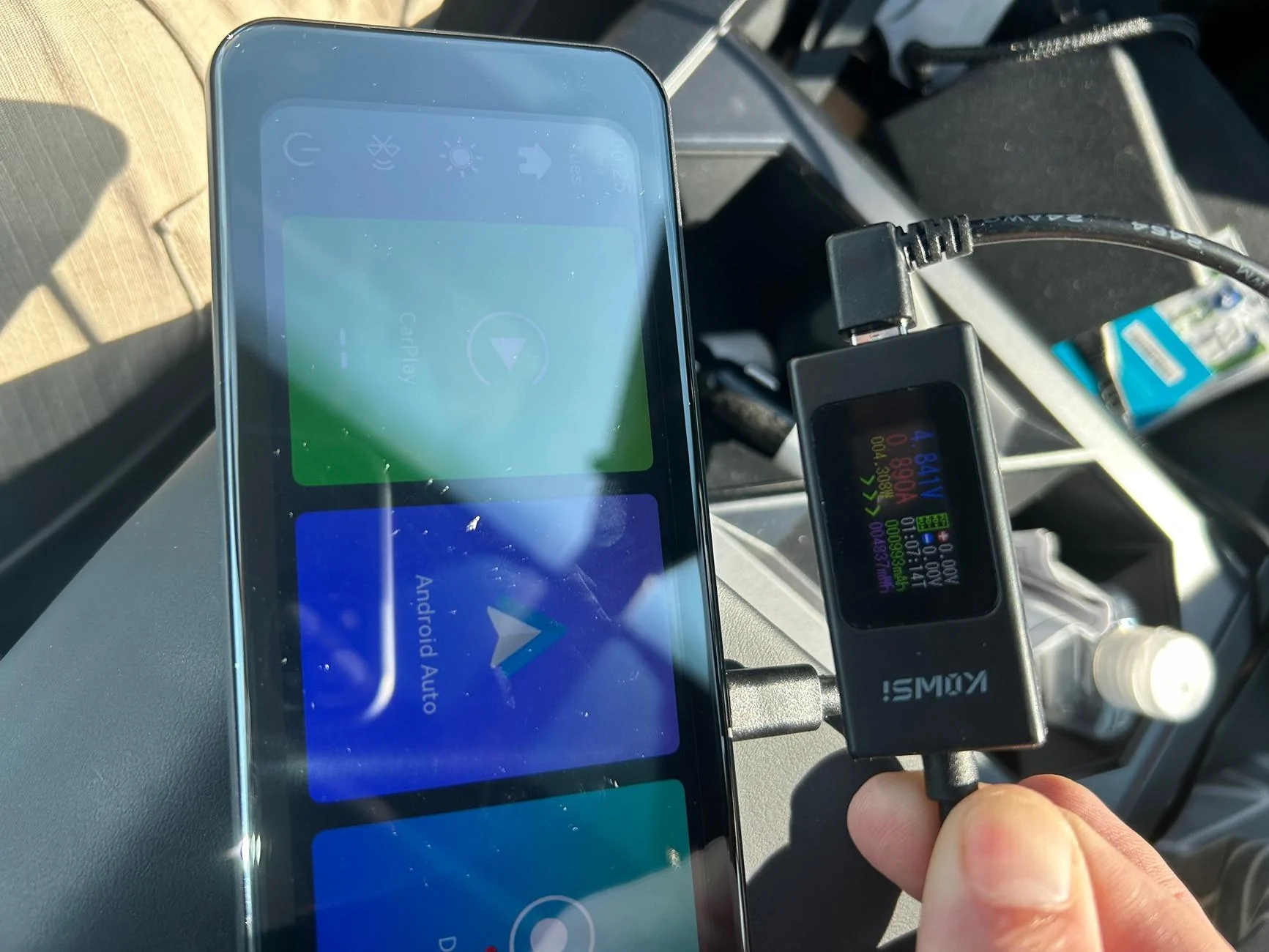

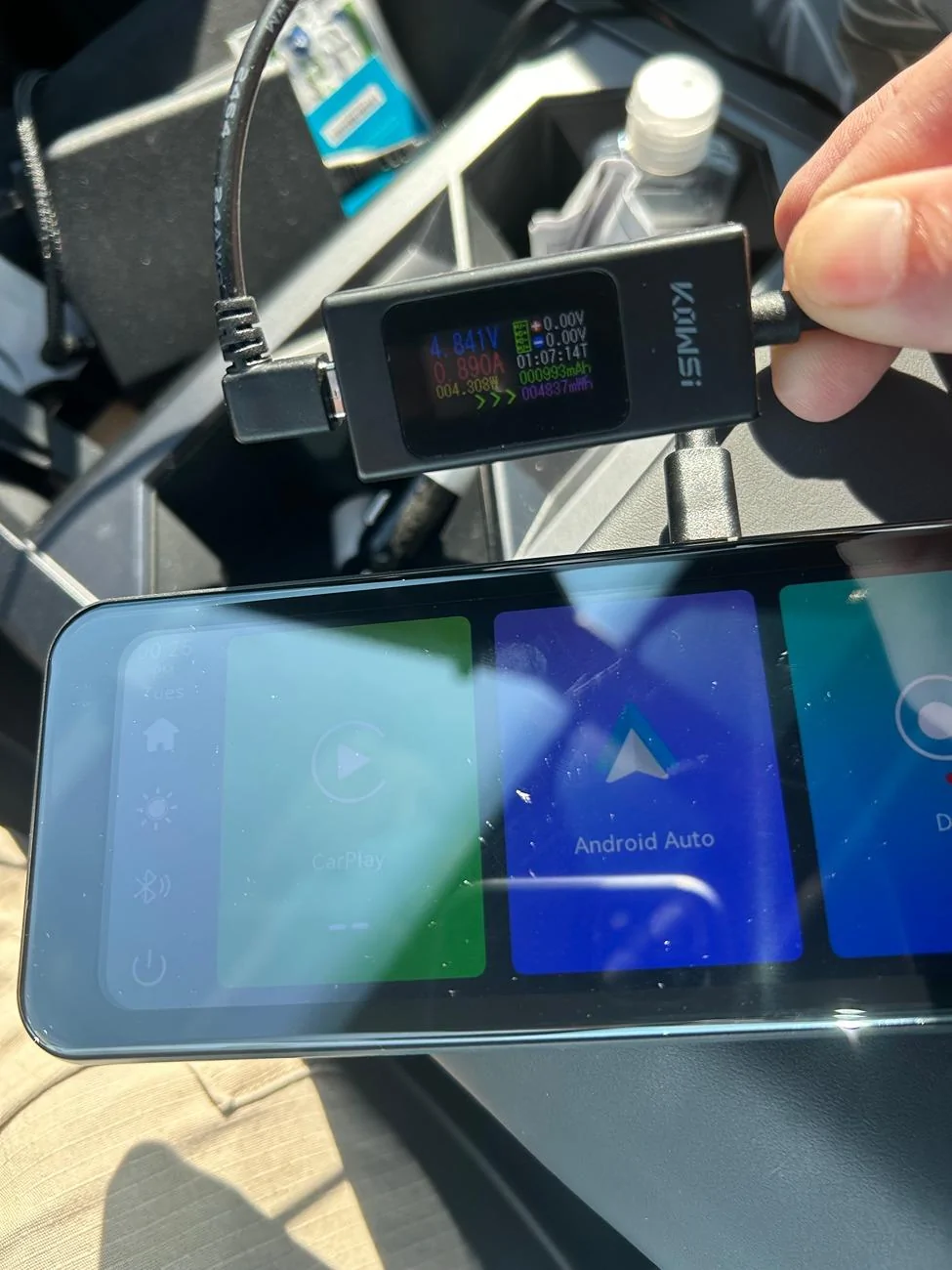

I tested the power to the Jomise G814-pro rearview mirror. It uses 0.8 to 1 Amp at 5v.

Tesla Cybertruck CarPlay Rearview Mirror - Power Tap IMG_1141

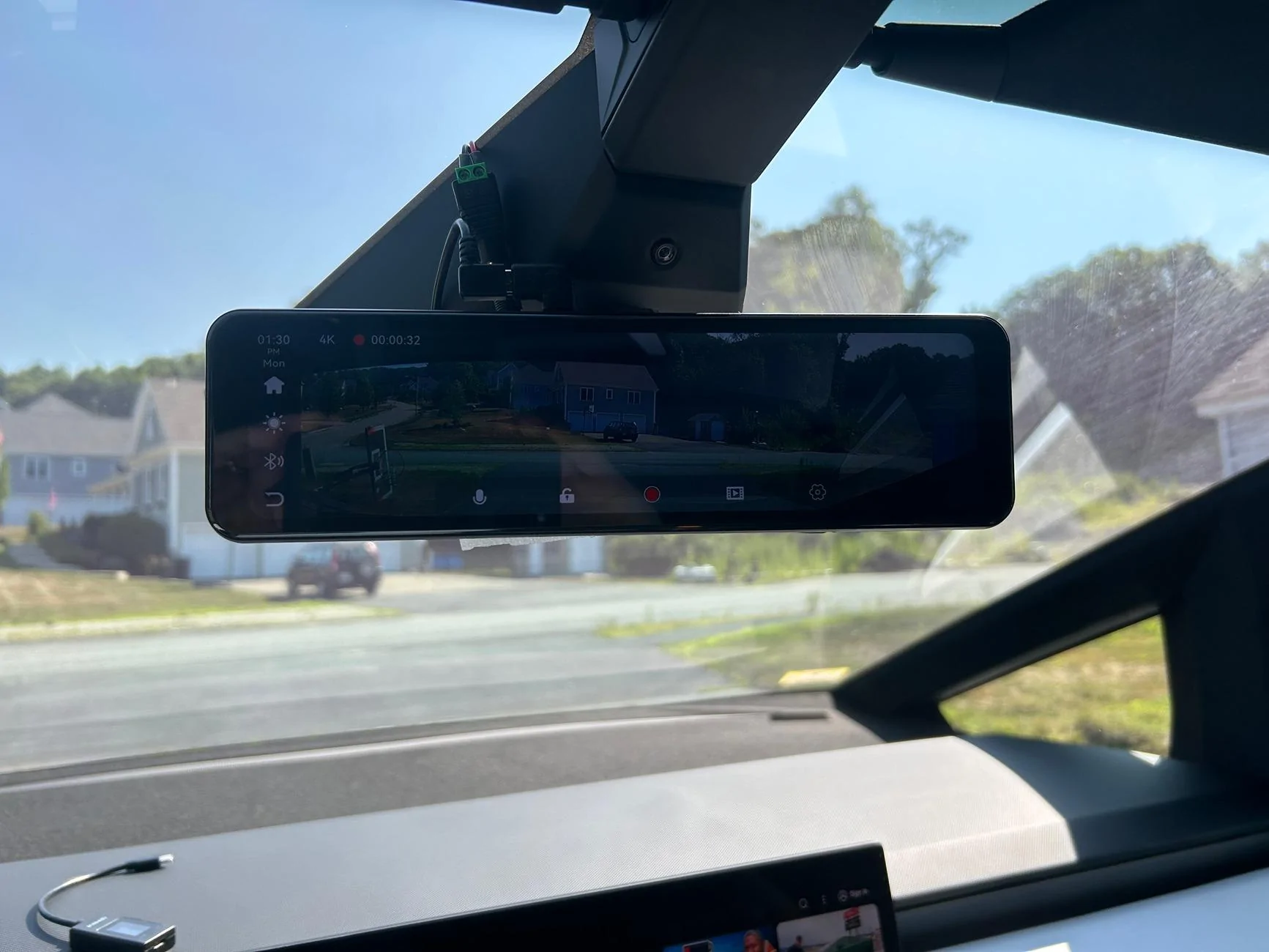

The jomise has some straps to hold it onto the mirror. However there is a little gap behind it. So I used some foam padding that came with the jomise to cushion it and prevent rattles. I wrapped the excess cord around the mirror and used a 90 degree usb-c to keep it out of the line of sight of the autopilot mirror.


Tesla Cybertruck CarPlay Rearview Mirror - Power Tap IMG_1142
Tesla Cybertruck CarPlay Rearview Mirror - Power Tap IMG_1143

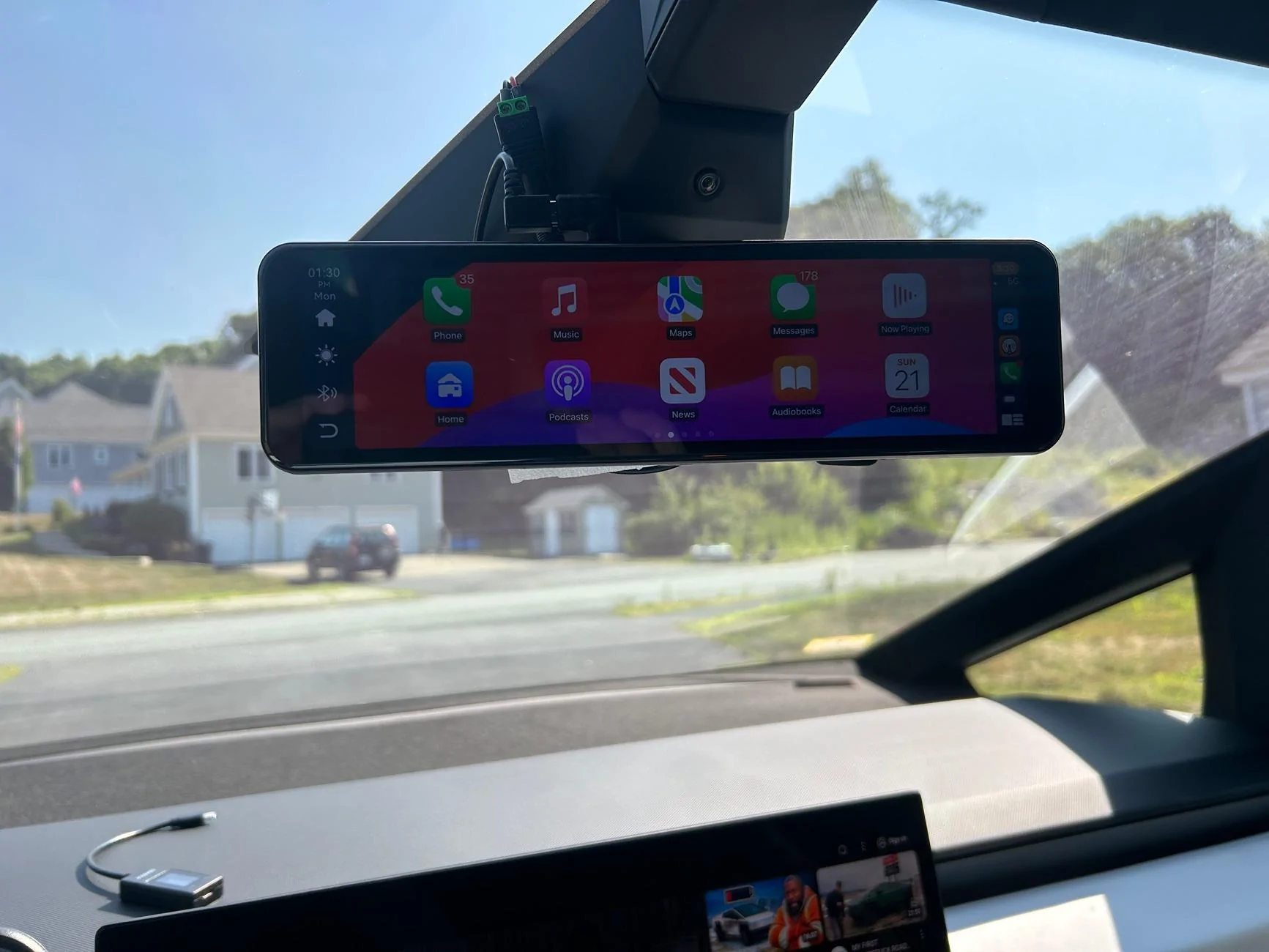

The screen is pretty good. When it powers on it normally enters Car Play and the last app you are using. I like to set it on Waze to be alerted of traffic data along my route. There is a rearview camera that plugs into the mirror which I need to figure out where to route next. I am thinking of placing on on the top trim of the truck bed (the piece that is removed when you install the cybertent). Any tips or tricks on how best to route this please let me know.

Tesla Cybertruck CarPlay Rearview Mirror - Power Tap IMG_1141
Sponsored


OP
OP

shuakin

Member
First Name
Josh
Joined
May 13, 2024
Threads
1
Messages
19
Reaction score
10
Location
Metrowest Boston
Vehicles
Model 3, Model Y AWD, Cybertruck AWD
Occupation
Engineer
Country flag
Just went for a first drive with this. The mirror appeared to lose power during the drive. So 1 Amp draw may not be capable on this circuit.

OP
OP

shuakin

Member
First Name
Josh
Joined
May 13, 2024
Threads
1
Messages
19
Reaction score
10
Location
Metrowest Boston
Vehicles
Model 3, Model Y AWD, Cybertruck AWD
Occupation
Engineer
Country flag
I am suspecting the issue is with the DC-DC converter I am using. I am going to try other versions.


nasg

Active member
First Name
Nas
Joined
Apr 6, 2024
Threads
2
Messages
44
Reaction score
41
Location
Detroit
Vehicles
Beast
Country flag
really interesting, let us know how it progresses.



OP
OP

shuakin

Member
First Name
Josh
Joined
May 13, 2024
Threads
1
Messages
19
Reaction score
10
Location
Metrowest Boston
Vehicles
Model 3, Model Y AWD, Cybertruck AWD
Occupation
Engineer
Country flag

AO-Pete

Well-known member
Site Sponsor
First Name
Pete
Joined
May 6, 2024
Threads
9
Messages
250
Reaction score
335
Location
Dallas/Fort Worth
Website
abstractocean.com
Vehicles
2024 CT, 2024 Model 3 Highland, 2022 R1T
Occupation
Founder & CEO
Country flag

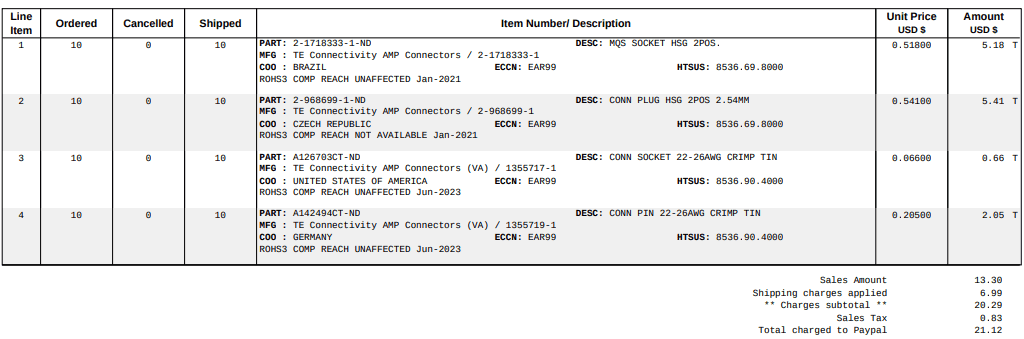

@shuakin would you mind sharing the part # for the white plug & socket?



OP
OP

shuakin

Member
First Name
Josh
Joined
May 13, 2024
Threads
1
Messages
19
Reaction score
10
Location
Metrowest Boston
Vehicles
Model 3, Model Y AWD, Cybertruck AWD
Occupation
Engineer
Country flag
Thr mirror voltage is not enough to work with Review Camera mirror

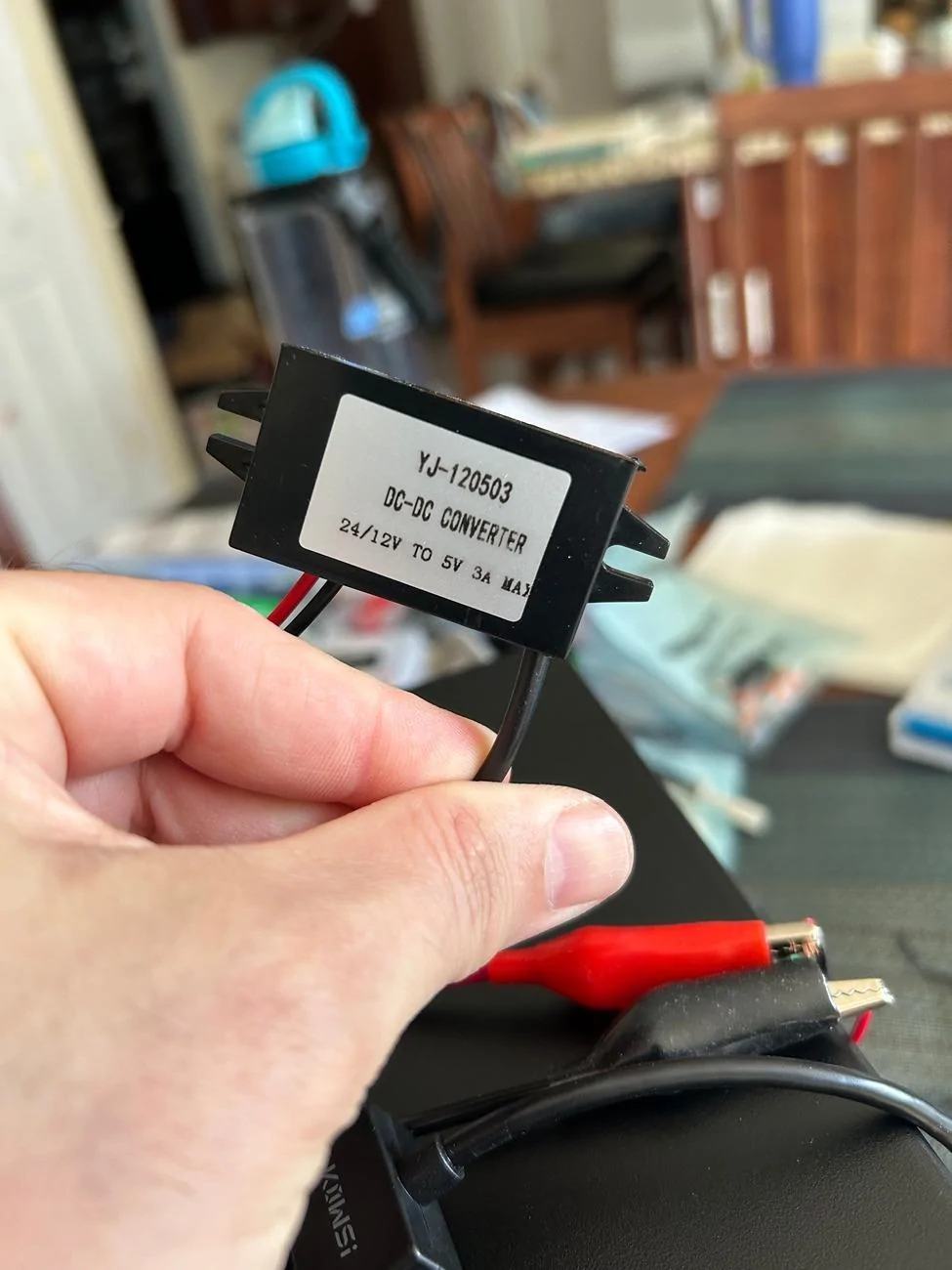

Yes, this may be the case, I am going to try a better step down voltage translator to see if it cleans it up. The first one I had was a generic one.


FuryEV

Well-known member
Joined
Jun 15, 2024
Threads
42
Messages
239
Reaction score
277
Location
NC
Vehicles
Cybertruck AWD and Cybertruck Beast
Country flag
Yes, this may be the case, I am going to try a better step down voltage translator to see if it cleans it up. The first one I had was a generic one.
I got tired of messing with it. and just did the
OBD2 to Cigarette Lighter
works perfectly

OP
OP

shuakin

Member
First Name
Josh
Joined
May 13, 2024
Threads
1
Messages
19
Reaction score
10
Location
Metrowest Boston
Vehicles
Model 3, Model Y AWD, Cybertruck AWD
Occupation
Engineer
Country flag
I got tired of messing with it. and just did the
OBD2 to Cigarette Lighter
works perfectly
Does power turn off when you leave the car when using OBD2? or do you have to manually turn off the load?
