CT as teardrop

John Forde

Well-known member
First Name
John
Joined
Jun 29, 2020
Messages
63
Reaction score
89
Location
Minnesota
Vehicles
Promaster van
Country flag
This is my primary criteria for making CT campable:
A 6.5' sleeping space, 2' tall at ankles and 3' tall at head,
plus a Porta potty space 4.5' tall, not near the sleeper's head.
The CT alone cannot do this. The sleeping space needs a 6" mattress making the clearance 1.5' at the ankles and 2.5 ' at the head. Clausterphobic.

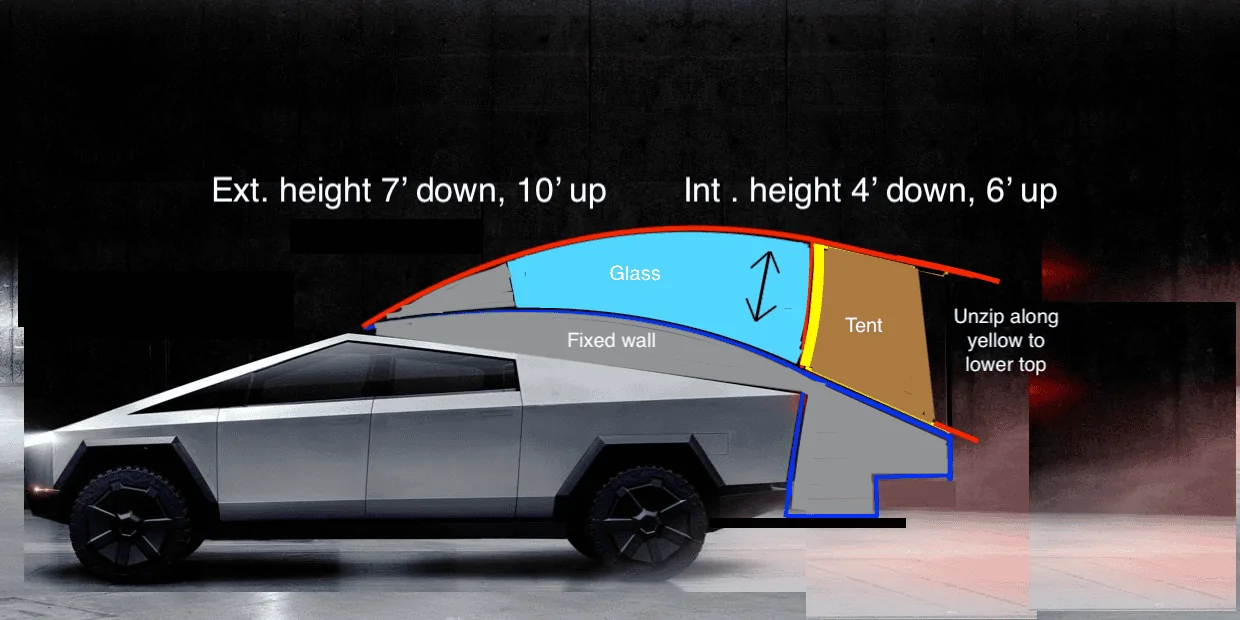

Here is a new design with a simple sleeving mechanism, solid except for the tent on the tail. It has the advantage of 4' tall usable space even while lowered, with stand up height when raised. Easily made push button. Could be electro - hydraulic or even manual.
It has excellent eye ball aerodynamics, and fits in a 7' parking garage. The tent area can house the porta potty.
5-8% loss in range?
CT Sleeving Tent tail 7' ext, 6' int July 22,2021.png

Last edited:
OP
OP

John Forde

Well-known member
First Name
John
Joined
Jun 29, 2020
Messages
63
Reaction score
89
Location
Minnesota
Vehicles
Promaster van
Country flag

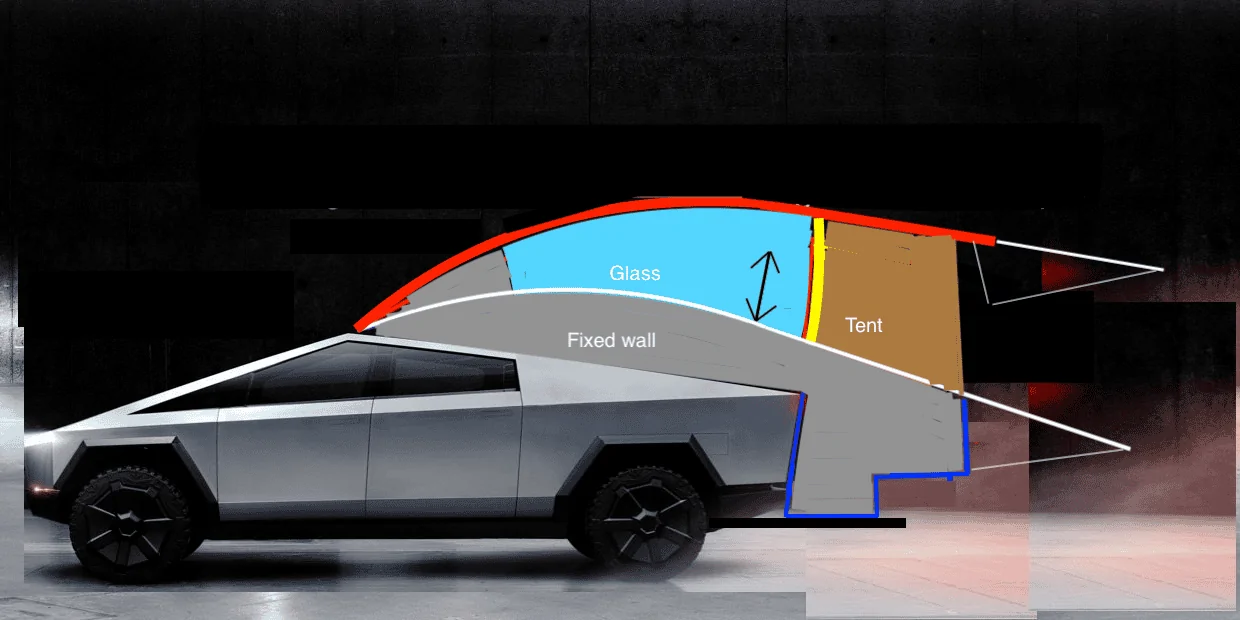

Slightly taller draft, with whale tail.
CT Sleeving Tent tail 84%22 : 117%22 ext, 55%22 :85%22 int .png
