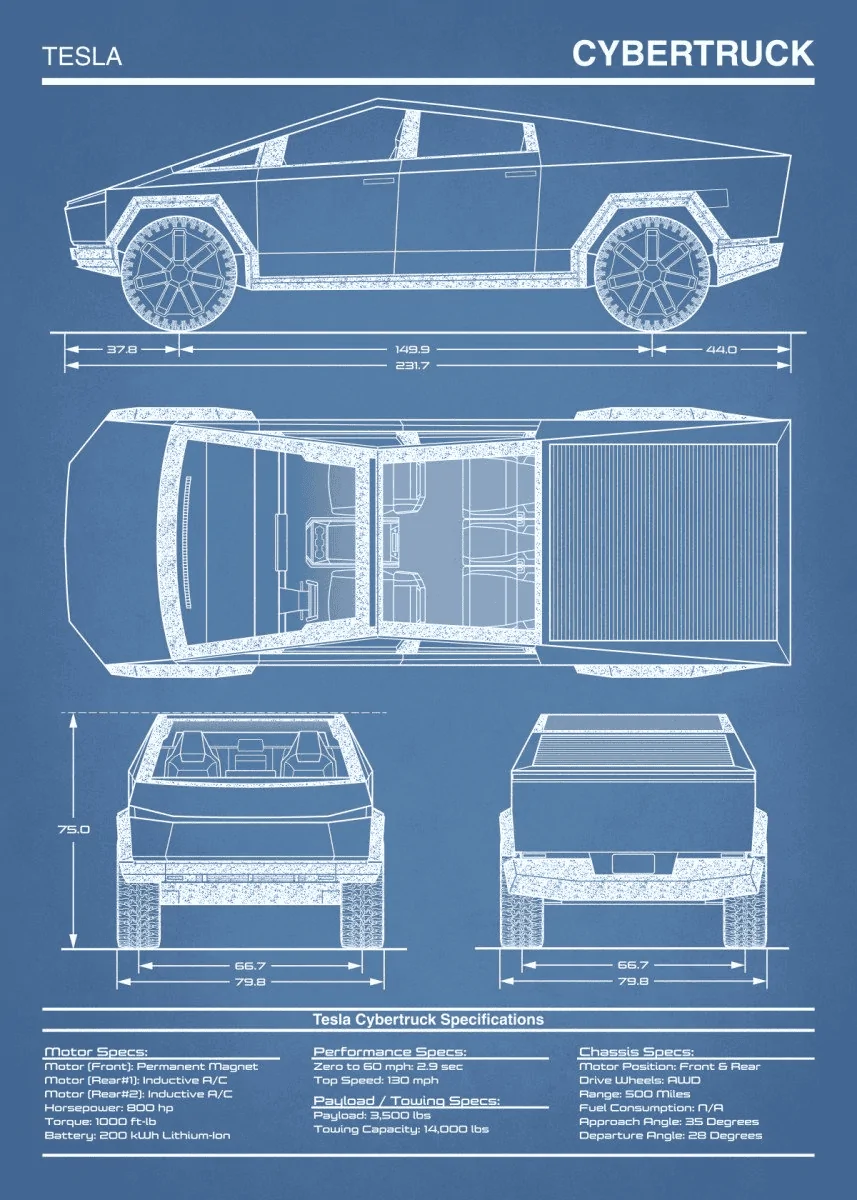

I was looking over the blueprint below and something struck me that I had not noticed before.

Look at how much space is between the steering yoke and the frunk.....that's a HUGE dashboard and a lot wasted space. Do you think the final design will remove some of this?
