CyberTruck design inspired by...

hridge2020

Well-known member
First Name
Henry
Joined
Dec 4, 2019
Threads
139
Messages
574
Reaction score
987
Location
Central Coast CA
Vehicles
Tesla
Occupation
Rocket/Missile/Spacecraft/Air Defense Scientist
Country flag
Where did the design derive from?

CYBER TRK IDEA sm.jpg



Delusional

Well-known member
First Name
Phil
Joined
Dec 5, 2019
Threads
8
Messages
146
Reaction score
249
Location
Pittsburgh
Vehicles
F-150
Occupation
Construction
Country flag

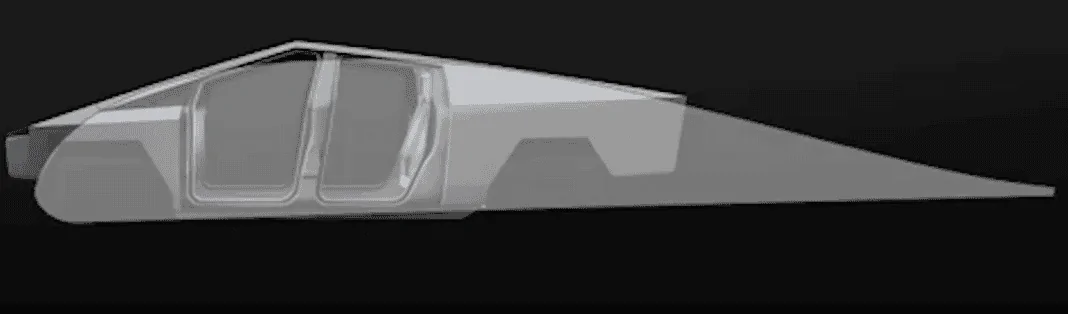

CYBRTRK vs Airfoil, from YouTuber "Solving the Money Problem"
It's just about as aerodynamic as a vehicle can get, at least in this perspective.

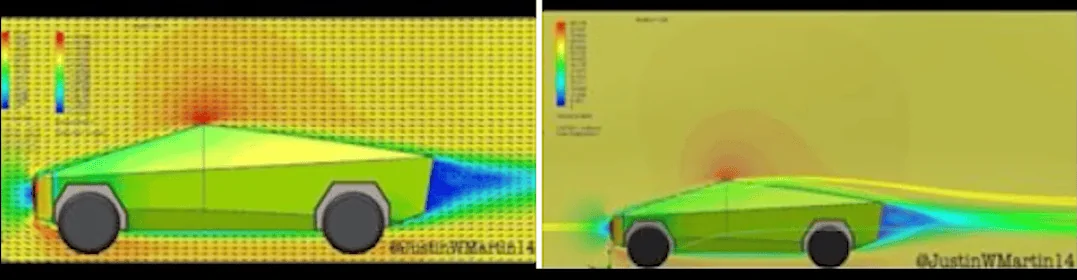

Twitter User JustinWMartin14 plugged the CYBRTRK into an aerodynamic simulator.
Right at the top of the triangle is the most disruptive point. He said the wheels are almost completely taken out of the aerodynamic equation, and had to triple check his work because it didn't seem to add up



Cybercarlson

Well-known member
First Name
T.C.
Joined
Jun 3, 2020
Threads
0
Messages
89
Reaction score
131
Location
Germany
Vehicles
chevy K1500 decades ago, M3, MY, New Beetle
Country flag
If they put some folding flaps at the rear ( like on Class8 trailers behind the Tesla Semi) the turbulent (blue) arrea would be even less.

OP
OP
hridge2020

hridge2020

Well-known member
First Name
Henry
Joined
Dec 4, 2019
Threads
139
Messages
574
Reaction score
987
Location
Central Coast CA
Vehicles
Tesla
Occupation
Rocket/Missile/Spacecraft/Air Defense Scientist
Country flag
vehicles like fighter jets

Speaking about Tesla’s inspirations for the Cybertruck, Franz noted that the electric car maker looked to vehicles like fighter jets as a basis for the all-electric pickup truck. This statement definitely appears to ring true, as the steel pickup, especially when it is carrying Tesla’s all-electric ATV on its bed, resembles the profile of the Lockheed F-117 Nighthawk, a stealth fighter plane that was in service from October 1983 to April 2008.




CYBERBACKPACK
