This is obviously ugly as sin but its the best Photoshop skills I can muster up. This demonstrates the solar area potential of the Cybertruck:

Tesla Cybertruck Cybertruck Solar Roof + Cover Potential [Photoshop] ct-solar


Does anyone have any rough measurements we can use to generate a usable surface area? A typical residential panel is 66"x41" and can produce around 400W at around 22.8% efficiency. Just ballparking I think at least 800W is achievable here. Thoughts?
Sponsored



nitrohuck

Well-known member
Joined
Feb 15, 2021
Threads
9
Messages
128
Reaction score
378
Location
Colorado Springs, CO
Vehicles
Tri Motor Cybertruck
Country flag
nice job, doesn't really look all that ugly, especially when you consider the potential utility of it

As someone who used to install residential and commercial solar, I'd say that's easily the footprint of two PV panels


Throwcomputer

Well-known member
Joined
Jul 9, 2021
Threads
26
Messages
1,168
Reaction score
2,957
Location
Staten Island, NY
Vehicles
07 Ridgeline, Vintage Vespas, 02 Harley Sportster
Occupation
TV & Film
Country flag
The space is inside a 8x12 foot rectangle so it's a bit more than two panels.

-Crissa

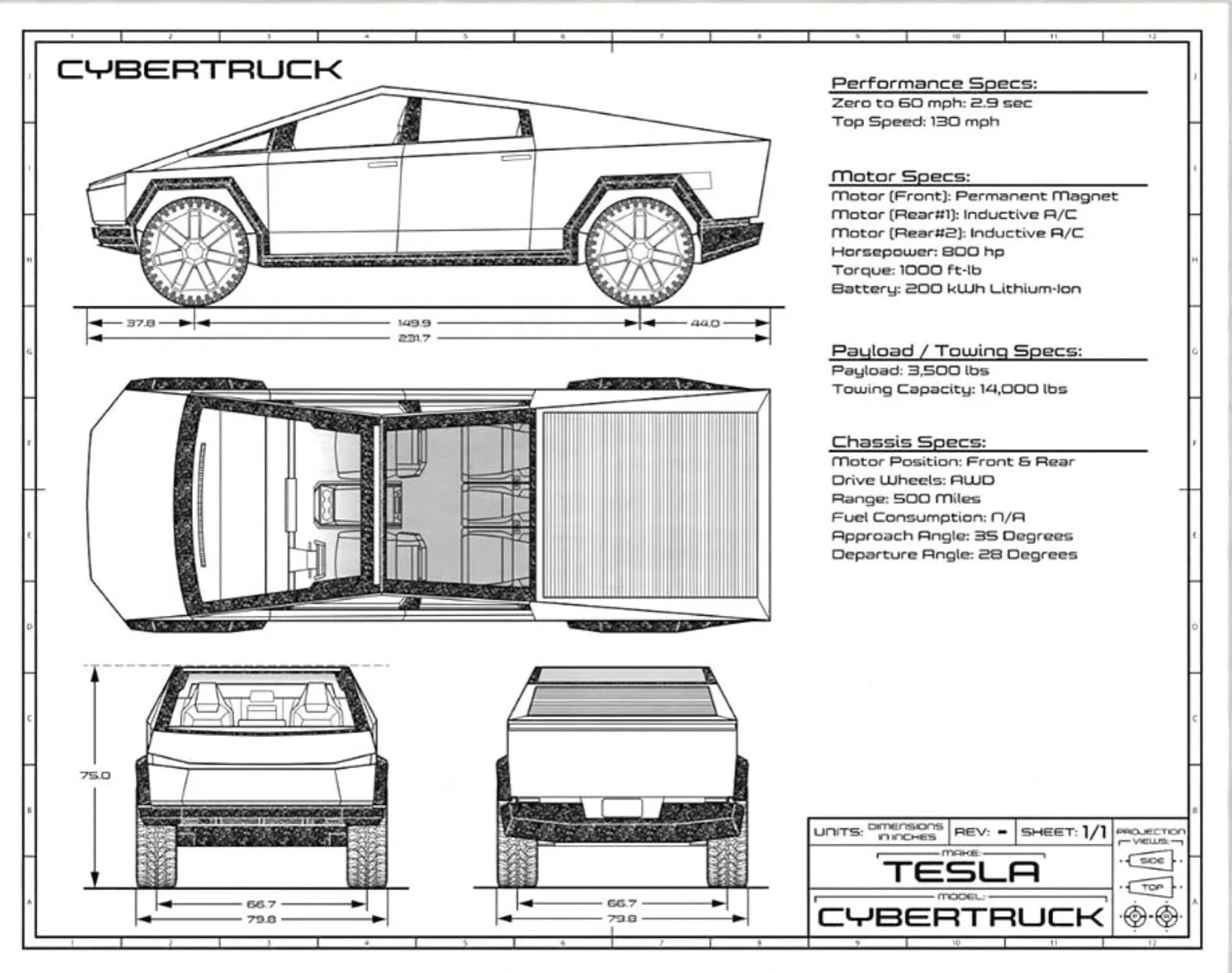

I know you had diagrams of the bed measurements but I can't find them right now. What was the estimated interior width of the bed?



Throwcomputer

Well-known member
Joined
Jul 9, 2021
Threads
26
Messages
1,168
Reaction score
2,957
Location
Staten Island, NY
Vehicles
07 Ridgeline, Vintage Vespas, 02 Harley Sportster
Occupation
TV & Film
Country flag
Haha. Love the stick figure and the spare tire mount.

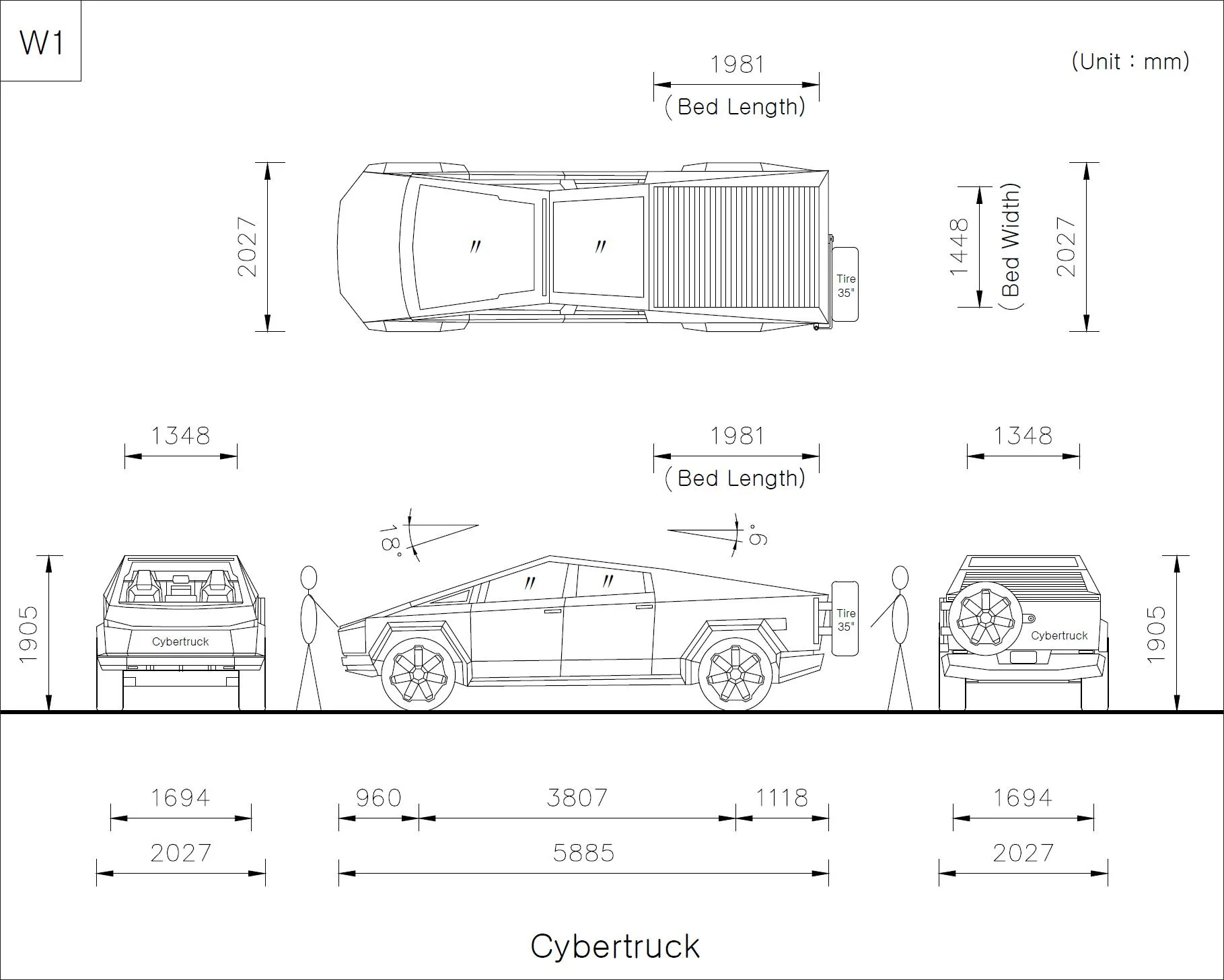

That looks to be the prototype from 2019 which is the best definitive measurements we have up to this point, but I can't see the bed width having drastic difference aside from the plastic bed liner which looks like it's got some thiccness to it. :)
