I spent a fair amount of time capturing Service Mode screens from Kyle's (Out of Spec Reviews) and Francie's video.

I tried to pause/rewind and frame-by-frame (, and . key hits) to get to a clearest view I could find. Didn't seem right to keep them to myself! So many nuggets in there.

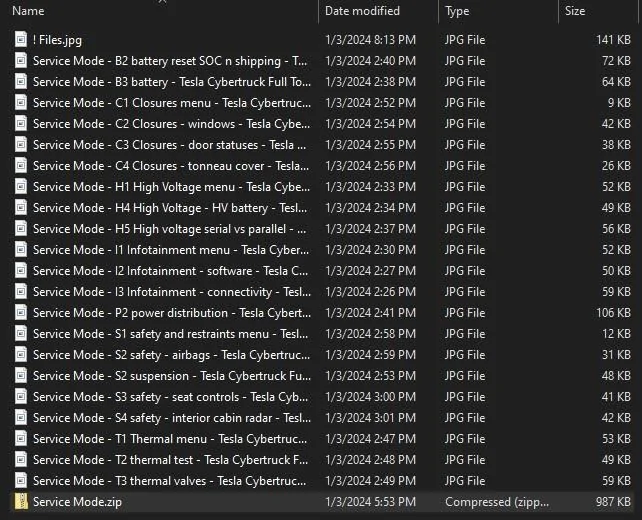

See the attached ZIP file (also attached below).

I attempted to name the beginning of the files to correspond with the menu/submenu item.
[Update 1: 3-Jan-2024 8:48p added a variety of text in front of each picture and in some cases I added addition details ie. how software update works, Supercharging support 400v/800v DPDT (Double-Pole Double-Throw)

Tesla Cybertruck Full Tour! Exposing All Details - Service Mode, Wiper, Powertrain, & Much More


Cut-n-paste from the Youtube video description.
Chapters 0:00 Hello & Welcome 01:54 First thoughts & what’s to come next for Cybertruck Videos! 04:20 Disclaimer 06:01 Exterior first look 09:48 Front trunk, trim, & price 10:29 Tires 12:30 Windshield wiper 14:26 Battery details 16:56 Motor options / Drivetrain 19:43 Power commentary 20:15 Rear differential lockers 22:56 Dimensions & Rear steer 24:01 Tailgate / Tonneau cover / Truck bed 28:28 Storage & tie downs 31:30 Rear power outlets 33:17 Range extender 34:16 Cybertruck charging & 800V architecture (nerdy) 39:04 Can it CCS charge? 43:11 Francie’s First Impressions 43:50 Steer by wire 44:11 Thermal system 47:08 Air suspension 50:28 Final thoughts on the exterior 51:31 Sound system 53:09 Seats / Squeaks 56:05 Range 57:16 Software & screen 59:45 Steer by wire 1:02:52 The doors 1:04:05 Internal controls for external functions / Home Screen 1:08:00 FSD & Autopilot 1:09:00 Back to software 1:18:00 Steering wheel 1:19:00 Lights 1:20:00 Pedals 1:21:00 Hazard controls & PRNDL 1:25:00 Cameras

1:27:56 Service mode <----------

1:35:09 Cabin Tour 1:43:58 Phone Died / Final thoughts / What’s coming next!

Tesla Cybertruck Cybertruck UI Service Mode screen captures from Out of Spec Reviews YT vid ! Files


Safety & Restraints menu - Airbags and Seats
Tesla Cybertruck Cybertruck UI Service Mode screen captures from Out of Spec Reviews YT vid Service Mode - S1 safety and restraints menu - Tesla Cybertruck Full Tour! Exposing All Detail

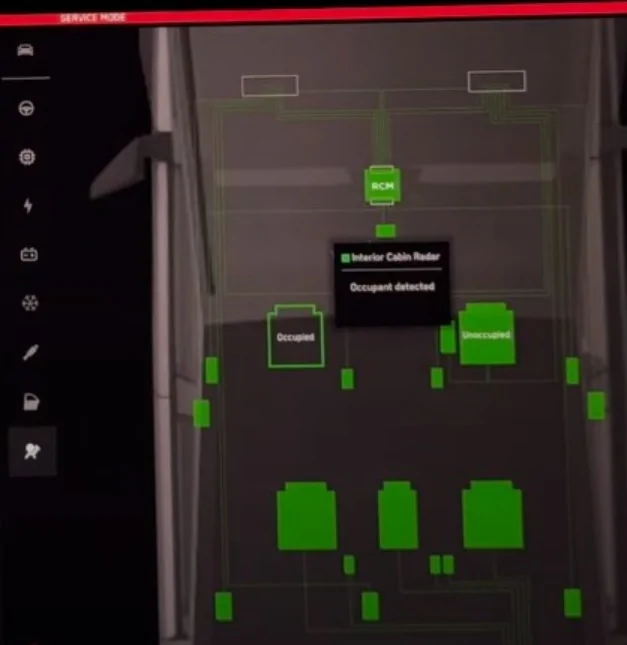

Seats (via Safety & Restraints menu) -- tapped to see Interior Cabin Radar (for pets, kids, ?)
Tesla Cybertruck Cybertruck UI Service Mode screen captures from Out of Spec Reviews YT vid Service Mode - S4 safety - interior cabin radar - Tesla Cybertruck Full Tour! Exposing All Det

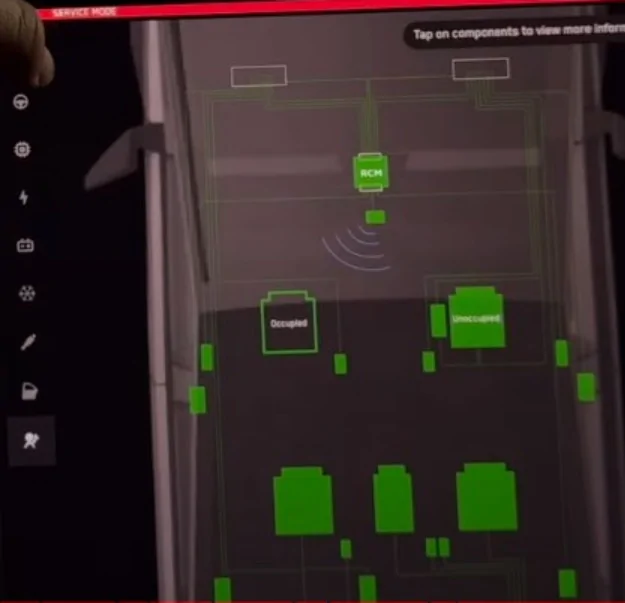

Seats (via Safety & Restraints menu) -- Locks and occupant sensors.
Tesla Cybertruck Cybertruck UI Service Mode screen captures from Out of Spec Reviews YT vid Service Mode - S3 safety - seat controls - Tesla Cybertruck Full Tour! Exposing All Details -


Airbags (via Safety & Restraints menu)
Tesla Cybertruck Cybertruck UI Service Mode screen captures from Out of Spec Reviews YT vid Service Mode - S2 safety - airbags - Tesla Cybertruck Full Tour! Exposing All Details - Servic


Closures menu - Windows, Doors, Tonneau
Tesla Cybertruck Cybertruck UI Service Mode screen captures from Out of Spec Reviews YT vid Service Mode - C1 Closures menu - Tesla Cybertruck Full Tour! Exposing All Details - Service M


Tonneau (Closures menu) - motors, controls, and latches. Rear controller?
Tesla Cybertruck Cybertruck UI Service Mode screen captures from Out of Spec Reviews YT vid Service Mode - C4 Closures - tonneau cover - Tesla Cybertruck Full Tour! Exposing All Details

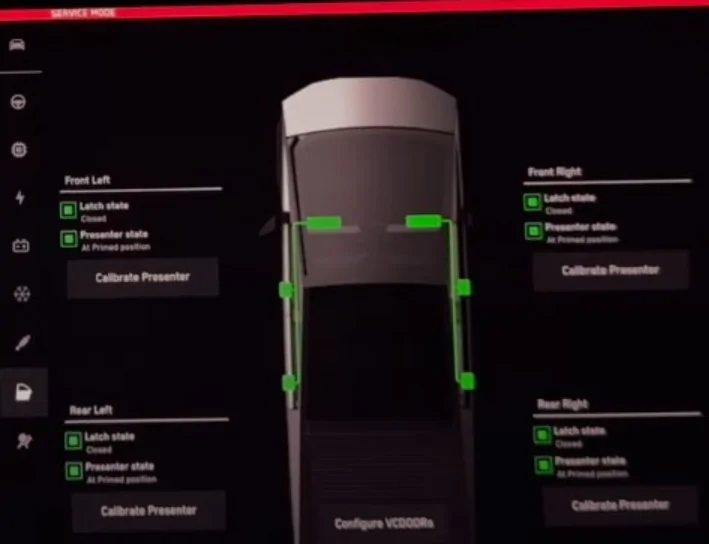

Latches and Presenter states (Closures menu) aka. "ice breaker" pushout?
VCDOORs - ? Vehicle Control Door System
Tesla Cybertruck Cybertruck UI Service Mode screen captures from Out of Spec Reviews YT vid Service Mode - C3 Closures - door statuses - Tesla Cybertruck Full Tour! Exposing All Details

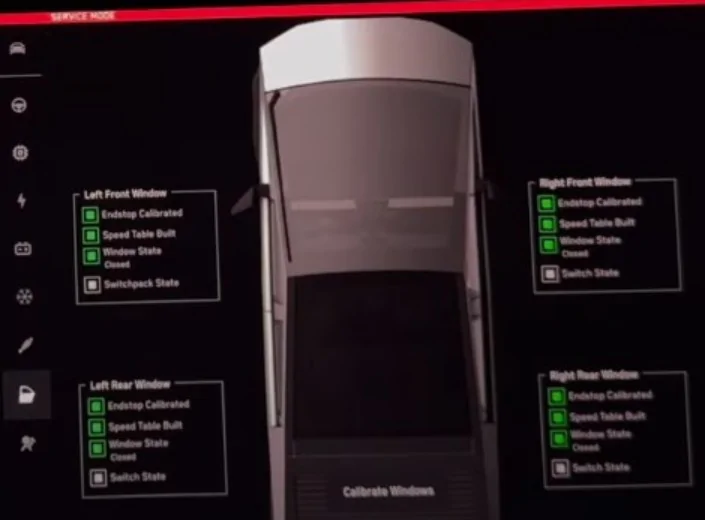

Windows (Closures menu) - Endstop Calibrated, Speed Table Built, Window State (ie. Closed), Switchpack State
Tesla Cybertruck Cybertruck UI Service Mode screen captures from Out of Spec Reviews YT vid Service Mode - C2 Closures - windows - Tesla Cybertruck Full Tour! Exposing All Details - Serv

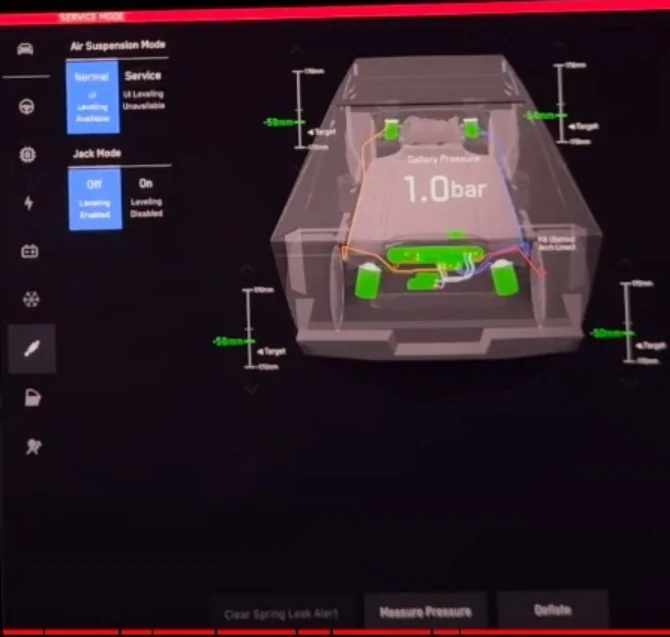

Air Suspension system and status
?? Fill ... in the low-to-mid right hand side of screen (not in my TMX example)
Tesla Cybertruck Cybertruck UI Service Mode screen captures from Out of Spec Reviews YT vid Service Mode - S2 suspension - Tesla Cybertruck Full Tour! Exposing All Details - Service Mode

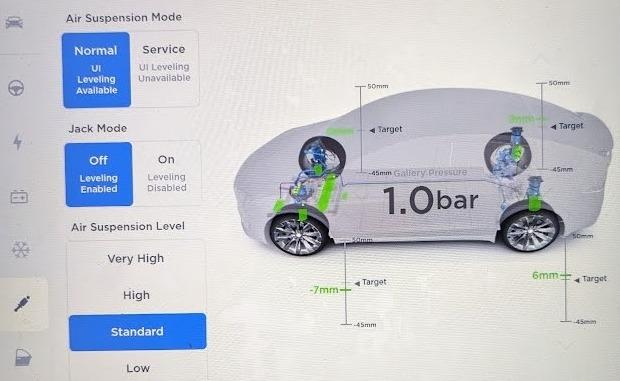

Tesla Model X 2017 Service Menu example by comparison
Tesla Cybertruck Cybertruck UI Service Mode screen captures from Out of Spec Reviews YT vid qiXw9L0

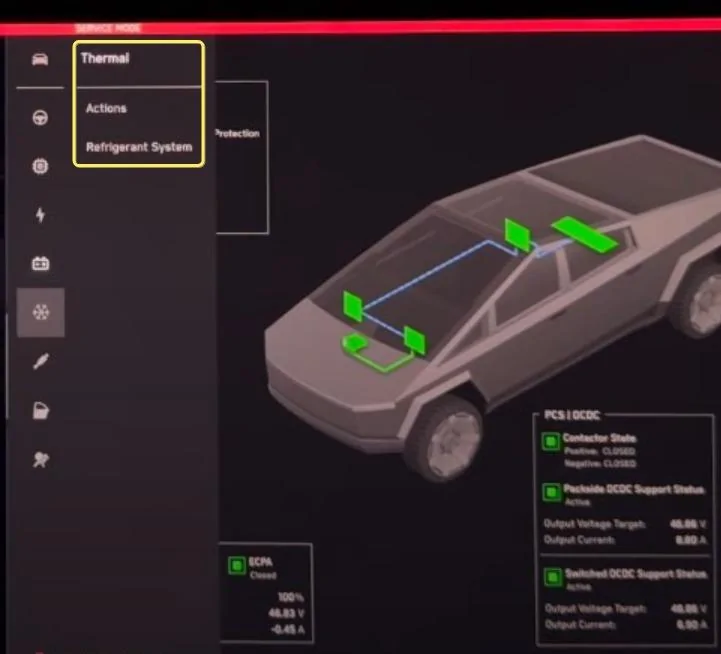

Thermal menu - Actions, Refrigerant System
Tesla Cybertruck Cybertruck UI Service Mode screen captures from Out of Spec Reviews YT vid Service Mode - T1 Thermal menu - Tesla Cybertruck Full Tour! Exposing All Details - Service Mo

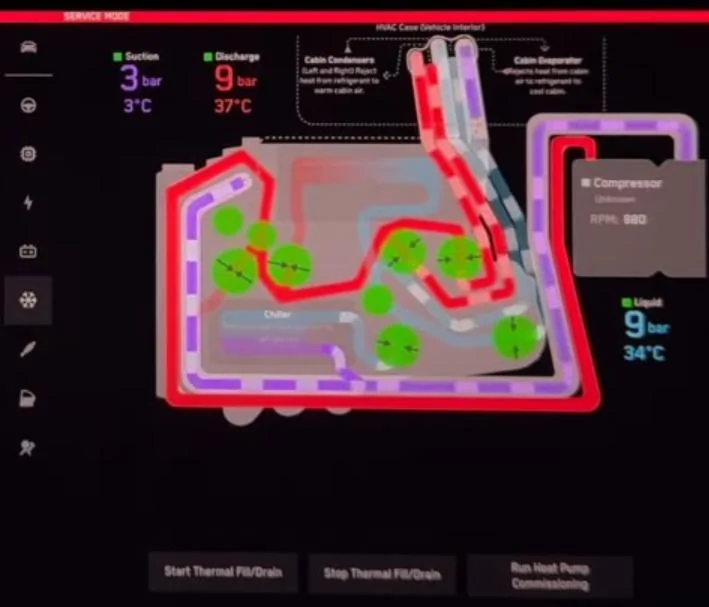

Refrigerant System (via Thermal menu)
HVAC valves, compressor, condensors
Tesla Cybertruck Cybertruck UI Service Mode screen captures from Out of Spec Reviews YT vid Service Mode - T3 thermal valves - Tesla Cybertruck Full Tour! Exposing All Details - Service

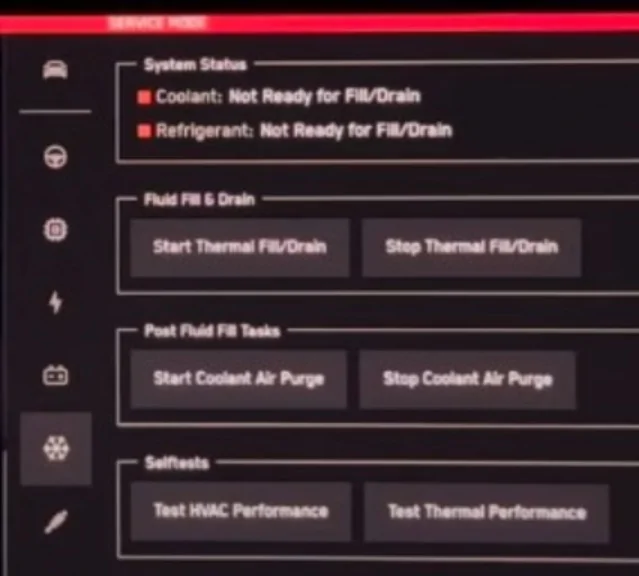

Actions (via Thermal menu)
HVAC status and maintenance options
Tesla Cybertruck Cybertruck UI Service Mode screen captures from Out of Spec Reviews YT vid Service Mode - T2 thermal test - Tesla Cybertruck Full Tour! Exposing All Details - Service Mo



MV (Mid Voltage) Battery, DCDC -- MV 46v battery 100 Wh (per Kyle range test comment)
DC-to-DC converter is an electronic circuit or electromechanical device that converts a source of direct current (DC) from one voltage level to another.
Tesla Cybertruck Cybertruck UI Service Mode screen captures from Out of Spec Reviews YT vid Service Mode - P2 power distribution - Tesla Cybertruck Full Tour! Exposing All Details - Serv

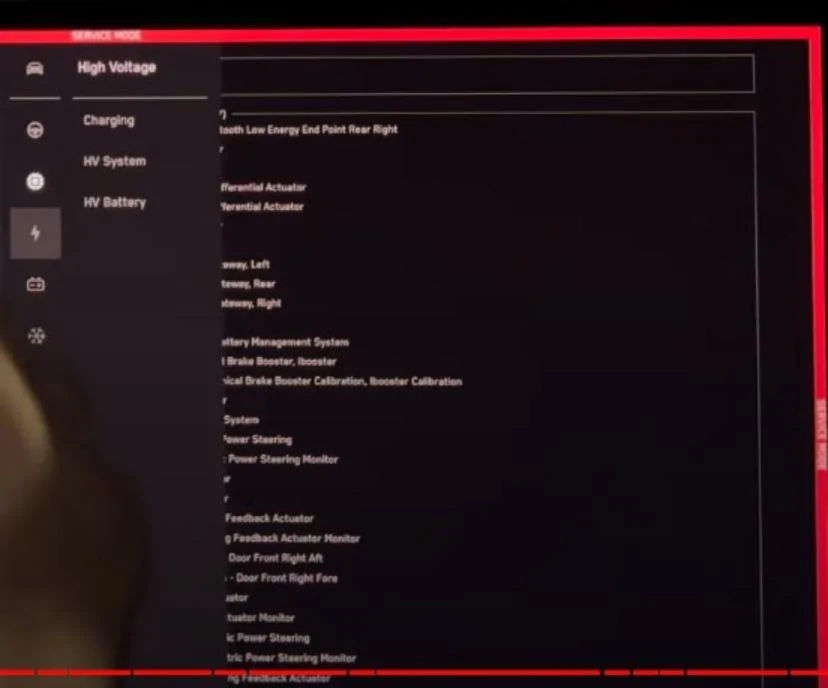

High Voltage menu - Charging, HV System, HV Battery
Tesla Cybertruck Cybertruck UI Service Mode screen captures from Out of Spec Reviews YT vid Service Mode - H1 High Voltage menu - Tesla Cybertruck Full Tour! Exposing All Details - Servi

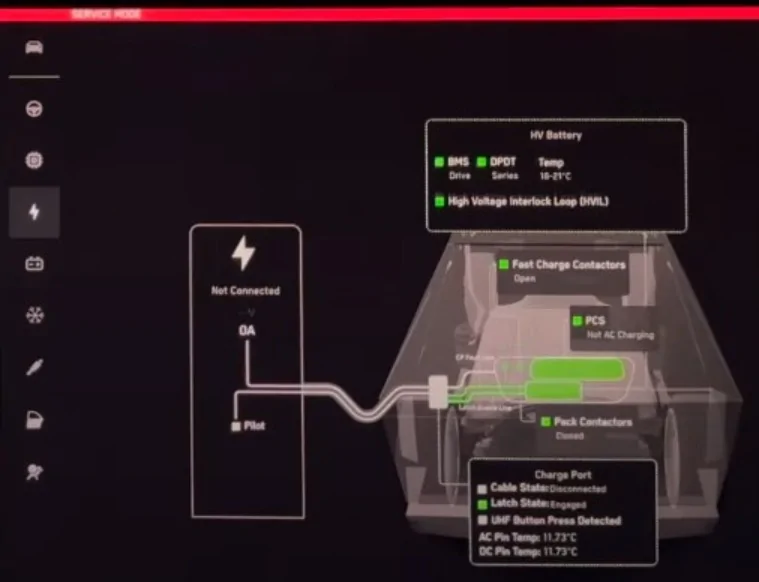

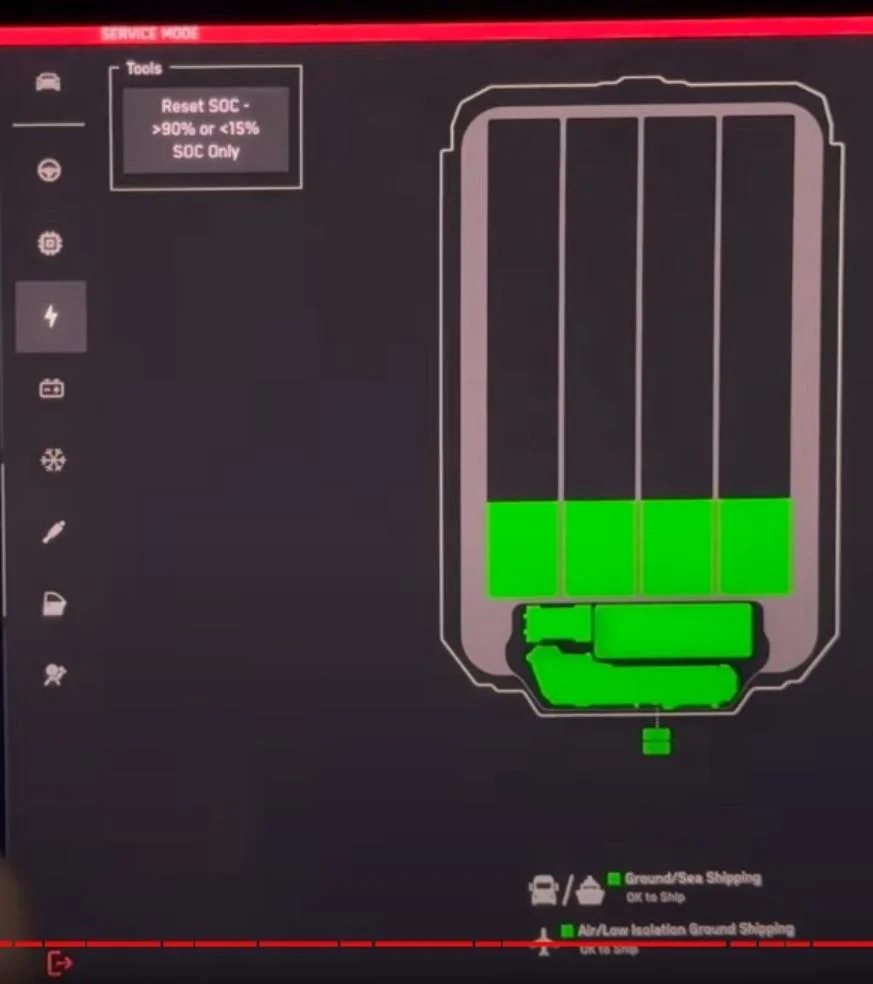

HV Battery (via High Voltage menu)
?? "Reset SOC (State Of Charge) > 90% or <15% SOC Only" -- help BMS recalibrate?
Tesla Cybertruck Cybertruck UI Service Mode screen captures from Out of Spec Reviews YT vid Service Mode - B2 battery reset SOC n shipping - Tesla Cybertruck Full Tour! Exposing All Deta

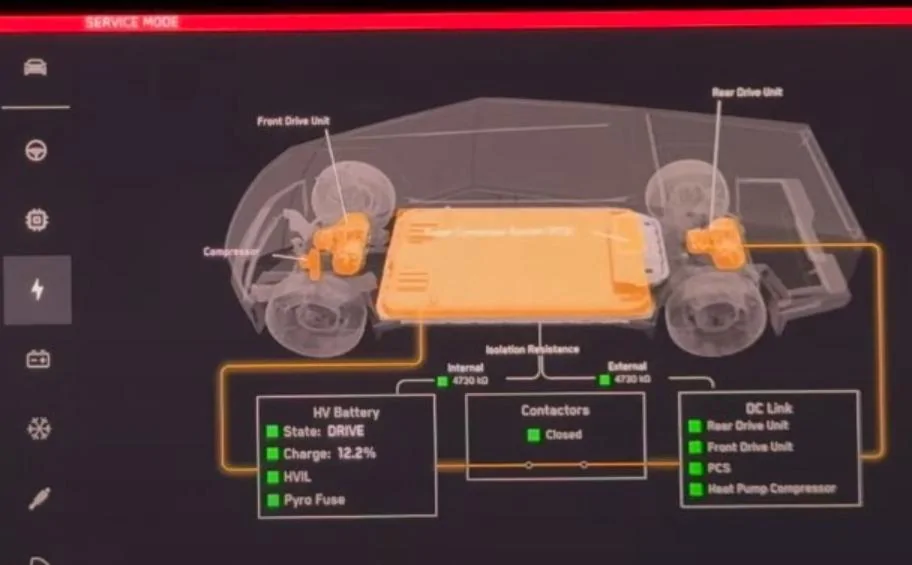

HV System (via High Voltage menu)
Tesla Cybertruck Cybertruck UI Service Mode screen captures from Out of Spec Reviews YT vid Service Mode - B3 battery - Tesla Cybertruck Full Tour! Exposing All Details - Service Mode, W

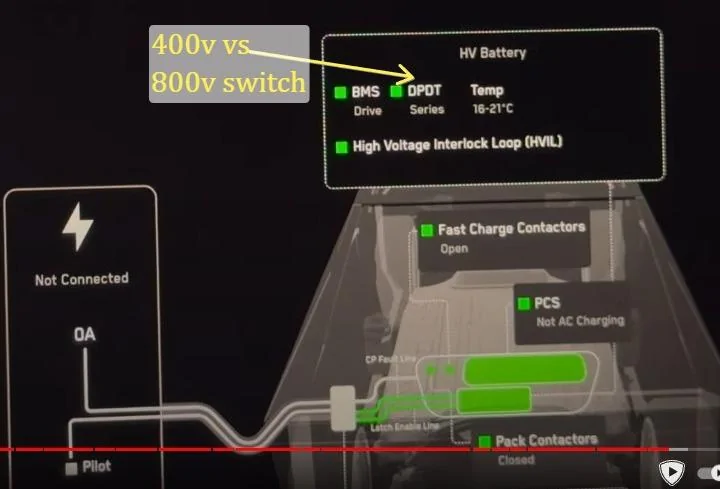

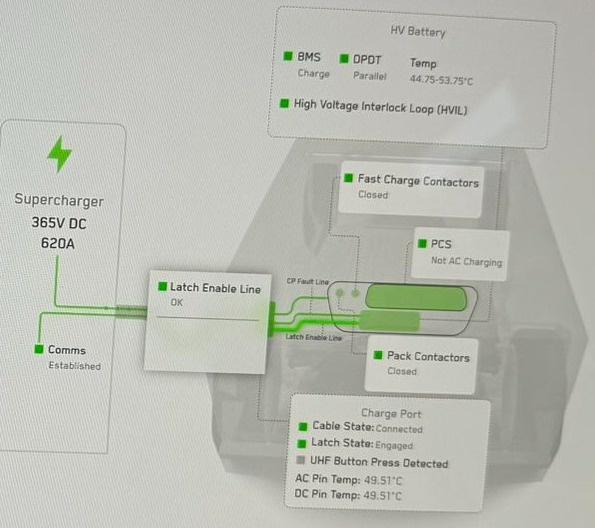

Charging (via High Voltage menu) - Control charging two ~400v "packs" vs one ~800v "pack"

DPDT (Double-Pole Double-Throw) - "Series" or "Parallel"
With two poles and two throws for each pole, the DPDT switch has six terminals — two inputs and four outputs (or two outputs for each individual circuit). A DPDT switch controls two separate circuits with the same actuator, which is generally designed for on-on or on-off-on function.
Tesla Cybertruck Cybertruck UI Service Mode screen captures from Out of Spec Reviews YT vid Service Mode - H5 High voltage serial vs parallel - Tesla Cybertruck Full Tour! Exposing All D


HV Battery (via High Voltage menu)
Tesla Cybertruck Cybertruck UI Service Mode screen captures from Out of Spec Reviews YT vid Service Mode - H4 High Voltage - HV battery - Tesla Cybertruck Full Tour! Exposing All Details

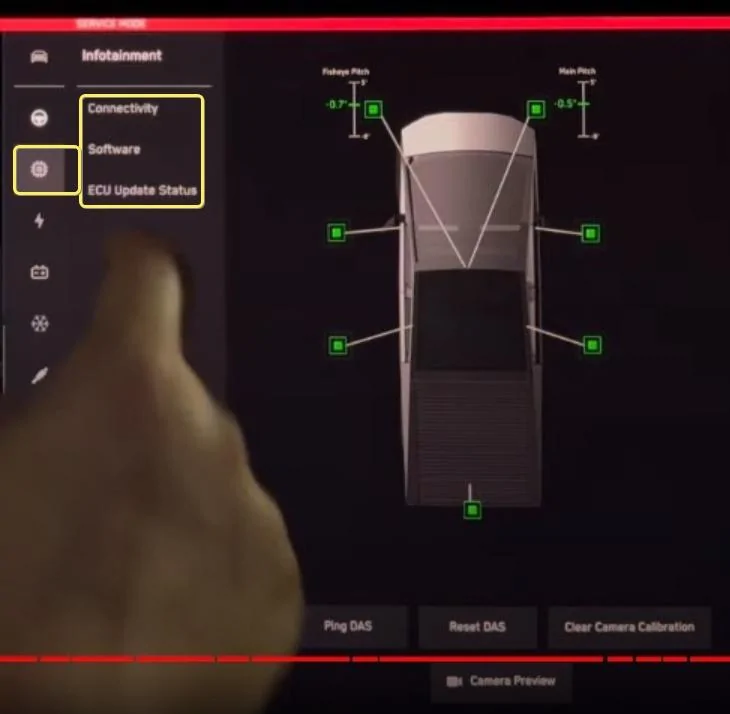

Infotainment menu - Connectivity, Software, ECU Update Status
Tesla Cybertruck Cybertruck UI Service Mode screen captures from Out of Spec Reviews YT vid Service Mode - I1 Infotainment menu - Tesla Cybertruck Full Tour! Exposing All Details - Servi

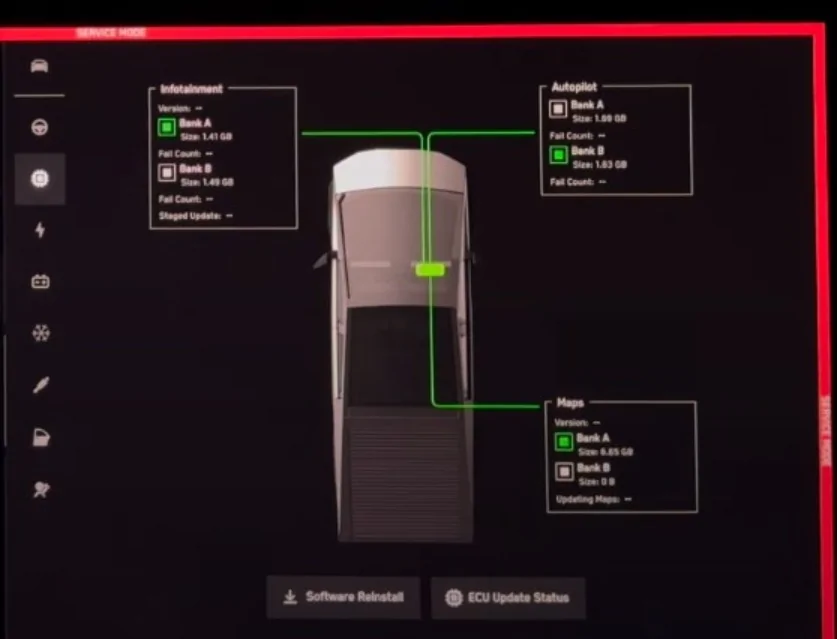

Software (via Infotainment menu) -- note 'Bank A' and 'Bank B' aka partitions
Process for software update (VeryGreen GreenTheOnly - twitter, TMC, etc)
there's no crc check. Basically it works like this (for s/x, different for 3):​
1. Download a patch file from Tesla when your car is scheduled​
2. once download completes, apply the patch file to the offline partition (there are two firmware partitions: online and offline) (on both ic and cid)​
3. perform integrity checking of the resultant image (obviously failure at an of the steps results in restart from 1)​
4. ap2+ cars only, download additional firmware for the ape if it's not already precached. (could be precached if you update to the same version)​
5. display the install prompt​
6. one install is started - check the version to ensure it's not a downgrade​
7. Update ape​
8. update gateway and various blocks connected to it (complicated process with many opportunities for failures)​
9. tell ape and ic to switch online and offline partition markings around and reboot​
10. switch online/offline on cid and reboot.​
11. compare versions of ic and ape to what they should be - if different - display update failed even though cid runs new firmware.​
12. display update is successful.​
Tesla Cybertruck Cybertruck UI Service Mode screen captures from Out of Spec Reviews YT vid Service Mode - I2 Infotainment - software - Tesla Cybertruck Full Tour! Exposing All Details -

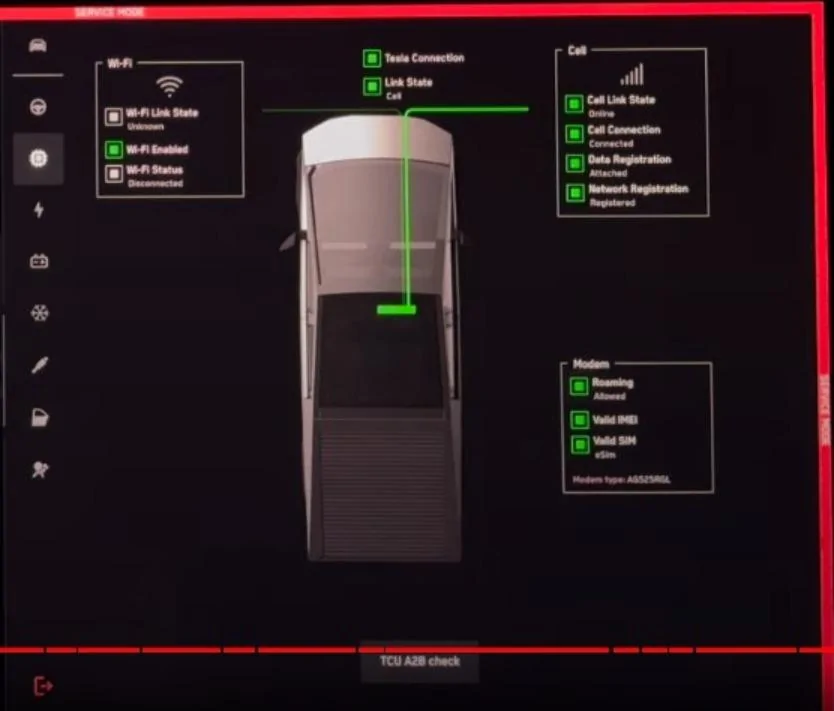

Connectivity (via Infotainment menu)
Tesla Cybertruck Cybertruck UI Service Mode screen captures from Out of Spec Reviews YT vid Service Mode - I3 Infotainment - connectivity - Tesla Cybertruck Full Tour! Exposing All Detai
Sponsored



Attachments

Last edited:

TexasRaider

Well-known member
First Name
JR
Joined
Jan 10, 2023
Threads
8
Messages
226
Reaction score
228
Location
Denton
Vehicles
Cybertruck + MS
Occupation
Civil
Country flag
I spent a fair amount of time capturing Service Mode screens from Kyle's (Out of Spec Reviews) and Francie's video.

I tried to pause/rewind and frame-by-frame (, and . key hits) to get to a clearest view I could find. Didn't seem right to keep them to myself! So many nuggets in there.

See the attached ZIP file (also attached below).

I attempted to name the beginning of the files to correspond with the menu/submenu item.


Tesla Cybertruck Full Tour! Exposing All Details - Service Mode, Wiper, Powertrain, & Much More


Cut-n-paste from the Youtube video description.
Chapters 0:00 Hello & Welcome 01:54 First thoughts & what’s to come next for Cybertruck Videos! 04:20 Disclaimer 06:01 Exterior first look 09:48 Front trunk, trim, & price 10:29 Tires 12:30 Windshield wiper 14:26 Battery details 16:56 Motor options / Drivetrain 19:43 Power commentary 20:15 Rear differential lockers 22:56 Dimensions & Rear steer 24:01 Tailgate / Tonneau cover / Truck bed 28:28 Storage & tie downs 31:30 Rear power outlets 33:17 Range extender 34:16 Cybertruck charging & 800V architecture (nerdy) 39:04 Can it CCS charge? 43:11 Francie’s First Impressions 43:50 Steer by wire 44:11 Thermal system 47:08 Air suspension 50:28 Final thoughts on the exterior 51:31 Sound system 53:09 Seats / Squeaks 56:05 Range 57:16 Software & screen 59:45 Steer by wire 1:02:52 The doors 1:04:05 Internal controls for external functions / Home Screen 1:08:00 FSD & Autopilot 1:09:00 Back to software 1:18:00 Steering wheel 1:19:00 Lights 1:20:00 Pedals 1:21:00 Hazard controls & PRNDL 1:25:00 Cameras

1:27:56 Service mode <----------

1:35:09 Cabin Tour 1:43:58 Phone Died / Final thoughts / What’s coming next!

Service Mode - S4 safety - interior cabin radar - Tesla Cybertruck Full Tour! Exposing All Det...jpg


Service Mode - S3 safety - seat controls - Tesla Cybertruck Full Tour! Exposing All Details - ...jpg


Service Mode - S2 safety - airbags - Tesla Cybertruck Full Tour! Exposing All Details - Servic...jpg


Service Mode - S1 safety and restraints menu - Tesla Cybertruck Full Tour! Exposing All Detail...jpg


Service Mode - C4 Closures - tonneau cover - Tesla Cybertruck Full Tour! Exposing All Details ...jpg


Service Mode - C3 Closures - door statuses - Tesla Cybertruck Full Tour! Exposing All Details ...jpg


Service Mode - C2 Closures - windows - Tesla Cybertruck Full Tour! Exposing All Details - Serv...jpg


Service Mode - S2 suspension - Tesla Cybertruck Full Tour! Exposing All Details - Service Mode...jpg


Service Mode - C1 Closures menu - Tesla Cybertruck Full Tour! Exposing All Details - Service M...jpg


Service Mode - T3 thermal valves - Tesla Cybertruck Full Tour! Exposing All Details - Service ...jpg


Service Mode - T2 thermal test - Tesla Cybertruck Full Tour! Exposing All Details - Service Mo...jpg


Service Mode - T1 Thermal menu - Tesla Cybertruck Full Tour! Exposing All Details - Service Mo...jpg


Service Mode - P2 power distribution - Tesla Cybertruck Full Tour! Exposing All Details - Serv...jpg


Service Mode - B2 battery reset SOC n shipping - Tesla Cybertruck Full Tour! Exposing All Deta...jpg


Service Mode - B3 battery - Tesla Cybertruck Full Tour! Exposing All Details - Service Mode, W...jpg


Service Mode - H5 High voltage serial vs parallel - Tesla Cybertruck Full Tour! Exposing All D...jpg


Service Mode - H4 High Voltage - HV battery - Tesla Cybertruck Full Tour! Exposing All Details...jpg


Service Mode - H1 High Voltage menu - Tesla Cybertruck Full Tour! Exposing All Details - Servi...jpg


Service Mode - I1 Infotainment menu - Tesla Cybertruck Full Tour! Exposing All Details - Servi...jpg


Service Mode - I2 Infotainment - software - Tesla Cybertruck Full Tour! Exposing All Details -...jpg


Service Mode - I3 Infotainment - connectivity - Tesla Cybertruck Full Tour! Exposing All Detai...jpg
Now this is a value add! Thank you for breaking it down for us. (And, not just posting a YouTube link to some CT video. Ha)

[This so totally qualifies as BREAKING! 😜😆]

OP
OP
scottf200

scottf200

Well-known member
Joined
Jul 31, 2021
Threads
32
Messages
1,379
Reaction score
2,216
Location
Chicagoland
Vehicles
Tesla Model X
Country flag
Update 1: 3-Jan-2024 8:48p added a variety of text in front of each picture and in some cases I added addition details ie. how software update works, Supercharging support 400v/800v DPDT (Double-Pole Double-Throw), image of suspension service screen from my TMX (tho missing an extra piece on the Cybertruck - Fill ...)


flowerlandfilms

Well-known member
First Name
Eryk
Joined
Dec 6, 2020
Threads
5
Messages
779
Reaction score
1,653
Location
Australia
Vehicles
Yamaha SRV-250, Honda Odyssey RB1
Occupation
Film Maker
Country flag
Thanks for the effort.
This is useful for my purposes.
