Cybertruck Vault Sides

[ÆCIII]

This is not a post I want to make, but I would much rather be making it now about prototypes, than making a similar post later about production samples.

This post focuses particularly on noticeable ripples in the stainless steel of the vault exterior side surfaces over the rear wheels and toward the tail gate, as seen in some prototypes.

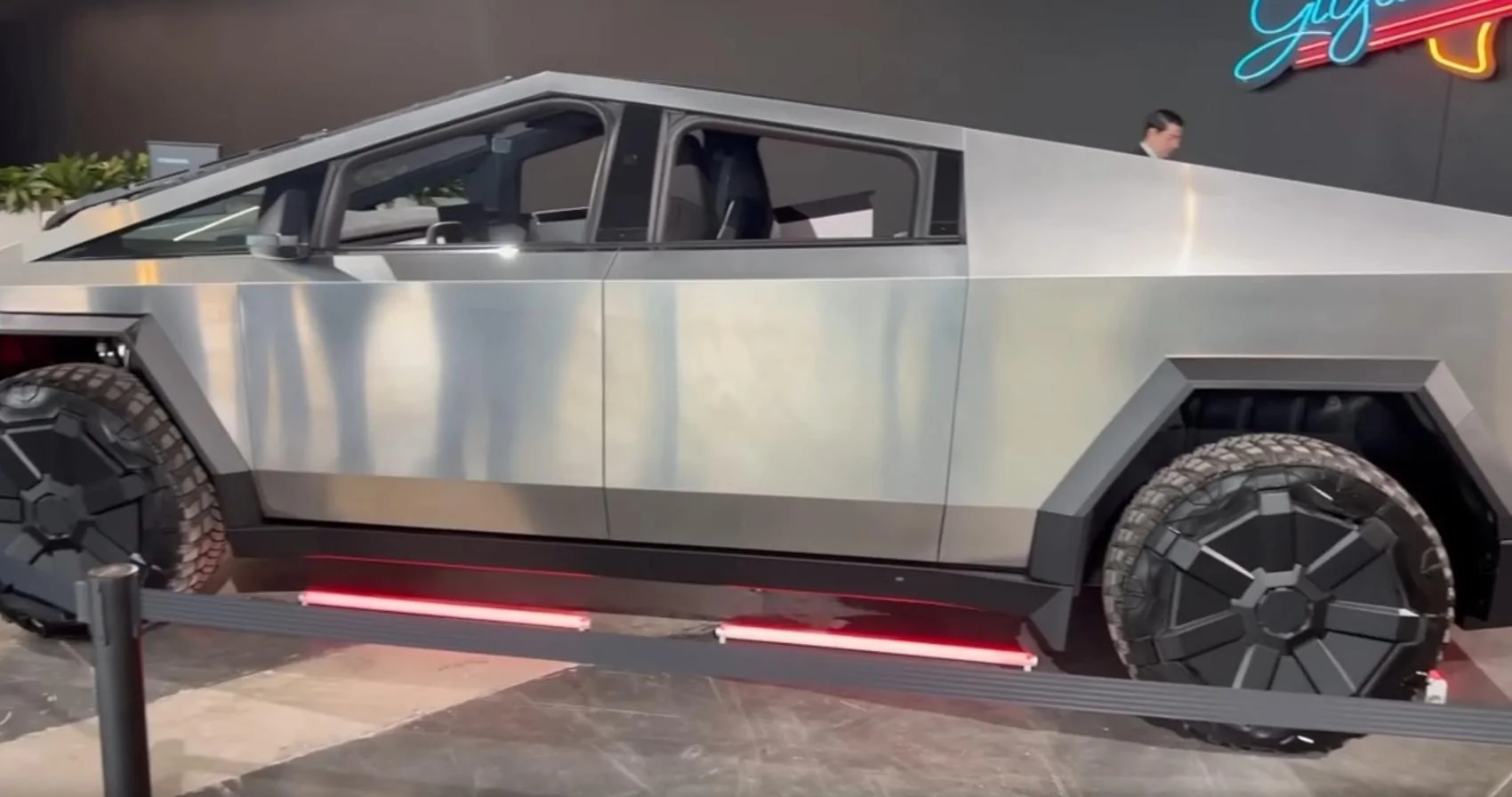

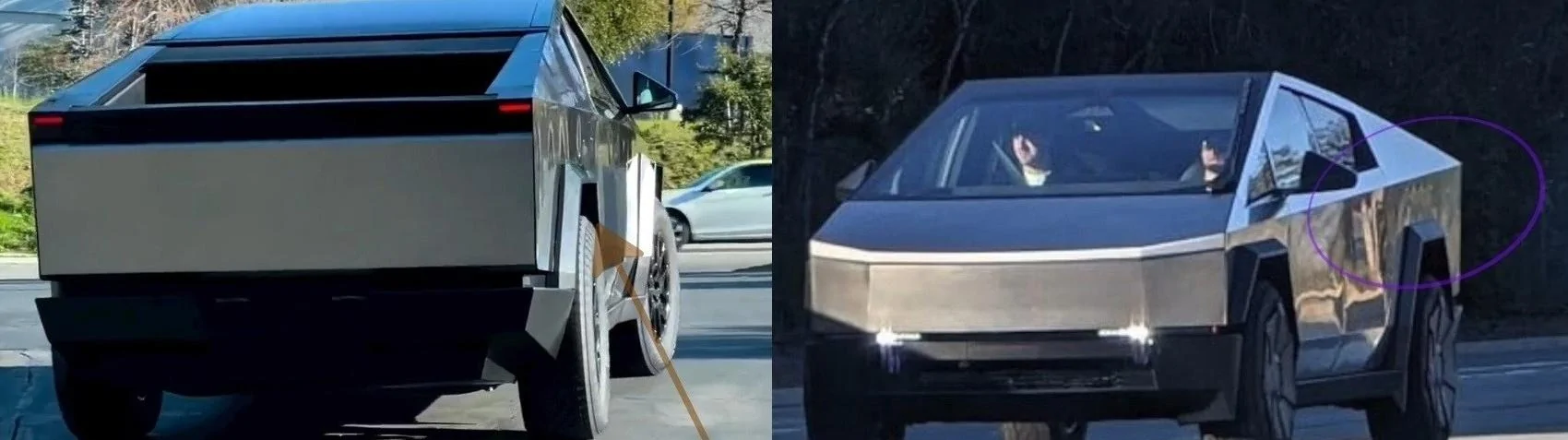

Below are examples of Cybertruck prototypes with ripples in the vault side surfaces over the rear wheels. The real problem I can see is that such ripples may get even more pronounced on hot days or in the sun. While stainless steel expands less than some other metals it still does expand, and with ripples only a very small amount of expansion would cause the ripples to be more pronounced and noticeable.

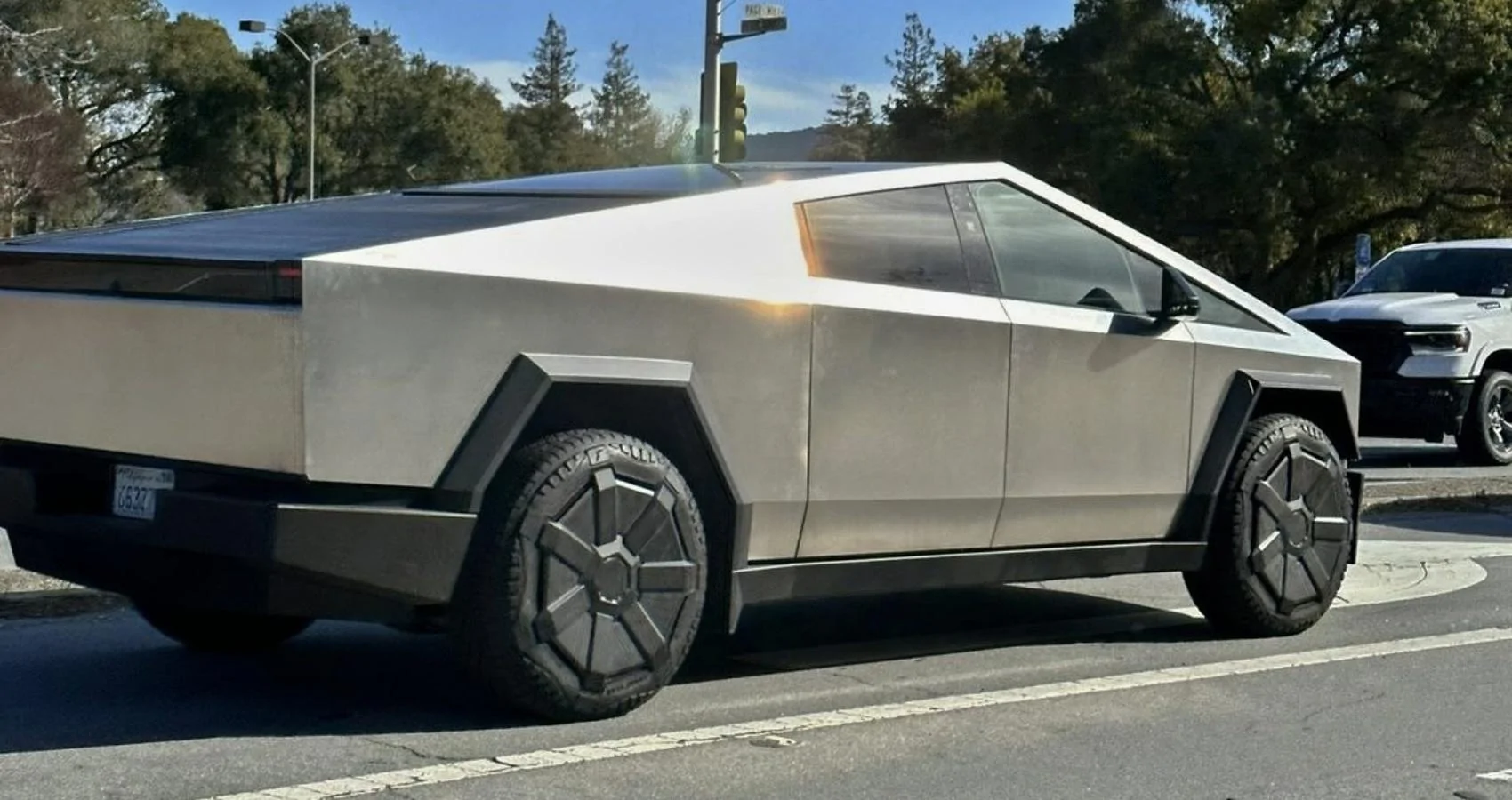

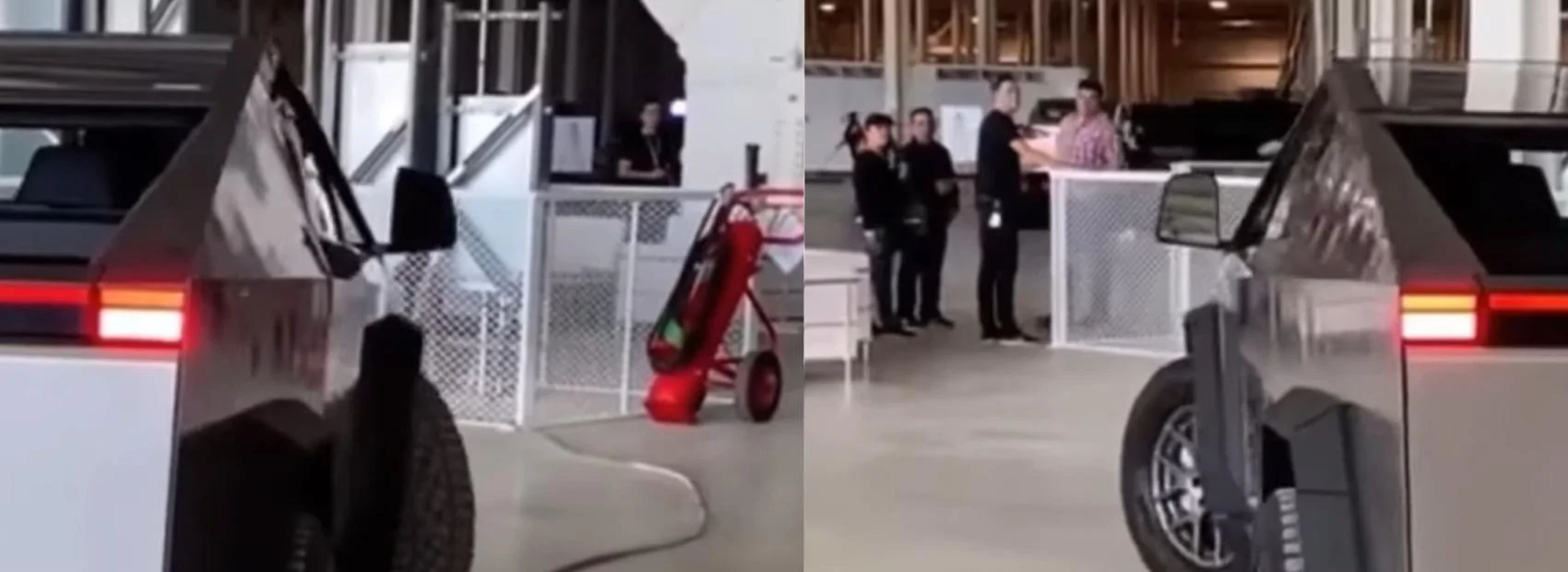

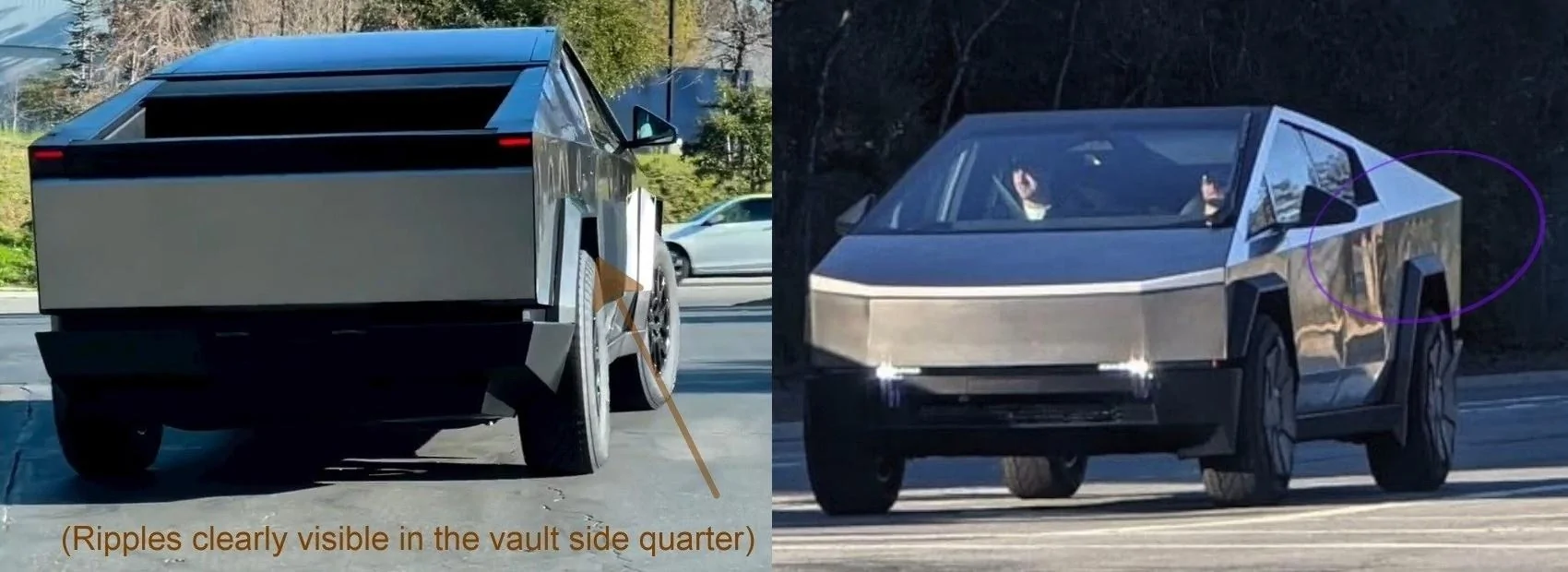

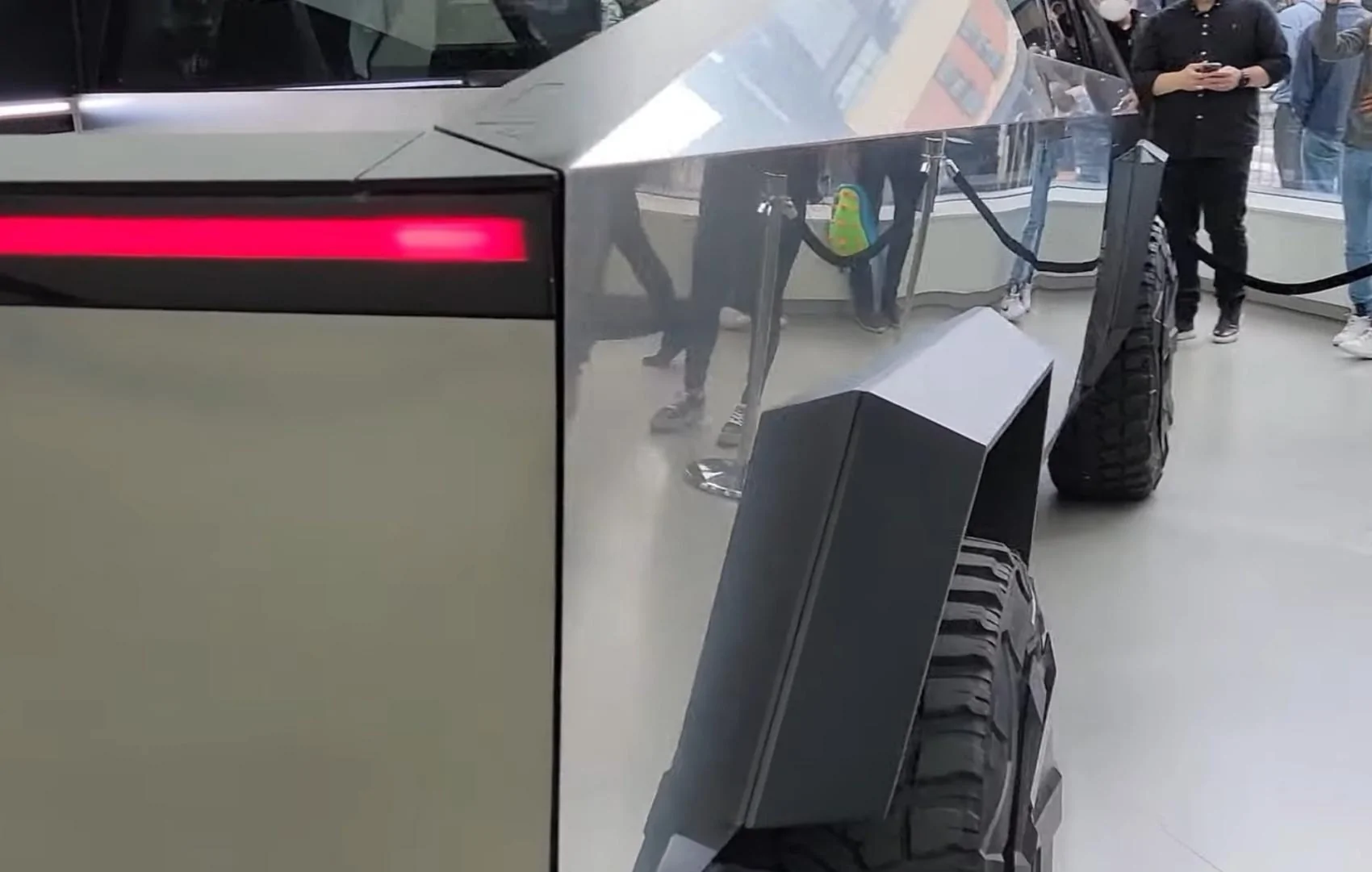

The ripples can be seen with certain sightings, more noticeably from the front or back with the Cybertruck out on sunny days:

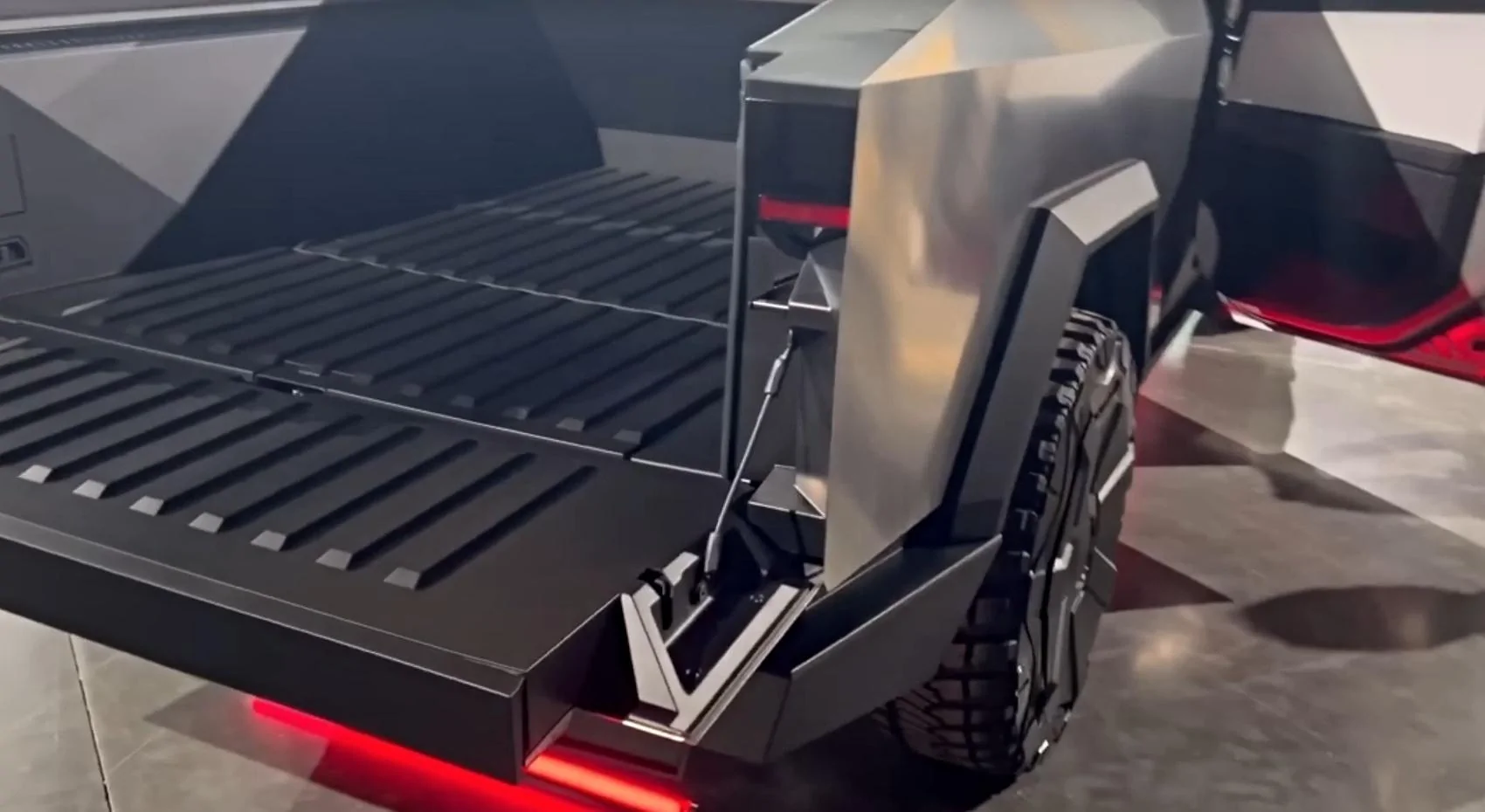

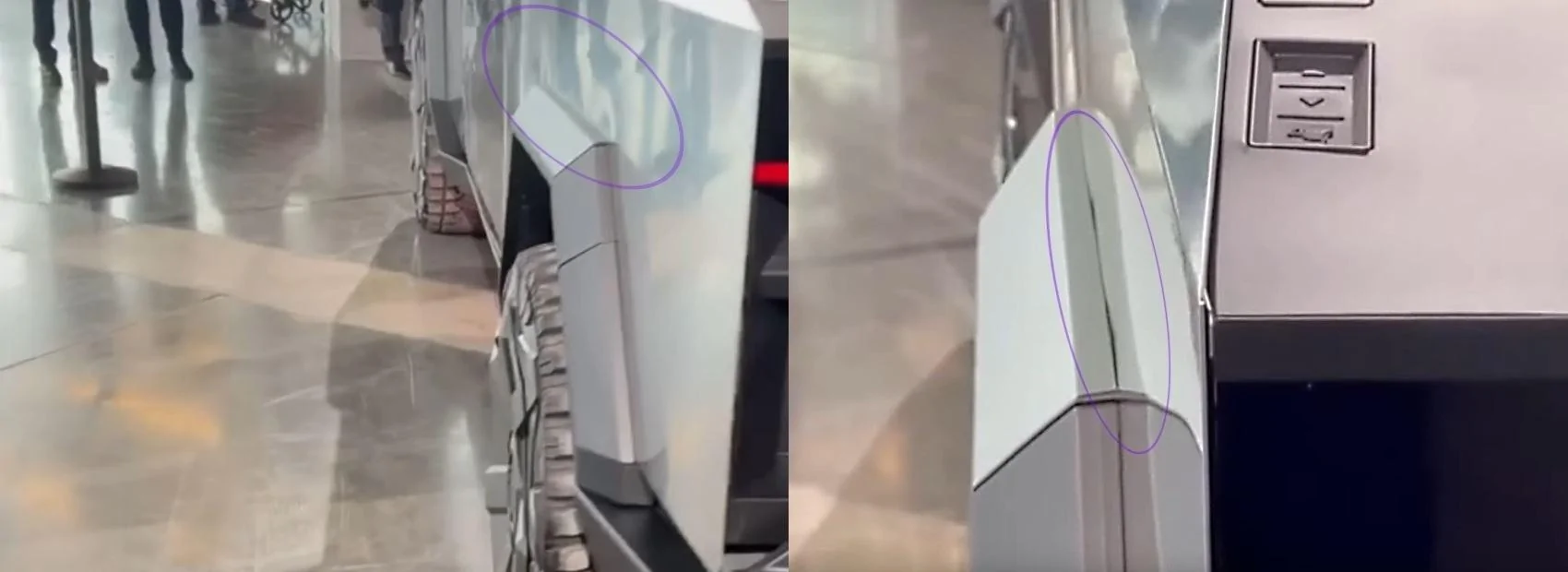

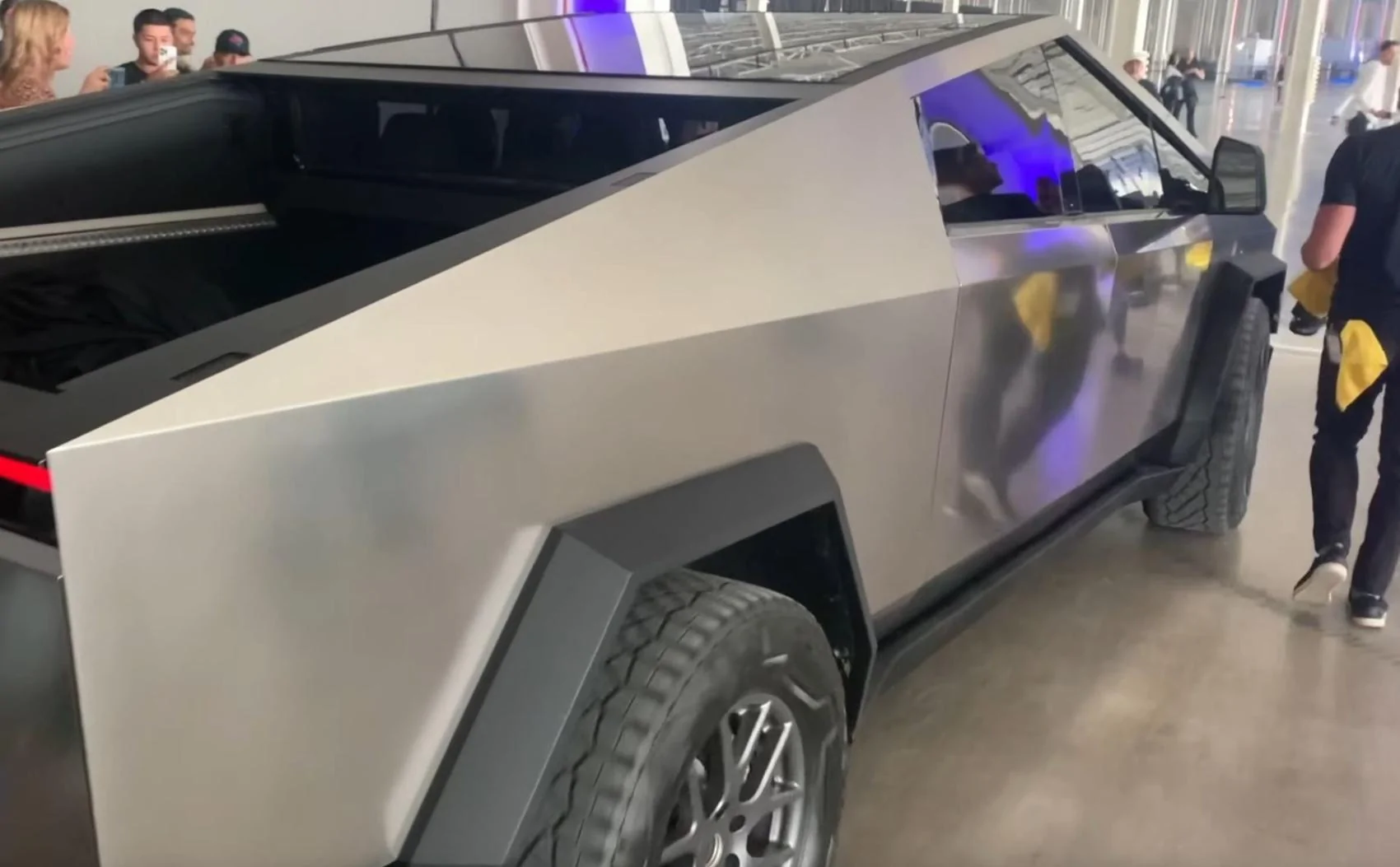

These indoor views show ripples in vault sides and sail pillar surfaces briefly, at certain angles of reflected light:

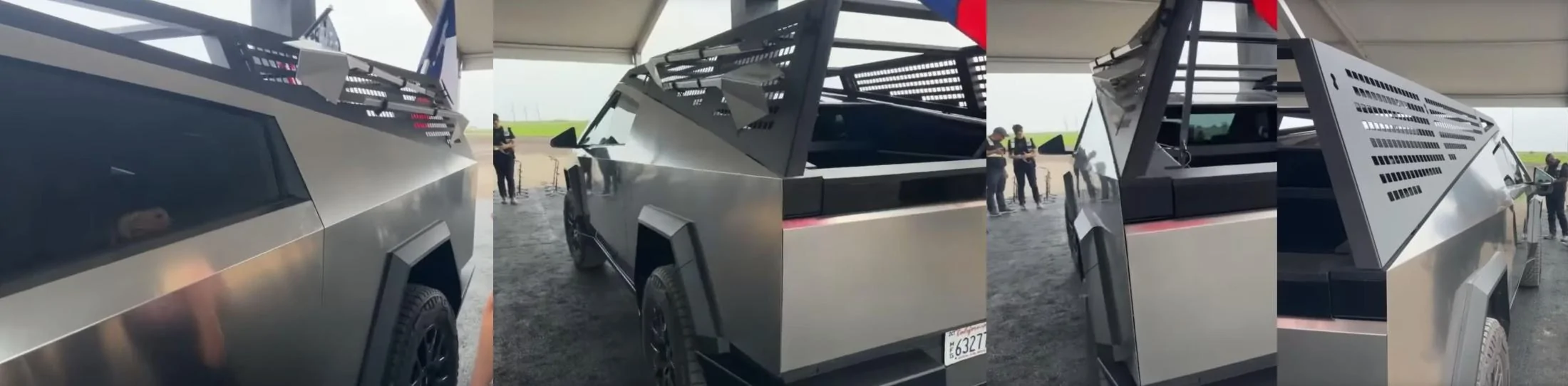

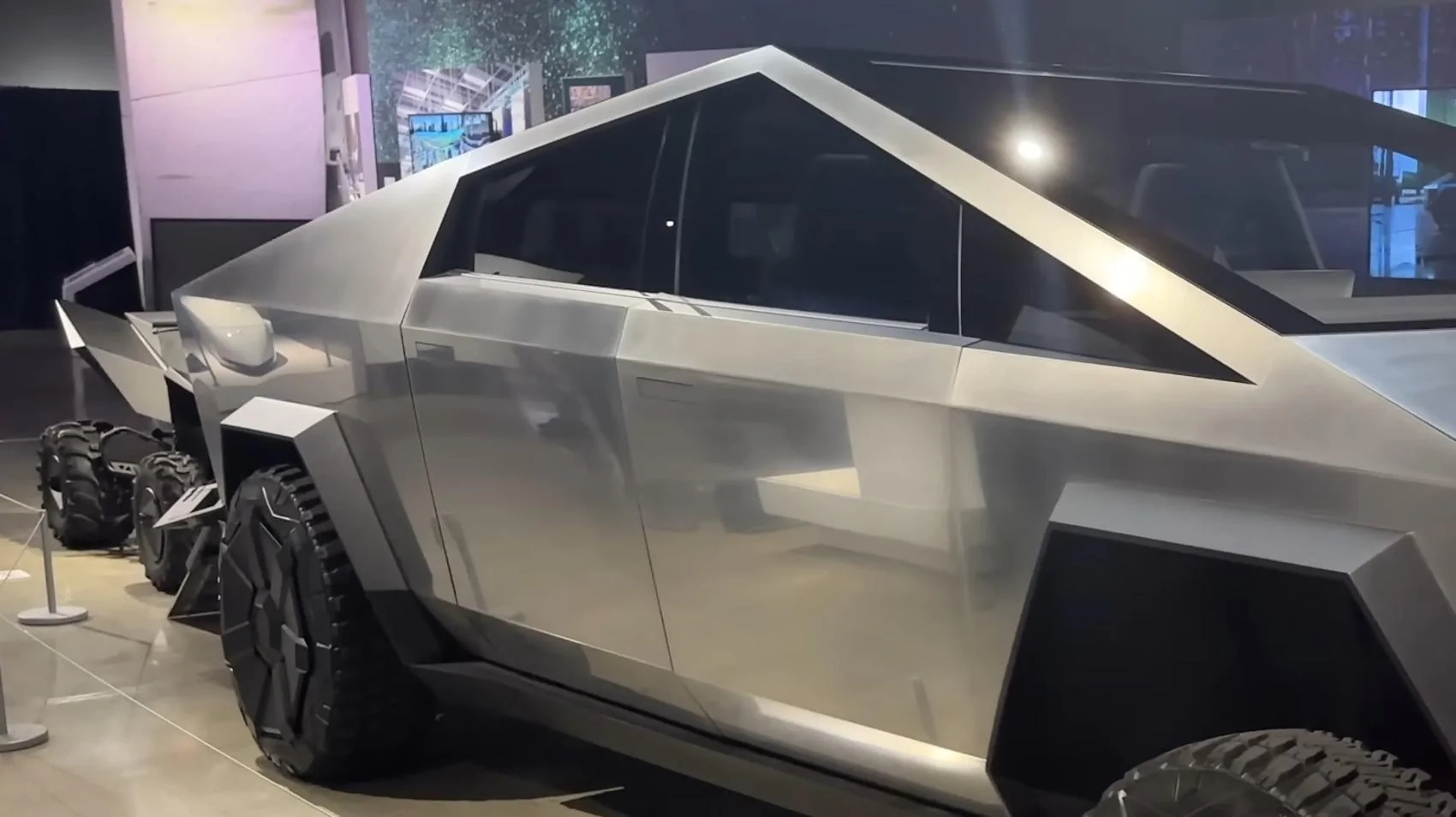

Viewed more from the side, the ripples are not as noticeable but are slightly visible at times. Differences between doors and vault sides are sometimes apparent:

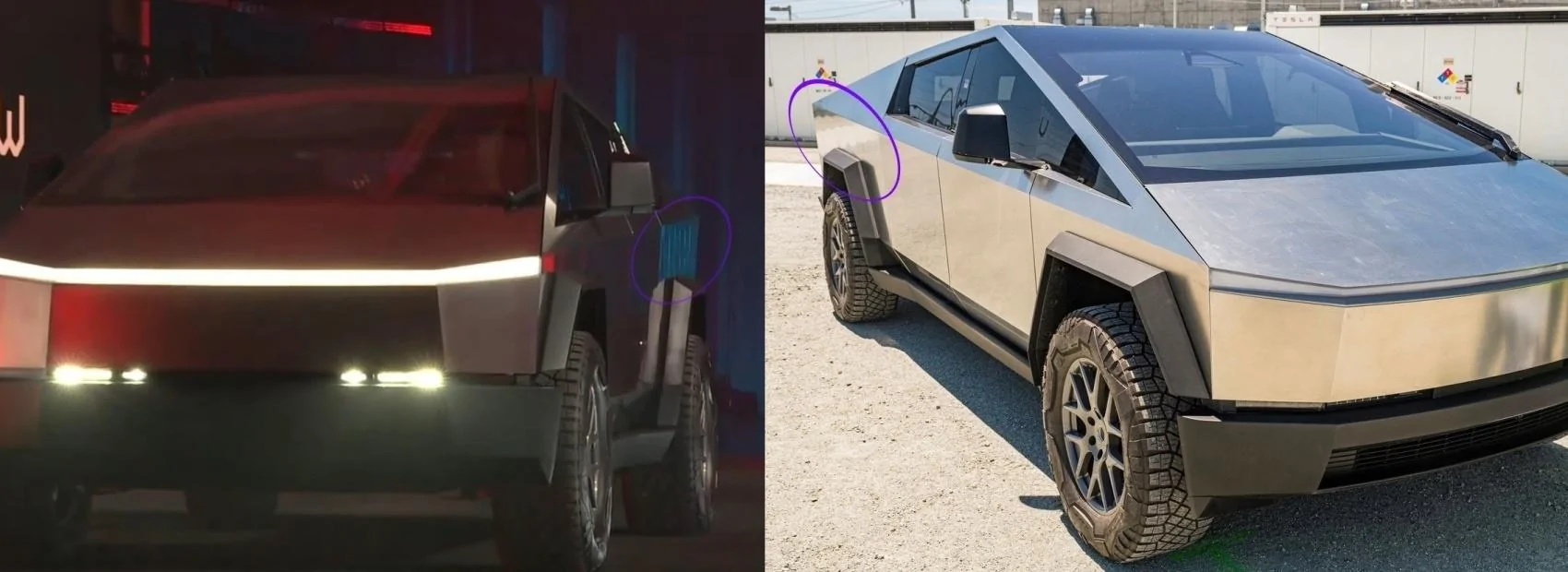

Blue lights in the dark indoor setting of the Cyber Rodeo reflect some ripples very briefly, and sidewalk surface reflections in the second image reveal slight ripples in the vault sides. The ripples seem to be confined only to sail pillars and vault sides, with the doors and front appearing more smooth and straight:

Gaps from the ripples over the flare trim of the wheel opening are visible in these images, but it's only fair to point out that prototypes are assembled more by hand or with fastener spacing that may not yet be optimized, so this could be a isolated assembly flaw very minor and most likely for this particular prototype only. If the problem persists in other prototypes, simple flat stiffeners or reinforcements behind the sheet and the fender flare trim fasteners would be likely all that's needed here to keep the sheet more flat:

While there are ways to correct this, Tesla may already be implementing improved methods for production anyway, at least I would hope. There are some ways I could think of to prevent these ripples, and some of these may be implemented already.

1) Crease folds in the sheet surface both at the top just under the sail pillars, and also crease fold flanges inward on top of the wheel wells just behind the flare trim pieces. However there could be manufacturing issues or this may not work if there is any slightest curvature in the vault sides from the doors to the tailgate:​

​

​

​

2) Alternative to crease folds mentioned above, there could be an reinforcement angle assembly attached to the inside of the vault sides with adhesive just above and surrounding the wheel well. These reinforcements are just simple representations and actual pieces would likely be different. They could be made in various methods even with castings, for slight curvatures or to fit around other internal components:​

​

​

Note: I'm hoping this is one of the primary reasons that Tesla moved the charging port from the sheet metal to the flare trim instead, so that they would possibly have room to attach internal reinforcements or implement such corrective methods.​

​

​

3) Tesla could use thicker sheet metal in this section (maybe they're using thinner than normal metal in the vault sides of the prototypes), also possibly combined with the above methods. Tesla may very well be planning to do so in production but just haven't yet included it on the prototypes so far:​

​

​

​

However not all examples of the prototypes out there have this issue, as there are some examples of imagery where the vault sides appear without any noticeable ripples at all.

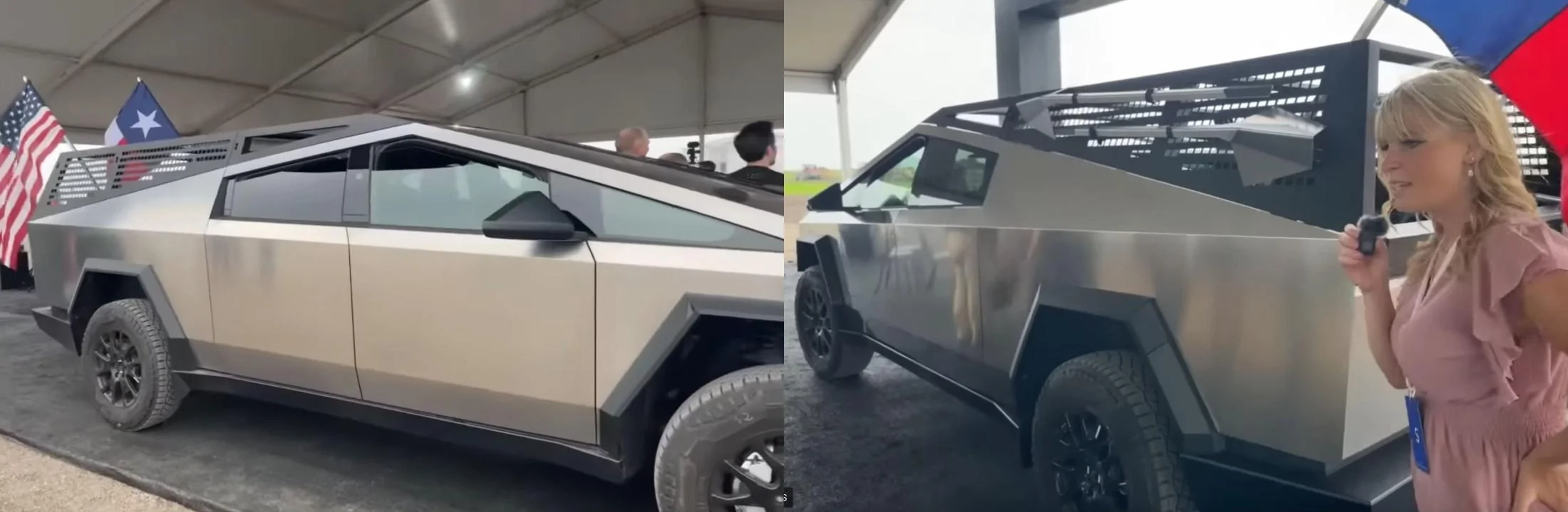

The Cybertruck vault sides appear flawless and nearly perfect in the below images, with it also very obvious how the vault sides are blending with and matching the doors perfectly. To me the Cybertruck surface looks absolutely awesome in these next two images:

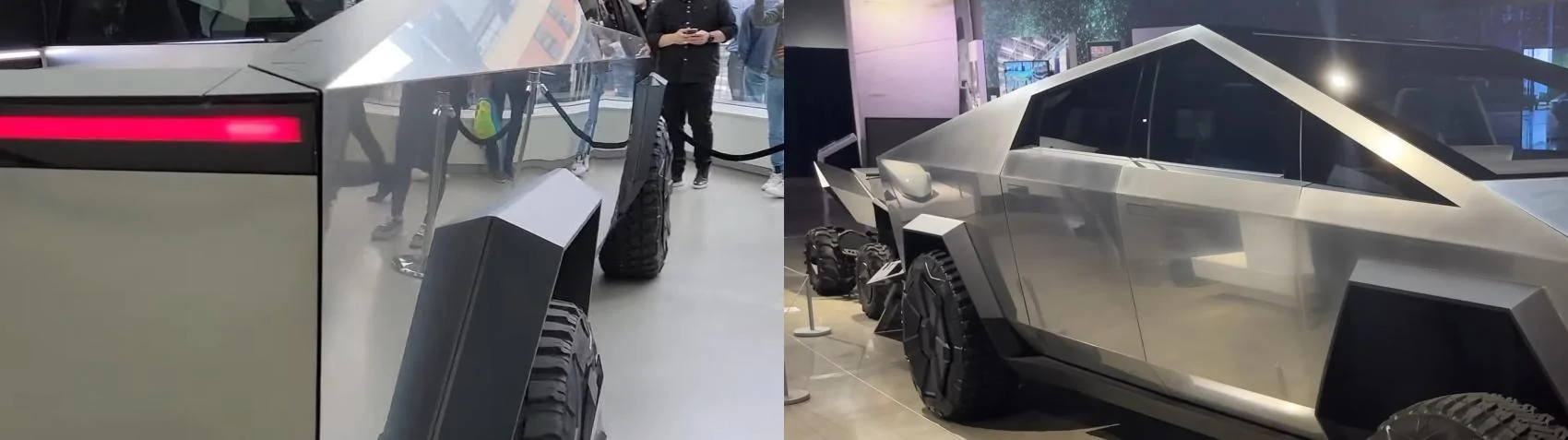

The vault sides in the next two image also look great, but there is a distinct difference in the finish with a more rough matte or haze to the surface in the vault and sail pillars. This may be an indication that Tesla is experimenting with different variations of stainless sheet for the vault sides in their prototypes. What's encouraging about these next two images is they are of more recent prototypes as evidenced by the side mirrors and charge port location, which gives hope that Tesla may have already refined the vault side surfaces:

These examples are with beautiful workmanship and are very encouraging, but the first two images are with a previous prototype, so let's hope there isn't some manufacturing regression for the vault sides. These last two images are of the newer prototype which suggests that Tesla may be experimenting with different materials so regression may not be the case but instead possibly experimentation or optimization.

Below are two more images of newer prototypes where the vault sides appear very straight. The first is a recent sighting, and the second from Rob Mauer's video taken on Investor Day:

On a personal note, I would be willing to give up any storage in the sail pillars if it was necessary to use stronger sheet metal with the crease fold ensuring rigid straightness in the structure of the vault exterior sides - but I understand if Tesla is trying to make the Cybertruck feature rich as possible. Good things often don't come easy.

Ultimately we won't be able to decide for certain until we see our own produced Cybertruck up close, but I guess it really comes down to personal choice.

Would you be willing to accept a Cybertruck with sides looking like this? (I don't think anyone will have to make that decision, considering some of the more recent prototype images I've seen).

Or would you prefer your Cybertruck sides more like this?

I can't say what I would reject or accept until I see it in person, and this condition may not be as noticeable any more as some of the images suggest, since they were only prototypes. But I do think strongly noticeable ripples in the surface would be a deal-breaker for some buyers, and so I'm hoping they've already corrected it or will correct it before production. Some recent prototype sightings are encouraging.

Update: Recent sightings and footage from Elena Sherriff of the Ellie in Space channel, show one of the newest prototypes with very good results. I know some people complained about other aspects of it with the frunk lid and etc., but I consider most things gap related a non-issue because they are most often related to adjustable alignments which can easily be changed or refined at production. Below are some images from that footage which I think are a lot better and super encouraging:

Note: I also like the elegant simple rack for the occasion and I think it is one of hundreds of rack designs possible for the Cybertruck, but that is another discussion.

There is yet another option to hide noticeable ripples (if they still exist which is appearing a lot less likely at this point), by putting aftermarket body effects on the sides of the Cybertruck that would cover up the rippled vault sides. Below is one of my favorite tricked out renderings of the Cybertruck. Credit goes to a source calling themself "Car Expert", but I don't like lettering and badges so I removed them from the rendering but included their version in the inset. Again this is one of my favorite tricked out Cybertruck renderings and this would definitely solve the problem - if someone made these body effects and if they were reasonably priced:

This post is not intended to smear Tesla or the Cybertruck but instead to help ensure it's success at launch and ramp-up. I feel this condition should be corrected before getting reproduced at scale. The Cybertruck is polarizing enough, but the style itself will 'grow on people' - if it appears refined and not cheap looking. However I think that (noticeable) ripples or workmanship defects would affect sales and inflame narratives to stigmatize Tesla. Maybe Tesla (hopefully) already has corrective methods in place for production and just haven't used them in some prototypes.
