What do yall think?!

Tesla Cybertruck Cybertruck vault sub-trunk fully opened! + Tonneau cover and tailgate lowering in action! IMG_0313



Video of tonneau cover and tailgate in action:

Sponsored



cvalue13

Well-known member
Joined
Aug 17, 2022
Threads
58
Messages
5,319
Reaction score
10,001
Location
Austin, TX
Vehicles
F150L
Occupation
Fun-employed
Country flag
What do yall think?!

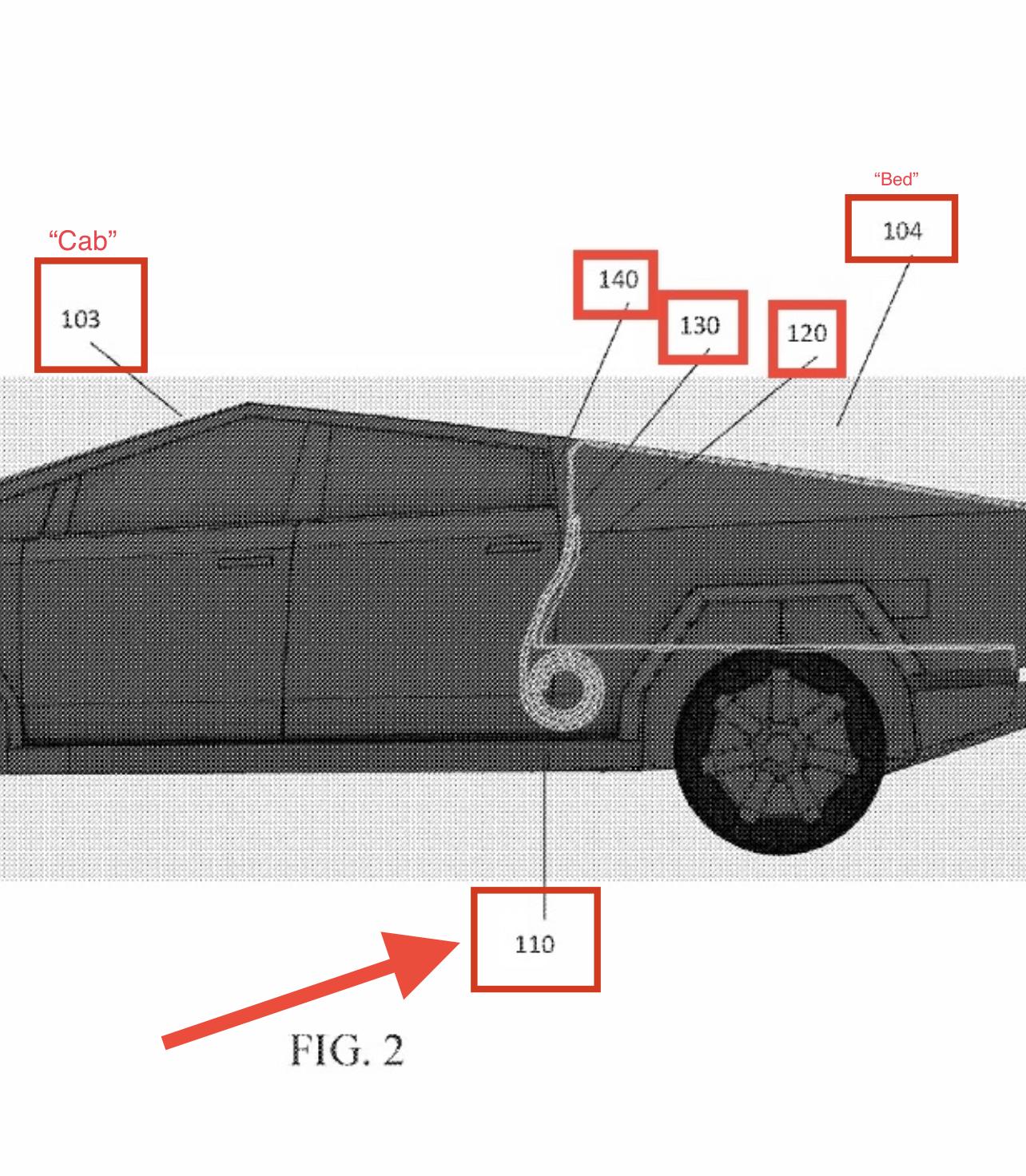

I previously discussed this from the info in the tonneau patent application, but this vault video is finally taken from an angle when someone pushes the button that shows it pretty conclusively:

the uppermost ~1/3rd of the vault is stored between the bed bulkhead and cab

watch the video a few times, and get a feel for the speed at which the tonneau moves - then note that the instant the guy pushes the button the tonneau lip jumps out of the sill below the rear window

this all jives with the language of the patent

No further nails needed in the midgate coffin

Tesla Cybertruck Cybertruck vault sub-trunk fully opened! + Tonneau cover and tailgate lowering in action! 26DFC37E-7F12-48DE-A070-6910E803A07F



ÆCIII

Well-known member
Joined
Apr 27, 2020
Threads
8
Messages
834
Reaction score
1,936
Location
USA
Vehicles
Model 3
Country flag
I like the dirty vault. :) Something about a 'real truck for people that do real work' comes to mind.

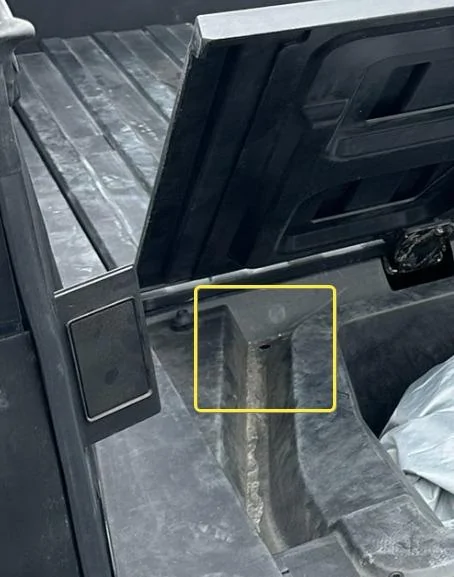

I also like the built in drain gutter around the top of the recessed storage under it's cover.

- ÆCIII

Last edited:

scottf200

Well-known member
Joined
Jul 31, 2021
Threads
11
Messages
718
Reaction score
1,144
Location
Chicagoland
Vehicles
Tesla Model X
Country flag
BTW, do we think this 120v 15amp or did they go all out with 20amp. [ /s ]

Tesla Cybertruck Cybertruck vault sub-trunk fully opened! + Tonneau cover and tailgate lowering in action! F80OUuM
Tesla Cybertruck Cybertruck vault sub-trunk fully opened! + Tonneau cover and tailgate lowering in action! output-onlinejpgtools

Last edited:

FutureBoy

Well-known member
First Name
Reginald
Joined
Oct 1, 2020
Threads
206
Messages
3,457
Reaction score
5,920
Location
Kirkland WA USA
Vehicles
Toyota Sienna
Occupation
Financial Advisor
Country flag


Throwcomputer

Well-known member
Joined
Jul 9, 2021
Threads
26
Messages
1,168
Reaction score
2,945
Location
Staten Island, NY
Vehicles
07 Ridgeline, Vintage Vespas, 02 Harley Sportster
Occupation
TV & Film
Country flag
I previously discussed this from the info in the tonneau patent application, but this vault video is finally taken from an angle when someone pushes the button that shows it pretty conclusively:

the uppermost ~1/3rd of the vault is stored between the bed bulkhead and cab

watch the video a few times, and get a feel for the speed at which the tonneau moves - then note that the instant the guy pushes the button the tonneau lip jumps out of the sill below the rear window

this all jives with the language of the patent

No further nails needed in the midgate coffin

I bet this also makes it easy for them to element proof the tonneau cubby hole when it's open for transporting gravel and loose materials. I'm thinking the end of the tonneau cover seals the cubby hole in the retracted position. So whether it's closed or fully open, the passage is blocked from loose materials being able to fall in.


Ogre

Well-known member
First Name
Dennis
Joined
Jul 3, 2021
Threads
163
Messages
10,710
Reaction score
26,935
Location
Ogregon
Vehicles
Model Y
Country flag
BTW, do we think this 120v 15amp or did they go all out with 20amp.

I swear they said there would be a 220v output, but this tiny little cover isn’t hiding that. My guess is it’ll be elsewhere. Perhaps in the frunk. I still think sail pillar area would be the best place for power. If there are sail pillar storage areas.


Ogre

Well-known member
First Name
Dennis
Joined
Jul 3, 2021
Threads
163
Messages
10,710
Reaction score
26,935
Location
Ogregon
Vehicles
Model Y
Country flag
What do yall think?!

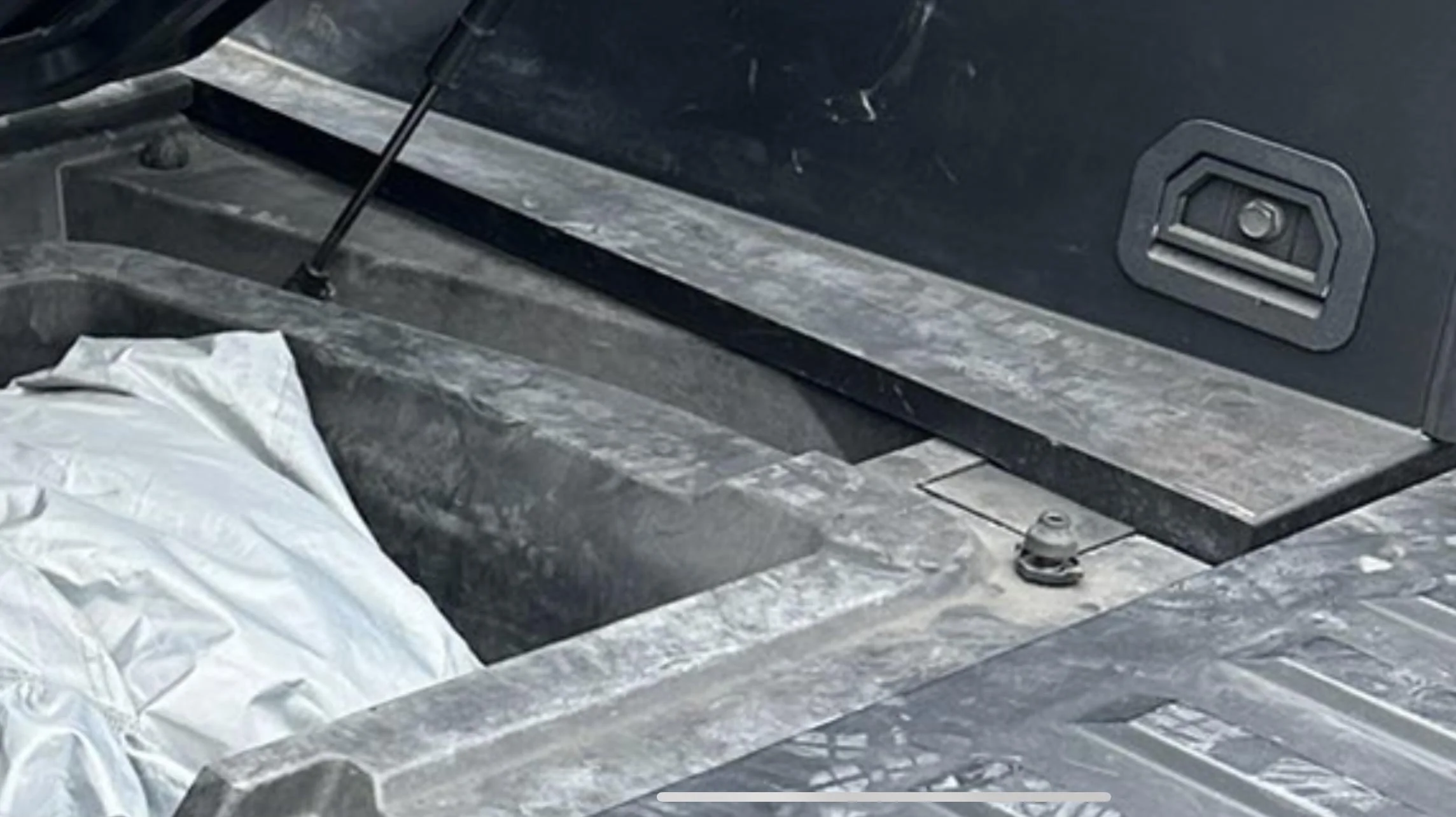

I live these tie down anchors, both nicely placed for either transporting low loads, along with a pair mounted where you can reach them from the outside of the truck. Super nice.

It would be nice if there was another in the center of the front vault wall, but this is pretty good.

Also great seeing the L tracks were kept. Lots of other truck makers only offer this as an upgrade.


cvalue13

Well-known member
Joined
Aug 17, 2022
Threads
58
Messages
5,319
Reaction score
10,001
Location
Austin, TX
Vehicles
F150L
Occupation
Fun-employed
Country flag
I bet this also makes it easy for them to element proof the tonneau cubby hole when it's open for transporting gravel and loose materials. I'm thinking the end of the tonneau cover seals the cubby hole in the retracted position. So whether it's closed or fully open, the passage is blocked from loose materials being able to fall in.
yes exactly - the very same seal design that when closed seals the lip of the tonneau to the tailgate

Together with the “eave” over the rear window, this all keeps debris and water from eg running down the rear window into the channel/cavity below the bed where the remaining ~2/3 of tonneau is coiled.

Meanwhile, the tonneau lip being ready just below the rear window also permits of speed to operate. It would instead be a bit clunky and “slow” if you press the button and not until a second later did you see the tonneau finally emerge from cavity below the bed. (I forget the word for this is design/physical UI, but a delay between button push and visible action is not just slow, it leaves a poor impression on users.)
