Old Spice

Well-known member
First Name
Ben
Joined
Nov 15, 2019
Messages
110
Reaction score
209
Location
Katy TX
Vehicles
F-150, Polaris RZR
Country flag
Here's why the Cybertruck may have dual (stereo) rear cameras...

By Teslarati

Tesla Cybertruck prototype is equipped with a cryptic stereo rear camera setup



June 29, 2020

The Tesla Cybertruck is the electric car maker’s boldest vehicle yet, with its unapologetic XY design and intimidating stance. Images of the all-electric pickup snapped during its appearance at the Petersen Automotive Museum all but highlighted this point. As more pictures of the Cybertruck made their way online, it soon became evident that the all-electric pickup truck, or at least its prototype, was equipped with a rather unique rear camera setup.

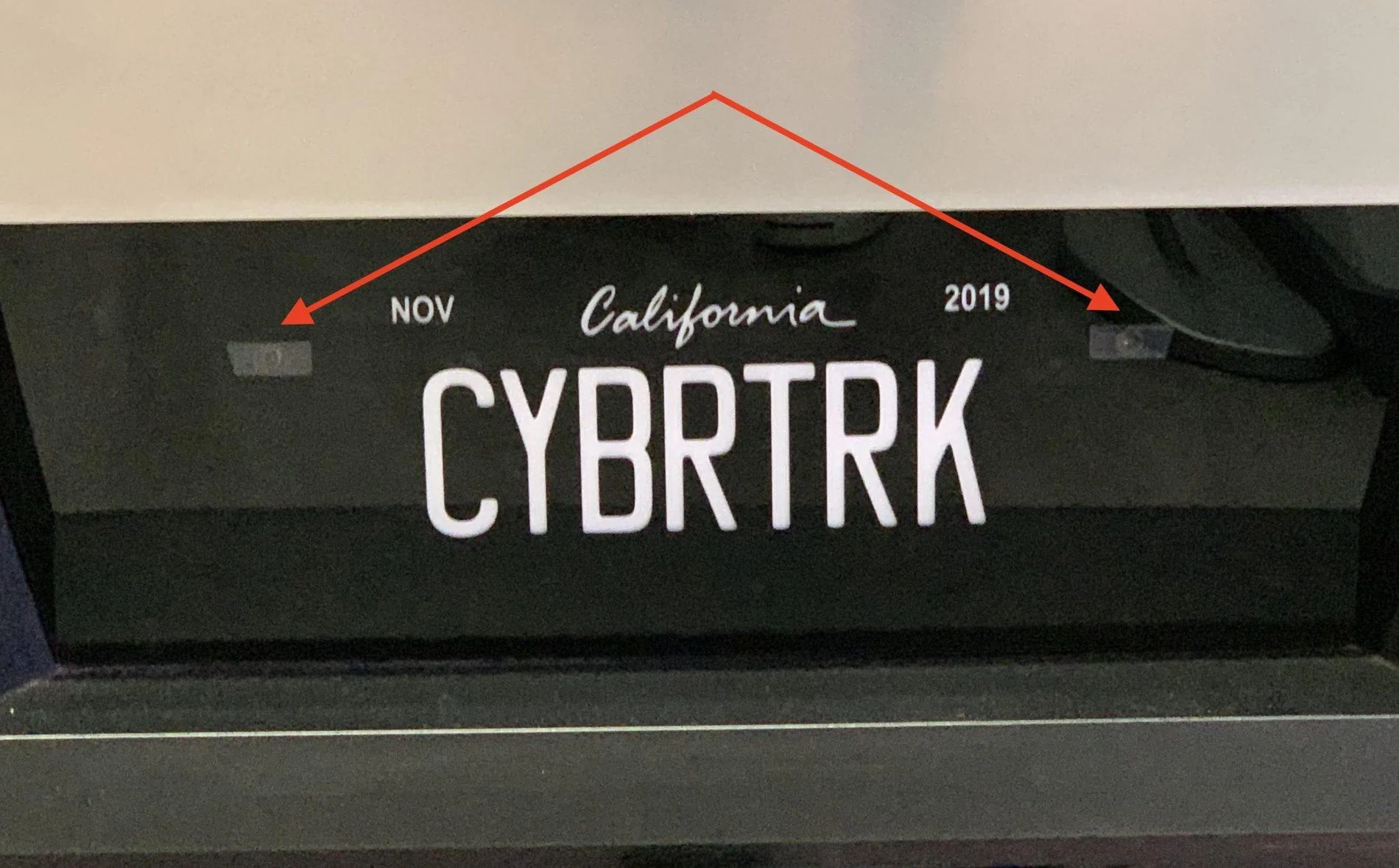

Tesla’s vehicles today — the Model S, Model 3, Model X, and Model Y — are all equipped with a suite of eight cameras. All of these vehicles feature the same setup: three pointing in front, four in the sides, and one in the rear. The Cybertruck, however, seems different, as it features a stereo rear camera setup. This was highlighted in a photo shared on the r/TeslaMotors subreddit by Tesla community member u/The-Allstater.

Granted, the Cybertruck in the Petersen Automotive Museum is only a prototype, which means that aspects of the vehicle could still change. Despite this, it is nevertheless interesting to speculate the purpose behind the all-electric pickup truck’s stereo cameras. Such a setup, after all, has several potential uses.

Members of the r/TeslaMotors subreddit shared some of their speculations about the Cybertruck’s stereo camera, with some suggesting that the dual sensor setup could be used to provide depth perception of objects that are attached to the truck, such as a trailer hitch. Others suggested that the second camera could be used as a rear view mirror, which would definitely be useful when the vehicle’s tonneau cover is closed.


Blue Steel

Well-known member
First Name
MP
Joined
Mar 4, 2020
Messages
140
Reaction score
242
Location
Portland OR
Vehicles
Toyota Highlander, Fiat 500e
Occupation
Management
Country flag

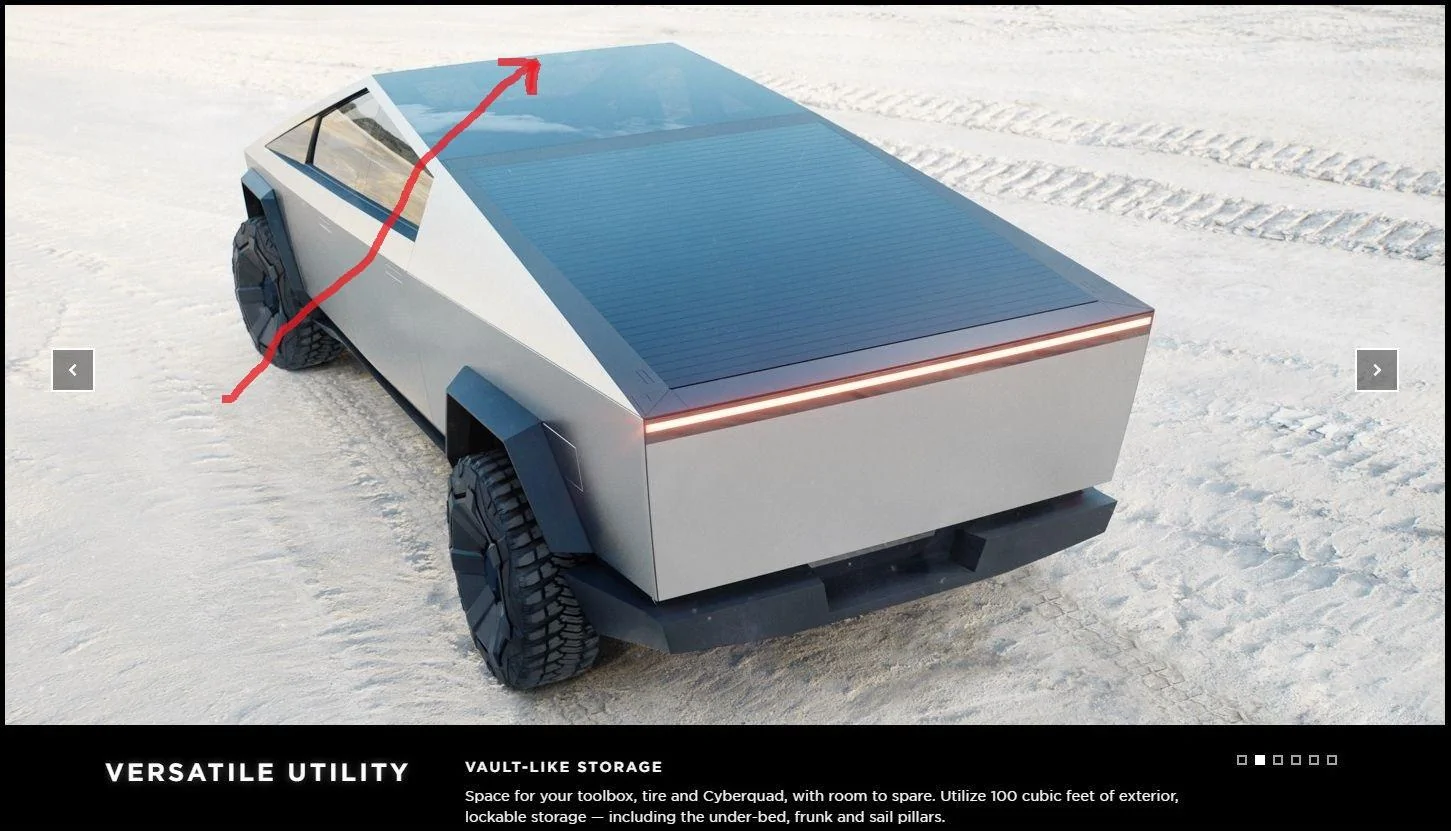

I've been really curious about the camera placement for the rear-view mirror. I had expected it to be rear facing up by the upper laser blade location. See the picture below.

CT ROOF.jpg


The issue with this location is that anything on top of the vault would obstruct the view. So now we see the cameras down by the plate. The issue here is that ANY trailer would completely block the rear-view mirror.

Maybe you can switch between views as needed???


DVANDERM

Member
First Name
Daniel
Joined
May 26, 2020
Messages
6
Reaction score
4
Location
Tampa, FL
Vehicles
Toyota Camry Hybrid
Occupation
Sr. ERP Analyst
Country flag
I've been really curious about the camera placement for the rear-view mirror. I had expected it to be rear facing up by the upper laser blade location. See the picture below.

CT ROOF.jpg


The issue with this location is that anything on top of the vault would obstruct the view. So now we see the cameras down by the plate. The issue here is that ANY trailer would completely block the rear-view mirror.

Maybe you can switch between views as needed???
There are images on the web which show two cameras in the front fender flare on each side. Speculation is this is where the side mirror cameras are. I guess they should just be called side view cameras?

Cyber Truck Fender Cameras


Blue Steel

Well-known member
First Name
MP
Joined
Mar 4, 2020
Messages
140
Reaction score
242
Location
Portland OR
Vehicles
Toyota Highlander, Fiat 500e
Occupation
Management
Country flag
There are images on the web which show two cameras in the front fender flare on each side. Speculation is this is where the side mirror cameras are. I guess they should just be called side view cameras?

Cyber Truck Fender Cameras
Nah, I'm talking about the camera for the rearview mirror.

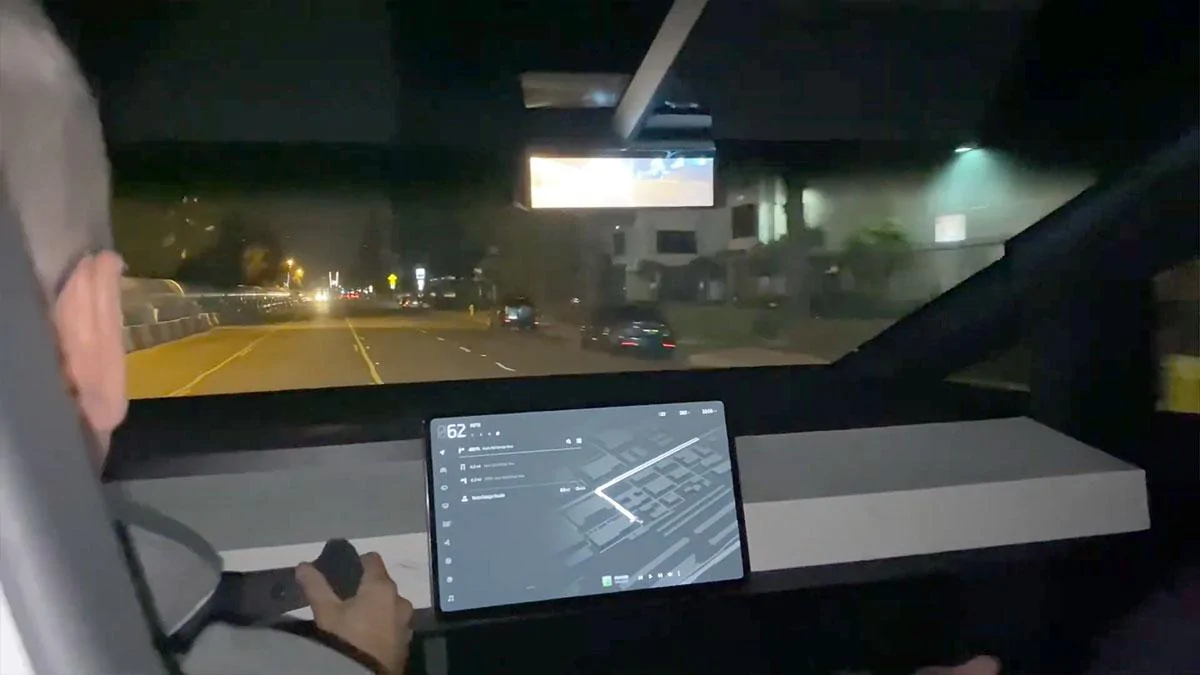

CT Mirror.jpg


mfroelich

New member
First Name
Michael
Joined
Jun 29, 2020
Messages
2
Reaction score
1
Location
Birmingham, AL
Vehicles
BMW i3, BMW 535i, Chevy Colorado
Occupation
Physician
Country flag
I suppose dual rearview cameras would allow 3D image generation. It might be a cool feature.


Bigvbear

Well-known member
First Name
Justin
Joined
Apr 26, 2020
Messages
91
Reaction score
99
Location
Eugene, OR
Vehicles
Cybertruck (soon!)
Occupation
IT
Country flag
I am betting these will be for helping with backing up / trailer hitching. I doubt this is the rear view camera as it would be blinded by any vehicle with headlights on.

I know this is for the US market, but I am wondering if this placement is a very bad idea. European license plates are far bigger than US ones. So if you ever go overseas (like many of our service men and women do) and take your truck these would potentially be covered up.

Also (yes i know its a prototype) where would you mount your US license plate? There is no holders/screws in this configuration :)


CybrTrkWdWk

Member
Joined
Feb 18, 2020
Messages
18
Reaction score
20
Location
Texas
Vehicles
Dual Motor FSD
Occupation
Design, Woodworking
Country flag
I am betting these will be for helping with backing up / trailer hitching. I doubt this is the rear view camera as it would be blinded by any vehicle with headlights on.

I know this is for the US market, but I am wondering if this placement is a very bad idea. European license plates are far bigger than US ones. So if you ever go overseas (like many of our service men and women do) and take your truck these would potentially be covered up.

Also (yes i know its a prototype) where would you mount your US license plate? There is no holders/screws in this configuration :)
Is it possibly glass/acylic that the license plate can be mounted behind? Euro plates are longer but shorter, maybe they fit under cameras?


Bigvbear

Well-known member
First Name
Justin
Joined
Apr 26, 2020
Messages
91
Reaction score
99
Location
Eugene, OR
Vehicles
Cybertruck (soon!)
Occupation
IT
Country flag
Is it possibly glass/acylic that the license plate can be mounted behind? Euro plates are longer but shorter, maybe they fit under cameras?
Some states have laws about any cover on license plates.


Brt

New member
First Name
Erick
Joined
Jun 29, 2020
Messages
1
Reaction score
3
Location
California
Vehicles
2012 Jeep Grand Cherokee Overland
Country flag
With depth perception from two cameras and auto pilot it should be able to perfectly back a ball hitch under the tongue of your trailer. No inching yourself back, getting out to check, get back in and inch back (oops turned the wheel the wrong way, let me fix that, oops too far), getting out to check again. The cybertruck self hitching feature, fully automated when paired with a Tesla trailer?


mggoulet

Well-known member
First Name
Michel Goulet
Joined
Dec 5, 2019
Messages
69
Reaction score
28
Location
Lac Massawippi
Vehicles
cybertruck with 3 motors
Occupation
retired
Country flag
Here's why the Cybertruck may have dual (stereo) rear cameras...

By Teslarati

Tesla Cybertruck prototype is equipped with a cryptic stereo rear camera setup



June 29, 2020

The Tesla Cybertruck is the electric car maker’s boldest vehicle yet, with its unapologetic XY design and intimidating stance. Images of the all-electric pickup snapped during its appearance at the Petersen Automotive Museum all but highlighted this point. As more pictures of the Cybertruck made their way online, it soon became evident that the all-electric pickup truck, or at least its prototype, was equipped with a rather unique rear camera setup.

Tesla’s vehicles today — the Model S, Model 3, Model X, and Model Y — are all equipped with a suite of eight cameras. All of these vehicles feature the same setup: three pointing in front, four in the sides, and one in the rear. The Cybertruck, however, seems different, as it features a stereo rear camera setup. This was highlighted in a photo shared on the r/TeslaMotors subreddit by Tesla community member u/The-Allstater.

Granted, the Cybertruck in the Petersen Automotive Museum is only a prototype, which means that aspects of the vehicle could still change. Despite this, it is nevertheless interesting to speculate the purpose behind the all-electric pickup truck’s stereo cameras. Such a setup, after all, has several potential uses.

Members of the r/TeslaMotors subreddit shared some of their speculations about the Cybertruck’s stereo camera, with some suggesting that the dual sensor setup could be used to provide depth perception of objects that are attached to the truck, such as a trailer hitch. Others suggested that the second camera could be used as a rear view mirror, which would definitely be useful when the vehicle’s tonneau cover is closed.
In winter snow could block the camera...!!!


SpaceDoc

Well-known member
Joined
Feb 19, 2020
Messages
48
Reaction score
45
Location
Houston, Tx
Vehicles
3 motor Cybertruck, highly modded 2014 Ford Focus SE, dead 1998 4-Runner
Occupation
Space Cowboy
Country flag
I've been really curious about the camera placement for the rear-view mirror. I had expected it to be rear facing up by the upper laser blade location. See the picture below.

CT ROOF.jpg


The issue with this location is that anything on top of the vault would obstruct the view. So now we see the cameras down by the plate. The issue here is that ANY trailer would completely block the rear-view mirror.

Maybe you can switch between views as needed???
Maybe it's just a plain old back up camera. Tho stereo vision would help it to self park.


Nanodot

Member
First Name
Charles
Joined
Feb 21, 2020
Messages
9
Reaction score
6
Location
Myrtle Beach
Vehicles
Subaru Forster
Occupation
Teacher
Country flag

Tim.Luchenko

Active member
First Name
Timothy
Joined
Jun 9, 2020
Messages
26
Reaction score
38
Location
California
Vehicles
Cybertruck
Occupation
IT
Country flag
I am betting these will be for helping with backing up / trailer hitching. I doubt this is the rear view camera as it would be blinded by any vehicle with headlights on.

I know this is for the US market, but I am wondering if this placement is a very bad idea. European license plates are far bigger than US ones. So if you ever go overseas (like many of our service men and women do) and take your truck these would potentially be covered up.

Also (yes i know its a prototype) where would you mount your US license plate? There is no holders/screws in this configuration :)
You do not need holders or screws. I guess it is a monochrome display there, where license plate should be. DMV will program them via CT computer and they will appear on this display. Take a closer look at this area and you will see what i am talking about. It already displays CYBRTRK with state and registration dates
