EPC: Homepage/Cybertruck US/17 - ELECTRICAL 1710/Harnesses/Windshield Harness

scottf200

Well-known member
Joined
Jul 31, 2021
Threads
46
Messages
1,651
Reaction score
2,603
Location
Chicagoland
Vehicles
Tesla Model X
Country flag

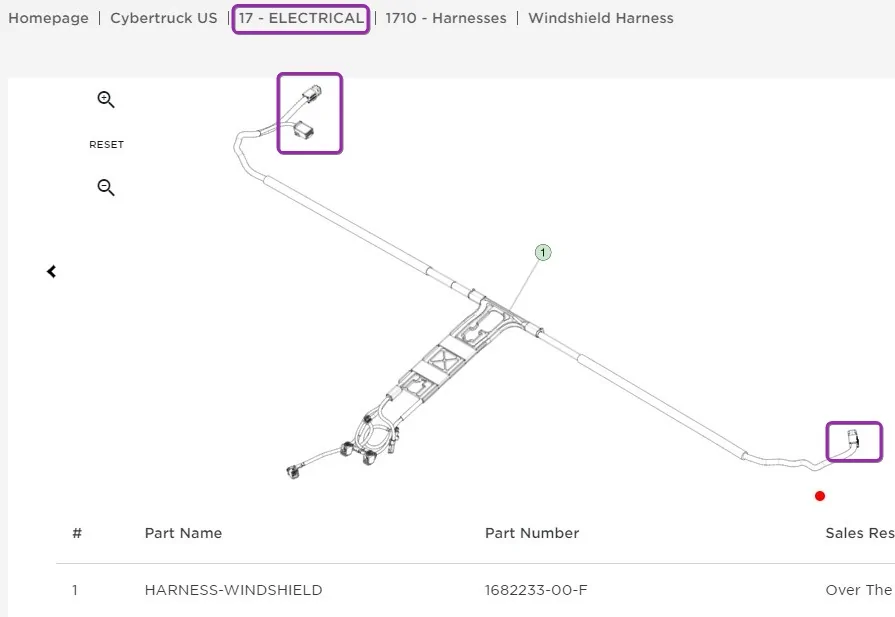

Why would there be *3* electrical plugs for the windshield? 1 or 2 for heaters but 3?
UPDATE: add windshield picture to show proper perspective.

Tesla Cybertruck EPC: Homepage/Cybertruck US/17 - ELECTRICAL 1710/Harnesses/Windshield Harness PTEOkOn


Tesla Cybertruck EPC: Homepage/Cybertruck US/17 - ELECTRICAL 1710/Harnesses/Windshield Harness xM3vzpC
Sponsored


Last edited:

CyberGus

Well-known member
First Name
Gus
Joined
May 22, 2021
Threads
73
Messages
6,598
Reaction score
21,448
Location
Austin, TX
Website
www.timeanddate.com
Vehicles
1981 DeLorean, 2024 Cybertruck
Occupation
IT Specialist
Country flag
Why would there be *3* electrical plugs for the windshield? 1 or 2 for heaters but 3?

The forward part of the harness is for the AP cameras. One of the upper connectors is probably for the light bar, and one must be to connect to the main vehicle harness.

Maybe it connects to the main harness in two places for redundancy? The front cameras are critical to FSD operation.

OP
OP
scottf200

scottf200

Well-known member
Joined
Jul 31, 2021
Threads
46
Messages
1,651
Reaction score
2,603
Location
Chicagoland
Vehicles
Tesla Model X
Country flag
The forward part of the harness is for the AP cameras. One of the upper connectors is probably for the light bar, and one must be to connect to the main vehicle harness.

Maybe it connects to the main harness in two places for redundancy? The front cameras are critical to FSD operation.
Doh. Yes, I was visualizing it incorrectly. That makes a lot of sense.
I've ran front dashcam and rear dashcam wires in my TMX and had to open up that front channel to hide my wires (and FWD molding).

Added another picture to my opening post.
Sponsored







Top
