Front license plate blocks the front camera. Will autopilot / FSD be affected?

wheeler

Active member
Joined
Jan 26, 2024
Threads
14
Messages
43
Reaction score
67
Location
San Jose, CA
Vehicles
2024 MYLR, 2024 CTAWD
Country flag

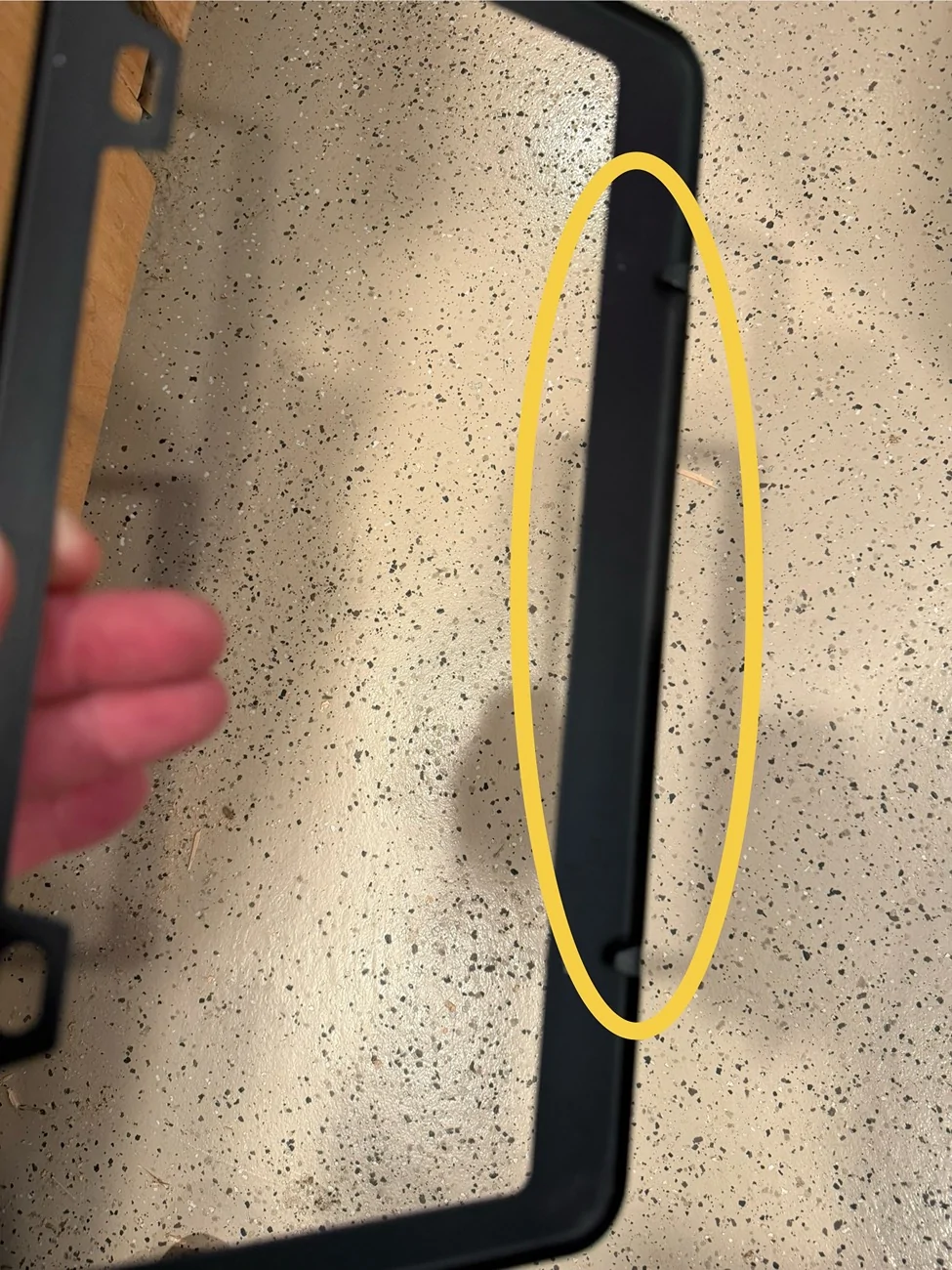

I installed a very slim license plate frame on the front plate holder that comes with CT. And found that it is blocking the front camera in the left lower corner.

Tesla Cybertruck Front license plate blocks the front camera. Will autopilot / FSD be affected? 61yN4Vsv6FL._AC_SL1500_

Tesla Cybertruck Front license plate blocks the front camera. Will autopilot / FSD be affected? 20240508140052

Tesla Cybertruck Front license plate blocks the front camera. Will autopilot / FSD be affected? 20240508140033


The license plate itself is also blocking a little bit without the frame. I didn't notice that before the frame installed. The photo below is without the frame, showing a dark triangle area behind the wash camera button.

Tesla Cybertruck Front license plate blocks the front camera. Will autopilot / FSD be affected? 20240508140105


I'm wondering how this will affect auto pilot :unsure:.

Now I'm looking for an after market front license plate holder to avoid this.


Update:

Tested CyberBandit front license plate mount. A plate mounted in the middle without a frame also block the camera.

Tesla Cybertruck Front license plate blocks the front camera. Will autopilot / FSD be affected? 20240510142354


Tesla Cybertruck Front license plate blocks the front camera. Will autopilot / FSD be affected? 20240510142403


But it can be easily mounted off-center all over the front bumper. So this will be my solution for now.

Update:

Just heard that SnapPlate is not blocking the front camera.

Sponsored


Last edited:

Crissa

Well-known member
First Name
Crissa
Joined
Jul 8, 2020
Threads
133
Messages
17,197
Reaction score
28,560
Location
Santa Cruz
Vehicles
2014 Zero S, 2013 Mazda 3
Country flag
OP
OP

wheeler

Active member
Joined
Jan 26, 2024
Threads
14
Messages
43
Reaction score
67
Location
San Jose, CA
Vehicles
2024 MYLR, 2024 CTAWD
Country flag
This photo seems to be nonsensically edited. I have no idea what you're showing.
It is a close up showing the dark triangle area behind the wash camera button.

...This looks terrible, but why hasn't anyone else noticed it before now? Is your camera mounted differently? Is it inset a little bit, maybe?
I have no idea. I never touched the camera.


RollingRefrigerator

Well-known member
First Name
Eric
Joined
Dec 16, 2023
Threads
8
Messages
138
Reaction score
345
Location
San Jose, CA
Vehicles
Foundation AWD CT, M3P, MYP
Country flag
Simple fix - remove the whole damn thing. Yes, I know, CA law requires a front plate, but I've been driving 4 different cars over the last 20 years in CA without a front plate, and have never been pulled over for it. I've been pulled over for other things multiple times, and still didn't get any flack about not having a front plate or my illegal tint. But yes these were all "nice" cars so I am surely betting the benefit of any profiling the cops are doing. YMMV!

In my opinion they totally throw off the look of a car, and might slightly affect aerodynamic efficiency as well, so I say no to front plates.



getsometom

Well-known member
Site Sponsor
First Name
Tom
Joined
Mar 31, 2024
Threads
21
Messages
613
Reaction score
650
Location
Texas
Website
makerspacedude.etsy.com
Vehicles
Cybertruck
Occupation
a dude
Country flag
A few things you can check.

1. Verify your front camera is positioned correctly with Tesla.
2. Check the dimensions of your license plate frame? Plates in the US are 12"x6", plate frames are naturally a tad bigger than license plates to cover the edges. Some frames are bigger than others. The ones I use are 12.3" x 6.5"
3. Verify the plate bracket backing is positioned correctly during install and there is no slack or space between the bracket backing and the front bumper. The closer you can get the entire thing mounted to the bumper, the better it will be for your camera's visibility.

What does the camera image look like without a plate frame? If your camera sees the plate without a frame, Tesla needs to adjust the camera to allow full visibility as any frame will further hinder visibility.

Last edited:

gaubong053

Well-known member
First Name
Tuan
Joined
Jan 20, 2024
Threads
2
Messages
71
Reaction score
101
Location
Sacramento, CA
Vehicles
MXP, Cybertruck AWD FS.
Occupation
Software engineer
Country flag

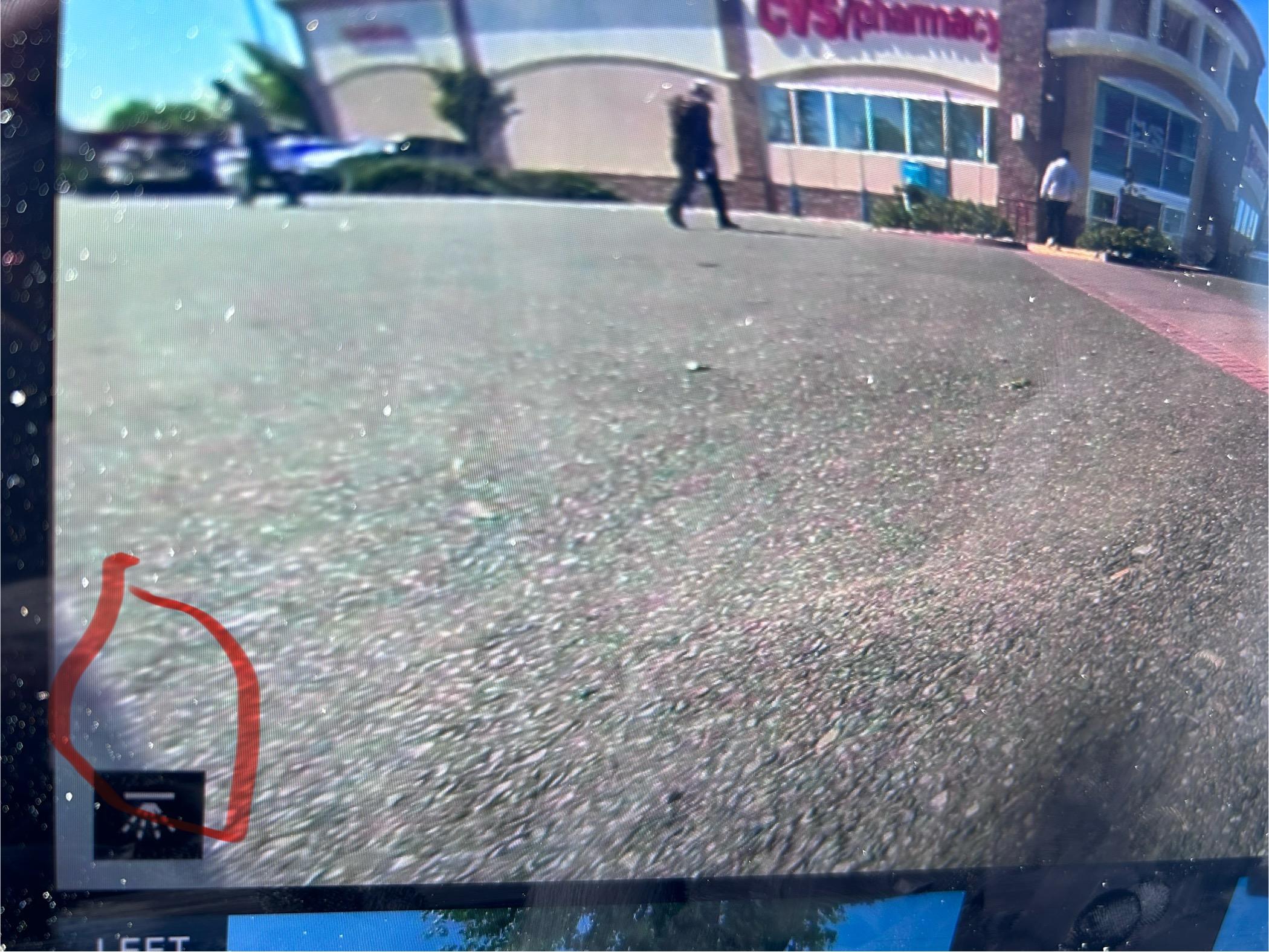

I am seeing the same thing. As the front camera has very wide angle so very small block would not affect FSD if it ever uses the camera.
Tesla Cybertruck Front license plate blocks the front camera. Will autopilot / FSD be affected? IMG_5640

Last edited:

Fedork

Active member
First Name
Fedor
Joined
Sep 1, 2023
Threads
10
Messages
37
Reaction score
59
Location
94588
Vehicles
Cybertruck
Occupation
Software engineer
Country flag
I installed a very slim license plate frame on the front plate holder that comes with CT. And found that it is blocking the front camera in the left lower corner.





The license plate itself is also blocking a little bit without the frame. I didn't notice that before the frame installed. The photo below is without the frame, showing a dark triangle area behind the wash camera button.



I'm wondering how this will affect auto pilot :unsure:.

Now I'm looking for an after market front license plate holder to avoid this.
I put on the front licence plate without any frame and I noticed the camera blockage as well. I assume this is just an oversight on Tesla part. Hopefully does not affect autopilot, but is somewhat annoying. Maybe they can fix it by providing a different mount? Not sure if that is possible, maybe thinner one would work?

WRT the comments about not mounting front plates at all - I considered it, but I have yellow-on-black custom plates and they look really nice on CT, so no loss there



OP
OP

wheeler

Active member
Joined
Jan 26, 2024
Threads
14
Messages
43
Reaction score
67
Location
San Jose, CA
Vehicles
2024 MYLR, 2024 CTAWD
Country flag
Update:

Tested CyberBandit front license plate mount. A plate mounted in the middle without a frame also block the camera.





But it can be easily mounted off-center all over the front bumper. So this will be my solution for now.
Updated.

OP
OP

wheeler

Active member
Joined
Jan 26, 2024
Threads
14
Messages
43
Reaction score
67
Location
San Jose, CA
Vehicles
2024 MYLR, 2024 CTAWD
Country flag
Just learnt that SnapPlate is not blocking the front camera.👍
