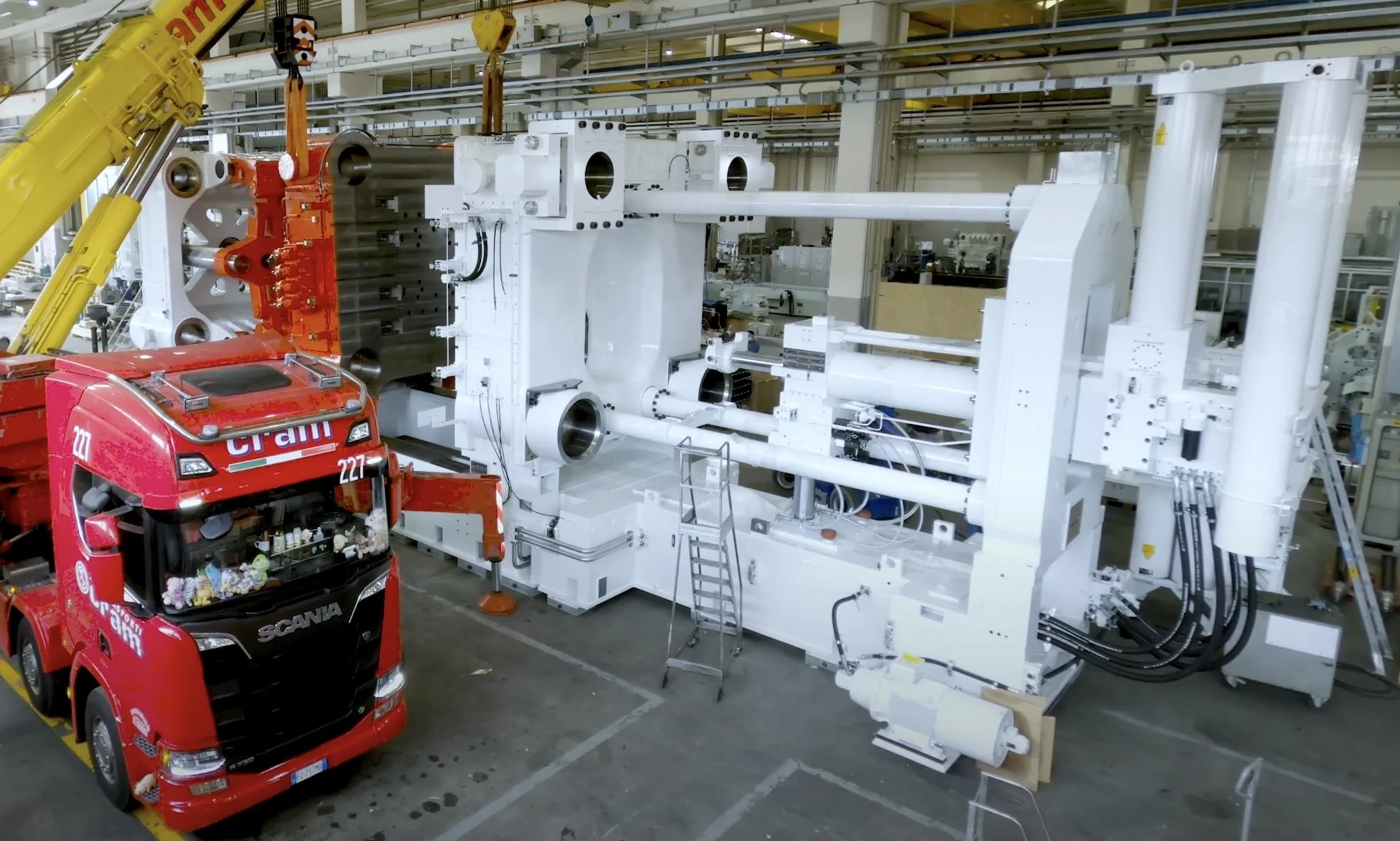

Having spent a stupid amount of time comparing this to the other press to the other 9K they've shown/ shipped, I am pretty confident this is in fact the 9K press they teased a few weeks ago about building.

I am not TOTALLY convinces, platen is quite different and no sleeves on far side.. Pictured OG 9K below...
Tesla Cybertruck IDRA Assembling Second 9K Press In ITALY For Testing! 1669745650065
Sponsored


Last edited:

Mini2nut

Well-known member
Joined
Apr 2, 2020
Threads
84
Messages
2,059
Reaction score
3,889
Location
CA
Vehicles
2019 Tacoma TRD Pro
Country flag

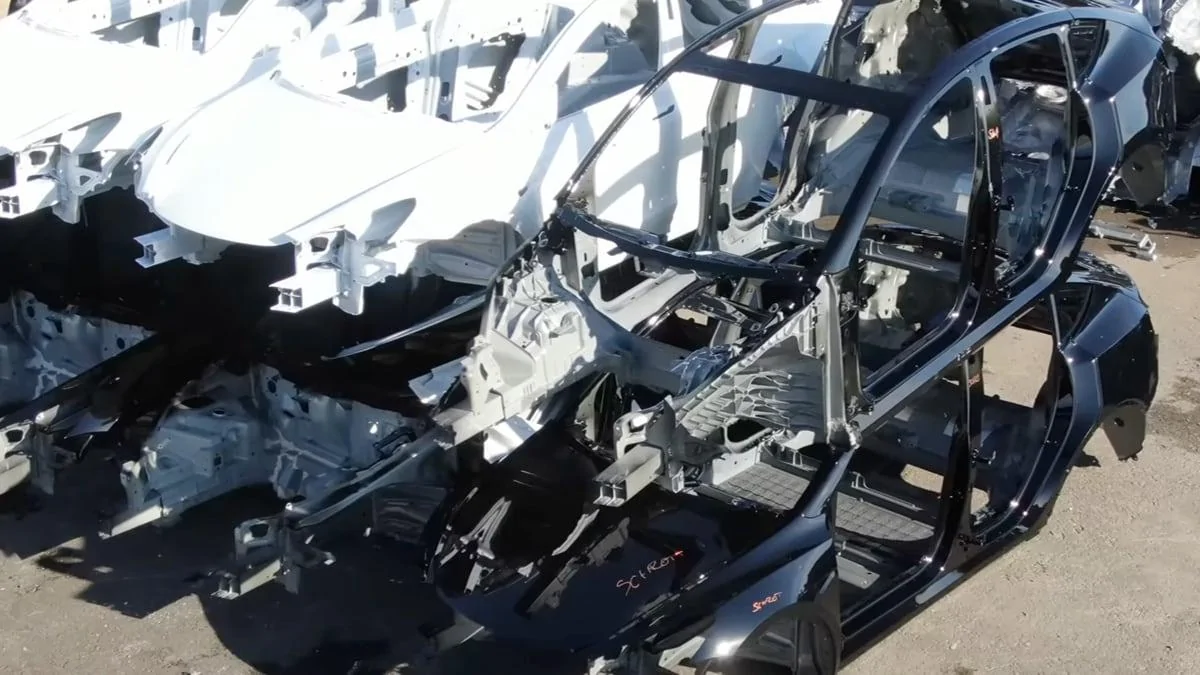

It will not be long before we see pre-production SS BIW (CT exoskeletons) stacking up around the Austin factory to eventually be scrapped. 2023 is going to be an exciting year for CT reservation holders.

Tesla Cybertruck IDRA Assembling Second 9K Press In ITALY For Testing! 41AA1BEF-1384-433F-9C70-7942E2075C25

OP
OP
greggertruck

greggertruck

Well-known member
First Name
g
Joined
Mar 30, 2022
Threads
199
Messages
2,450
Reaction score
7,053
Location
Zimbabwe
Website
www.twitter.com
Vehicles
Dual-CT
Occupation
I post Cybertruck stuff on the Internet and people like it.
Country flag
It will not be long before we see pre-production SS BIW (CT exoskeletons) stacking up around the Austin factory to eventually be scrapped. 2023 is going to be an exciting year for CT reservation holders.

Very much can not wait for that. Just to see how they do it....

Wonder if they'll trash them differently, shred them inside... hide them?



OP
OP
greggertruck

greggertruck

Well-known member
First Name
g
Joined
Mar 30, 2022
Threads
199
Messages
2,450
Reaction score
7,053
Location
Zimbabwe
Website
www.twitter.com
Vehicles
Dual-CT
Occupation
I post Cybertruck stuff on the Internet and people like it.
Country flag
They've never really done that before.

-Crissa
Hide them? Would we know if so? ;)

They DO smash them at Fremont already.


Jhodgesatmb

Well-known member
First Name
Jack
Joined
Dec 1, 2019
Threads
63
Messages
4,715
Reaction score
6,902
Location
San Francisco Bay area
Website
www.arbor-studios.com
Vehicles
Tesla Model Y LR, Tesla Model 3 LR
Occupation
Retired AI researcher
Country flag


Having spent a stupid amount of time comparing this to the other press to the other 9K they've shown/ shipped, I am pretty confident this is in fact the 9K press they teased a few weeks ago about building.

I am not TOTALLY convinces, platen is quite different and no sleeves on far side.. Pictured OG 9K below...
I went to the IDRA LinkedIn site and they posted the pic but said nothing about it so I am not surprised that you spent so much time trying to verify - or that you failed to obtain that verification. If only we knew when the first one shipped we would have he answer (sort of).


firsttruck

Well-known member
Joined
Sep 25, 2020
Threads
168
Messages
2,507
Reaction score
3,963
Location
mx
Vehicles
none
Country flag

----------------------

The Mesta 50,000 ton closed die forging press is different than IDRA GigaPress.
The Mesta 50,000 ton closed die forging press pounds/hammers billets of steel. The billet is a solid (though softened) but not molten.
The pressure is used to press and pound/hammer the billet.

The IDRA GigaPress is a die casting process. Molten (liquid) metal is pressured into a die/mold. The 9,000 is to the clamping force to keep the two halves of the die/mold clamped together. As the molten metal is pressed in it wants to escape by any easier paths.


----------------------

IRDA GigaPress Catalogue
GIGAPRESS going from 5500 to 9000 tons and counting opens a new era in die-casting ‘giga’ solutions.
https://www.idragroup.com/sites/default/files/download/gigapressen-idra_5.pdf

MODEL GIGAPRESS OL 9000 CS

Clamping force Ton 9.225
Injection dynamic force (2^ phase) kN 1.430
Injection force with 20 bar counterpressure kN 4.320
Ejection force kN 1.23
Max. injection velocity (without alloy) m/s 9
Pressure on the alloy in the min. sleeve mm 715
Pressure on the alloy in the max. sleeve mm 548
Working pressure bar 180

Machine weight kW 590

Machine dimensions (LxWxH) m 26x8,4x7,7

----------------------

Last edited:

TyPope

Well-known member
First Name
Ty
Joined
Mar 31, 2020
Threads
19
Messages
1,631
Reaction score
2,746
Location
Papillion, NE
Vehicles
'18 F150, '23 MY, '24 CT, '23 Maveric hybrid soon
Occupation
Operations Planner
Country flag
At this point, they are most likely checking their own production for mistakes. Hate to send a huge part overseas just to have to have it shipped back because Bob didn't take the piston sleeve down to the right tolerance. Dammit, Bob.



Qball

Well-known member
Joined
Jul 11, 2021
Threads
0
Messages
242
Reaction score
414
Location
CA
Vehicles
Model 3
Country flag
Yes!!!! 2 CT lines!!!! Can’t wait!!!


Jhodgesatmb

Well-known member
First Name
Jack
Joined
Dec 1, 2019
Threads
63
Messages
4,715
Reaction score
6,902
Location
San Francisco Bay area
Website
www.arbor-studios.com
Vehicles
Tesla Model Y LR, Tesla Model 3 LR
Occupation
Retired AI researcher
Country flag
Sometimes you confuse me. They aren't baking cookies here. Surely IDRA would assemble and test the individual components statically before shipping 1.2 million pounds across the world. It doesn't matter to them when it arrives but liability does.


Jhodgesatmb

Well-known member
First Name
Jack
Joined
Dec 1, 2019
Threads
63
Messages
4,715
Reaction score
6,902
Location
San Francisco Bay area
Website
www.arbor-studios.com
Vehicles
Tesla Model Y LR, Tesla Model 3 LR
Occupation
Retired AI researcher
Country flag
It will not be long before we see pre-production SS BIW (CT exoskeletons) stacking up around the Austin factory to eventually be scrapped. 2023 is going to be an exciting year for CT reservation holders.

Too long for me, friend.
