I have the original Starlink Dishy McFlatface (the round one) that I want to use to connect to the internet in the back country. I have a Starlink Mobile subscription that I will 'Unpause' for 30 days when I go off road. It costs $150/month, but I can pause it when I don't need it.

I modified the three foot pedestal to add suction cups in order to adhere the antenna to the glass roof of the Cybertruck.

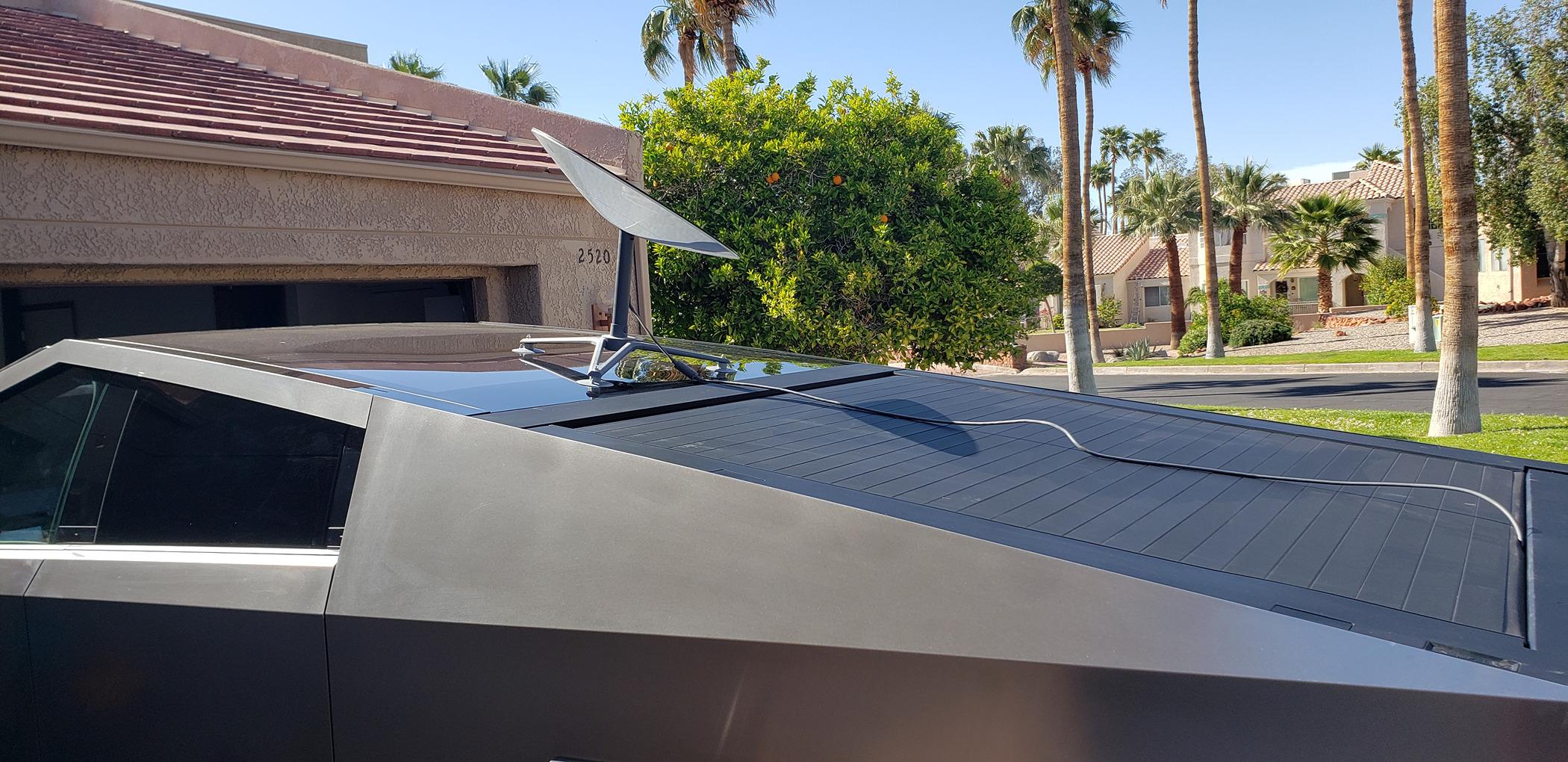

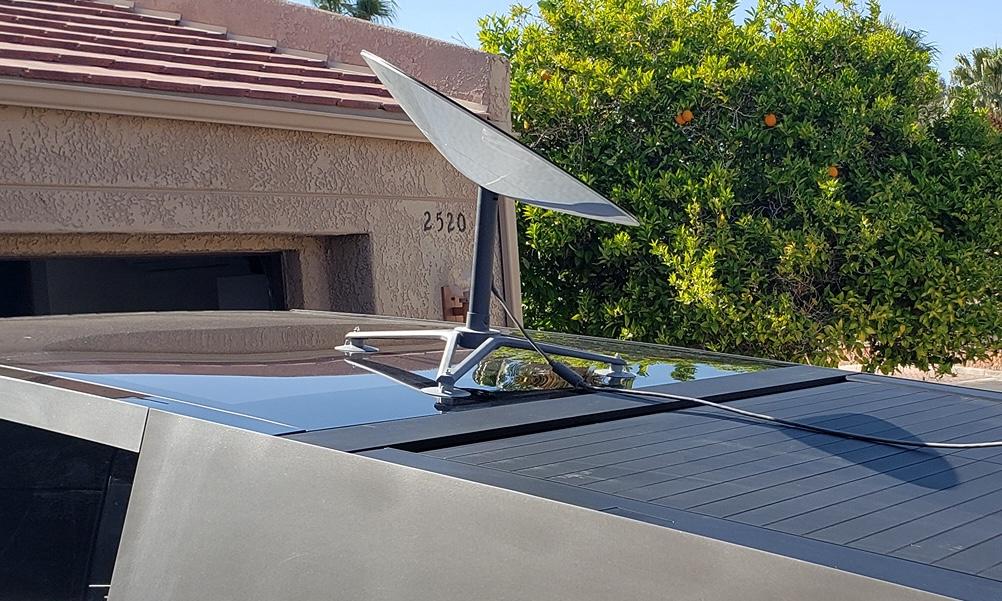

Tesla Cybertruck My Starlink Antenna Custom Mount With Suction Cups Dishy Mounted



Tesla Cybertruck My Starlink Antenna Custom Mount With Suction Cups Dishy Mounted

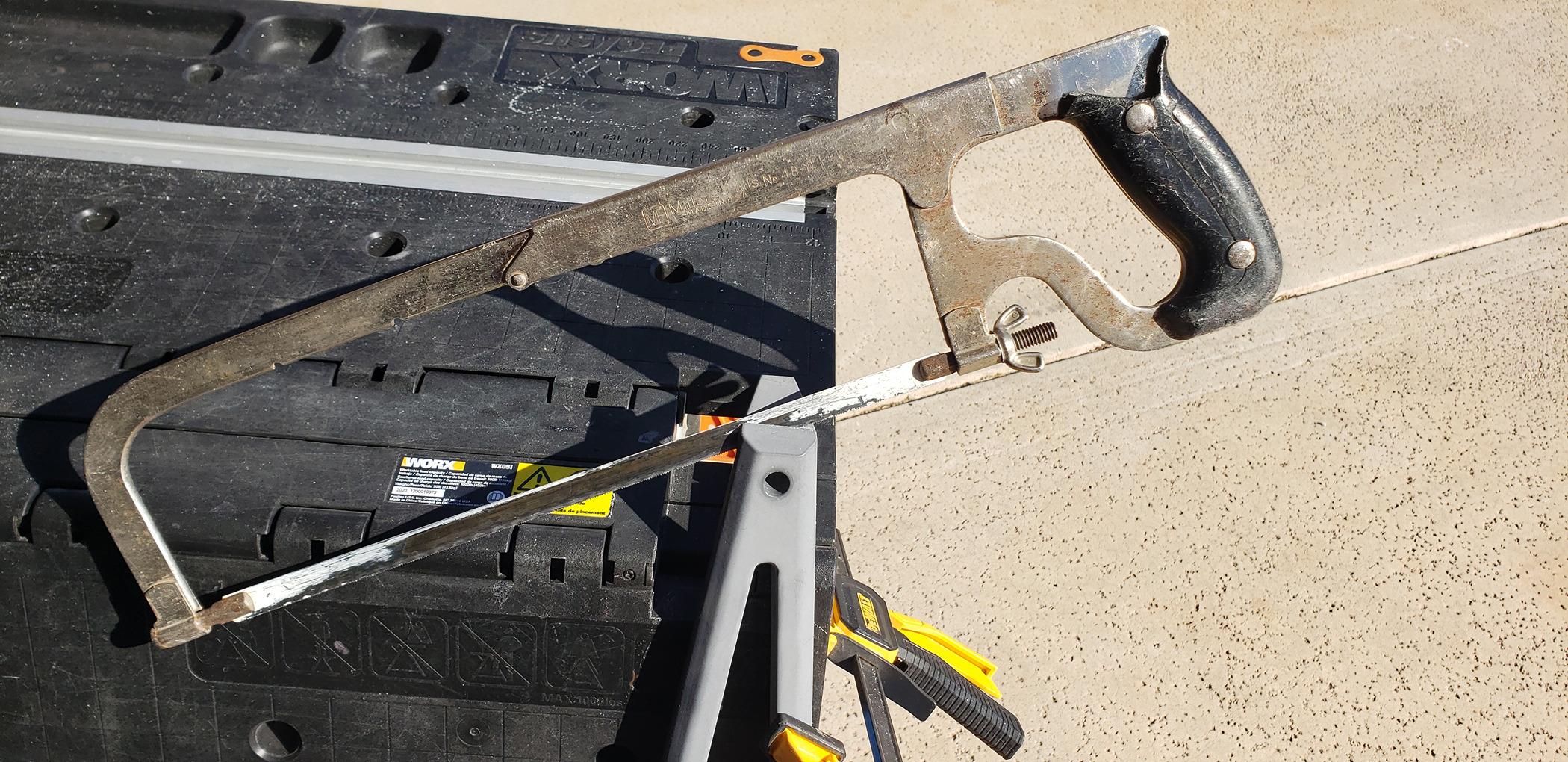

Tesla Cybertruck My Starlink Antenna Custom Mount With Suction Cups Hacksaw cuts

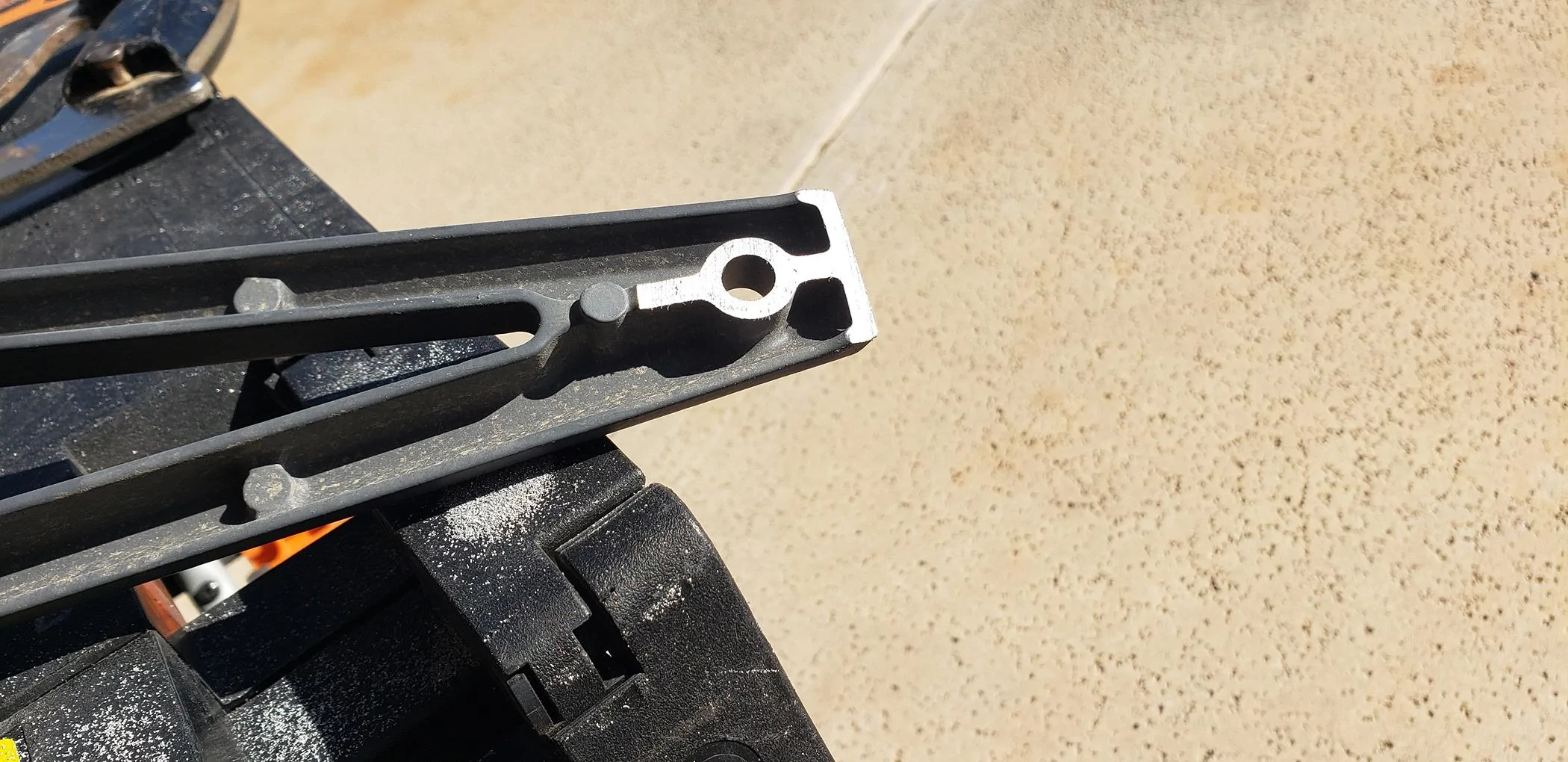

Tesla Cybertruck My Starlink Antenna Custom Mount With Suction Cups Mount modification

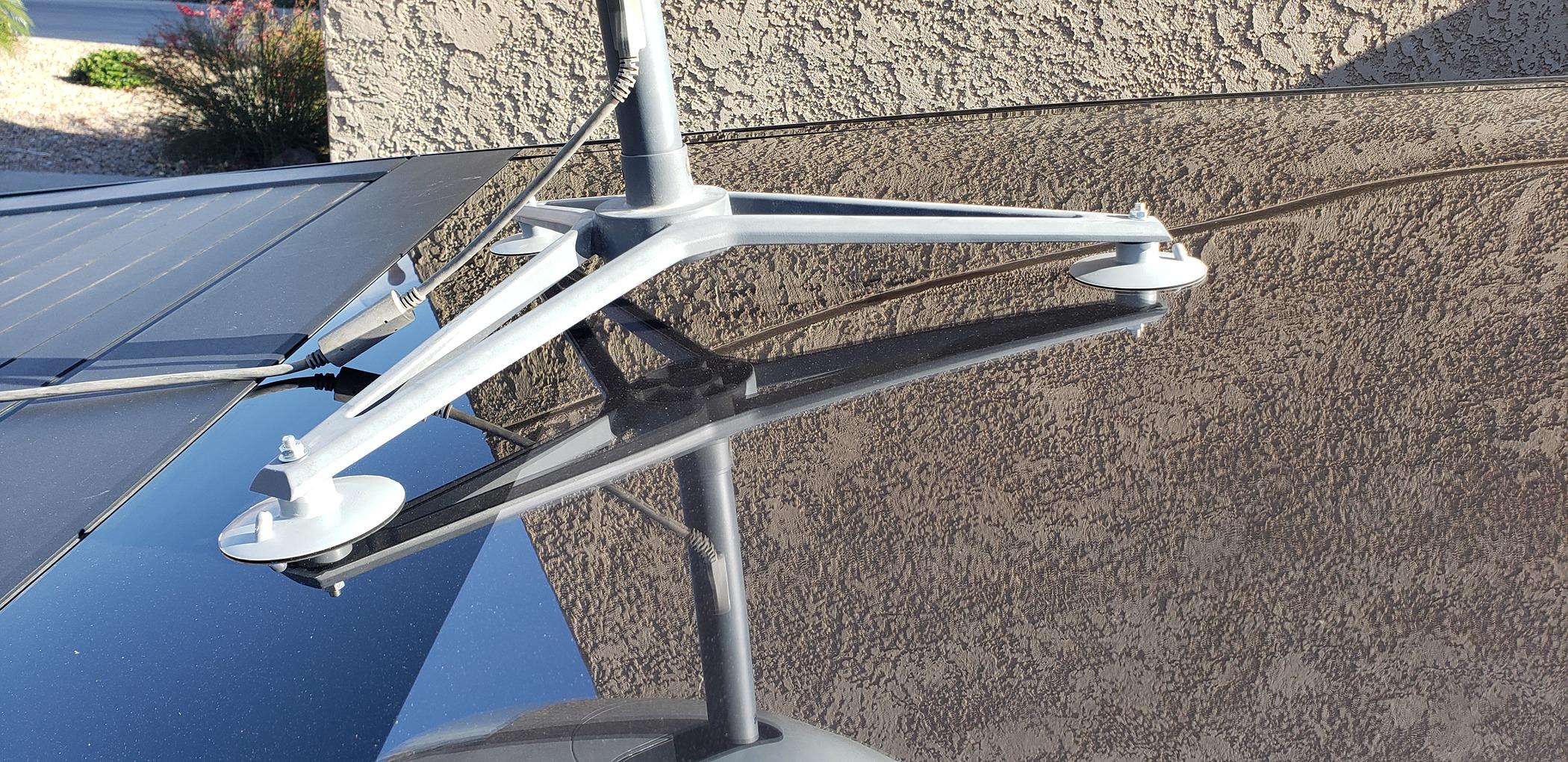

Tesla Cybertruck My Starlink Antenna Custom Mount With Suction Cups Suction cups
Sponsored



mrbulk

Well-known member
Joined
May 30, 2020
Threads
15
Messages
201
Reaction score
248
Location
Las Vegas
Vehicles
Tesla Model S75D
Country flag
Interesting. I saw a CT with the Starlink antenna mounted down in the bed, and you open the tonneau to use it. If I find photo will post here.


C T Rick

Well-known member
First Name
Rick
Joined
Oct 5, 2020
Threads
5
Messages
298
Reaction score
489
Location
Los Angeles
Vehicles
2008 Dodge Sprinter 3500, 2015 Nissan NV 3500, 2013 Chevy Traverse
Occupation
Plumbing Contractor
Country flag
Can’t really comment on the star link, except SpaceX was suppose to launch last night around 7:30 pst from Vandenberg. Stood outside for 10 minutes and nothing. Looks like there’re now shooting for 7:30 pst tonight, but with rain starting tonight through the weekend , might be postponed.

Now as far as your hacksaw goes. Yes, that’s an oldie and not really a goodie. The newer blades we now use are bi-metal that reguire much more tension than that hacksaw frame can generate. Also even though it looks like a very clean cut, Aluminum requires a coarser blade to prevent clogging of the teeth. 14 tpi would be better. Even though your cut looks very clean possibly dressed up with a sander?
Overall a clean looking job Cybergirl.
Rick



TickTock

Well-known member
First Name
Luke
Joined
Jul 27, 2023
Threads
6
Messages
138
Reaction score
273
Location
Phoenix, AZ
Vehicles
2018 Model 3; 2018 Model S; 2023 F-150 LIghtning
Country flag
I have the original Starlink Dishy McFlatface (the round one) that I want to use to connect to the internet in the back country. I have a Starlink Mobile subscription that I will 'Unpause' for 30 days when I go off road. It costs $150/month, but I can pause it when I don't need it.
I am curious. How quickly are you able to unpause the service? Would having a Mobile subscription also work as a backup network in case of local outages?

OP
OP
Cybergirl

Cybergirl

Well-known member
Joined
Jul 3, 2020
Threads
16
Messages
420
Reaction score
1,233
Location
Illinois and Arizona
Vehicles
Tesla Model Y LR, Model Y SR, Cybertruck AWD FS
Country flag
I am curious. How quickly are you able to unpause the service? Would having a Mobile subscription also work as a backup network in case of local outages?
I, personally, am not sure how quickly the Unpause takes effect, but when I asked Grok, he said, "It takes about 10 seconds to unpause the Starlike Mobile service."

If that's true, and I don't have reason to doubt it, my intent is to unpause before venturing off-road where cell service is absent. It would be a good internet back up as long as you have a way to power the antenna and router.

OP
OP
Cybergirl

Cybergirl

Well-known member
Joined
Jul 3, 2020
Threads
16
Messages
420
Reaction score
1,233
Location
Illinois and Arizona
Vehicles
Tesla Model Y LR, Model Y SR, Cybertruck AWD FS
Country flag
Can’t really comment on the star link, except SpaceX was suppose to launch last night around 7:30 pst from Vandenberg. Stood outside for 10 minutes and nothing. Looks like there’re now shooting for 7:30 pst tonight, but with rain starting tonight through the weekend , might be postponed.

Now as far as your hacksaw goes. Yes, that’s an oldie and not really a goodie. The newer blades we now use are bi-metal that reguire much more tension than that hacksaw frame can generate. Also even though it looks like a very clean cut, Aluminum requires a coarser blade to prevent clogging of the teeth. 14 tpi would be better. Even though your cut looks very clean possibly dressed up with a sander?
Overall a clean looking job Cybergirl.
Rick
No post-cut dressing up of the cut. It was easy material to cut with this saw.


TickTock

Well-known member
First Name
Luke
Joined
Jul 27, 2023
Threads
6
Messages
138
Reaction score
273
Location
Phoenix, AZ
Vehicles
2018 Model 3; 2018 Model S; 2023 F-150 LIghtning
Country flag
I, personally, am not sure how quickly the Unpause takes effect, but when I asked Grok, he said, "It takes about 10 seconds to unpause the Starlike Mobile service."

If that's true, and I don't have reason to doubt it, my intent is to unpause before venturing off-road where cell service is absent. It would be a good internet back up as long as you have a way to power the antenna and router.
That is awesome, if true. I am currently paying over $100/mo for a backup internet connection I almost never use. Even if it took 1-2 minutes, that would be very compelling. Save $100/month but pay $150 maybe once a year. ..and I can take it with me on my outings! I think you just earned yourself a Starlink referral point (if such things exist).


jf64k

Well-known member
Joined
Dec 12, 2023
Threads
3
Messages
116
Reaction score
174
Location
Los Angeles
Vehicles
2020 MYLR, 2024 FSCT AWD on order
Country flag
I'm digging the old school hacksaw, CG!! Nice work on the cuts.

Last edited:


EMoeller

Well-known member
First Name
Eric
Joined
Aug 23, 2023
Threads
0
Messages
68
Reaction score
118
Location
West Marin, California
Vehicles
Porsches (992 Turbo S, 993 Turbo, 993 Targa) Prius
Occupation
Geologist
Country flag
Great work! A top priority when I get my CB is to install Starlink and this looks like a great temp solution when camping.

OP
OP
Cybergirl

Cybergirl

Well-known member
Joined
Jul 3, 2020
Threads
16
Messages
420
Reaction score
1,233
Location
Illinois and Arizona
Vehicles
Tesla Model Y LR, Model Y SR, Cybertruck AWD FS
Country flag
I have the original Starlink Dishy McFlatface (the round one) that I want to use to connect to the internet in the back country. I have a Starlink Mobile subscription that I will 'Unpause' for 30 days when I go off road. It costs $150/month, but I can pause it when I don't need it.

I modified the three foot pedestal to add suction cups in order to adhere the antenna to the glass roof of the Cybertruck.

Dishy Mounted.jpg



Dishy Mounted.jpg



Hacksaw cuts.jpg



Mount modification.jpg



Suction cups.jpg
With the antenna attached to the roof, the next decision was where to put the router and how to run the antenna cable to the router. My initial though was to put the router and power transformer in the sub vault, but found that it's much easier to put both in the cabin. The antenna cable runs into the cabin via the rear door as shown here:
Tesla Cybertruck My Starlink Antenna Custom Mount With Suction Cups SL Antenna Cable


The soft rubber door seals make room for the cable to pass. There didn't appear to be any damage to either the cable or door seals.

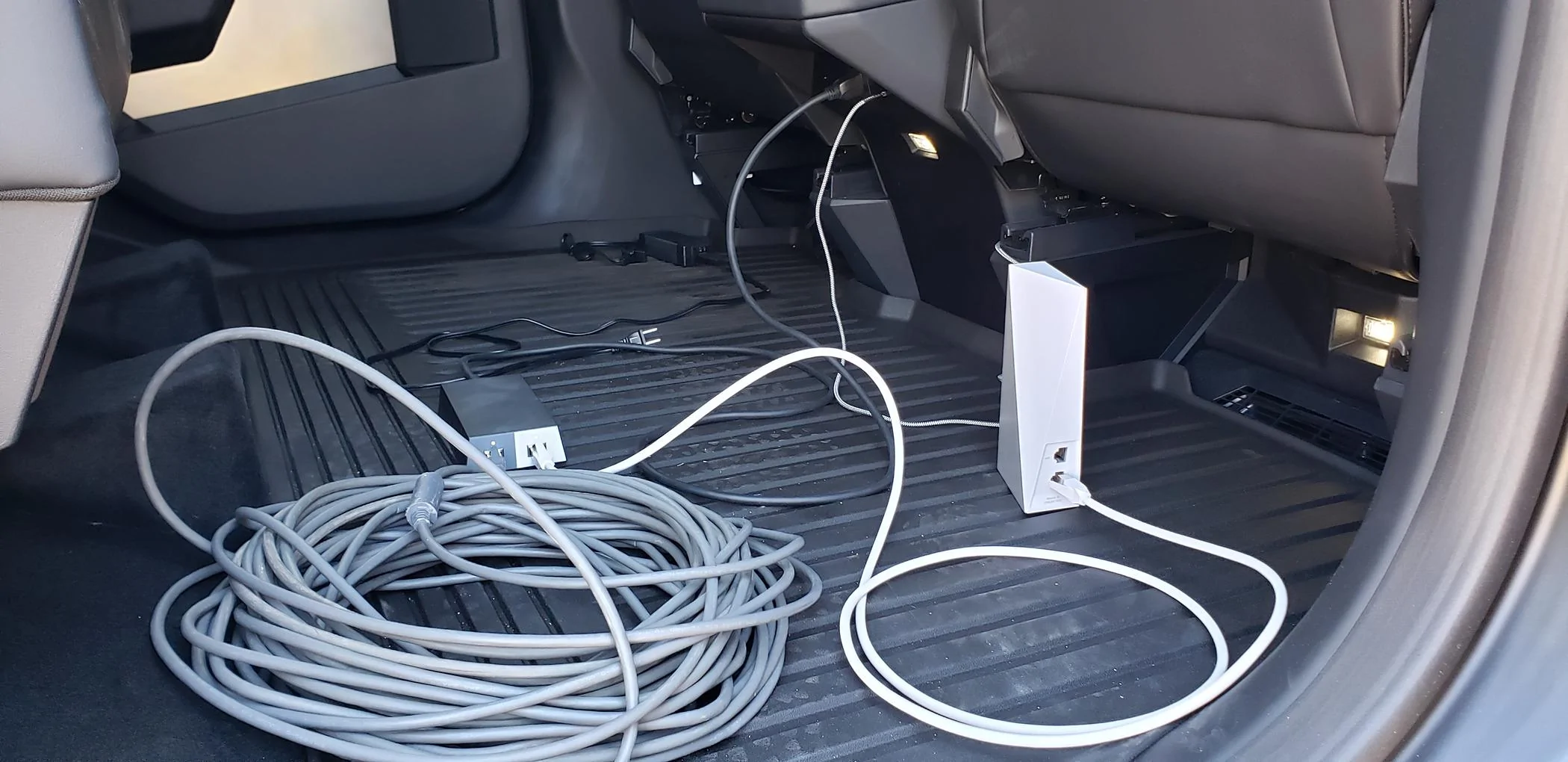

Inside the cabin, I plugged the transformer into the 120Vac outlet and connected the antenna and router. I opened the Starlink app and put dishy in its stowed position for transport.

Tesla Cybertruck My Starlink Antenna Custom Mount With Suction Cups SL Router


Next, I will shorten the antenna cable somewhat to make it easier to handle. Twenty feet should allow enough length in case I have to place the antenna away from the truck to where it will have a clearer view of the sky. Question: Should I keep both ferrite cores (there's one on each end of the cable)?

With connection to the internet via the cellular network, I can 'Unpause' my Starlink account and connect to the internet in a few seconds (not verified).


Cyberman

Well-known member
First Name
Adam
Joined
Apr 7, 2020
Threads
36
Messages
2,308
Reaction score
3,686
Location
San Diego
Vehicles
F150,F550, Escape
Occupation
Cybercontractor
Country flag
I have the original Starlink Dishy McFlatface (the round one) that I want to use to connect to the internet in the back country. I have a Starlink Mobile subscription that I will 'Unpause' for 30 days when I go off road. It costs $150/month, but I can pause it when I don't need it.

I modified the three foot pedestal to add suction cups in order to adhere the antenna to the glass roof of the Cybertruck.

Dishy Mounted.jpg



Dishy Mounted.jpg



Hacksaw cuts.jpg



Mount modification.jpg



Suction cups.jpg
Nice. I assume that's a stationary setup, right? Not for on-the-go?
