Portal Axels?

Julien

Active member
First Name
Julien
Joined
Aug 18, 2020
Messages
33
Reaction score
28
Location
United States of America
Vehicles
Hyundai Palisade, Honda Accord, Reserved Dual Motor Cybertruck
Country flag

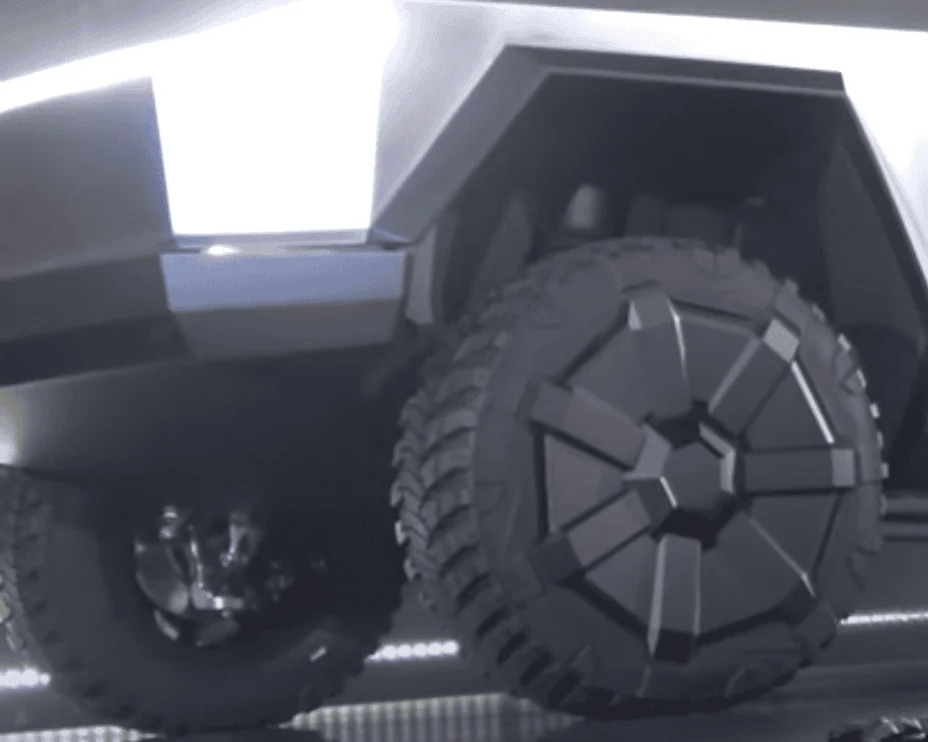

Hi people, I was watching the CT unveil for the thousandth time and noticed something. When the truck went into loading mode (raises front while lowering back) to load the ATV, It seemed like the body raised above half of the wheel. Wouldn't that mean that it has portal axels? It's slight but I'm pretty sure I'm right. Here's the photo:
Screen Shot 2021-01-17 at 3.34.45 PM.png





Advertisement



TruckElectric

Well-known member
First Name
Bryan
Joined
Jun 16, 2020
Messages
1,409
Reaction score
1,770
Location
Texas
Vehicles
Dodge Ram diesel
Occupation
Retired
Country flag
Hi people, I was watching the CT unveil for the thousandth time and noticed something. When the truck went into loading mode (raises front while lowering back) to load the ATV, It seemed like the body raised above half of the wheel. Wouldn't that mean that it has portal axels? It's slight but I'm pretty sure I'm right. Here's the photo:
Screen Shot 2021-01-17 at 3.34.45 PM.png
Most definitely.

When Tesla releases all the spec's they will have portal axles.


Dids

Well-known member
First Name
Les
Joined
Dec 21, 2019
Messages
1,051
Reaction score
1,943
Location
Massachusetts
Vehicles
04 Tacoma, 21 Cybertruck
Occupation
Self
Country flag
Hi people, I was watching the CT unveil for the thousandth time and noticed something. When the truck went into loading mode (raises front while lowering back) to load the ATV, It seemed like the body raised above half of the wheel. Wouldn't that mean that it has portal axels? It's slight but I'm pretty sure I'm right. Here's the photo:
Screen Shot 2021-01-17 at 3.34.45 PM.png
Do we know if that was a duel motor or a 1 motor rear wheel drive truck? I think the prototype was only rear wheel drive... thats why when they did the tug of war with the Ford it was only in rear drive.


Vrakpant

Well-known member
Joined
Aug 4, 2020
Messages
45
Reaction score
178
Location
Norway
Vehicles
Land Rover 109, Ford Transit Custom
Country flag
Do we know if that was a duel motor or a 1 motor rear wheel drive truck? I think the prototype was only rear wheel drive... thats why when they did the tug of war with the Ford it was only in rear drive.
Didnt they mention on the ridealongs on the release night that it was a dual motor?


~Jek~

Member
First Name
Jekare
Joined
Nov 1, 2020
Messages
8
Reaction score
14
Location
PA
Vehicles
Tri-motor CT reserved, LR AWD Model 3 on order, 2011 Smart Fortwo
Country flag
Im not sure you know what a portal axle is 😅 the cybertruck is independent suspension front and rear.

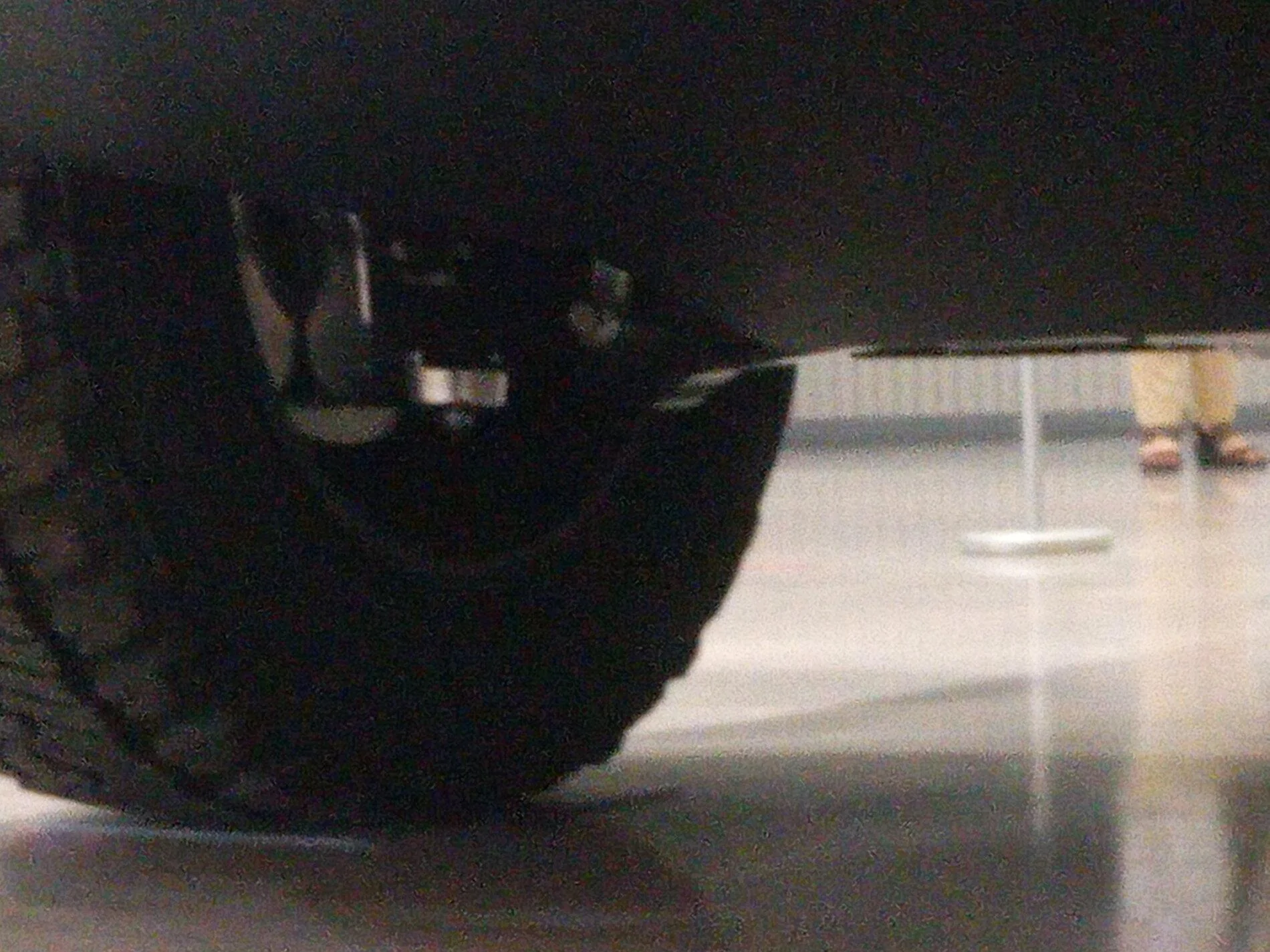

Anywho, I got a close picture of the front knuckles when I saw it in person in july. They appear to be made of stainless or polished aluminum which caught my eye.


TruckElectric

Well-known member
First Name
Bryan
Joined
Jun 16, 2020
Messages
1,409
Reaction score
1,770
Location
Texas
Vehicles
Dodge Ram diesel
Occupation
Retired
Country flag
Im not sure you know what a portal axle is 😅 the cybertruck is independent suspension front and rear.
Do you know what a portal axle is? 🤣

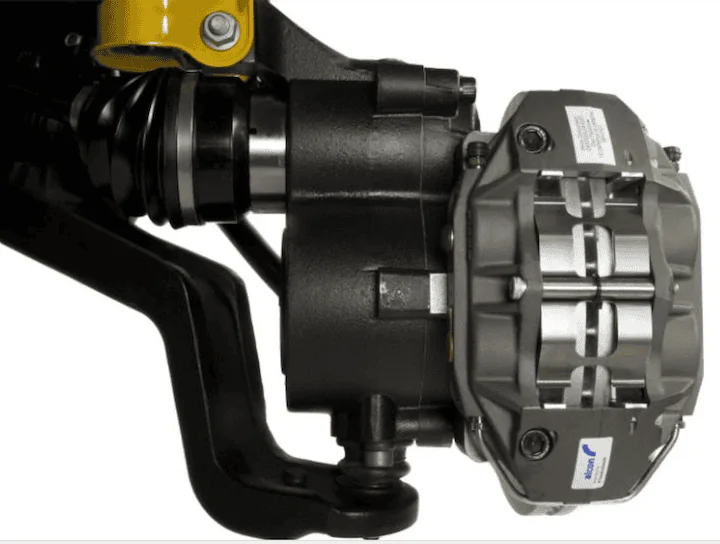

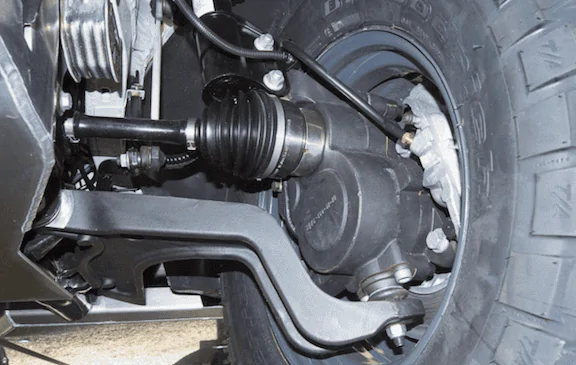

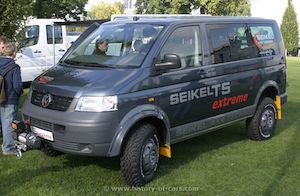

Portal axle conversion for VW T5 4motion by Seikel
Screen Shot 2021-01-18 at 3.30.36 AM.png


Screen Shot 2021-01-18 at 3.31.06 AM.png



HMMWV and Hummer H1 have an Independent Suspension with helical gear-reduction hubs similar to portal axles.

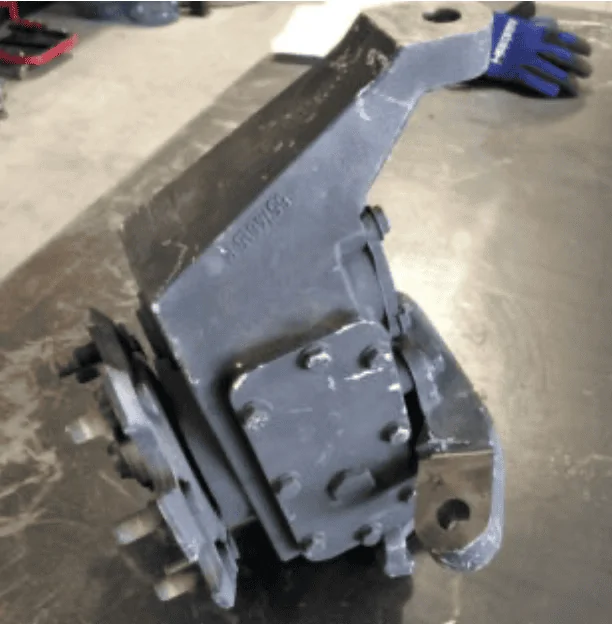

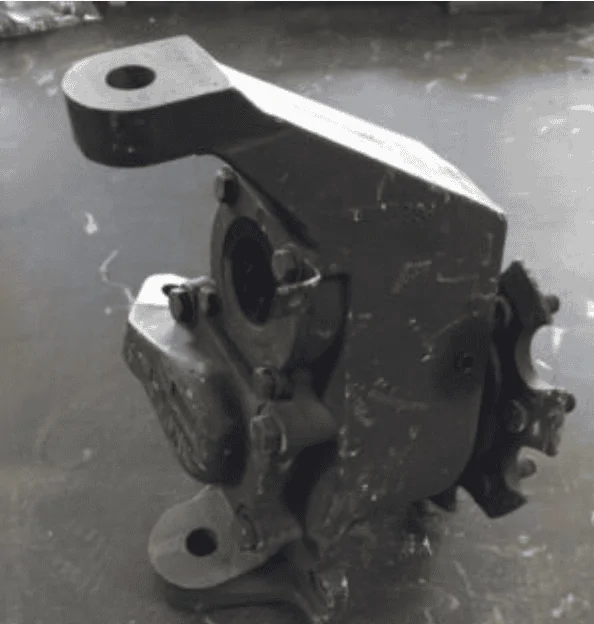

AM General Hummer H1, HMMWV Portal Geared Hub Box, 10K, Front, Rear, RH, or LH
Screen Shot 2021-01-18 at 2.40.39 AM.png


Screen Shot 2021-01-18 at 2.40.02 AM.png


~Jek~

Member
First Name
Jekare
Joined
Nov 1, 2020
Messages
8
Reaction score
14
Location
PA
Vehicles
Tri-motor CT reserved, LR AWD Model 3 on order, 2011 Smart Fortwo
Country flag
Do you know what a portal axle is? 🤣
I consider a portal axle the old school unimog solid axle, and those as hub drop boxes 🤷🏻‍♂️ either way, if the cybertruck has those.... I'll be even more excited!


TruckElectric

Well-known member
First Name
Bryan
Joined
Jun 16, 2020
Messages
1,409
Reaction score
1,770
Location
Texas
Vehicles
Dodge Ram diesel
Occupation
Retired
Country flag
I consider a portal axle the old school unimog solid axle, and those as hub drop boxes 🤷🏻‍♂️ either way, if the cybertruck has those.... I'll be even more excited!
Well, it's not unlike Tesla to come up with something different that works as well as portal axles.

But whatever they have it will be awesome I'm sure👍

BTW, we need a Cybertruck emoji


Ehninger1212

Well-known member
First Name
Jake
Joined
Dec 18, 2019
Messages
881
Reaction score
1,583
Location
Houston, TX
Vehicles
Audi A3 E-Tron - 2005 Land Rover LR3 - T-Bucket - 1951 chevy 3100
Occupation
Architect/Fabricator
Country flag
Nah I don't think so, extra complications and cost in manufacturing + the photo just looks like pretty typical IFS for a 4WD vehicle.


Ryan95738

Well-known member
First Name
Ryan
Joined
Jan 24, 2020
Messages
84
Reaction score
47
Location
Skagit Valley
Vehicles
CyberTruck
Occupation
CNA
Country flag
Y
Well, it's not unlike Tesla to come up with something different that works as well as portal axles.

But whatever they have it will be awesome I'm sure👍

BTW, we need a Cybertruck emoji
Yea!! Why don't we have one of those yet?🚄🪨
