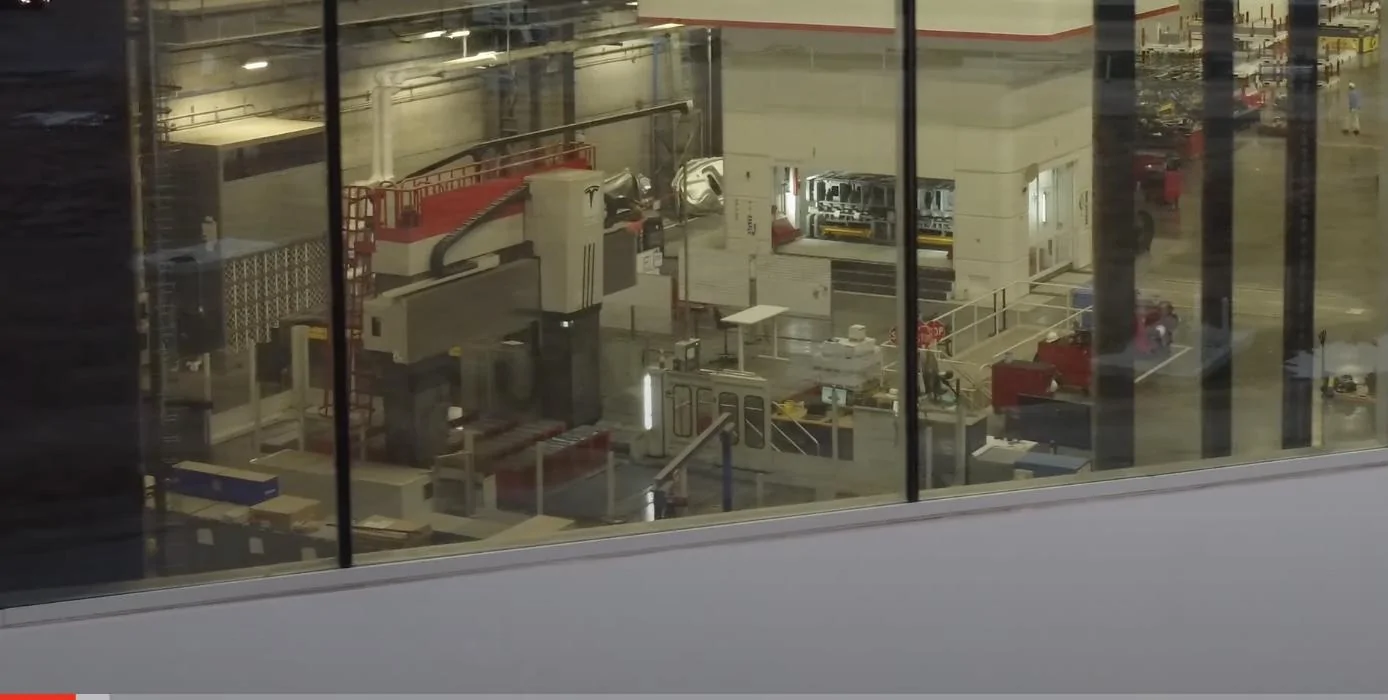

That kinda... that looks like a steel break machine. This COULD be what would bend for doors/ body panels on Cybertruck. I've scrolled back and it's been there awhile, but... ¯\_(ツ)_/¯
Tesla Cybertruck Steel Break Machine Set Up @ Giga Texas??! 👀 1668292237867


Sponsored


First Name
Stranger
Joined
Nov 11, 2022
Threads
0
Messages
12
Reaction score
22
Location
Austin
Vehicles
Chevy Volt, Ford Super Duty
Occupation
Manufacturing
Country flag
That kinda... that looks like a steel break machine. This COULD be what would bend for doors/ body panels on Cybertruck. I've scrolled back and it's been there awhile, but... ¯\_(ツ)_/¯


I think that is a regular stamping press. If you look to the left of it there are some fresh stampings. A CNC break is much smaller, even with an auto loader.


Jhodgesatmb

Well-known member
First Name
Jack
Joined
Dec 1, 2019
Threads
66
Messages
5,123
Reaction score
7,351
Location
San Francisco Bay area
Website
www.arbor-studios.com
Vehicles
Tesla Model Y LR, Tesla Model 3 LR
Occupation
Retired AI researcher
Country flag
That kinda... that looks like a steel break machine. This COULD be what would bend for doors/ body panels on Cybertruck. I've scrolled back and it's been there awhile, but... ¯\_(ツ)_/¯


You will know when the brake is installed and being tested as you will see test parts in the daily videos. Until then, I suspect what is shown there is a specialty stamping machine as Joe hypothesized.



Ogre

Well-known member
First Name
Dennis
Joined
Jul 3, 2021
Threads
164
Messages
10,719
Reaction score
26,998
Location
Ogregon
Vehicles
Model Y
Country flag

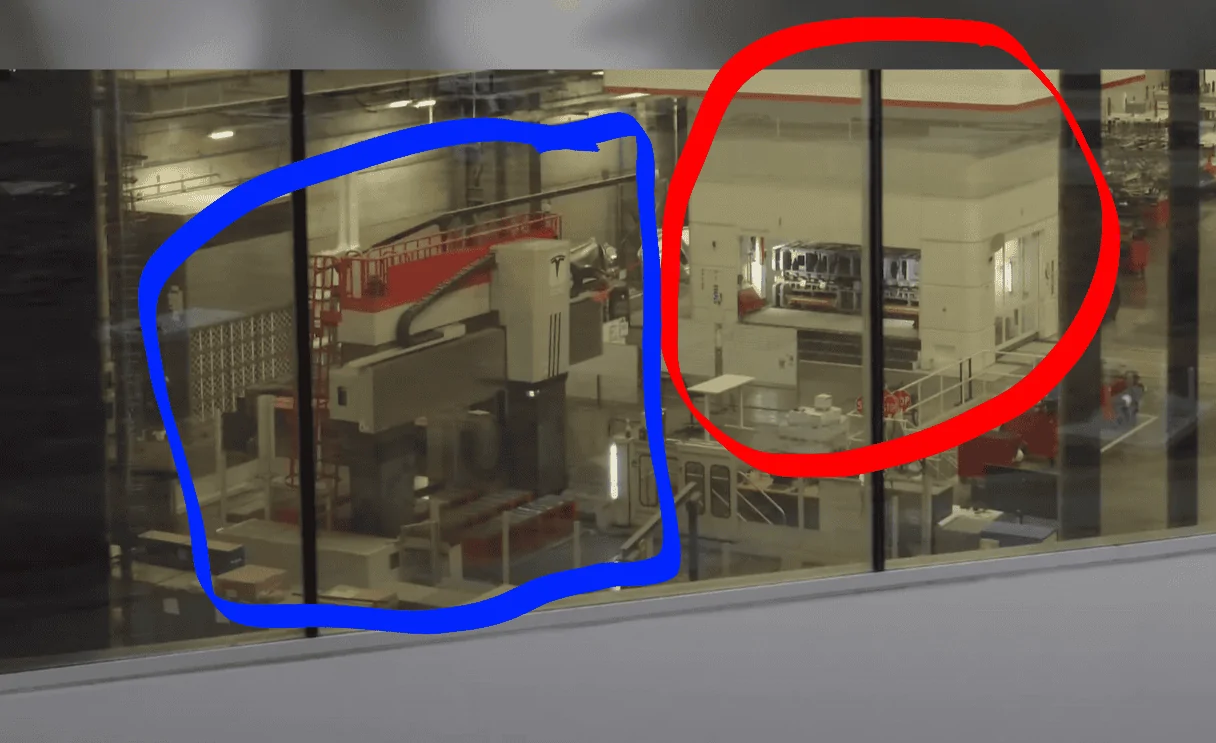

The machine in red looks very much like a stamping machine. I’ve seen one very similar in use by Rivian.

Not sure what the blue thing is. Maybe someone who does more assembly line or machine work knows.

Tesla Cybertruck Steel Break Machine Set Up @ Giga Texas??! 👀 1668548364807


He even says on the video that this is the stamping area.


Jhodgesatmb

Well-known member
First Name
Jack
Joined
Dec 1, 2019
Threads
66
Messages
5,123
Reaction score
7,351
Location
San Francisco Bay area
Website
www.arbor-studios.com
Vehicles
Tesla Model Y LR, Tesla Model 3 LR
Occupation
Retired AI researcher
Country flag
I recall seeing a demo of a CNC Brake that was very cool. It was questionable at the time whether it could support a 20' length at 3mm. Today I was unable to find that video so I did some research on CNC brakes and came up with the following manufacturers that have such a machine:

Jorns AG (Swiss)
=============

http://www.jorns.ru/pdf/Jorns_Gesamt_E.pdf

Super-Line: 6400 mm -> 12,200 mm length, 3 mm steel


Thallman/Cidan TC Double Folder
==========================

https://cidanmachinery.com/us/products/tc-double-folder/

TC300, 6.4, 8.2, 10, and 12
11 ga max (3mm)

DAVI
====

https://www.davi.com/us/en-us/Welco...rIaylqduMlL-lZCONquNzS-ysoRQ-GMxoCHWoQAvD_BwE

Davi CNC Automated Up/Down Automated Metal Folding System

I will keep looking for the video that was shared before. It might have been on this forum or another.

Jack


Crissa

Well-known member
First Name
Crissa
Joined
Jul 8, 2020
Threads
127
Messages
16,634
Reaction score
27,691
Location
Santa Cruz
Vehicles
2014 Zero S, 2013 Mazda 3
Country flag
The machine in red looks very much like a stamping machine. I’ve seen one very similar in use by Rivian.

Not sure what the blue thing is. Maybe someone who does more assembly line or machine work knows.



He even says on the video that this is the stamping area.
It's a giant arm.

I have no idea what's attached to it, though.

-Crissa

OP
OP
greggertruck

greggertruck

Well-known member
First Name
g
Joined
Mar 30, 2022
Threads
209
Messages
2,511
Reaction score
7,289
Location
Zimbabwe
Website
www.twitter.com
Vehicles
Dual-CT
Occupation
I post Cybertruck stuff on the Internet and people like it.
Country flag
K. So I think it's actually the cnc cutting machine for cutting down the raw sheets / punches to then run over to the press.
