Updated with video explanation:




Article: Glass Technology update

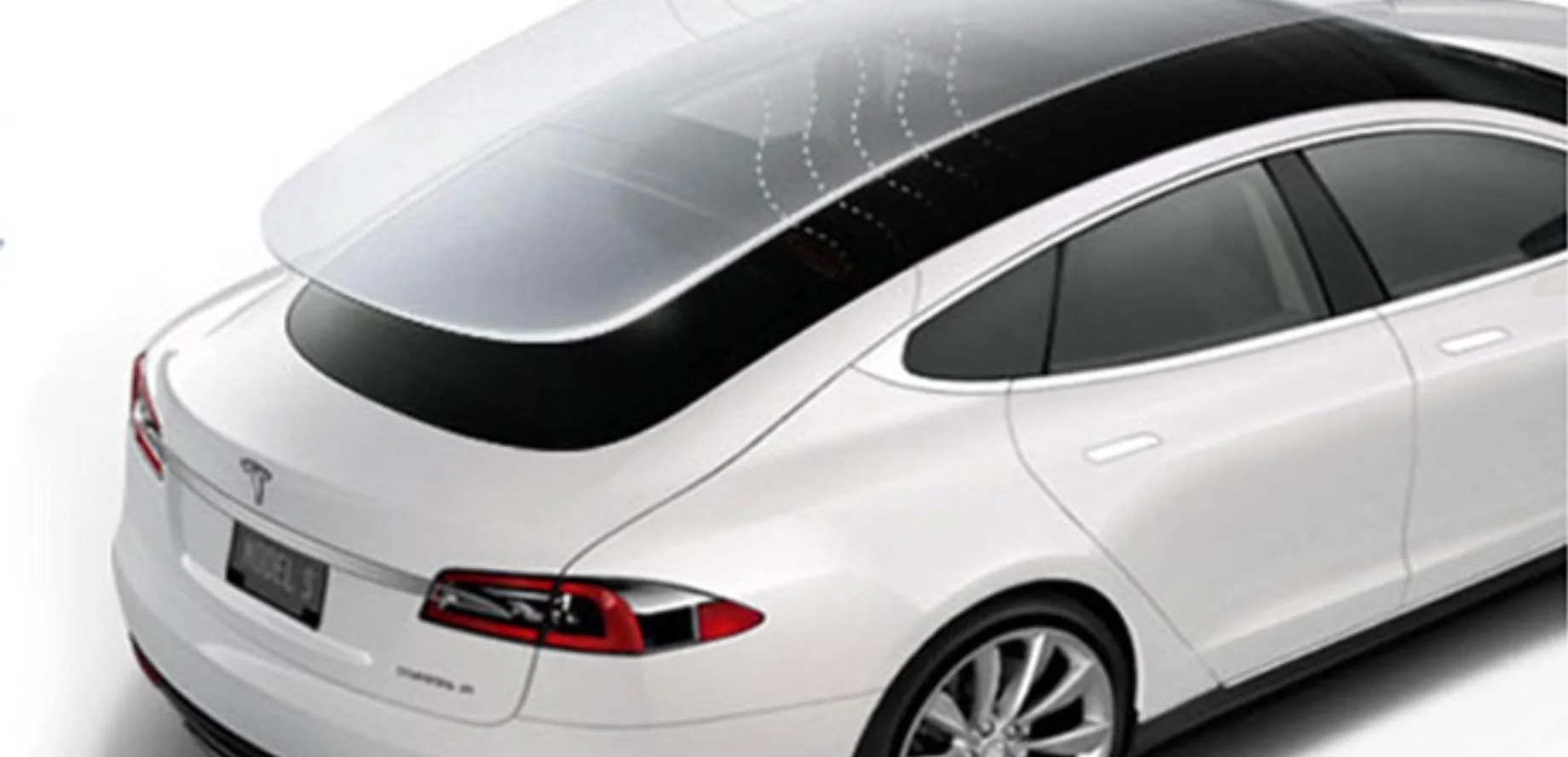

Tesla has new glass technology for noise reduction, temperature control, and more



Tesla has applied for a patent on new glass technology for better noise reduction and temperature control inside its vehicles.

Over the last few years, Tesla has been focusing on material development with its own material design team and one in partnership with SpaceX.

Tesla has also focused on glass and eventually introduced “Tesla Glass” in Tesla Semi and the Cybertruck.

Now Tesla is working on a new glass technology revealed in a new patent application called “automotive perforated insulated glass structure.”

The automaker describes the system in the patent application:

Some vehicles use alternative materials to create the structure or body of the vehicle. For example, vehicles may use glass to create parts of or the entirety of the roof of the vehicle in order to create an interior that feels more open to the outside world. In some instances, it is desirable for glass used in the body of a vehicle to provide noise absorption and temperature insulation characteristics. Thus, the interior of the vehicle will feel more open to the outside world, while providing noise absorption and temperature insulation characteristics.
In some embodiments, a glass structure for a vehicle includes an outer layer of glass and an inner layer of glass, wherein the inner layer of glass is perforated by a plurality of holes and wherein the outer layer of glass and the inner layer of glass are separated by a gap disposed between opposing surfaces of the outer layer of glass and the inner layer of glass. The perforations, layers of glass, and gap between the inner and outer layer may further be tuned for desired noise reduction characteristics, insulations properties, visual appearance, and the like.

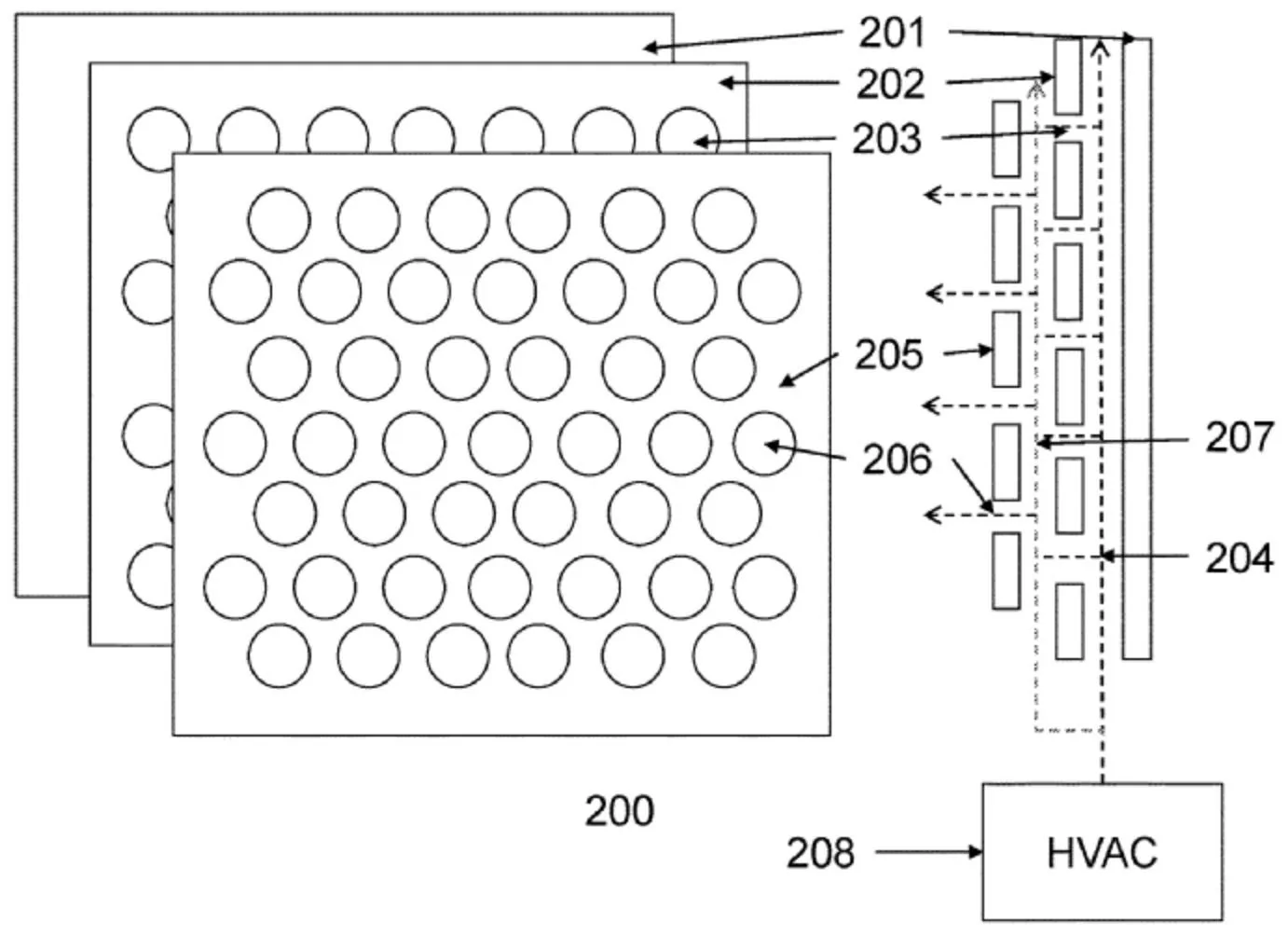

Here’s a drawing from Tesla’s patent application:



Noise reduction seems to be the main feature of this new glass structure.

Christopher Conklin, a former senior engineering manager at Tesla responsible for noise reduction in Tesla vehicles, and Hyunjun (Jay) Shin, a former intern at Tesla working on noise reduction, are both listed as inventors on the patent application.

Rosie Mottsmith, a staff engineer who previously worked on Tesla Glass, and William S. Sweney are also listed as inventors.

Tesla also claims that the glass structure would be better at regulating the temperature in the vehicles and reduce the load on the HVAC system.

In turn, it would improve the efficiency of the vehicles.

As usual, Tesla, like other companies, sometimes seeks patents on technologies that will never end up in production vehicles.

Last edited by a moderator:

Saskateam

Well-known member
First Name
Aron
Joined
Nov 29, 2019
Messages
447
Reaction score
481
Location
Saskatchewan Canada
Vehicles
1995 Jeep YJ, 2019 Jeep Cherokee, Cybertruck Tri-motor
Occupation
Operating Manager Power Lineman
Country flag
I wonder if the CT will see this glass or not. Not sure if this will strengthen the glass as well.

First Name
V
Joined
Dec 8, 2019
Messages
24
Reaction score
19
Location
49036
Vehicles
Cybertruck Buick Enclave
Occupation
Soon to be retired
Country flag
Hmmm...shocking. Tesla improving an already fantastic product? I wonder if it will also be lighter than the current material. With all those holes in it, it would seem to be. I am quite certain they will improve it even more. hydrophobic? color adapting? Perhaps an OLED film? Talk about the ultimate theatre mode as your seat reclines to near vertical launch position? Why not? The computer and audio system is already there. What an epoch time to be alive, truly.


2Futre4u

Active member
First Name
Jason
Joined
Nov 25, 2019
Messages
34
Reaction score
28
Location
Red Feather Lakes, Colorado
Vehicles
2020 Tesla Model 3 Dual Motor LR 2019 Silverado 1500 LT Z71 Trailboss 1994 Jeep Wrangler
Occupation
Environmental Scientist
Country flag
I hope this is not similar to what Toyota began rolling out in 2017, I had a 17 Tacoma, and wife had a 17 Rav4, both had the "Soundproofed" glass that was terribly soft and prone to cracking. We ended up doing 2 per year/ per auto, and we live in the woods so no traffic to follow. I was always afraid to put on the defroster if it was below freezing out as that was the biggest trigger for cracking. I trust in Elon and friends, and hope they are smarter with their technology.
