Source: https://electrek.co/2023/01/23/tesla-cybertruck-novel-windshield-patent/

Tesla has filed new patent to manufacture glass that can be manipulated to create novel bends, shapes and curves that can't be achieved with current glass production methods.

In the patent application, Tesla describes issues with current [windshield production] methods:
Generally, such processes for making glass structures are limited by the amount of curvature or bending achievable with the glass. For example, typically only smooth, high radius of curvatures (e.g., radius of curvature of 1-3 meters or more), are used for automotive glass structures.
The new manufacturing tech is described as capable shorter radiuses of curvature:
In some embodiments, a process for forming an automotive glass structure having one or more feature lines (or curves/bends) includes applying localized heat to one or more locations of the glass structure, whereby the glass structure bends at the location of the localized heat. In some examples, the glass structure is supported by a support tool such that as localized heat is applied gravity forces the glass structure to bend at the one or more locations (e.g., along a longitudinal line of the glass), thereby forming a feature line or bend in the glass. In some examples, additional forces may be applied to the glass structure, e.g., via a press, vacuum air suction, or the like to aid in bending or shaping of the glass structure. In some examples, a radius of curvature of the feature line or bend in the glass structure at the one or more locations is between 2 mm and 5 cm.

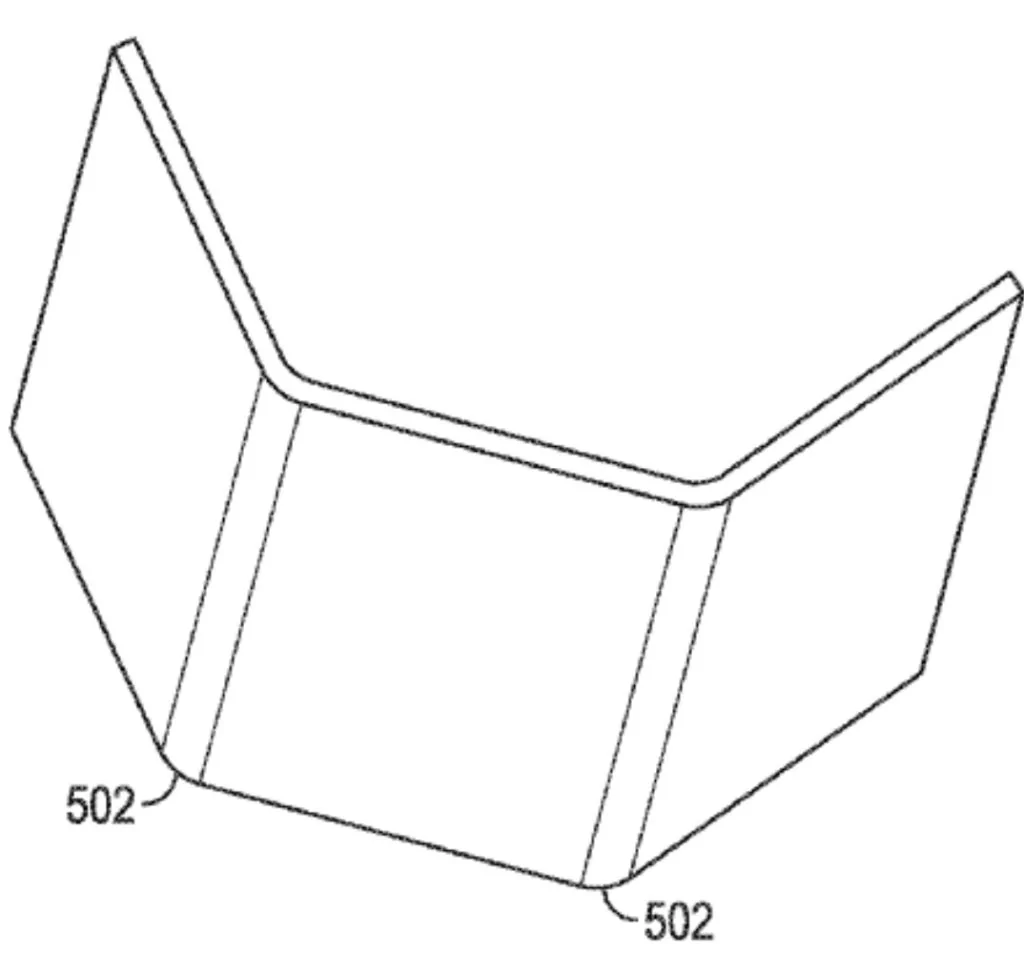

Some images from the patent application:

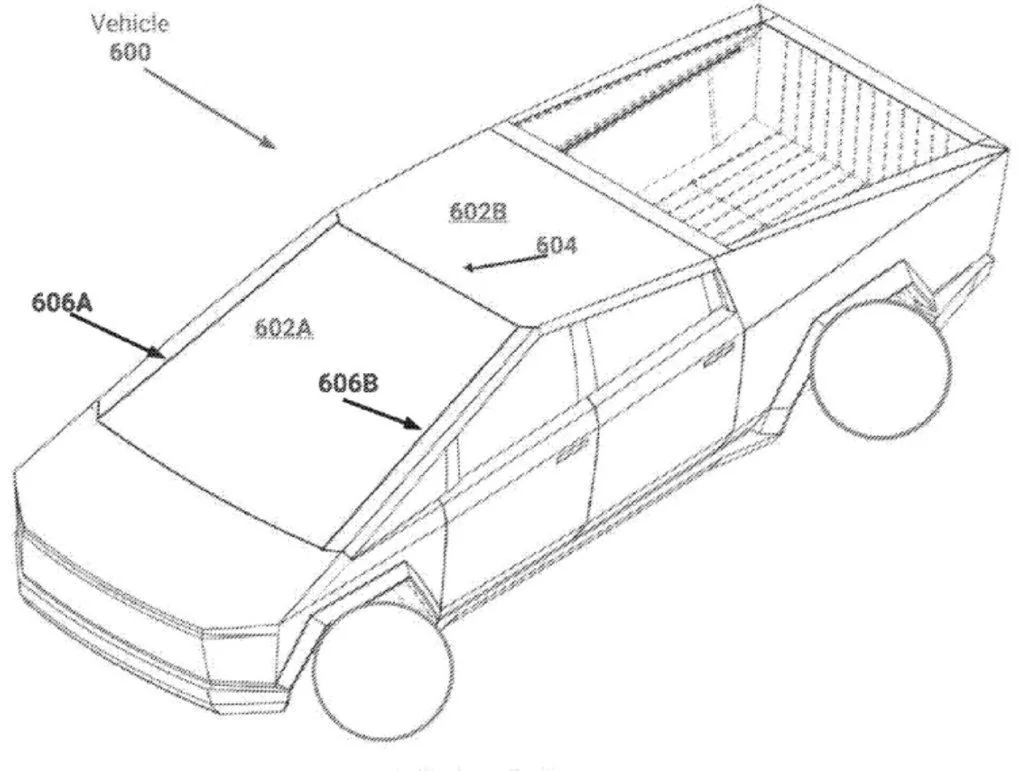

Patent images using the Cybertruck as examples.




EVCanuck

Well-known member
First Name
M
Joined
Jul 27, 2020
Threads
12
Messages
196
Reaction score
331
Location
Montreal, QC
Vehicles
ЗАЗ-968, Canyonero
Country flag
That's probably for the next model Tesla is developing, the one Franz is so excited about


JBee

Well-known member
First Name
JB
Joined
Nov 22, 2019
Threads
7
Messages
2,490
Reaction score
2,623
Location
Australia
Vehicles
Cybertruck MY Prius Merc VW
Country flag
Maybe the CT has single peice windscreen and rear roof glass? Maybe with integrated solar?

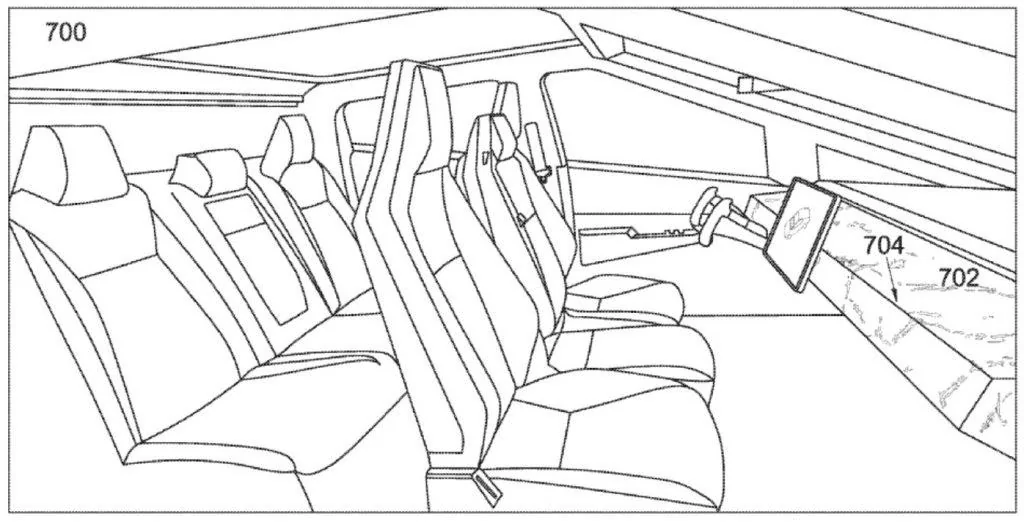

But what's with the interior drawing on the patent?



egandalf

Well-known member
First Name
James
Joined
May 18, 2020
Threads
3
Messages
221
Reaction score
592
Location
41144
Vehicles
2010 Toyota Tacoma
Country flag
Is this old news? To lazy to do some digging but I swear I have seen this patent in the past....
Might have been the application before. This article describes it as granted. But yeah, I thought the same thing. There was another one I thought the same about and I think it was the same situation. News about the application vs. news about it being granted.


WildhavenMI

Well-known member
First Name
Nick
Joined
Mar 16, 2020
Threads
13
Messages
188
Reaction score
488
Location
Rural Michigan
Vehicles
Cybertruck (reserved), 2021 Bolt EV, 2018 Model X
Occupation
Digital @ Aurora Solar
Country flag
Maybe the CT has single peice windscreen and rear roof glass? Maybe with integrated solar?
Cracked windowshield repair costs for the cybertruck are going to be wildly expensive.
I can't imagine. It was $1,200 to have my side window replaced in my X. I hear those windshields are north of $2k.

Armor glass, rock chips are a thing of the past (hopefully :))
I have experience with a variety of devices made of "sapphire glass" and while strong, there are def day-to-day experiences that can crack it. Scratches not so much, but the harder the glass the easier the break. And Tesla glass has a tendency to self-shatter due to internal pressures. I have personal experience with that bit.

---

Separately, while this sounds good it also creates a parts availability bottleneck. Tesla already has a bad rep for people waiting months for small parts (like me, who is currently waiting on a "backordered" exterior trim piece.) It took nearly 5 weeks just to get a passenger side window in on my 18 X.



Ogre

Well-known member
First Name
Dennis
Joined
Jul 3, 2021
Threads
144
Messages
8,973
Reaction score
22,229
Location
Ogregon
Vehicles
Model Y
Country flag
But what's with the interior drawing on the patent?
Looks like the dashboard is going to be glass.

As someone suggests above, I think this is an older patent which we’ve seen. We’ve definitely talked about the dashboard being glass previously.


firsttruck

Well-known member
Joined
Sep 25, 2020
Threads
106
Messages
1,863
Reaction score
2,818
Location
mx
Vehicles
none
Country flag
Cracked windowshield repair costs for the cybertruck are going to be wildly expensive.
Supposedly tough to break glass stuff always finds a way to break around me.

Also want ZERO sunlight coming through the roof.

Please give an option for a 3mm cold-rolled stainless steel Cybertruck roof.

Last edited:

TyPope

Well-known member
First Name
Ty
Joined
Mar 31, 2020
Threads
16
Messages
988
Reaction score
1,397
Location
Papillion, NE
Vehicles
'18 F150, '20 MY, '24(?)CT, Maveric hybrid ordered
Occupation
Nuclear Operations Planner
Country flag
Supposedly tough to break glass stuff always finds a way to break around me.

Also want ZERO sunlight coming through the roof.

Please gve an otion for a 3mm cold-rolled stainless steel Cybertruck roof.
My wife was in the same camp. She asked if they made a sunshield that she could keep up while driving. This was before we got the car. Half way home, in the middle of the day, I asked her if she liked the roof glass. She said she forgot it was glass. She likes it and to be honest, most of the time, I forget it's even there. I don't have a lot of protection from the sun for the top of my head if you know what I mean... I never notice any heat from it nor any light intrusion that is noticible. They've done a good job on the Model Y which I hope carries over to the CyberTruck. Though, if it's an option, I'd let them replace my roof with solar...
