Hi tech steering wheel

Tesla has a new high-tech steering wheel with touchscreens and haptic feedback

February 6, 2020




Tesla wants to reinvent the wheel… the steering wheel, that is. The automaker is working on a new steering wheel-based user interface with a bunch of new features, including one replacing the gear stalk, a bunch of touchscreens, haptic feedback, and more, according to a new patent filing.

In order to change gear on a Tesla vehicle, you use a gear stalk attached to the steering wheel, which is uncommon in passenger vehicles other than trucks.

Now it looks like Tesla might be going a step further by removing the gear stalk altogether.

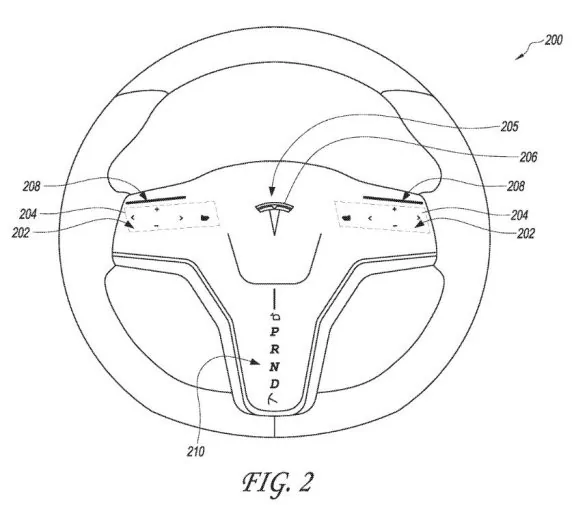

Tesla has filed a new patent for a new steering wheel-based user interface that includes touchscreens on each side and one at the bottom, which replaces the gear stalk, according to the images in the patent filing, as shown above.

They wrote in the filing:

The user interface of the steering wheel may additionally include indicators provided at a lower portion of the steering wheel indicative of a selected gear engagement of the vehicle. For example, the user interface may provide illuminated indications of engagement of Park, Reverse, Neutral, or Drive modes. Additionally or optionally, the steering wheel may include RFID detection and NFC activation functionality.

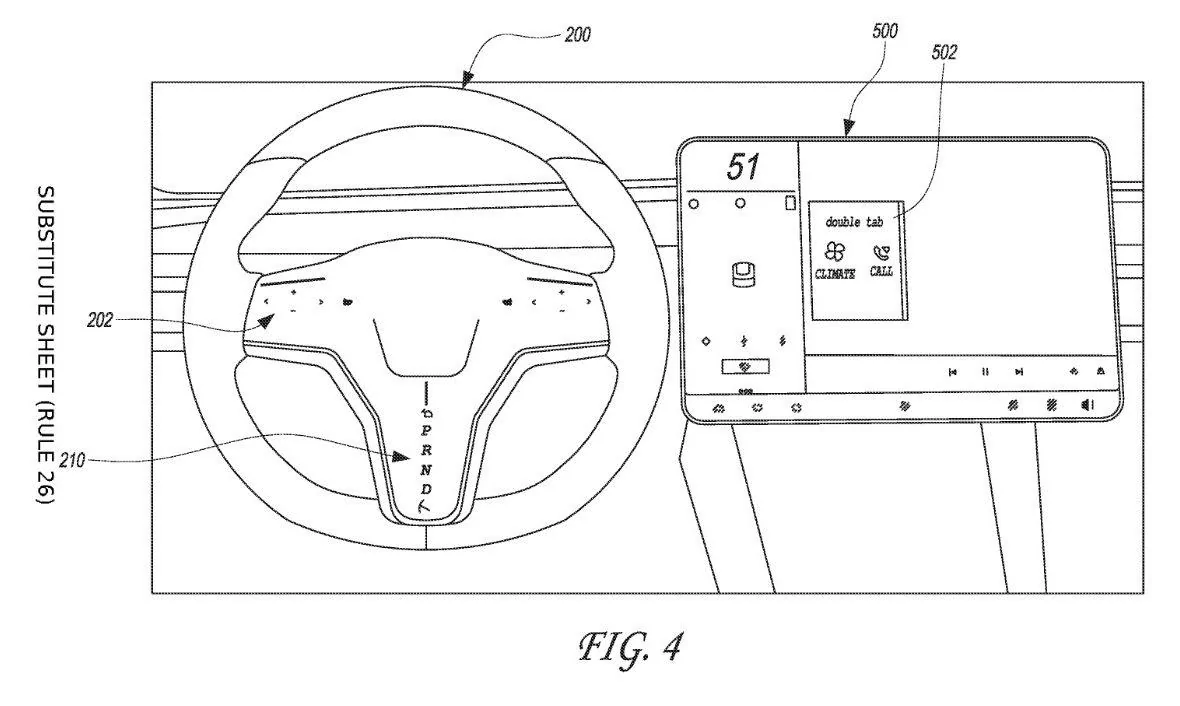

Here are a few more drawings from Tesla’s new patent application:

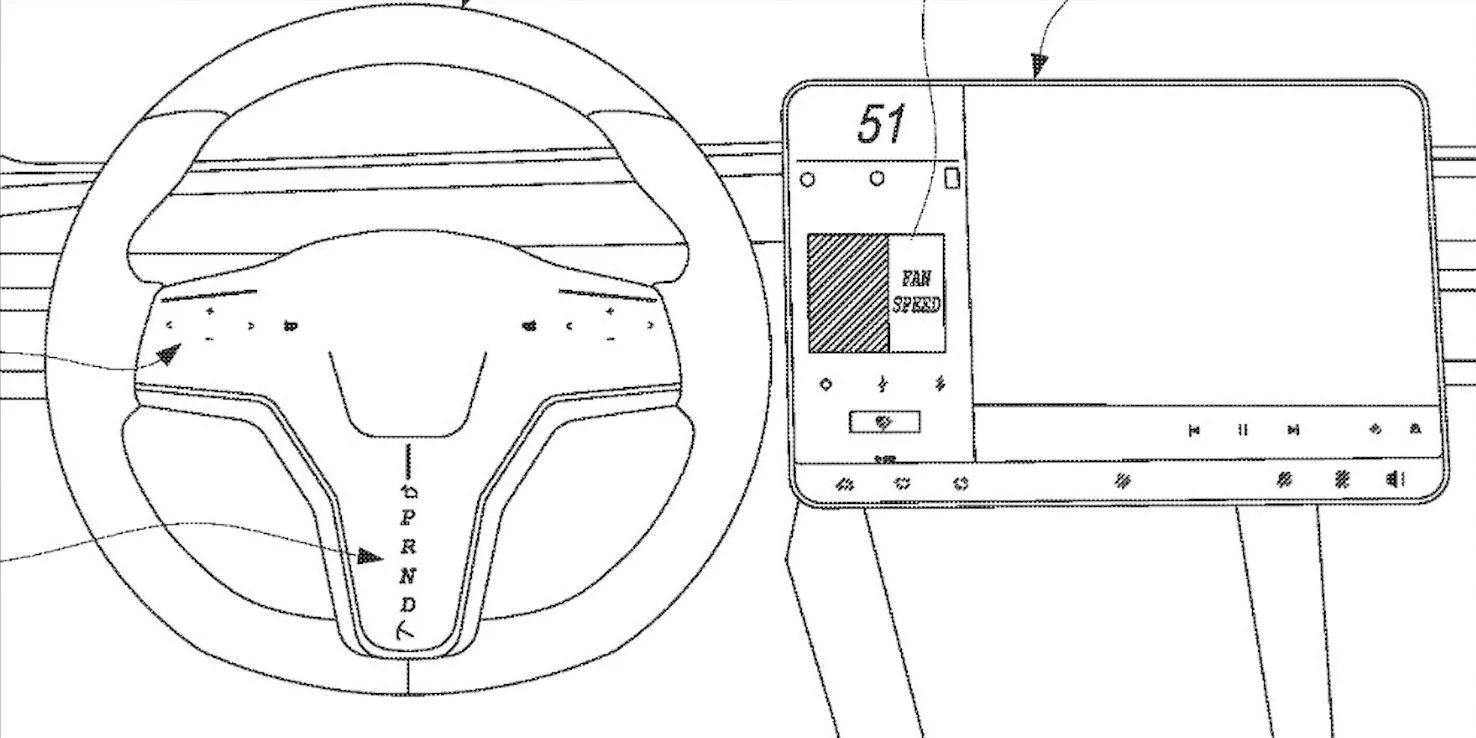

Tesla says that the interactions with the touchscreens can be reflected on the center console.

The automaker describes how the driver interacts with the new steering wheel:

By interacting with the user interface provided on the steering wheel, the user may able to select, update, and/or navigate through a menu of controls. Further, based on the gestures performed on and recognized by the user interface, the user may also receive feedback of the selections made with respect to the set or menu of controls. This interaction of the user may be manifested through gesture movements made directly on the user interface and/or based on indication of the user’s intention to interact with the user interface that may be estimated by ascertaining when the user’s digits approach the user interface. For example, through proximity sensors, the user interface may sense that the user’s digit is approaching a control manipulation functionality on the user interface, causing the user interface to provide feedback to the user.
Tesla is also thinking ahead for when its vehicles will be able to self-drive without driver attention being necessary.

They are planning some features for when that comes:

For example, when a vehicle supports autonomous driving, the inputs may include more inputs requiring more additional gestures. The inputs may access functionality that would be too distracting when driven by a human driver, even with driver-assist functionality, such as television or other display, or multimedia functionality. In embodiments, the input may be handwriting or other complex gestures.

Last edited by a moderator:

Garden_Aum

Well-known member
First Name
Howard
Joined
Dec 15, 2019
Messages
136
Reaction score
136
Location
Gambrills, Maryland
Vehicles
Prius Prime, Nissan Leaf, Tri Motor Cyber Truck
Occupation
Researcher
Country flag
It is an interesting design. I would prefer not to have my vehicle interface in the same place as the airbag. Another consideration is the orientation of the screen when one is turning the steering wheel. Will the center portion of the steering wheel remain stationary? who knows? We will just have to see what comes of it. Tesla has developed things that have not been brought to market in the past.
Tesla Charger Snake


BillyGee

Well-known member
First Name
Bill
Joined
Jan 22, 2020
Messages
123
Reaction score
132
Location
Northern California
Vehicles
F350, Yamaha Stryker
Occupation
Technician
Country flag
It is an interesting design. I would prefer not to have my vehicle interface in the same place as the airbag.
You mean you don't like having a claymore mine pointed directly at your face?


Jhodgesatmb

Well-known member
First Name
Jack
Joined
Dec 1, 2019
Messages
348
Reaction score
283
Location
San Francisco Bay area
Vehicles
Lexus Rx450H Tesla Model 3
Occupation
Researcher
Country flag
Wasn’t the Cybertruck steering wheel more like an aircraft type yoke? Would it still work in this design? Also, if moving the gear stalk controls to the steering wheel, why not both of the stalks? Why stop in the middle of a concept?


BryanMorera

Member
First Name
Bryan
Joined
Jan 2, 2020
Messages
13
Reaction score
28
Location
Miami, Florida
Vehicles
2014 Dodge Ram 1500
Occupation
Attorney
Country flag
It is an interesting design. I would prefer not to have my vehicle interface in the same place as the airbag.
From the look of the design, the user interface surfaces would be on the three support beams extending from the center of the steering wheel to the outer ring, not on the center of the steering wheel itself which houses the airbag.


VI Tesla

Well-known member
First Name
David
Joined
Nov 29, 2019
Messages
102
Reaction score
129
Location
Nanaimo
Vehicles
Model 3, Cybertruck
Country flag
I'm a fan of the minimalist approach they took with the Model 3.
In my opinion it sets the vehicle so far apart from all the rest of the EVs, where they're craming so many screens across the dashboard you'd think it was a Los Vegas strip, far too distracting.
I'd much rather see a really cool HUD display, that you could toggle on or off. I read an article that the flat pane of glass is perfectly suited to this.


BillyGee

Well-known member
First Name
Bill
Joined
Jan 22, 2020
Messages
123
Reaction score
132
Location
Northern California
Vehicles
F350, Yamaha Stryker
Occupation
Technician
Country flag
Wasn’t the Cybertruck steering wheel more like an aircraft type yoke?
That was just the concept wheel and to my knowledge those aren't production legal. The model X and model 3 we're shown with the same wheels when they were revealed.


Garden_Aum

Well-known member
First Name
Howard
Joined
Dec 15, 2019
Messages
136
Reaction score
136
Location
Gambrills, Maryland
Vehicles
Prius Prime, Nissan Leaf, Tri Motor Cyber Truck
Occupation
Researcher
Country flag
You mean you don't like having a claymore mine pointed directly at your face?
Exactly. No claymore to the face. I remember the training; face toward enemy is clearly printed on them. There was nothing about 'face toward driver'.


Jhodgesatmb

Well-known member
First Name
Jack
Joined
Dec 1, 2019
Messages
348
Reaction score
283
Location
San Francisco Bay area
Vehicles
Lexus Rx450H Tesla Model 3
Occupation
Researcher
Country flag
That was just the concept wheel and to my knowledge those aren't production legal. The model X and model 3 we're shown with the same wheels when they were revealed.
I didn’t know that. Too bad. I think that I’d prefer a yoke. I rarely use the top of the wheel now and it gets in the way of the view.


lukefrisbee

Well-known member
First Name
luke
Joined
Jan 1, 2020
Messages
373
Reaction score
283
Location
Indialantic FL
Vehicles
2m AWD Cybertruck
Occupation
retired
Country flag
yeah. well. Whatever....
BUT I really think having ANYTHING that a driver will have any reason to change on the fly should be through buttons and knobs.
With buttons and knobs you can find them without looking. I don't need to look down to change the AC. I am not trying to touch the right part of a flat screen which provides me with no tactile landmarks..and then I have to look at it to see it actually worked? Or worse yet go through multiple screens/looks?


Jhodgesatmb

Well-known member
First Name
Jack
Joined
Dec 1, 2019
Messages
348
Reaction score
283
Location
San Francisco Bay area
Vehicles
Lexus Rx450H Tesla Model 3
Occupation
Researcher
Country flag
yeah. well. Whatever....
BUT I really think having ANYTHING that a driver will have any reason to change on the fly should be through buttons and knobs.
With buttons and knobs you can find them without looking. I don't need to look down to change the AC. I am not trying to touch the right part of a flat screen which provides me with no tactile landmarks..and then I have to look at it to see it actually worked? Or worse yet go through multiple screens/looks?
Everyone, not just Tesla, is trying to improve all of this with better voice control. I expect these things to continue improvement as time goes on. Personally I don’t do anything blind in my car so every time I change a setting I am looking away.


Saskateam

Well-known member
First Name
Aron
Joined
Nov 29, 2019
Messages
447
Reaction score
567
Location
Saskatchewan Canada
Vehicles
1995 Jeep YJ, 2019 Jeep Cherokee, Cybertruck Tri-motor
Occupation
Operating Manager Power Lineman
Country flag
After driving the same Jeep layout for the last 2 cars I still catch myself turning up the air when I adjust the volume on the radio if I don’t look. They are the same dial located close together. I find I use the touchscreen more to adjust the minor things and for the lights or the wipers the auto settings are faster than I am. When the windshield gets covered the wipers kick in and I don’t have to move my hands of the steering wheel.


rr6013

Well-known member
First Name
Rex
Joined
Apr 22, 2020
Messages
67
Reaction score
57
Location
Santa Fe
Vehicles
1997 Tahoe 2 door 4x4
Occupation
Consultant
Country flag
Hi tech steering wheel

Tesla has a new high-tech steering wheel with touchscreens and haptic feedback

February 6, 2020




Tesla wants to reinvent the wheel… the steering wheel, that is. The automaker is working on a new steering wheel-based user interface with a bunch of new features, including one replacing the gear stalk, a bunch of touchscreens, haptic feedback, and more, according to a new patent filing.

In order to change gear on a Tesla vehicle, you use a gear stalk attached to the steering wheel, which is uncommon in passenger vehicles other than trucks.

Now it looks like Tesla might be going a step further by removing the gear stalk altogether.

Tesla has filed a new patent for a new steering wheel-based user interface that includes touchscreens on each side and one at the bottom, which replaces the gear stalk, according to the images in the patent filing, as shown above.

They wrote in the filing:



Here are a few more drawings from Tesla’s new patent application:






Tesla says that the interactions with the touchscreens can be reflected on the center console.

The automaker describes how the driver interacts with the new steering wheel:



Tesla is also thinking ahead for when its vehicles will be able to self-drive without driver attention being necessary.

They are planning some features for when that comes:
Tesla describes the highest embodiment for Driver engagement is steering wheel utility in this application. Further, patent claims enumerate visual and haptic UI elements that provide feedback to enable uninterrupted static " status" display in presence of dynamic screen integrations. Lastly, it affords direct hands-on interaction with the steering wheel to engage re-configuration of the vehicle direction, speed and control.

Personally, this is just legal moat building until prototyped. Cars a phallic symbols by design. This is sacred cred. Tesla flirts with sliding into Prius territory and its " thing-y" to control the car.

OP
hridge2020

hridge2020

Well-known member
First Name
Henry
Joined
Dec 4, 2019
Messages
228
Reaction score
219
Location
Central Coast CA
Vehicles
Tesla
Country flag
  • Thread starter
  • Thread Starter
  • #14
It is an interesting design. I would prefer not to have my vehicle interface in the same place as the airbag. Another consideration is the orientation of the screen when one is turning the steering wheel. Will the center portion of the steering wheel remain stationary? who knows? We will just have to see what comes of it. Tesla has developed things that have not been brought to market in the past.
Tesla Charger Snake

Correct, controls on steering wheel separate from airbag deployment device and possibly a manual override device incase of total battery power failure to move/steer vehicle for towing purpose.


craz

Active member
First Name
Chris
Joined
Apr 13, 2020
Messages
27
Reaction score
40
Location
Western US
Vehicles
Dual Motor Cybertruck
Occupation
Engineer
Country flag
I don't think Tesla would pursue this if they didn't think they could make it safe, which can be said about many complaints about the Cybertruck. I dig the aesthetics, but as a set of physical buttons not touch screens. I appreciate the durability of modern touch screens but I don't like guessing what buttons I'm pressing while driving. I'm fairly clumsy so I can see myself accidentally brushing the drive mode buttons while driving.

I do envision the Cybertruck being released with a steering wheel very similar to this - the modern truck steering wheel is like a jet cockpit.
