Tesla Received Approval to Install Short-Range Interactive Motion-Sensing Radar in Its Vehicles
by Eva Fox April 24, 2021

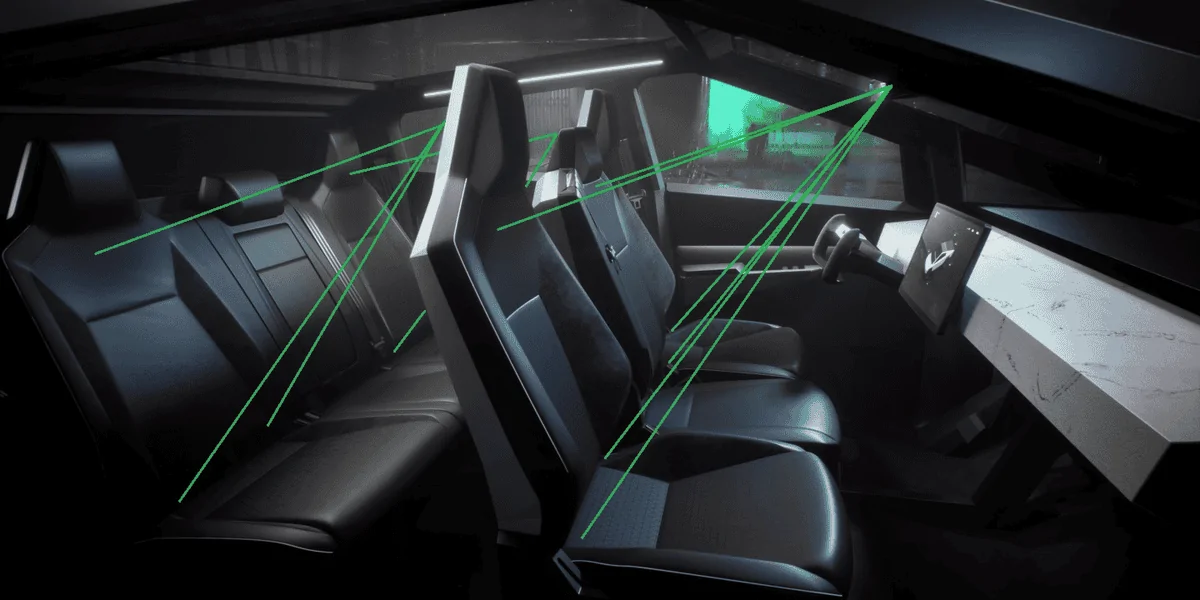

Photo: Tesla / Tesmanian

Tesla has received permission from the Federal Communications Commission (FCC) to use radar sensors in the 57-64 GHz frequency band in its vehicles. This permission allows the company to install more powerful sensors to monitor the condition of the car's occupants, the car's interior, and its environment in the event of suspicious activity.

At the end of July 2020, Tesla asked the FCC for approval to market a short-range interactive motion-sensing device that could help prevent children from being left behind in hot cars and boost theft-prevention systems. All Tesla vehicles have Dog Mode, which allows owners to leave the car's air conditioner or heater on for pets. This useful feature can induce irresponsible parents to leave their children in the car, which is unacceptable. Therefore, Tesla wanted to get permission to use unlicensed, at that moment, millimeter-wave sensors that would operate at higher power levels than allowed under existing rules.

On April 14, 2021, a request from the Californian manufacturer and several other companies was granted. This grant allows companies to install radar sensors in the 57-64 GHz frequency band in their vehicles, which will have a positive impact in many ways.

Tesla describes that its device will use "4 transmit and 3 receive antennas driven by a highly configurable radar front-end unit and in-vehicle radar modulation will consist of consecutive frames, including an acquisition sequence comprised by a repetition of frequency chirps or stepped chirps, a listening period, then a period for signal processing." This radar-based system “provides depth perception and can see through soft materials, such as a blanket covering a child in a child restraint.”


This system “can differentiate between a child and an object left on the seat, reducing the likelihood of false alarms” and can detect “micromovements like breathing patterns and heart rates, neither of which can be captured by cameras or in-seat sensors alone." The sensor will also be able to estimate body size to optimize the deployment of the airbag in a collision event, depending on whether an adult or a child is seated. This will also allow the vehicle to more accurately determine when to activate the seat belt reminders.

Source: Tesla

As autonomous vehicles continue to be actively developed, these sensors can be used to monitor all the occupants of the car, to understand if they are all fastened, and to adequately deploy airbags if necessary. The Advocates for Highway and Auto Safety state that “the ability of a vehicle to detect and classify all occupants will likely be critical as autonomous vehicles (AVs) are deployed onto our roads in the future… because…AVs will need to know the number of occupants and whether they are properly restrained before beginning to move.”


SOURCE: TESMANIAN





Advertisement



Crissa

Well-known member
First Name
Crissa
Joined
Jul 8, 2020
Messages
4,330
Reaction score
5,006
Location
Santa Cruz
Vehicles
2014 Zero S, 2013 Mazda 3
Country flag

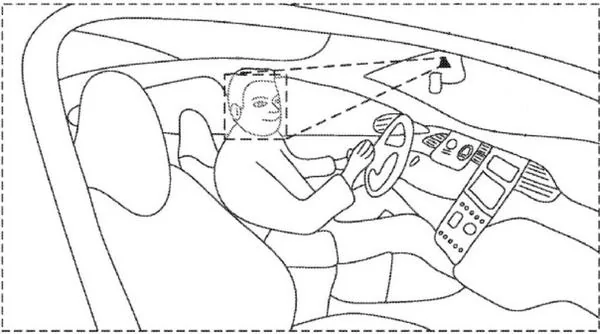

That is a creepy diagram.

I hope they solve the problem some of the systems the TSA bought had where they could malfunction by becoming much higher powered broadcasting beams.

-Crissa


Diehard

Well-known member
First Name
D
Joined
Dec 5, 2020
Messages
707
Reaction score
1,251
Location
U.S.A.
Vehicles
Olds Aurora V8, Saturn Sky redline, Frontier, CT2
Country flag
So many uses for this. The system could alert Emergency Responders about the condition of occupants after crash.

It could also alert Tesla when the person you are getting friendly with in the back seat is not your spouse. Just another potential source of revenue for Tesla.

Last edited:

Bigmac

Member
First Name
Scott
Joined
Feb 10, 2021
Messages
11
Reaction score
23
Location
Ontario, CANADA
Vehicles
VW Passat, HD Street Glide & NISSAN Frontier
Occupation
Communications Technician
Country flag
Why appreciating the safety in regards to air bag force deployment. I wonder about a face recognition system that vehicle owner may not be aware of and really people leave your dogs at home, never leave kids in car regardless of a.c. or heat one never know if they fail then what...a death that was avoidable and your in jail.......


fritter63

Well-known member
First Name
Mark
Joined
Jan 21, 2020
Messages
359
Reaction score
512
Location
Atascadero
Vehicles
2018 Model 3 LR, 2019 Model 3 SR+
Occupation
Software Engineer
Country flag
Secret Hydra controlled hover-carrier targeting systems... phase II.

"These new long range precision guns can eliminate a thousand hostiles a minute. The satellites can read a terrorist's DNA before he steps outside his spider hole. We're gonna neutralize a lot of threats before they even happen." - Nick Fury, "Captain American: Winter Soldier".

:eek:


Diehard

Well-known member
First Name
D
Joined
Dec 5, 2020
Messages
707
Reaction score
1,251
Location
U.S.A.
Vehicles
Olds Aurora V8, Saturn Sky redline, Frontier, CT2
Country flag
If it can see through soft materials such as a blanket, it can also see through clothes. Think about that for a minute. :rolleyes:
A Tesla employee stayed focused and never forgot about his childhood dream to get that superpower:



FutureBoy

Well-known member
First Name
Reginald
Joined
Oct 1, 2020
Messages
983
Reaction score
1,372
Location
Kirkland WA USA
Vehicles
Toyota Sienna
Occupation
Private Lending Educator
Country flag


That is a creepy diagram.

I hope they solve the problem some of the systems the TSA bought had where they could malfunction by becoming much higher powered broadcasting beams.

-Crissa
The new higher power beam is teleporting his head somewhere. Unfortunately they are not getting the top of his scalp. That's going to be a surprise on the other side. Gotta say, he is looking pretty smug about having his head beamed up.


fritter63

Well-known member
First Name
Mark
Joined
Jan 21, 2020
Messages
359
Reaction score
512
Location
Atascadero
Vehicles
2018 Model 3 LR, 2019 Model 3 SR+
Occupation
Software Engineer
Country flag




The new higher power beam is teleporting his head somewhere. Unfortunately they are not getting the top of his scalp. That's going to be a surprise on the other side. Gotta say, he is looking pretty smug about having his head beamed up.
Actually, he's got the "give me a flat top cut during transport" option set.....


Newton

Well-known member
First Name
Newton
Joined
Apr 2, 2020
Messages
711
Reaction score
851
Location
East Bay Area, CA
Vehicles
p̶r̶i̶u̶s̶ c̶,̶ y̶o̶t̶a̶ p̶i̶c̶k̶u̶p, ⼕丫⻏🝗尺セ尺ㄩ⼕长
Country flag
So many camera's always connected, now this, might be too much for my liking :(


Newton

Well-known member
First Name
Newton
Joined
Apr 2, 2020
Messages
711
Reaction score
851
Location
East Bay Area, CA
Vehicles
p̶r̶i̶u̶s̶ c̶,̶ y̶o̶t̶a̶ p̶i̶c̶k̶u̶p, ⼕丫⻏🝗尺セ尺ㄩ⼕长
Country flag
What's the actual use of this that cameras /normal radar cant do?


dtruckman

Active member
First Name
Darrell
Joined
Dec 18, 2020
Messages
27
Reaction score
18
Location
North Las Vegas
Vehicles
2019 Accura MDX Hybrid, 2005 Dodge Dakota 4X4
Occupation
retired
Country flag
Tesla Received Approval to Install Short-Range Interactive Motion-Sensing Radar in Its Vehicles
by Eva Fox April 24, 2021




Photo: Tesla / Tesmanian

Tesla has received permission from the Federal Communications Commission (FCC) to use radar sensors in the 57-64 GHz frequency band in its vehicles. This permission allows the company to install more powerful sensors to monitor the condition of the car's occupants, the car's interior, and its environment in the event of suspicious activity.

At the end of July 2020, Tesla asked the FCC for approval to market a short-range interactive motion-sensing device that could help prevent children from being left behind in hot cars and boost theft-prevention systems. All Tesla vehicles have Dog Mode, which allows owners to leave the car's air conditioner or heater on for pets. This useful feature can induce irresponsible parents to leave their children in the car, which is unacceptable. Therefore, Tesla wanted to get permission to use unlicensed, at that moment, millimeter-wave sensors that would operate at higher power levels than allowed under existing rules.

On April 14, 2021, a request from the Californian manufacturer and several other companies was granted. This grant allows companies to install radar sensors in the 57-64 GHz frequency band in their vehicles, which will have a positive impact in many ways.

Tesla describes that its device will use "4 transmit and 3 receive antennas driven by a highly configurable radar front-end unit and in-vehicle radar modulation will consist of consecutive frames, including an acquisition sequence comprised by a repetition of frequency chirps or stepped chirps, a listening period, then a period for signal processing." This radar-based system “provides depth perception and can see through soft materials, such as a blanket covering a child in a child restraint.”


This system “can differentiate between a child and an object left on the seat, reducing the likelihood of false alarms” and can detect “micromovements like breathing patterns and heart rates, neither of which can be captured by cameras or in-seat sensors alone." The sensor will also be able to estimate body size to optimize the deployment of the airbag in a collision event, depending on whether an adult or a child is seated. This will also allow the vehicle to more accurately determine when to activate the seat belt reminders.

Source: Tesla

As autonomous vehicles continue to be actively developed, these sensors can be used to monitor all the occupants of the car, to understand if they are all fastened, and to adequately deploy airbags if necessary. The Advocates for Highway and Auto Safety state that “the ability of a vehicle to detect and classify all occupants will likely be critical as autonomous vehicles (AVs) are deployed onto our roads in the future… because…AVs will need to know the number of occupants and whether they are properly restrained before beginning to move.”


SOURCE: TESMANIAN
Another good idea! The more I read these threads the more I want My CT!!!!!
