What Motor(s) will the Cybertruck use?

TruckElectric

Well-known member
First Name
Bryan
Joined
Jun 16, 2020
Threads
769
Messages
2,482
Reaction score
3,273
Location
Texas
Vehicles
Dodge Ram diesel
Occupation
Retired
Country flag
Most truck users want to know what is "under the hood". In ICE trucks they want to know the horsepower and the torque.

In EV's it's "what kind of motor and how much torque does it produce".

Since Tesla does not publish power ratings on their motors we have to rely on dynamometers. There are some dyno tests on YT with the Model S.

The Tesla Semi will use the Model 3 motor, the AC Reluctance Motor. I've read where in the dual motor Model 3 the Induction motor is used in the front and the Reluctance motor is used in the rear.

So I'm thinking the Cybertruck will use the AC Reluctance Motor.

The Reluctance Motor used in the Model 3 is an PMSRM-Permanent Magnet Sychronous Reluctance Motor.

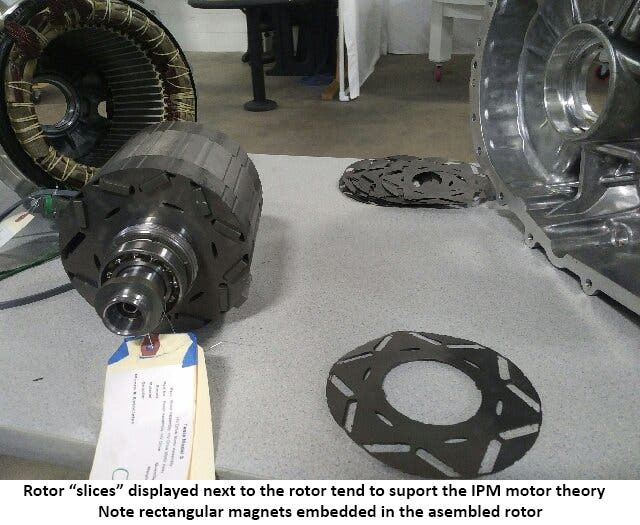

There was some speculation that the PMSRM is a "Switched" instead of Synchronous Motor. This was proven wrong after a teardown of the motor revealed imbedded magnets in the rotor.

Tesla Cybertruck What Motor(s) will the Cybertruck use? ACTUAL-Rotor-close-up-with-laminates-3

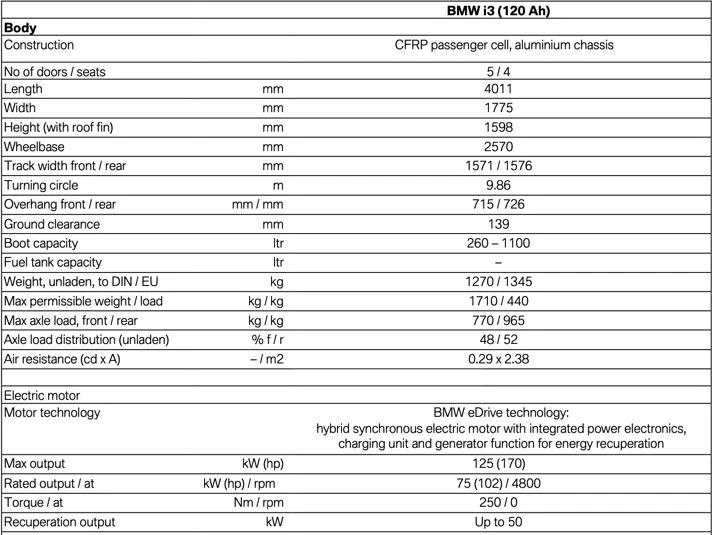

BMW uses a similar motor in the i3 they call a hybrid synchronous electric motor.


Tesla Cybertruck What Motor(s) will the Cybertruck use? Image 7-20-20 at 12.15 PM



I doubt Tesla will release what kind of motor(s) will be used in the Cybertruck so we won't know until there is a teardown of the motor once someone like Sandy Munro does one.


I have no doubt the Cybertruck will live up to hype and will have TONS of torque!?
Sponsored


Last edited:

ajdelange

Well-known member
First Name
A. J.
Joined
Dec 8, 2019
Threads
4
Messages
3,213
Reaction score
3,403
Location
Virginia/Quebec
Vehicles
Tesla X LR+, Lexus SUV, Toyota SR5, Toyota Landcruiser
Occupation
EE (Retired)
Country flag
I really have no idea what it is other than it has magnets and so is clearly a synchronous machine. Let's call it a PMASRM (Permanent Magnet Assisted Synchronous Reluctance Machine). Only problem I have with that is that I can't see any salience in the stator (which does not mean it is not there).

OP
OP
TruckElectric

TruckElectric

Well-known member
First Name
Bryan
Joined
Jun 16, 2020
Threads
769
Messages
2,482
Reaction score
3,273
Location
Texas
Vehicles
Dodge Ram diesel
Occupation
Retired
Country flag
Let's call it a PMASRM (Permanent Magnet Assisted Synchronous Reluctance Machine).
Permanent Magnet Assisted Synchronous Reluctance Motor, Permanent Magnet Synchronous Reluctance Motor or simply IPM are all acceptable. It's just how descriptive you want to be.


Dids

Well-known member
First Name
Les
Joined
Dec 21, 2019
Threads
8
Messages
1,766
Reaction score
3,771
Location
Massachusetts
Vehicles
04 Tacoma, 23 Cybertruck
Occupation
Self
Country flag
Since Model 3 uses both an induction and reluctance it's a good guess that the dual motor CT will be similar set up. With the single motor CT being an induction? Does that mean the 3 motor uses 2 reluctance motors? Or do we think the 3 motor is plaid with some other setup?



OP
OP
TruckElectric

TruckElectric

Well-known member
First Name
Bryan
Joined
Jun 16, 2020
Threads
769
Messages
2,482
Reaction score
3,273
Location
Texas
Vehicles
Dodge Ram diesel
Occupation
Retired
Country flag
Since Model 3 uses both an induction and reluctance it's a good guess that the dual motor CT will be similar set up. With the single motor CT being an induction? Does that mean the 3 motor uses 2 reluctance motors? Or do we think the 3 motor is plaid with some other setup?
Good questions. My guess? Single motor CT will use PMSRM. Dual Motor like you said Induction and Reluctance. 3 motors will use Induction in front and 2 PMSRM in rear.

My best guess!! ?


ajdelange

Well-known member
First Name
A. J.
Joined
Dec 8, 2019
Threads
4
Messages
3,213
Reaction score
3,403
Location
Virginia/Quebec
Vehicles
Tesla X LR+, Lexus SUV, Toyota SR5, Toyota Landcruiser
Occupation
EE (Retired)
Country flag
Since Tesla does not publish power ratings on their motors we have to rely on dynamometers.
I have neither a CT nor a dyno to put it on. Nonetheless we can WAG some numbers from the specs if we assume a weight. Guessing that that will be about 3000 kg the 0-60 time of 2.9 seconds gives us 27.74 kN thrust just to get the mass up to 60 mph assuming that the acceleration is uniform in those 2.9 seconds. If we assume 50 cm wheels (for easy math) the torque is 55.48 kN-m. Further assuming that peak power is delivered at 60 mph its easy to calculate that at 744.8 kW (just shy of 1000 hp and 1935 A from a 385 V battery). Splitting between 3 motors gives us around 333 hp per motor and about 18 kN-m from each at the wheels. Assuming motor shaft speed of about 8000 rpm at 60 mpH we'd have about 1 kN-m per motor.

I know that's a raft of assumptions but it does give us ball park numbers.

OP
OP
TruckElectric

TruckElectric

Well-known member
First Name
Bryan
Joined
Jun 16, 2020
Threads
769
Messages
2,482
Reaction score
3,273
Location
Texas
Vehicles
Dodge Ram diesel
Occupation
Retired
Country flag
I have neither a CT nor a dyno to put it on. Nonetheless we can WAG some numbers from the specs if we assume a weight. Guessing that that will be about 3000 kg the 0-60 time of 2.9 seconds gives us 27.74 kN thrust just to get the mass up to 60 mph assuming that the acceleration is uniform in those 2.9 seconds. If we assume 50 cm wheels (for easy math) the torque is 55.48 kN-m. Further assuming that peak power is delivered at 60 mph its easy to calculate that at 744.8 kW (just shy of 1000 hp and 1935 A from a 385 V battery). Splitting between 3 motors gives us around 333 hp per motor and about 18 kN-m from each at the wheels. Assuming motor shaft speed of about 8000 rpm at 60 mpH we'd have about 1 kN-m per motor.

I know that's a raft of assumptions but it does give us ball park numbers.

I still like to see the numbers a dynamometer test gives. The CT will best the production diesels.


Ryan95738

Well-known member
First Name
Ryan
Joined
Jan 24, 2020
Threads
2
Messages
192
Reaction score
130
Location
Skagit Valley
Vehicles
CyberTruck
Occupation
CNA
Country flag
Since Model 3 uses both an induction and reluctance it's a good guess that the dual motor CT will be similar set up. With the single motor CT being an induction? Does that mean the 3 motor uses 2 reluctance motors? Or do we think the 3 motor is plaid with some other setup?
I think the 3 motor will be plaid and with be like "alien technology" to quote Musk.



ricinro

Well-known member
First Name
Rich
Joined
Jun 8, 2020
Threads
2
Messages
317
Reaction score
366
Location
Mesa Az
Vehicles
2021 Tesla MY, 2001 ford Sportrac
Occupation
mech design engineer-ret.
Country flag
I have neither a CT nor a dyno to put it on. Nonetheless we can WAG some numbers from the specs if we assume a weight. Guessing that that will be about 3000 kg the 0-60 time of 2.9 seconds gives us 27.74 kN thrust just to get the mass up to 60 mph assuming that the acceleration is uniform in those 2.9 seconds. If we assume 50 cm wheels (for easy math) the torque is 55.48 kN-m. Further assuming that peak power is delivered at 60 mph its easy to calculate that at 744.8 kW (just shy of 1000 hp and 1935 A from a 385 V battery). Splitting between 3 motors gives us around 333 hp per motor and about 18 kN-m from each at the wheels. Assuming motor shaft speed of about 8000 rpm at 60 mpH we'd have about 1 kN-m per motor.

I know that's a raft of assumptions but it does give us ball park numbers.
50cm wheels? the wheels shown are closer to 88.9cm in diameter.


ajdelange

Well-known member
First Name
A. J.
Joined
Dec 8, 2019
Threads
4
Messages
3,213
Reaction score
3,403
Location
Virginia/Quebec
Vehicles
Tesla X LR+, Lexus SUV, Toyota SR5, Toyota Landcruiser
Occupation
EE (Retired)
Country flag
Scale by the ratio. But 17" radius seems kind of small to me, especially for a hefty truck.

Last edited:
OP
OP
TruckElectric

TruckElectric

Well-known member
First Name
Bryan
Joined
Jun 16, 2020
Threads
769
Messages
2,482
Reaction score
3,273
Location
Texas
Vehicles
Dodge Ram diesel
Occupation
Retired
Country flag

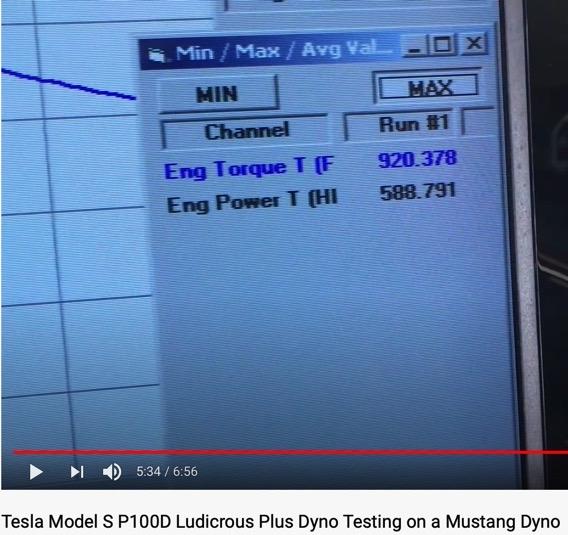

Here is a Model S P100D dyno results
