Yes. It takes more than 385V to push current into a 385 V battery. If there is no DC stepup and assuming that motor voltage is proportional to dø/dt then the motors must be producing a bit more than 385V at 5 mph, 3850V at 50 mph and 6160 V at 80 mph. I am sure that's not the case.





Advertisement



JBee

Well-known member
First Name
JB
Joined
Nov 22, 2019
Messages
55
Reaction score
53
Location
6000
Vehicles
Cybertruck
Country flag
@ Hauling
Current regen rate and profile doesn't reflect system capability, rather what is acceptable for the customer in terms of driveability. In that high declaration low rpm braking can cause uncomfortable cogging and an abrupt stop.


@Adjelange
Motor rpm is controlled by phase switching frequency not volts.


HaulingAss

Well-known member
First Name
Mike
Joined
Oct 3, 2020
Messages
397
Reaction score
565
Location
Washington State
Vehicles
2010 Ford F-150, 2018 Tesla Model 3 Performance
Country flag
@ Hauling
Current regen rate and profile doesn't reflect system capability, rather what is acceptable for the customer in terms of driveability. In that high declaration low rpm braking can cause uncomfortable cogging and an abrupt stop.
It already causes an uncomfortable stop for those who have trouble adapting to one-pedal driving, that's why Tesla offers a low regen mode.

I live in a coastal climate with moderate weather and my car is almost always regen limited at 75% state of charge unless I've driven it for an hour to warm up the battery. That tells me the regen limit is not due to drivability concerns but battery longevity.


larryboy31

Well-known member
First Name
larry
Joined
Apr 29, 2020
Messages
51
Reaction score
60
Location
springfield NE
Vehicles
2001 Dodge turbo diesel ext. cab,2016 Nissan versa, 2021 Subaru cross trek
Occupation
retired
Country flag
It already causes an uncomfortable stop for those who have trouble adapting to one-pedal driving, that's why Tesla offers a low regen mode.

I live in a coastal climate with moderate weather and my car is almost always regen limited at 75% state of charge unless I've driven it for an hour to warm up the battery. That tells me the regen limit is not due to drivability concerns but battery longevity.
When you take your foot all the way off the "gas" and slow down faster than an ICE car do vehicles behind you get any warning? Like brake lights or something.


HaulingAss

Well-known member
First Name
Mike
Joined
Oct 3, 2020
Messages
397
Reaction score
565
Location
Washington State
Vehicles
2010 Ford F-150, 2018 Tesla Model 3 Performance
Country flag
When you take your foot all the way off the "gas" and slow down faster than an ICE car do vehicles behind you get any warning? Like brake lights or something.
Yes, brake lights come on at a deceleration threshold set by regulations. So if you quickly remove your foot from the accelerator the brake lights are on before you hit the brake pedal.


Crissa

Well-known member
First Name
Crissa
Joined
Jul 8, 2020
Messages
4,362
Reaction score
5,073
Location
Santa Cruz
Vehicles
2014 Zero S, 2013 Mazda 3
Country flag
Crissa, please read what I wrote. I said the motor cannot break the tires loose at all speeds, only slow speeds. If used in a regenerative...
It already can. The amount of resistance to break the tires loose is about an abrupt change in wheel speed, which the motors are certainly capable of.

And modulating quickly is something it already does better than the friction brakes - that's what the motor controller is doing.

...motors must be producing a bit more than 385V at 5 mph, 3850V at 50 mph and 6160 V at 80 mph. I am sure that's not the case.
Your math is wrong by an order of magnitude again. But yes, the motor produces sufficient voltage, which then goes through the motor controller, which then rectifies it (much like it inverts it to make the wheels spin).

...at a deceleration threshold set by regulations. ...
No. There is no regulation on regenative or engine braking activating brake lights in the US.

So what happens when to start regen varies by vehicle brand.

-Crissa


ajdelange

Well-known member
First Name
A. J.
Joined
Dec 8, 2019
Messages
2,364
Reaction score
2,557
Location
Virginia/Quebec
Vehicles
Tesla X LR+, Lexus SUV, Toyota SR5, Toyota Landcruiser
Occupation
EE (Retired)
Country flag
@Adjelange
Motor rpm is controlled by phase switching frequency not volts.
I am not sure what you are referring to here. My recent comments have been regarding regenerative braking. If one closes all the switches in the bridge a PM motor acts as a generator as it is moving magnets past coils. This generates and EMF whose magnitude depends on the speed at which the magnet passes the coils. If the motor is turning slowly the EMF is small. if it is turning fast the EMF is large. The rpm is, at this point, determined by the speed of the vehicle.

In dynamic breaking you connect the coils to a load e.g. a resistor. This causes (AC) current to flow in the resistor and coils. That current creates a coil magnetic field opposing the permanent magnet field and torque is applied to the rotor in a direction such that the car slows. Speed depends on the amount of current and is controllable by changing the size of the resistor (and hence the current).

In regen it is a little different. Instead of a resistor the "dump" is a battery. To get the battery to take current the AC from the generator must be rectified and that means that the switches in the bridge must be opened at the right time such that the current is unidirectional and that means that the switches must cycles at synchronous speed. By "space vector control", that is, opening the switches in the proper phase relative to the rotor position you can put the stator magnetic field vector any where you want it relative to the rotor and by changing the duty cycle (PWM) you can control it's magnitude but at all times the phasing of the switches must be synchrononous. To increase the speed of the motor you put the stator magnetic field ahead of the rotor magnetic field. This puts a torque on the rotor in the direction of travel causing the motor to speed up. As it speeds up the controller has to follow the rotor and the switching frequency goes up. To slow down you phase the switches to put the stator field behind the rotor field. This causes torque in a direction that slows the vehicle. Again the controller must stay phase locked to the wheel.

What I don't understand is that in motor mode the battery voltage has to be bigger than the back EMF at whatever speed you want to operate so current will flow into the motor. For generator mode the machine EMF has to be higher than the battery voltage so current will flow into the battery.

Everything here is with respect to PM motors because the CT is, in all probability, going to use them exclusively. Control of induction motors is different. A PM motor must not slip. An IM motor can. Thus one can control an IM motor by simply changing the frequency of the drive. The more slip, the more torque and the motor speeds up or slows down depending on whether the drive is faster or slower than the rotor.

Last edited:

HaulingAss

Well-known member
First Name
Mike
Joined
Oct 3, 2020
Messages
397
Reaction score
565
Location
Washington State
Vehicles
2010 Ford F-150, 2018 Tesla Model 3 Performance
Country flag
It already can. The amount of resistance to break the tires loose is about an abrupt change in wheel speed, which the motors are certainly capable of.
It already can what? Break the tires loose at any speed? No, it can't.

And modulating quickly is something it already does better than the friction brakes - that's what the motor controller is doing.
The motor controller does modulate regen based on tire slippage. However, it is not nearly as precise or quick as friction brake modulation. I know this because I have used one-foot driving with full regen to drive an icy, snowy, downhill highway with switchbacks while being in controlled slides most of the way by using the throttle pedal to modulate regen. Regen braking does not modulate braking between left and right wheels as friction braking does so it does not modulate better or more quickly. It's actually very slow in modulation and allows a lot more slippage than anti-lock brakes which modulate in quick pulses.


No. There is no regulation on regenative or engine braking activating brake lights in the US.

So what happens when to start regen varies by vehicle brand.

-Crissa

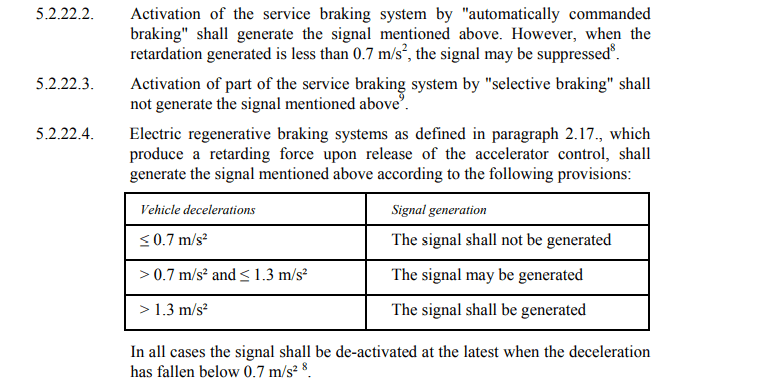

No, the illumination of brake lights and when they illuminate is standardized. You will find that all cars sold in the U.S. abide by UNECE harmonized regulations for vehicle standardization. A manufacturer that doesn't conform to these regulations is at increased legal risk in the event their car is rear-ended. So you will find all regenerative braking systems are tuned to fall within these regulations.
