People have spent a lot of time talking about the range when towing, but there is another factor that comes into play. We know the CT can put out super high torque and power for 2.9 seconds at a time. What can it do for an hour at a time? Is it going to overheat (or thermally-self-limit) its motors or batteries or electronics pulling a heavy load up a sustained uphill road (through a mountain pass)?
The answer is that it will depend on conditions. The heaviest load is the inertial load we have been talking about and, of course, that load is short lived. Going up a long steep grade isn't. An empty CT (3000 kg) going uphill at 60 mph will pull about 7.8 kW per percent grade above the approximately 24 -30 kW at 0 grade. Pull 14,000 lbs and that load is going to about 24 kW per percent. We can be sure of 2 things. One is that the engineers have examined this question at length drawing heavily on what they have learned with the semi where this is really, really important. The other is that with all those sensors the computer will know if there is impending danger and will take protective action (such as simply limiting the power that can be drawn) and offer the driver a host of warnings, messages, and chimes.

[EDITED to correct arithmetic errors]

Last edited:

bfdog

Well-known member
First Name
Jason
Joined
Jan 2, 2020
Messages
89
Reaction score
67
Location
Texas
Vehicles
F250, Honda Element, GX470
Country flag
I daydreamed through my motors class 30 years ago (and stared at my professors turban), but I found a calculator at "robot shop.com"

A 20,000 cybertruck (with load) going up the steepest wheelchair ramp allowed (8.3 degrees) for an hour (at 95% efficiency), and maintaining 60 mph on that hill with that load requires 121 KW. ( assuming no air, no rolling resistance, spherical chickens, etc.).
A 6% grade requires 88 KW.

That's a lot of juice. The amps are up there for sure--many hundreds of amps. Hills will zap the battery but presumably wouldn't overload itself driving on expected hills. The good news is the CT won't be burning 1 quart of fuel every 30 seconds and trying to dissipate all of that heat (from getting 2 mpg going 60 mph on a steep hill).


lslick23

Member
First Name
Louis
Joined
Feb 9, 2020
Messages
21
Reaction score
14
Location
Florida
Vehicles
Cybertruck
Country flag
I used an electric weedeater about 40 years ago (yes, in '80s). It was a torque monster. But it was a pain to stretch the cord all around the 1.5 acres. The 2-stroke I finally bought was much better--they still are. 40 years later a battery weedeater still can't really finish that 1.5 acres. The batteries would peter out. And need replacement after 1 season. But my little 80 year old neighbor loves his for light work. He brags that Home Depot keeps taking the batteries back on return after they fail early (lifetime battery on Ryobi?)
Yes Ryobi batteries suck bad! Buy an Ego and it will cover your 1.5 acres and more and you’ll never have to return the battery. I’ve been using them for 6 years now and they are the real deal.


Dids

Well-known member
First Name
Les
Joined
Dec 21, 2019
Messages
245
Reaction score
222
Location
Massachusetts
Vehicles
04 Tacoma, 21 Cybertruck
Occupation
Self
Country flag
Yes Ryobi batteries suck bad! Buy an Ego and it will cover your 1.5 acres and more and you’ll never have to return the battery. I’ve been using them for 6 years now and they are the real deal.
I've been using ryobi batteries 4Ah lithium+ and I didnt realize they suck. The ninth and nicd ones certainly did. I've never really used anyone else's although instinctively I know Milwaukee is better but their tools are expensive and I dont imagine their batteries last much longer.... ego lawnmower works well but cant really use a 10Ah pack on hand tools.

Last edited:

lslick23

Member
First Name
Louis
Joined
Feb 9, 2020
Messages
21
Reaction score
14
Location
Florida
Vehicles
Cybertruck
Country flag
I've been using ryobi batteries 4Ah lithium and I didnt realize they suck. I've never really used anyone else's although instinctively I know Milwaukee is better but their tools are expensive and I dont imagine their batteries last much longer.... ego lawnmower works well but cant really use a 10Ah pack on hand tools.
Trust me you don’t need a battery that big for hand tools. I don’t even own a 10 only the 7.5’s and smaller. I own a lawnmower, weed eater,trimmer, blower and the generator of theirs and between owning the different size batteries and having the fast charger it all becomes a non issue. Unfortunately my experience with Ryobi is with the batteries with their hand tools and they just don’t last long the big or small ones.


ajdelange

Well-known member
First Name
A. J.
Joined
Dec 8, 2019
Messages
608
Reaction score
402
Location
Virginia/Quebec
Vehicles
Tesla X LR+, Lexus SUV, Toyota SR5, Toyota Landcruiser
Occupation
EE (Retired)
Country flag
I daydreamed through my motors class 30 years ago (and stared at my professors turban), but I found a calculator at "robot shop.com"

A 20,000 cybertruck (with load) going up the steepest wheelchair ramp allowed (8.3 degrees) for an hour (at 95% efficiency), and maintaining 60 mph on that hill with that load requires 121 KW. ( assuming no air, no rolling resistance, spherical chickens, etc.).
A 6% grade requires 88 KW.
I'm sure the good Professor Singh would approve of the use of calculators provided that you retained enough understanding of the physics to appreciate that 121 kW consumption at 14.6% grade ( 8.3 °) is not consistent with 88 kW at 6% grade (3.4 °).


A truck traveling at 60 mph covers about 1600 m in one hour. On a 6% grade (3.4 °) it climbs 6% of that (0.06*1600) = 96m. If it weighs 20000 lbs its mass is (20000/2.2) = 9090.9 kg and (20000/2.2)*9.8*(1600*0.06) = 8.55273e+06 joules potential energy was gained (supplied by the motors in addition to all the other energy they supplied in covering this mile). 9.8 m/s/s is the nominal gravitational acceleration. That's a lot of joules equivalent to 2.375 kWh (a watt hour is 3600 joules) required to pull the rig up the hill over one mile to which must be added the other loads which are at least 700 wH/mi for a total consumption of about 3 kWh/mi which is 6 - 7 times the expected consumption of the unloaded truck so the 500 miles nominal range would be reduced to 70 - 85 miles or so. But note that this 3 kWh is consumed in a minute so that the power consumption is 60*3 or 180 kW - 142 of them just for the uphill load which would be, of course, the dominant one.

Now let's try to put that in perspective. A Model X has a nominal consumption of 280 Wh/mi and so the nominal power delivered at 60 mph is 14.8 kW. But the first mark on the power meter is 75 kW with full scale being 300 kW and it's not uncommon to see power levels get up to and above 75 kW in the course of normal driving in country that is not hilly. Thus even the X is designed to a couple hundred kW power levels if briefly. Nonetheless we do hear stories of current Tesla vehicles operating in the desert in the summertime having power restrictions imposed with reduction in cabin cooling to protect the battery. So this is a very good question.

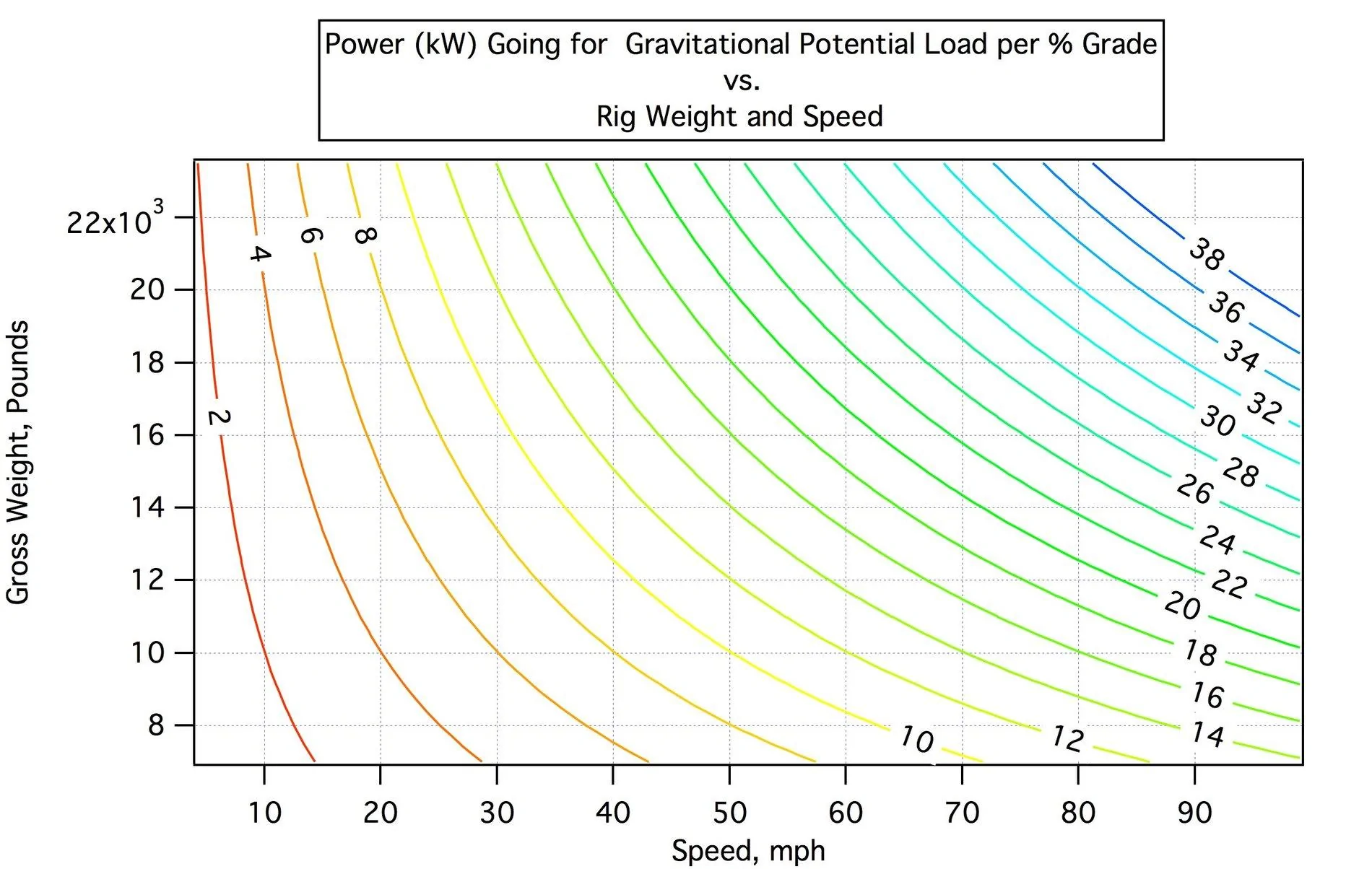

Here's a chart showing the power used for going up hill as a function of vehicle weight and speed. Where towing 14,000 pounds up an 8% grade (and there are those that persist for a couple of miles in the US) on a hot day you are going to have to slow down.




That's a lot of juice. The amps are up there for sure--many hundreds of amps.
Let's not get too carried away. 200 kW at 400V is several hundred for sure (500) but if I were driving along and saw my power meter nearing full scale and staying there I would certainly back off the pedal.

Last edited:

bfdog

Well-known member
First Name
Jason
Joined
Jan 2, 2020
Messages
89
Reaction score
67
Location
Texas
Vehicles
F250, Honda Element, GX470
Country flag
I'm sure the good Professor Singh would approve of the use of calculators provided that you retained enough understanding of the physics to appreciate that 121 kW consumption at 14.6% grade ( 8.3 °) is not consistent with 88 kW at 6% grade (3.4 °).


A truck traveling at 60 mph covers about 1600 m in one hour. On a 6% grade (3.4 °) it climbs 6% of that (0.06*1600) = 96m. If it weighs 20000 lbs its mass is (20000/2.2) = 9090.9 kg and (20000/2.2)*9.8*(1600*0.06) = 8.55273e+06 joules potential energy was gained (supplied by the motors in addition to all the other energy they supplied in covering this mile). 9.8 m/s/s is the nominal gravitational acceleration. That's a lot of joules equivalent to 2.375 kWh (a watt hour is 3600 joules) required to pull the rig up the hill over one mile to which must be added the other loads which are at least 700 wH/mi for a total consumption of about 3 kWh/mi which is 6 - 7 times the expected consumption of the unloaded truck so the 500 miles nominal range would be reduced to 70 - 85 miles or so. But note that this 3 kWh is consumed in a minute so that the power consumption is 60*3 or 180 kW - 142 of them just for the uphill load which would be, of course, the dominant one.

Now let's try to put that in perspective. A Model X has a nominal consumption of 280 Wh/mi and so the nominal power delivered at 60 mph is 14.8 kW. But the first mark on the power meter is 75 kW with full scale being 300 kW and it's not uncommon to see power levels get up to and above 75 kW in the course of normal driving in country that is not hilly. Thus even the X is designed to a couple hundred kW power levels if briefly. Nonetheless we do hear stories of current Tesla vehicles operating in the desert in the summertime having power restrictions imposed with reduction in cabin cooling to protect the battery. So this is a very good question.

Here's a chart showing the power used for going up hill as a function of vehicle weight and speed. Where towing 14,000 pounds up an 8% grade (and there are those that persist for a couple of miles in the US) on a hot day you are going to have to slow down.




Let's not get too carried away. 200 kW at 400V is several hundred for sure (500) but if I were driving along and saw my power meter nearing full scale and staying there I would certainly back off the pedal.
I didn't realize 6 percent angle is different from a 6 percent grade. I was just plugging numbers into a calculator. I think I implied that. I bet Jane could tell some stories. And Scott. Are you always like this?

Last edited:

ajdelange

Well-known member
First Name
A. J.
Joined
Dec 8, 2019
Messages
608
Reaction score
402
Location
Virginia/Quebec
Vehicles
Tesla X LR+, Lexus SUV, Toyota SR5, Toyota Landcruiser
Occupation
EE (Retired)
Country flag
I didn't realize 6 percent angle is different from a 6 percent grade.
I have never seen angle represented as a percentage but I have seen it represented as a fraction (of a circle). The angle of a road with respect to the horizontal is related to the grade through the tangent function: grade = tan(angle). If the angle is expressed as 2*pi*fraction of a circle ( "radians") then grade and angle are approximately the same for angles less than about 0.21 radian ( 12 °). Degree measure is just 360*fraction of a circle.

I was just plugging numbers into a calculator. I think I implied that.
I was suggesting that perhaps a bit of caution is wise when using a calculator "found on the internet" if you are hazy on the principles on which the calculator works.

I bet Jane could tell some stories. And Scott.
Yep.
Are you always like this?
Most of the time. I love playing with numbers and tech. Check Dilbert and "The Knack".

OP
cybertrucktruckguy

cybertrucktruckguy

Well-known member
First Name
Todd
Joined
Jan 26, 2020
Messages
62
Reaction score
100
Location
Kansas
Vehicles
2018 Tacoma TRD Off Road, 2018 Tundra Limited, 2016 Honda Africa Twin
Occupation
Manager
Country flag
  • Thread starter
  • Thread Starter
  • #25
The CT will be a towing God? How much stamina, endurance, and life-span does God status require?

The CT towing 14k+ will be like a champion powerlifter competing in a Crossfit contest. I agree with the comments that up to a certain speed a Tesla torque curve is flat in a good way.

I used an electric weedeater about 40 years ago (yes, in '80s). It was a torque monster. But it was a pain to stretch the cord all around the 1.5 acres. The 2-stroke I finally bought was much better--they still are. 40 years later a battery weedeater still can't really finish that 1.5 acres. The batteries would peter out. And need replacement after 1 season. But my little 80 year old neighbor loves his for light work. He brags that Home Depot keeps taking the batteries back on return after they fail early (lifetime battery on Ryobi?)

Towing EVs are almost in their infancy. But they must get born first. After a pregnancy. The parents haven't even been picked yet. (Isn't Tesla still searching for a site to build the Cybertruck? Isn't Tesla trying to figure out ventilators? While working remotely? Wait, aren't they trying to figure out big rigs? Which reminds me, heck, aren't they trying to figure out batteries?)

I have an electric bike--I love it. For 20 miles. No comparison betwix it and my motorcycles. I have a battery chainsaw and three that are heavy duty (ish) and gas. To make my echo battery chainsaw badass enough to beat my Stihl Farmboss, the echo would last 1-5 cuts.

I am starting to wonder about the wisdom of spending 90K (all in) on a replacement for my 18 year old 7.3 F250. I did rough numbers in my head one day and think battery degradation alone (from abusing the battery towing) in addition to electricity costs will be ballpark 50 cents a mile for towing. I need to do a spreadsheet though with actual guestimates. At a minimum I'm thinking of going back down to 1 motor and keeping the diesel for towing. I mostly just want a "truck" and FSD.
I will address range in the 3rd Video.

OP
cybertrucktruckguy

cybertrucktruckguy

Well-known member
First Name
Todd
Joined
Jan 26, 2020
Messages
62
Reaction score
100
Location
Kansas
Vehicles
2018 Tacoma TRD Off Road, 2018 Tundra Limited, 2016 Honda Africa Twin
Occupation
Manager
Country flag
  • Thread starter
  • Thread Starter
  • #26
Here are some more musings on torque which I hope will help in clarifying some of the confusing material in the video. Perhaps an edit or two is possible.

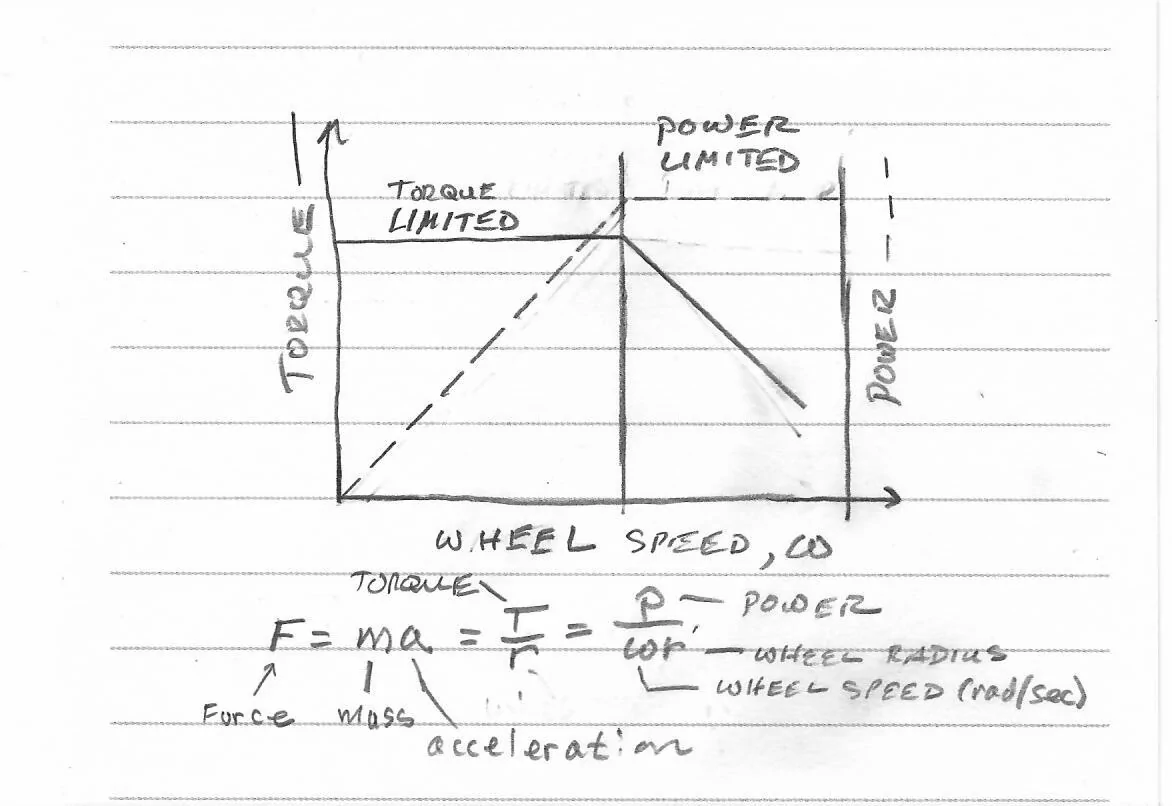

The motor(s) in a truck are there for the purpose of providing a force on the truck in the direction of desired travel. This force does several things but the most significant of them is getting the truck moving that is, accelerating it to desired speed. Force is also needed to lift the truck up hills and push air out of the way but lets focus on getting the truck moving for now. The required torque is the required force multiplied by the wheel radius (this is the definition of torque) and the required force is the product of the mass of the truck and the desired acceleration. In symbols this is F = m*a which is Newton's second law and the basis for all classical mechanics. Since torque is simply force multiplied by arm (the technical term, here the wheel radius) we can multiply both sides of F = m*a to get F*r = T = m*r*a from which it is clear that the faster we want to accelerate the more T, torque we will need. The more torque we can obtain the faster we can get from 0 - 60. Thus we want all the torque we can get but there is a limit to what drive train components will tolerate before failing. In the sketch below the maximum available torque, let's mark it T, is denoted by the solid horizontal line in the "Torque Limited" part of the diagram which plots torque on the left vertical axis against wheel speed.
