Cybertruck Aftermarket Wheels & Tires Photos + Info Compilation

[T Sportline]

Just finished this Beast with our 20" TCT AeroMaxx Flow Forged Wheels.

Sponsored



[T Sportline]

Custom finished set of 24" CT7 Forged in Satin Polish.

Color: Inozetek Super Gloss White Out

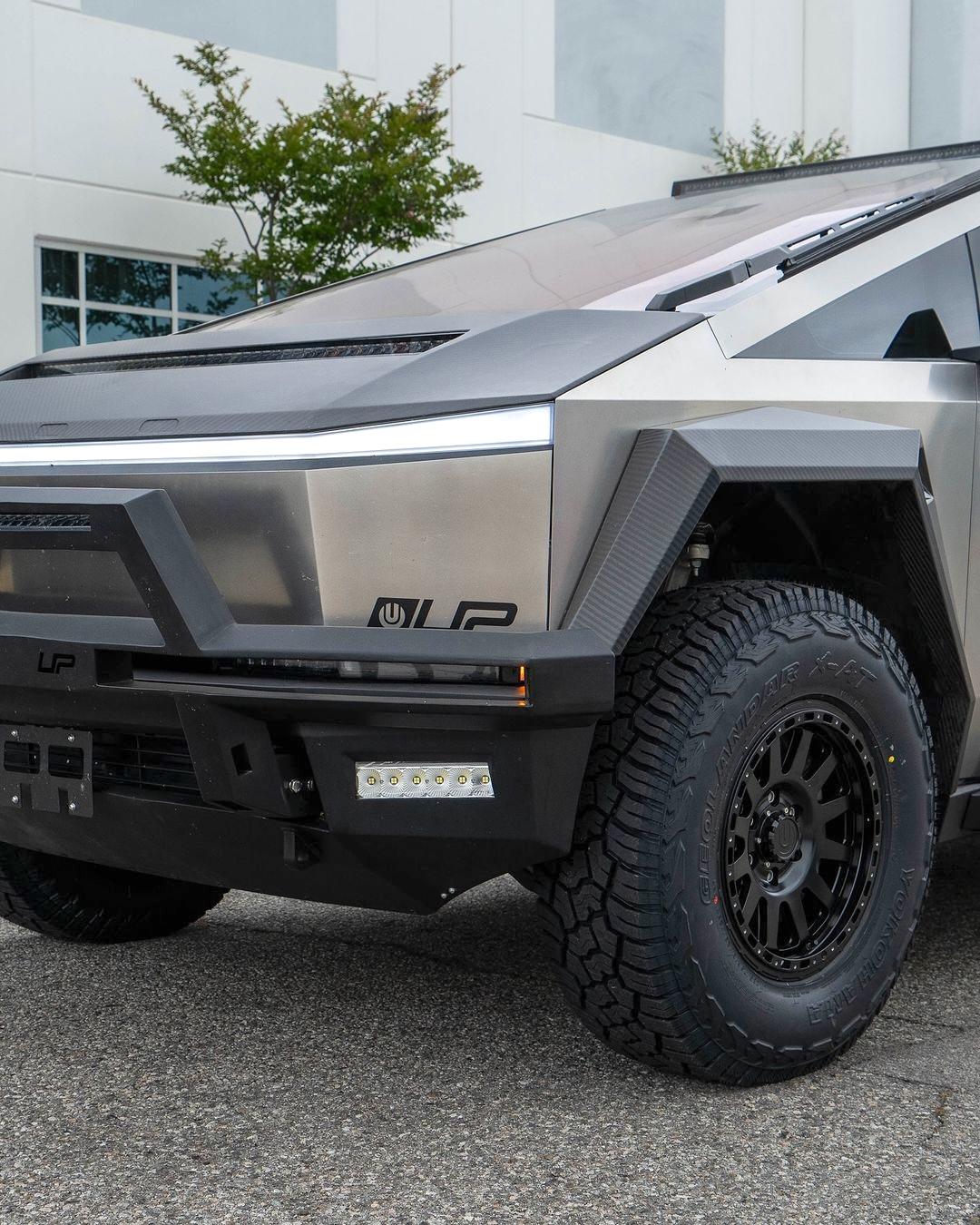

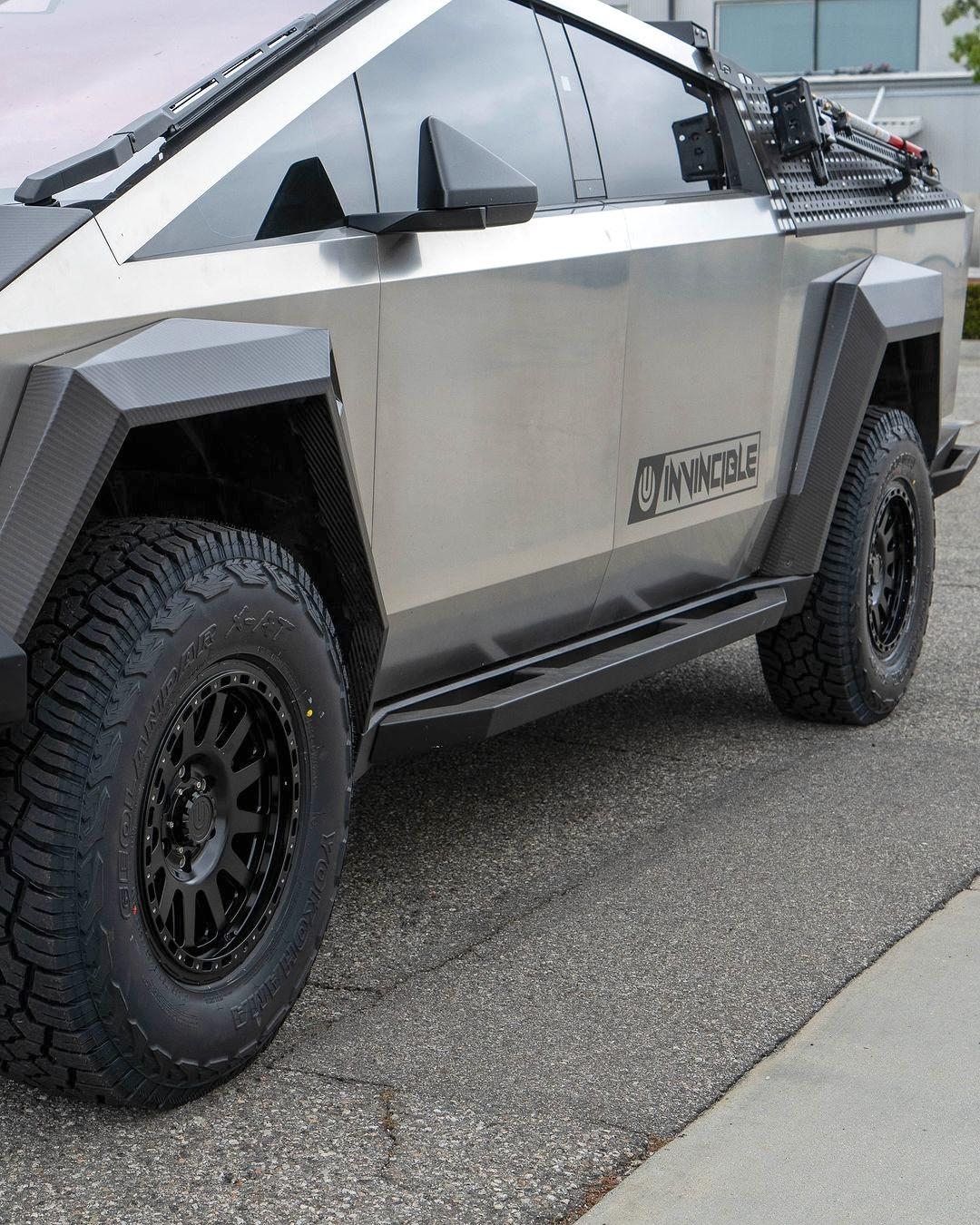

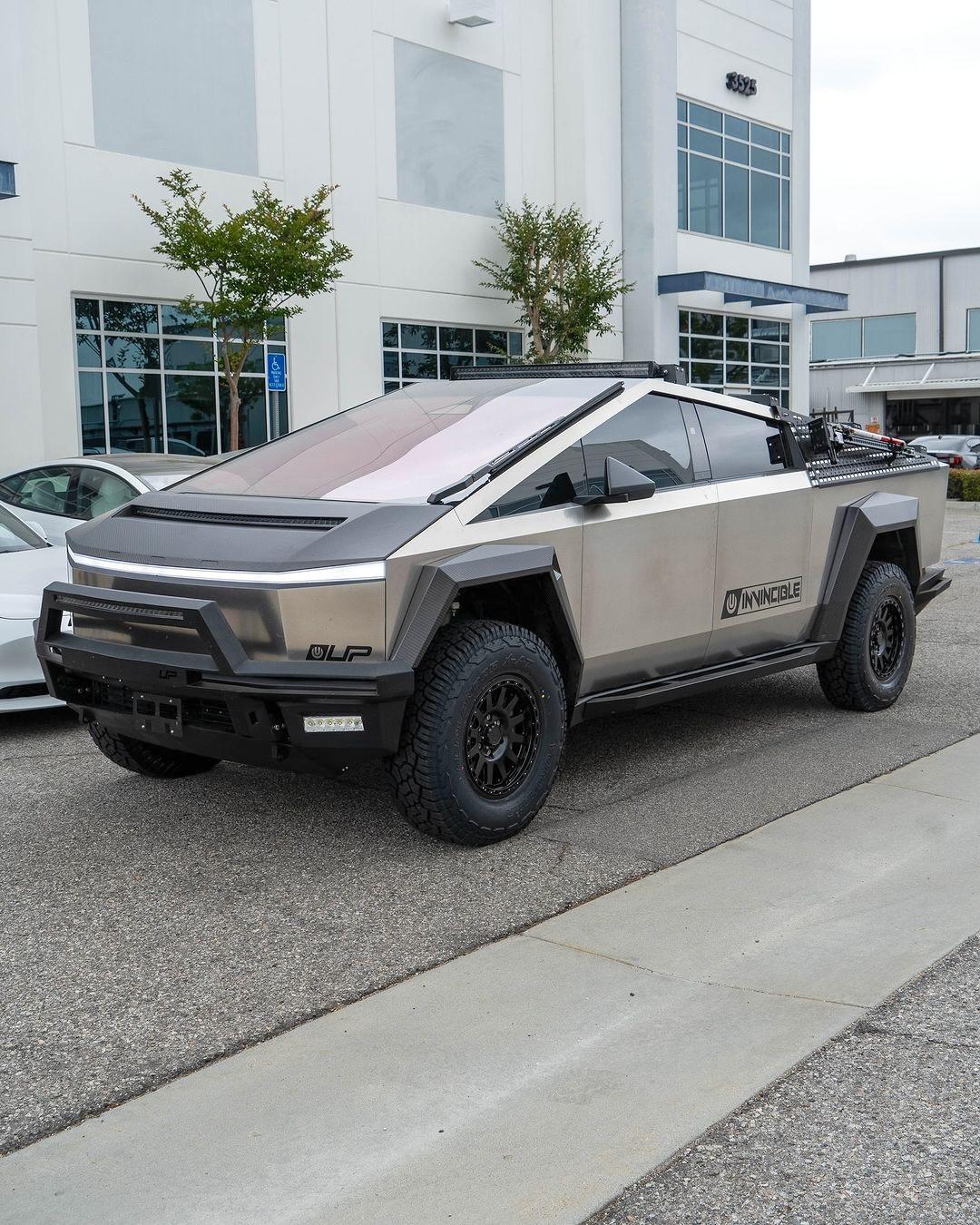

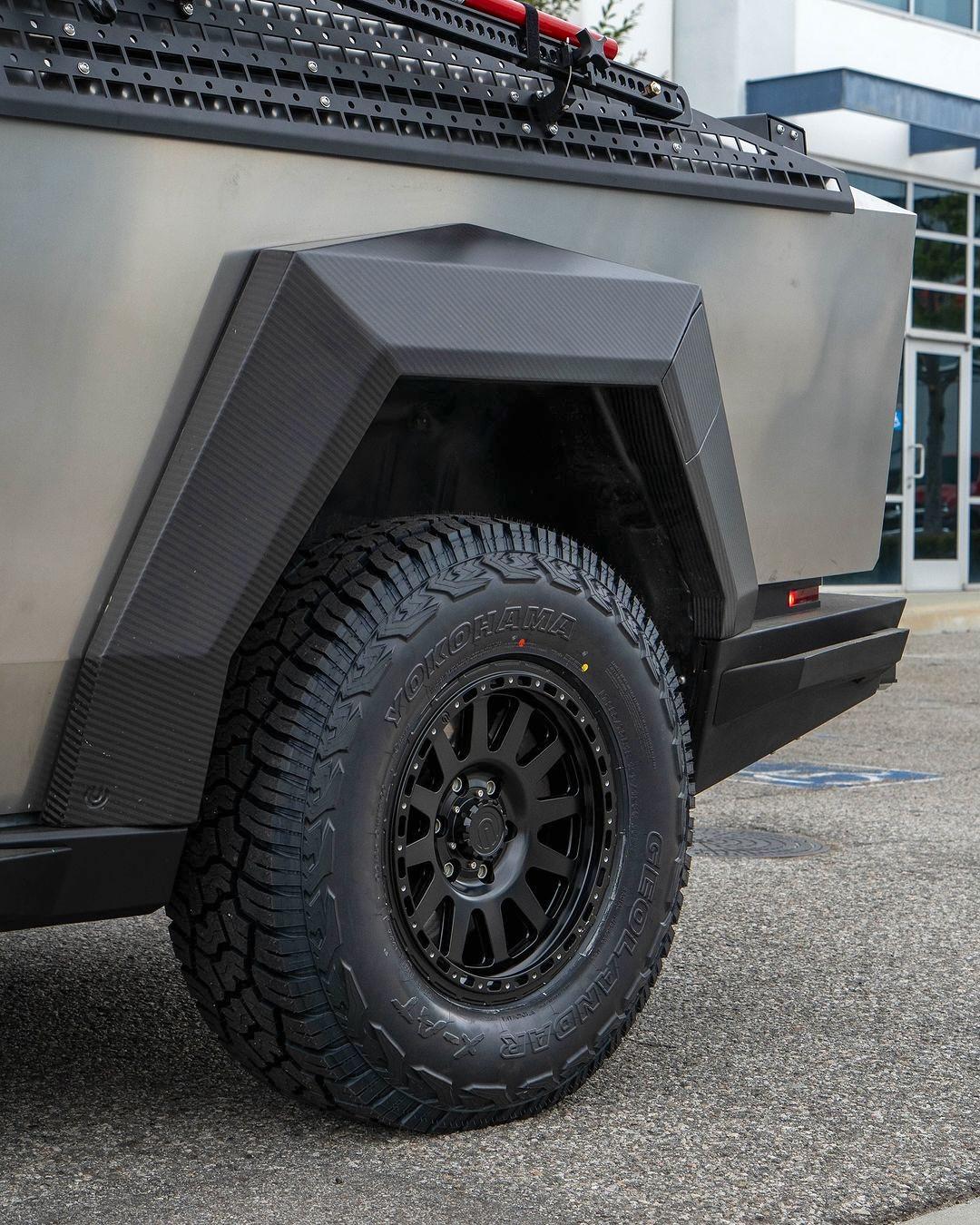

[UP_Frank]

Hi Everyone!

18" UP-03 beadlock wheels for the Cybertruck! I prefer these over the 20" version we offer! Also the satin black is ?

What do you guys think? 18" or 20"?

​



[T Sportline]

Triple Gloss Black Package with choice CTM 24" forged wheels ?



[Administrator]

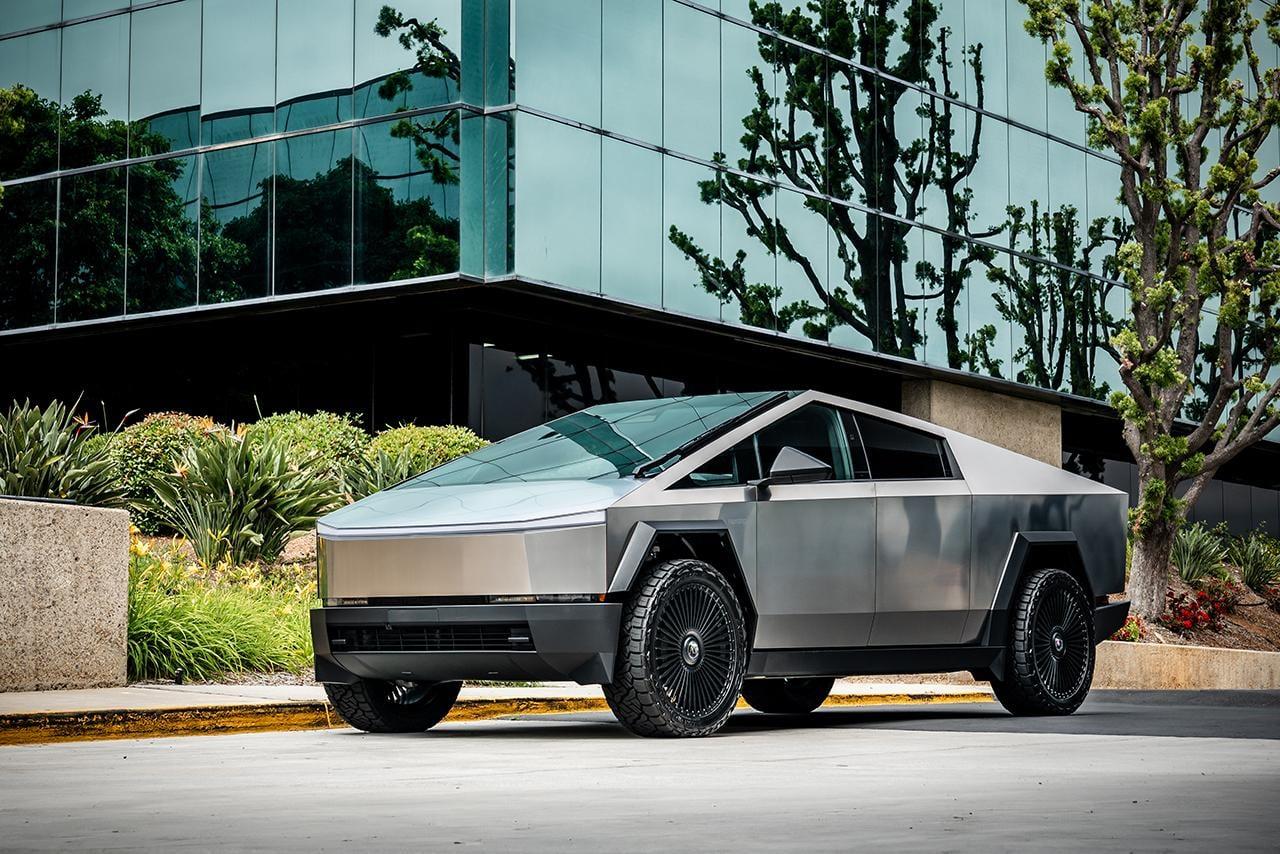

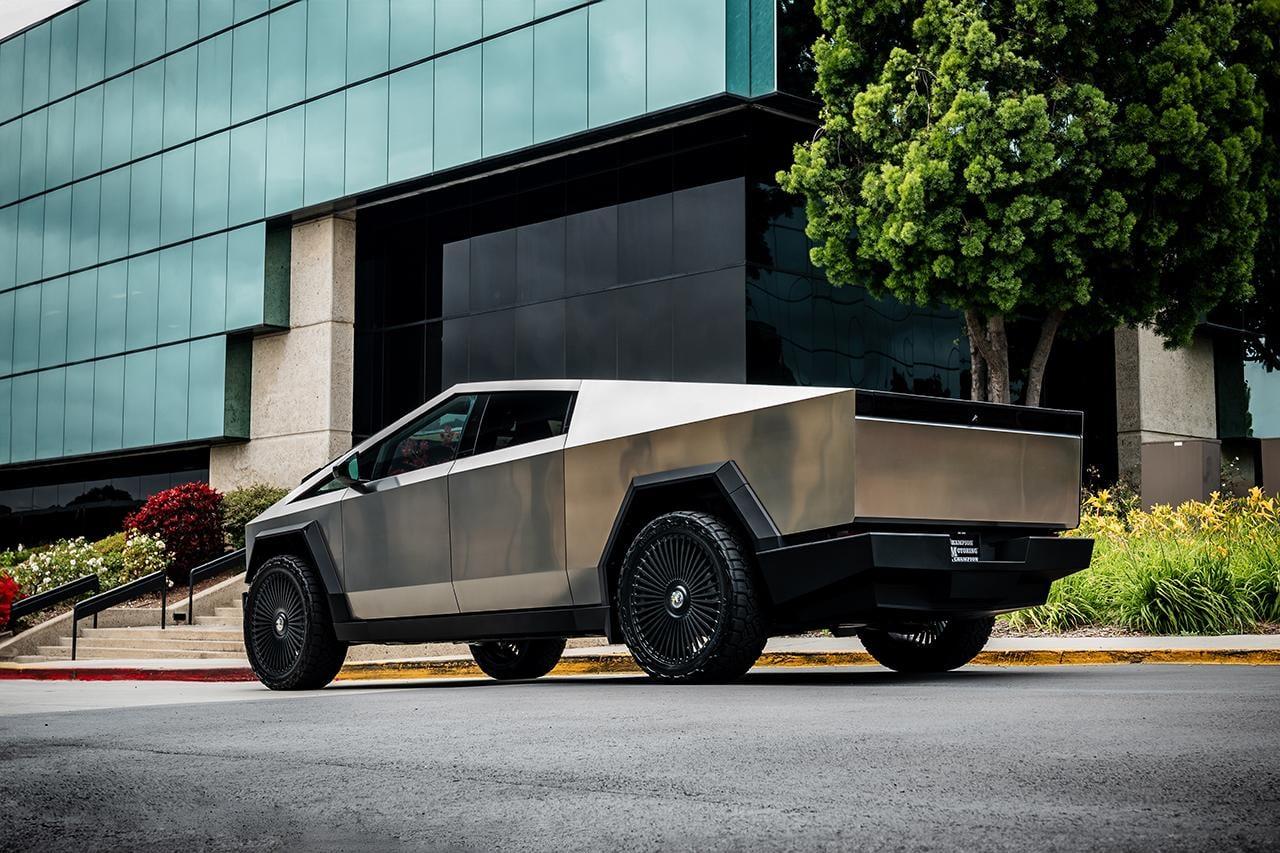

AGLuxury AGL45 wheels



[T Sportline]

TRIPLE CHALK GREY
TMAXX CHALK GREY PPF
CTM 24" FORGED WHEELS IN CHALK GREY
FRONT BUMPER, FENDER ARCHES, ROCKERS, REAR BUMPER PAINT IN CHALK GREY



[Metr0nome]

Got my truck back this AM from Ceramic Pro SLC / Tron Auto Lab in Utah and they delivered!!

Mods:

KPMF K75500 Matte Purple Black Iridescent Vinyl Wrap
18” Black Rhino Wheels
Falken WildPeak A/T4W tires (just slightly bigger than the stock tire (about 1/2” taller))
Ceramic Tint 25% front side windows / 50% rear side windows (putting 50% on the windshield shortly)
Ceramic coated entire truck.

Love the 18” wheel look so much better though than the 20” wheels. The embossed “Cybertruck” on the tailgate is the best!

Here are a few additional photos.



[Earthxploration]

Volk TE37 LARGE P.C.D. PROGRESSIVE II
18x9 +0 Bronze / 6x139
BFG KM3 Mud Terrain 35x12.5

Removed the harmonics extension in the front two wheels to make 18” wheels fit. Other than that, no modifications required.

Additionally, just so that everyone is aware, these wheels have a load rating of 2100lbs per wheel, 8400lbs total.

This specific application works for me because I don’t intend on towing or stowing heavy cargo. This is a simplistic street overland/baja truck, which I will continue to lighten over time.

I do have a pair of 20x9.5” Rays with the same specifications that have a 2600lb load rating for more heavier applications that I may keep to swap when necessary.

-

No rubbing, no issues with turning radius. The truck doesn’t feel any heavier thanks to the steer by wire system.

Overall, very happy with the stance! There’s room for wider @Unpluggedperformance CF fenders if necessary. YEEHAW



[T Sportline]

Our customer shared these pics, this one is so amazing!

thanks @lessbanking

Stek Gloss Black PPF
24" CT7 T Sportline Fully Forged Wheels in Gloss Black



[T Sportline]

T Sportline 24" CT7 - fully forged / Gloss Black

https://tsportline.com/collections/tesla-cybertruck-wheels

@lessbanking



[getsometom]

The wheels:

Atomic Wheels Monoblock forged AW09

The wheels are forged from a single 6061-T6 aluminum block, heat-treated, and coated in satin black. As I understand it, each AW09 wheel weighs 3.7 lbs less than the OEM version without the aero covers. Other colors will be available soon, but currently, satin black is in stock. Additionally, they are developing a revised center wheel cap, offering an alternate option featuring the Cybertruck silhouette instead of the AW logo.

Wheel specs:
Size: 20x9"
Offset: +55
PCD (Bolt Pattern): 6x139.7
Center Bore: 100 mm
Construction: Monoblock Fully Forged
Loading rating: 2580 lbs (1170 KG)
Weight: 31.4 lbs (OEM 35.2 lbs)



[Obtuse]

This is the way.

Mickey Thompson Baja Boss Tires (305/70r18) + 18" Method 705 Wheels (18x9).

Very happy with this set up. For sure softens up the ride with the extra sidewall height.

Don’t know the range hit yet but roughly 10-15% based on the initial commutes.

Yes, it will rub without modification, but I’m happy to say it’s rub free now.



[UP_Kirk]

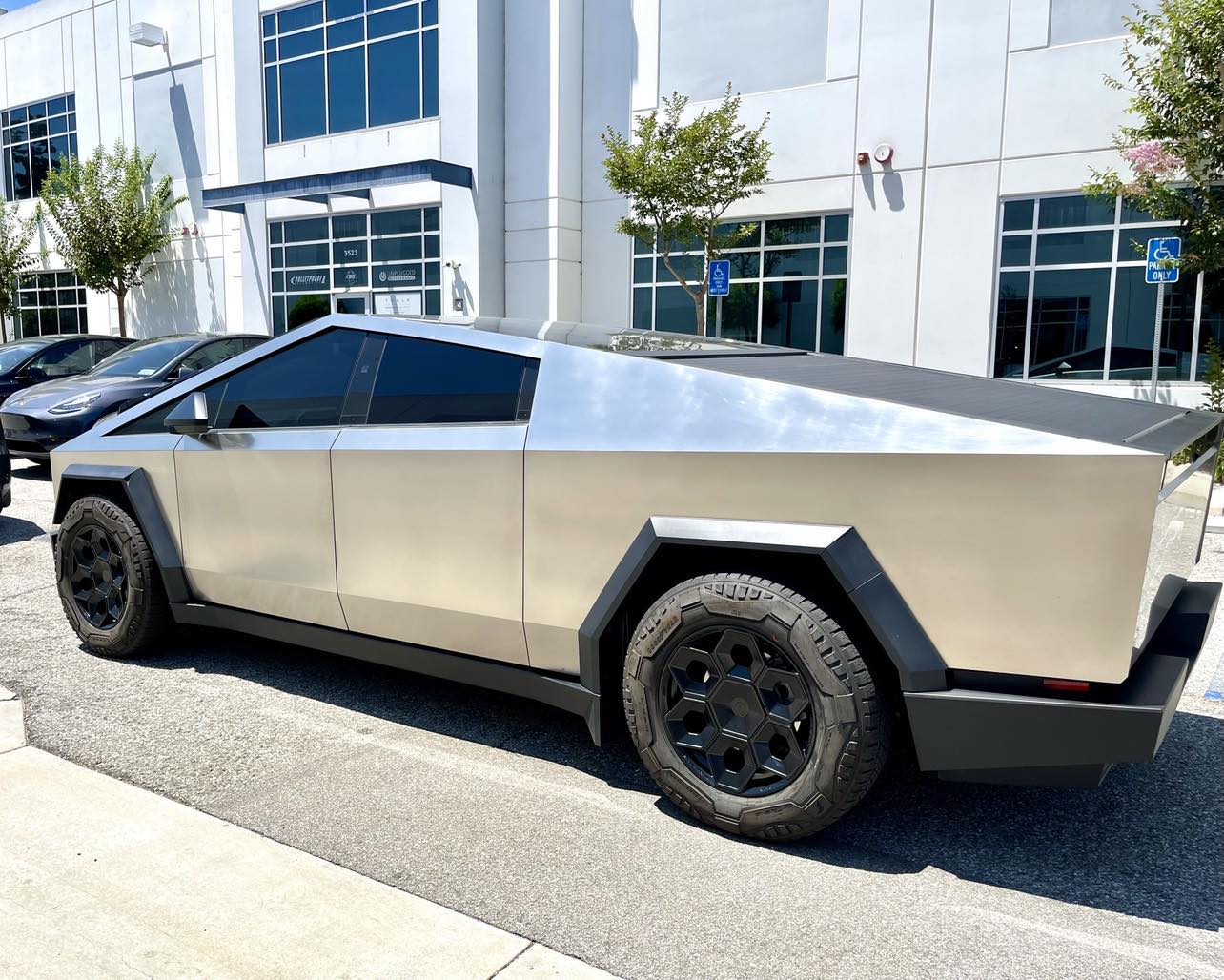

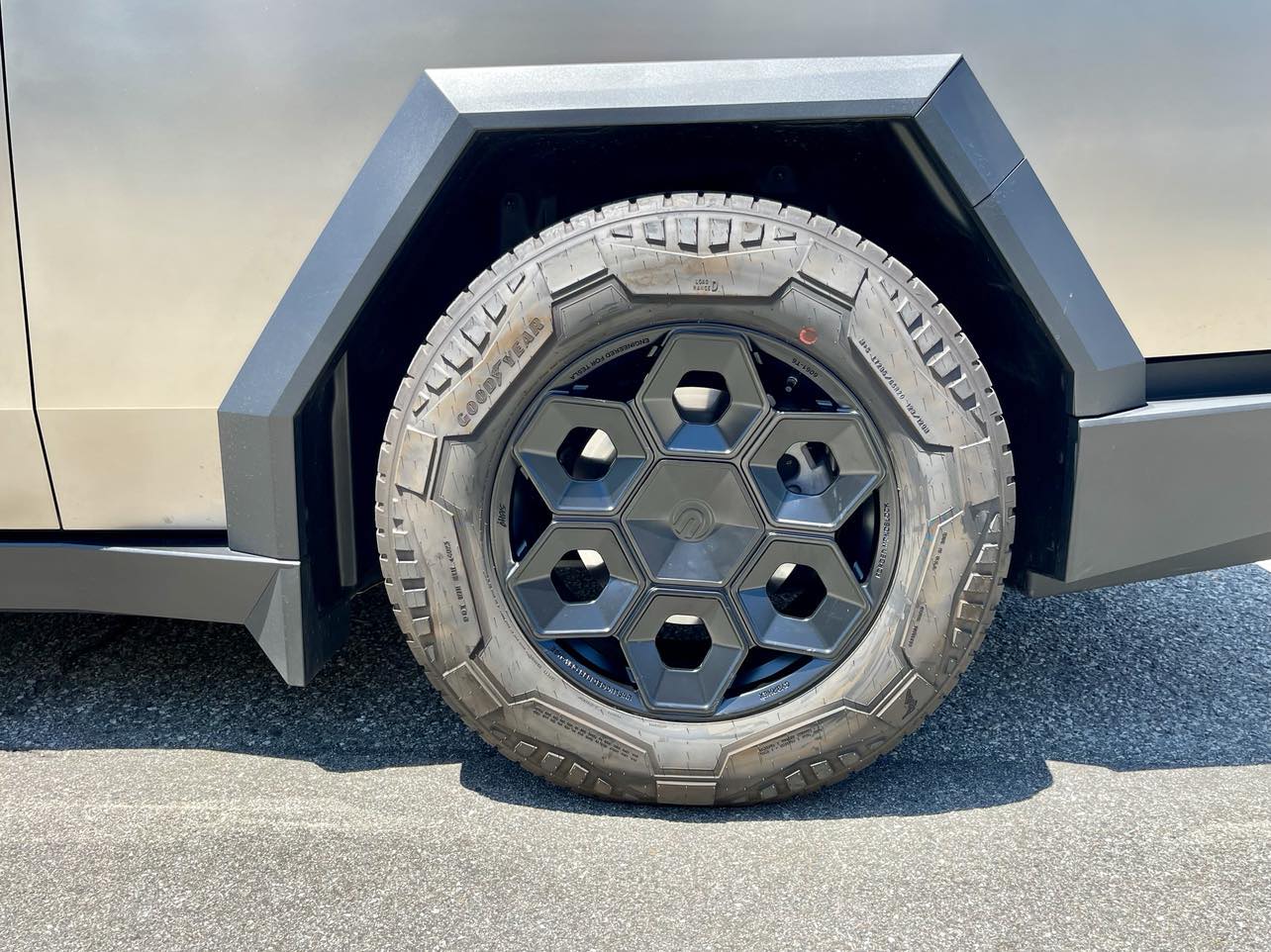

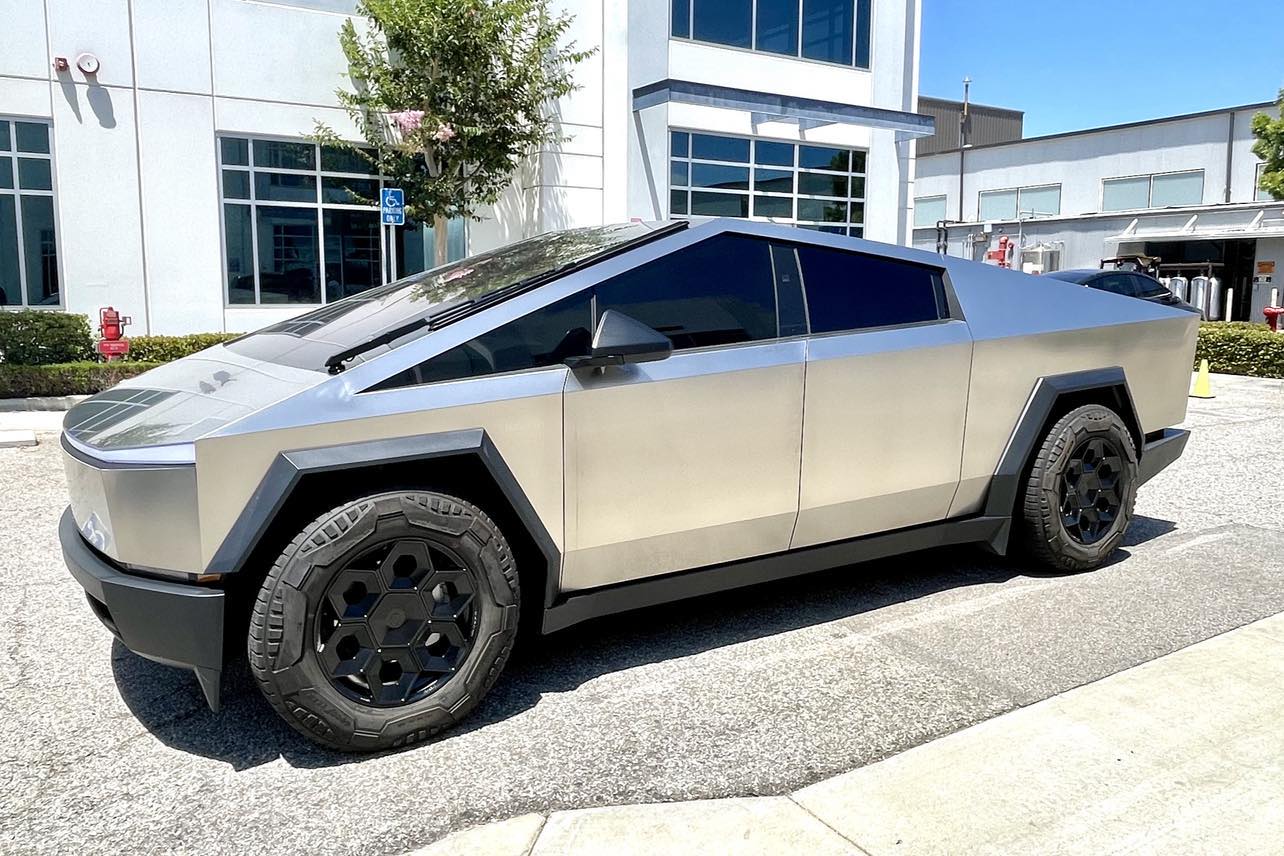

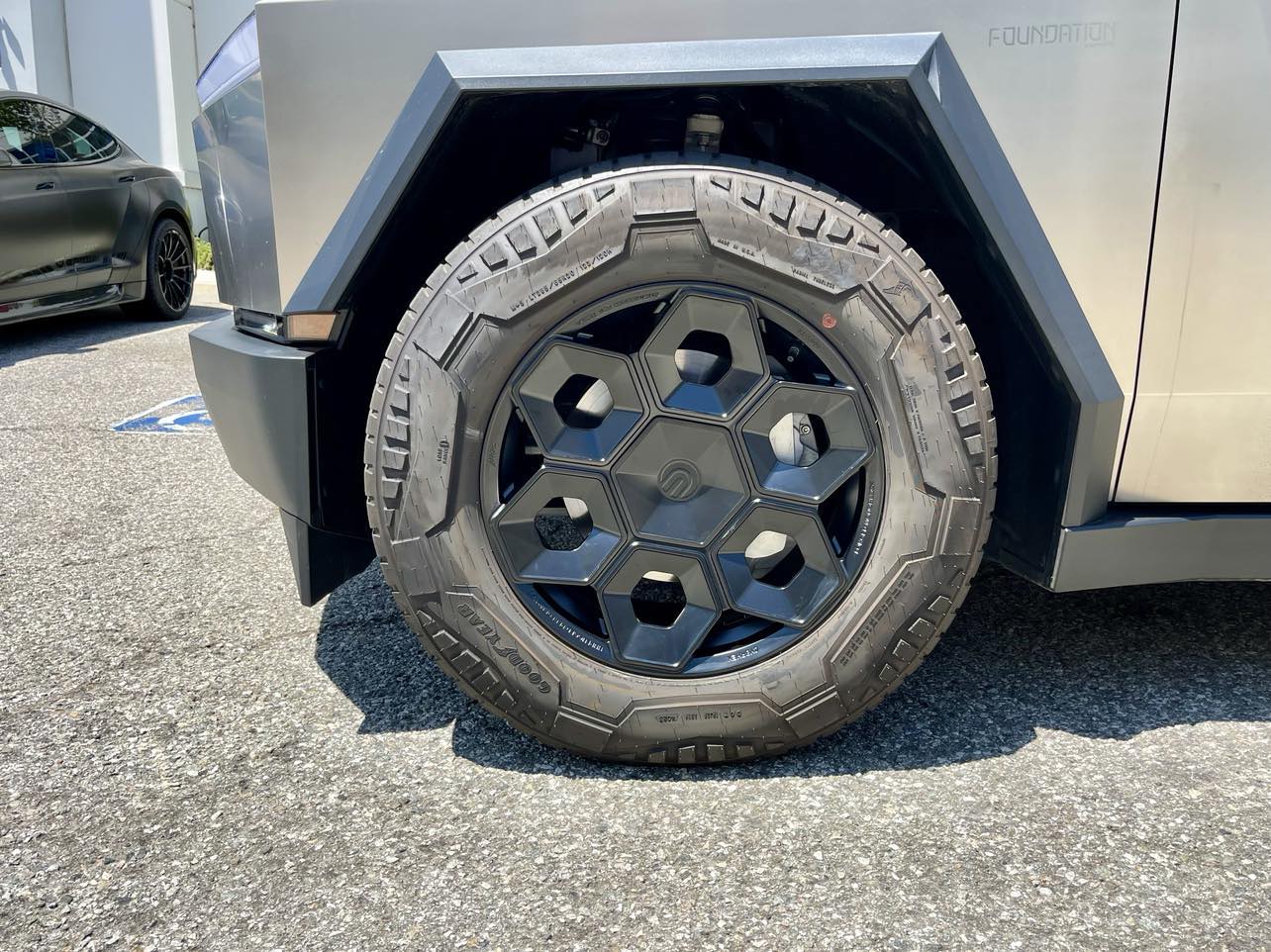

Check out these Unplugged Performance CYBRHEX 20" Wide Fitment, forged wheels in Satin Black, using Tesla OEM tires.
Wheel designed in collaboration with Sasha Selipanov

My customer will be adding UP INVISIBLE HD Front & HD Rear Bumpers + wrapping his CT with PURE PPF



[Obtuse]

Volk TE37 LARGE P.C.D. PROGRESSIVE II
18x9 +0 Bronze / 6x139
BFG KM3 Mud Terrain 35x12.5

Removed the harmonics extension in the front two wheels to make 18” wheels fit. Other than that, no modifications required.

Additionally, just so that everyone is aware, these wheels have a load rating of 2100lbs per wheel, 8400lbs total.

This specific application works for me because I don’t intend on towing or stowing heavy cargo. This is a simplistic street overland/baja truck, which I will continue to lighten over time.

I do have a pair of 20x9.5” Rays with the same specifications that have a 2600lb load rating for more heavier applications that I may keep to swap when necessary.

-

No rubbing, no issues with turning radius. The truck doesn’t feel any heavier thanks to the steer by wire system.

Overall, very happy with the stance! There’s room for wider @Unpluggedperformance CF fenders if necessary. YEEHAW

No rubbing huh? Would love to see how close the tire gets to the bumper fascia at full lock in high/very high mode. I’ve seen +0 offset with smaller tires than this that rub.



[Administrator]

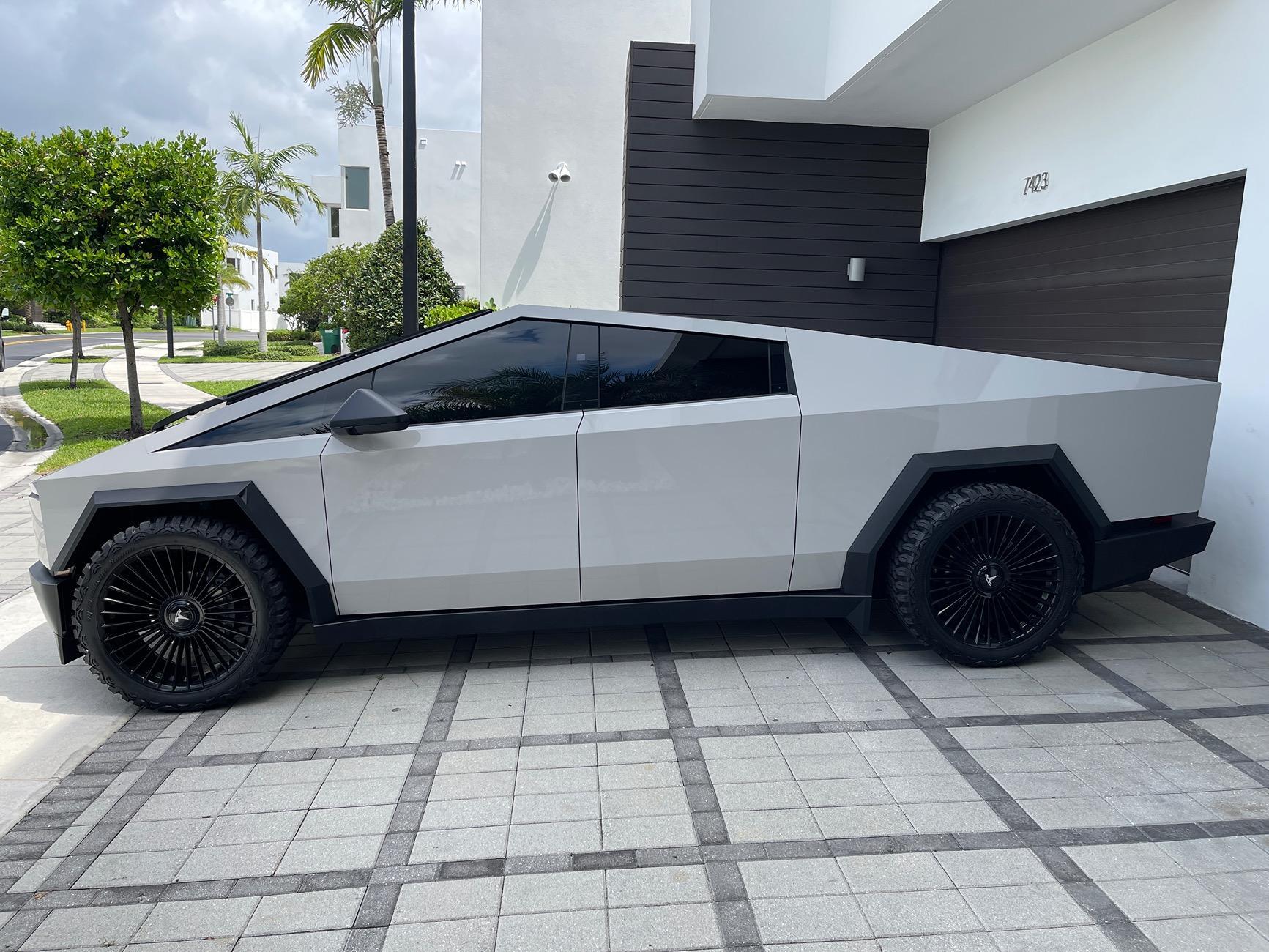

@davidsimmons76's 3M High Gloss Storm Grey wrapped Cybertruck on:

24" inch Gianelle Wheels - 24x10 with 6x139.7. Offset is +30
Tires are 35/12.5/r24

From his thread: https://www.cybertruckownersclub.co...ybertruck-wrap-by-sns-visual-24-wheels.21711/
