Haopec

Well-known member
Joined
Dec 10, 2022
Threads
0
Messages
77
Reaction score
131
Location
Northern California
Vehicles
Tesla MX P100d, Rivian R1T
Occupation
Project Manager
Country flag
If it is CT, pretty clear that a "F150" style frunk is off the table 😢.
Sponsored



Dids

Well-known member
First Name
Les
Joined
Dec 21, 2019
Threads
9
Messages
1,790
Reaction score
3,816
Location
Massachusetts
Vehicles
04 Tacoma, 23 Cybertruck
Occupation
Self
Country flag
I think it is cybertruck. I have never heard that semi uses castings. Plus it's wrong for semi. Notice how it is very different than the previous "leak" that was a Photoshop? This looks like reasonable castings for an exoskeleton vehicle.
I rotated the image to make it easier to see.

Tesla Cybertruck Is this a Cybertruck casting / frame / part shown in video posted by Tesla? Screenshot_20230215_094142_Samsung Internet

Just so everyone can now see how ridiculous this photo is....

Tesla Cybertruck Is this a Cybertruck casting / frame / part shown in video posted by Tesla? Screenshot_20221210_075304_Gallery

Last edited:

JBee

Well-known member
First Name
JB
Joined
Nov 22, 2019
Threads
18
Messages
4,904
Reaction score
6,331
Location
Australia
Vehicles
Cybertruck
Occupation
. Professional Hobbyist
Country flag
I think it is cybertruck. I have never heard that semi uses castings. Plus it's wrong for semi. Notice how it is very different than the previous "leak" that was a Photoshop? This looks like reasonable castings for an exoskeleton vehicle.
I rotated the image to make it easier to see.

Screenshot_20230215_094142_Samsung Internet.jpg

Just so everyone can now see how ridiculous this photo is....

In the Joey 2000 photo you have, the CT front is on the right, and rear on the left? So wasn't it around the right way for the second photo already? It could still be the same, just that in the second photo the cast has been assembled more and painted black?

Overall it would be interesting if they make two side triangular trusses for the whole vehicle frame, and then attached them together with front and rear motor assemblies, structural battery pack and some roof beams. Rather than front and rear castings. It still needs to be covered with SS so that it gives some extra strength, otherwise there's no point in having 3mm SS body panels, 1mm or less would do too.


HaulingAss

Well-known member
Joined
Oct 3, 2020
Threads
21
Messages
7,824
Reaction score
15,845
Location
Western Washington, USA
Vehicles
Cybertruck DM, 2010 F-150, 2018 Performance Model 3, 2024 Performance Model 3
Country flag
If it is CT, pretty clear that a "F150" style frunk is off the table 😢.
Ummm...are you serious? All you need to do is look at the Cybertruck's sleek sideview to know it's not going to have a frunk suitable for a family of pigs.



JBee

Well-known member
First Name
JB
Joined
Nov 22, 2019
Threads
18
Messages
4,904
Reaction score
6,331
Location
Australia
Vehicles
Cybertruck
Occupation
. Professional Hobbyist
Country flag
Ummm...are you serious? All you need to do is look at the Cybertruck's sleek sideview to know it's not going to have a frunk suitable for a family of pigs.
It's still got about 1600l of space under the dash and hood. Need to use it for somthin'. So adding a 400l frunk like the Lightning would work. We've had this discussion at least 3z4 times now. ;) ;)


Crissa

Well-known member
First Name
Crissa
Joined
Jul 8, 2020
Threads
137
Messages
19,258
Reaction score
31,097
Location
Santa Cruz
Vehicles
2014 Zero S, 2013 Mazda 3
Country flag
Someone have an idea of what this is? It looks like a casting… but none we’ve seen before.

Fooled too many times to leap to any assumptions.






You can see it in motion on video:







PS: It’s not a “Leak” if Tesla smacks you in the face with it.

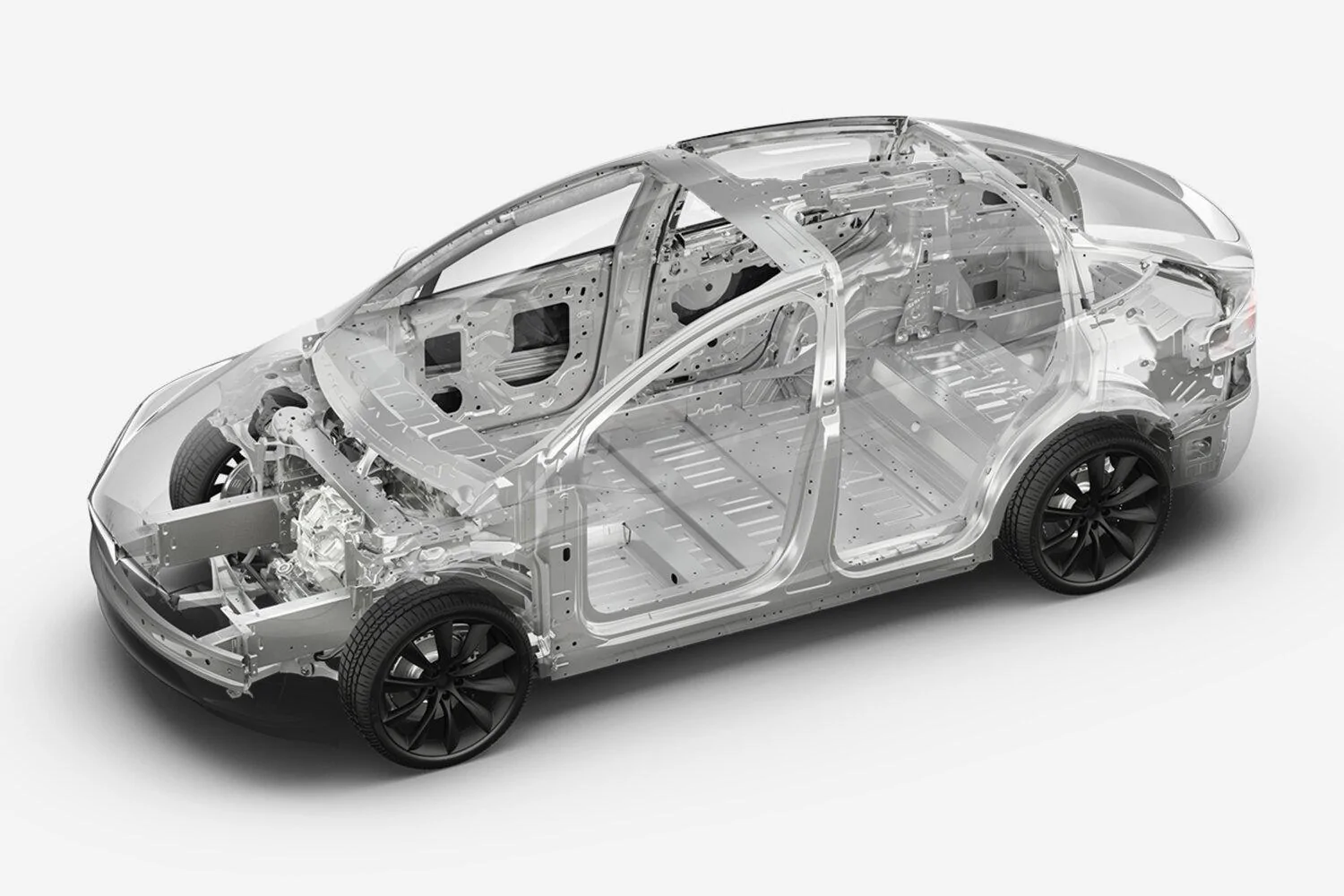

This is a bottom frame of a Model X before it has the remainder of the body panels or battery pack.

Tesla Cybertruck Is this a Cybertruck casting / frame / part shown in video posted by Tesla? 27C945F7-DC63-46B7-9FAE-13EC15FCE0E3


You are right, it is bigger than a Model Y. Look at the rear wheel wells and the forward crush cores.

-Crissa


Albern

Well-known member
First Name
Alex
Joined
Jan 22, 2020
Threads
6
Messages
296
Reaction score
646
Location
Toronto, Canada
Vehicles
2015 Chevrolet Volt, 202X Cybertruck Plaid+ (x2)
Country flag
This is a bottom frame of a Model X before it has the remainder of the body panels or battery pack.



You are right, it is bigger than a Model Y. Look at the rear wheel wells and the forward crush cores.

-Crissa
Is Model X cast formed through? I got the impression that only Model Y was the only one currently (as well as first).

Given the relatively lower volumes of S/X, I figured that it made more sense to give priority of casting to net-new products (Gen 3) as well as anything high volume such as 3 (eventually) and Y.


Crissa

Well-known member
First Name
Crissa
Joined
Jul 8, 2020
Threads
137
Messages
19,258
Reaction score
31,097
Location
Santa Cruz
Vehicles
2014 Zero S, 2013 Mazda 3
Country flag
Is Model X cast formed through? I got the impression that only Model Y was the only one currently (as well as first).

Given the relatively lower volumes of S/X, I figured that it made more sense to give priority of casting to net-new products (Gen 3) as well as anything high volume such as 3 (eventually) and Y.
The rear wheel wells are, you can see in the picture I provided. Is it a gigacasting? No, it's two "smaller" castings plus a welded box.

Not every body piece you see held by a robot is a casting.

-Crissa

Last edited:
OP
OP
Ogre

Ogre

Well-known member
First Name
Dennis
Joined
Jul 3, 2021
Threads
166
Messages
10,735
Reaction score
27,042
Location
Ogregon
Vehicles
Model Y
Country flag
This is a bottom frame of a Model X before it has the remainder of the body panels or battery pack.



You are right, it is bigger than a Model Y. Look at the rear wheel wells and the forward crush cores.

-Crissa
The Model X used Giga Castings now?

I’m not convinced either way. Just tons of uncertainty in my book, not convinced it’s the Cybertruck and not convinced it’s not 🙈🙉



Albern

Well-known member
First Name
Alex
Joined
Jan 22, 2020
Threads
6
Messages
296
Reaction score
646
Location
Toronto, Canada
Vehicles
2015 Chevrolet Volt, 202X Cybertruck Plaid+ (x2)
Country flag
The rear wheel wells are, you can see in the picture I provided. Is it a gigacasting? No, it's two plus a welded box.

Every body piece you see held by a robot is not a casting.

-Crissa
Got it!!! Whenever I see ribbing in the wheel wells I seem to assume it's a gigacast.

Makes sense that the part Joey 2000 is flexing on is possibly Model X, especially with the welded box. The rear overhang (on the left inverted photo) lines up with the Model X rear which is much shorter than CT.

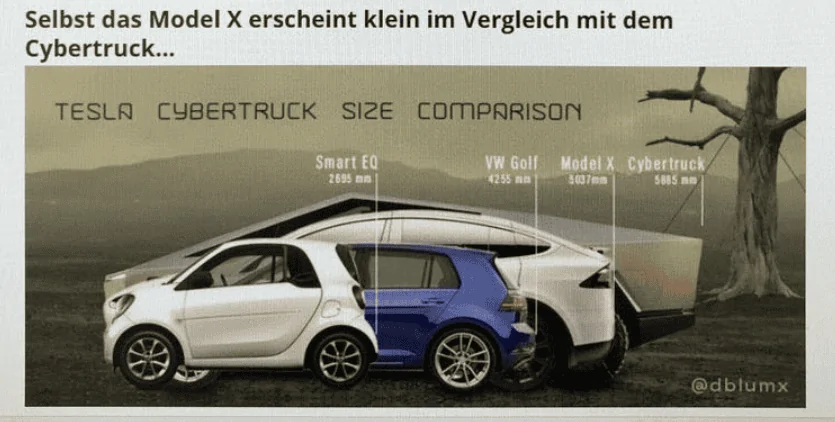

Tesla Cybertruck Is this a Cybertruck casting / frame / part shown in video posted by Tesla? 1676486154860


VolklKatana

Well-known member
First Name
Aaron
Joined
Dec 17, 2019
Threads
47
Messages
450
Reaction score
888
Location
Madison, WI
Website
ts.la
Vehicles
2019 Tesla M3 LR AWD FSD, CT3 reserved
Occupation
Data Architect
Country flag
I didn't see any identifying info on the columns. I know those that have been to Texas have mentioned the fact that there are grid 'coordinates' on some of the building pillars. That's something I always look for to try and ID what factory images are coming from

Last edited:

ED_SFO

Well-known member
First Name
Ed
Joined
Apr 16, 2021
Threads
7
Messages
465
Reaction score
854
Location
Sfo
Vehicles
M3
Country flag
Got it!!! Whenever I see ribbing in the wheel wells I seem to assume it's a gigacast.

Makes sense that the part Joey 2000 is flexing on is possibly Model X, especially with the welded box. The rear overhang (on the left inverted photo) lines up with the Model X rear which is much shorter than CT.

Posted pics of skateboard frame from model s/x ...it's the same!

Tesla Cybertruck Is this a Cybertruck casting / frame / part shown in video posted by Tesla? 24078812094_203a8f0395_b

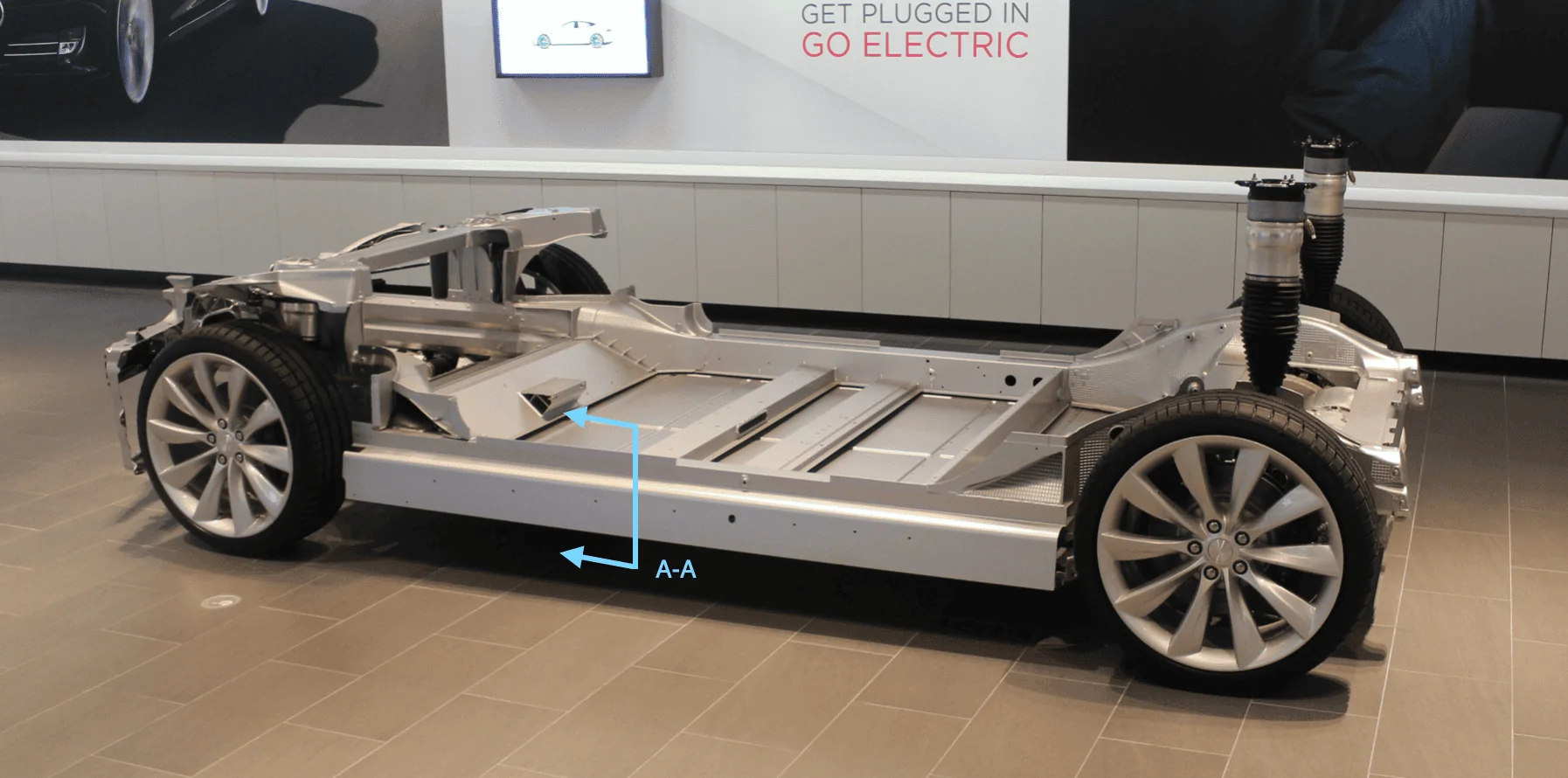

Tesla Cybertruck Is this a Cybertruck casting / frame / part shown in video posted by Tesla? ms_underbody_marku
