The Cybertruck's bare structure looks so cool, I'll bet that it will fit right in at the MoMa, NY 🤓
Sponsored



MEWoodsMFG

Well-known member
First Name
Frank
Joined
Jun 22, 2022
Threads
0
Messages
75
Reaction score
179
Location
Maine USA
Vehicles
2008 Chrysler Town & Country
Occupation
Business Owner
Country flag
Ridglines are small to midsize trucks at best, not an apples to apples comparison as far as use cases go, despite the unibody construction.
Let's see how a Ridgline body panel looks after one blow from a sledgehammer.


wtibbit

Well-known member
First Name
Wayne
Joined
Aug 27, 2020
Threads
3
Messages
441
Reaction score
887
Location
DFW
Vehicles
Mercedes sedan, Corvette coupe, Yukon XL
Occupation
Retired Engineering Program Director
Country flag

SKUUT

Well-known member
Joined
Sep 6, 2023
Threads
1
Messages
55
Reaction score
132
Location
Las Vegas
Vehicles
2018 Model 3
Country flag
Don't be sad, crew, when you realize what you're looking at. This is likely the most comparable production vehicle made, as far as I can think of at the moment. In my opinion, the CT is a hybrid spaceframe vehicle, which at least has a cool name. The battery pack, peaked rooflines, massive high-strength pillars, and highly-reinforced firewall and rear panels will make this a rigid truck capable of the intended specs. You should expect that this will be the safest production vehicle ever built and will likely remain so for quite some time.

We'll have a reliable and solid truck if Telsa fully integrates all suspension control points into a single subframe, ensure that the gigacasts are highly repairable, and designs all outer wheelhouses and outer body panel mounts/extensions as fixed and bonded components that can be easily replaced. The backside of the fenders and bedsides/quarter will likely be scored at multiple angles to allow for folding during an accident and not allow the panels to shear off and fly away, i.e., Captain America's shield, decapitating chaps along the way. Of course, they must also plumb a/c into the vault if they don't want CT owners to loathe the company ;)

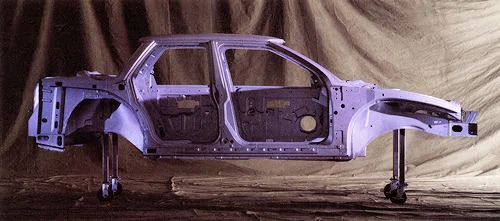

Tesla Cybertruck Cybertruck frame / casting / chassis / body structure in plain sight outside Giga Texas 🧐 1991spaceframe


You've seen these before...

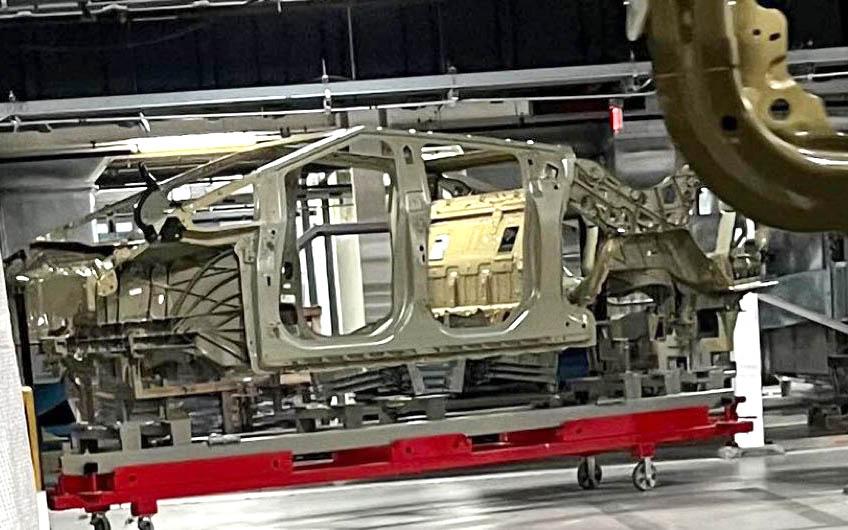

Tesla Cybertruck Cybertruck frame / casting / chassis / body structure in plain sight outside Giga Texas 🧐 cybertruck body in white biw

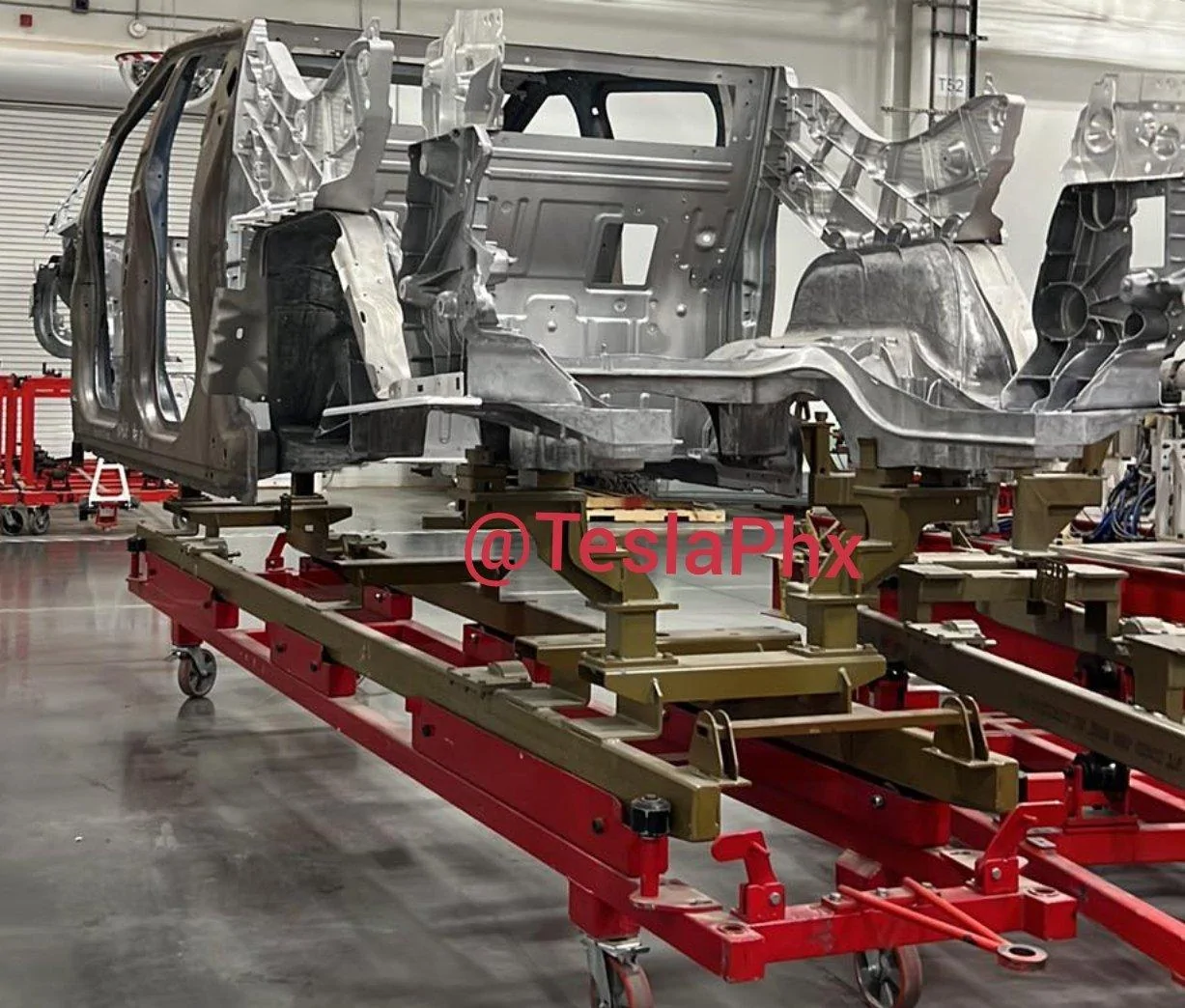

Tesla Cybertruck Cybertruck frame / casting / chassis / body structure in plain sight outside Giga Texas 🧐 F1N0gELaMAE_VIM

Last edited:


Frank Mendez

Well-known member
First Name
Frank
Joined
Nov 2, 2020
Threads
1
Messages
61
Reaction score
111
Location
Salt Lake City, UT
Vehicles
3, mkzh, f150
Occupation
sales
Country flag
Just curious and don't judge me for not knowing. How many castings are used to create this frame skeleton? Are several castings welded together? Thanks in advance.


scottf200

Well-known member
Joined
Jul 31, 2021
Threads
39
Messages
1,548
Reaction score
2,487
Location
Chicagoland
Vehicles
Tesla Model X
Country flag
Just curious and don't judge me for not knowing. How many castings are used to create this frame skeleton? Are several castings welded together? Thanks in advance.


wtibbit

Well-known member
First Name
Wayne
Joined
Aug 27, 2020
Threads
3
Messages
441
Reaction score
887
Location
DFW
Vehicles
Mercedes sedan, Corvette coupe, Yukon XL
Occupation
Retired Engineering Program Director
Country flag
Yes. Thank you.
I find the argu... uh, discussions about exoskeletons pretty amusing, but at least it's something to help with the waiting.

That said.....

It's a bit surprising that anyone could think that the use of "exoskeleton" in the Tesla announcements meant there would be no supporting structure under the skin of the Cybertruck.

It doesn't seem reasonable to me to think that all of the suspension components along with all the other functional loads - motors, batteries, doors, and so on - would be somehow attached to nothing other than a shell of stainless steel plates that are bonded together along their edges.

It does seem reasonable to think stiff and strong sheet metal that is properly bonded to an underlying structure adds substantial strength and rigidity to the overall assembly and allows more of the mass of the vehicle to be moved to the exterior. "Moving mass" is another way of saying reducing the mass of the underlying structure.

I tried to find the term exoskeleton used for basic structure applications in serious mechanical engineering publications without much success. Exoskeleton is mostly a buzzword unless we're talking about bugs or these things:
Tesla Cybertruck Cybertruck frame / casting / chassis / body structure in plain sight outside Giga Texas 🧐 Screenshot 2023-10-17 at 10.05.23 AM


Now, let the argu.. uh, discussion continue. We need the distraction...



rizvend

Well-known member
First Name
CyBrNrD
Joined
Jun 3, 2020
Threads
11
Messages
481
Reaction score
707
Location
66215
Vehicles
cybrtrk, aptera reserved
Occupation
Nurse Informaticist
Country flag
People saying "guess no exoskeleton" have no idea what they're talking about. This unibody frame was shown on reveal night, never changed. Here it is, just without the castings but with the body panels attached:



I included the image with the Ford to demonstrate what they're talking about. The Ford is a body on frame, so everything is plopped on the ladder structure. Cybertruck is unibody. When Elon said they would push the mass to the outside, he never said there wouldn't be a frame, they showed it right there. Just stainless steel skin and seats would be ridiculous.

And this isn't new, unibody cars have been around for decades. What is new is doing it for a real truck that can carry 3000lbs or tow 15000. Getting rid of that central ladder enables much more efficient packaging and dramatically reduced overall weight which should give the Cybertruck significant competitive advantages in space, comfort and energy efficiency.
Precisamente! Translated: yeah...that...whatever he said! 😃


cvalue13

Well-known member
Joined
Aug 17, 2022
Threads
74
Messages
7,145
Reaction score
13,747
Location
Austin, TX
Vehicles
F150L
Occupation
Fun-employed
Country flag

evazquezcu

Well-known member
First Name
Eric
Joined
Jan 1, 2020
Threads
2
Messages
89
Reaction score
103
Location
Miami
Vehicles
2016 Chevy Silverado LT
Country flag
People saying "guess no exoskeleton" have no idea what they're talking about. This unibody frame was shown on reveal night, never changed. Here it is, just without the castings but with the body panels attached:



I included the image with the Ford to demonstrate what they're talking about. The Ford is a body on frame, so everything is plopped on the ladder structure. Cybertruck is unibody. When Elon said they would push the mass to the outside, he never said there wouldn't be a frame, they showed it right there. Just stainless steel skin and seats would be ridiculous.

And this isn't new, unibody cars have been around for decades. What is new is doing it for a real truck that can carry 3000lbs or tow 15000. Getting rid of that central ladder enables much more efficient packaging and dramatically reduced overall weight which should give the Cybertruck significant competitive advantages in space, comfort and energy efficiency.
You couldn't put it together better, people in general have no idea the amount of weight and moving parts already erase with an unibody chassis.


SKUUT

Well-known member
Joined
Sep 6, 2023
Threads
1
Messages
55
Reaction score
132
Location
Las Vegas
Vehicles
2018 Model 3
Country flag
why, exactly?
Correction: I'd expect that this will be the safest production vehicle ever built and will likely remain so for quite some time.

The passenger cage is more robust than anything I've ever seen or can think of at the moment, and the massive energy-deflecting/diverting design of the front wheelhouse's rear structure will hopefully prevent any significant compartment intrusion in moderate-speed overlapping accidents. All bets are off in high-speed accidents, and boils down to luck at that point. The upper pillars are laid inward past the belt line, which will aid in pillar and roof structure stability during side impacts and rollovers.

All of this is just my opinion, of course, and is simply based on the thousands of wrecked cars, SUVs, trucks, buses, tractors, trailers, and RVs that I've inspected over the past 18 years. I'll be inspecting many wrecked CTs in the future and hope that everyone, in all involved vehicles, will fare well.
