It’s not technically a wind tunnel. I would call it a semi-controlled airflow simulator. A wind tunnel is: (1) a tunnel, (2) generally closed, (3) the airflow is highly controlled, and (4) the device is highly instrumented. The facility at Giga Austin is a mobile unit to get ad hoc measurements at manufacturing facilities rather than sending them out to a real wind tunnel. They need not be accurate as they are intended for manufacturing tweaks.
not quite


but not for aerodynamics, and instead for wind acoustics (eg testing cabin noise)!

https://media.ford.com/content/ford...ld-first-mobile-aeroacoustic-wind-tunnel.html


Which would explain also the turntable: unlike aero drag tunnels (need head-on wind only), to test wind acoustics in the cabin you’d want to know whether any external vehicle features “pick up” cross-winds to create audible nuisance

for Ford, apparently they use it in early/pre-production design phase: “sources of unwanted wind noise in early production vehicles to be identified faster and solutions developed sooner”

also explains the smoke, and why it can be done outdoors (sensors are in the cabin)

OP
OP
greggertruck

greggertruck

Well-known member
First Name
g
Joined
Mar 30, 2022
Threads
208
Messages
2,503
Reaction score
7,264
Location
Zimbabwe
Website
www.twitter.com
Vehicles
Dual-CT
Occupation
I post Cybertruck stuff on the Internet and people like it.
Country flag
Wondering if gaskets are installed in a fluid form and they’re dialing in the fluid dispersement? Like does it need thicker gaskets or?

exciting times!


fritter63

Well-known member
First Name
Mark
Joined
Jan 21, 2020
Threads
33
Messages
1,422
Reaction score
2,877
Location
Atascadero
Vehicles
2018 Model 3 LR, 2019 Model 3 SR+
Occupation
Retired Software Engineer, Woodworker and guitar builder extraordinaire
Country flag
Wind tunnel testing! :) edit: (at least that's what i think the white tunnel is)
That's actually the Bug Splat Simulator.

Required for sales in all midwest states.



anionic1

Well-known member
First Name
Michael
Joined
Apr 30, 2021
Threads
29
Messages
1,644
Reaction score
1,982
Location
California
Vehicles
Cybertruck
Occupation
Estimator
Country flag
That is not a wind tunnel, it is a prototype for the new, even bigger BAW (the e-BBAW). Elon said "why wipe off the water when you can just blow it off?" and the e-BBAW was born.
I hear rumors that the whole truck is a BAW here to wipe all ICE trucks off the road.


charliemagpie

Well-known member
First Name
Charlie
Joined
Jul 6, 2021
Threads
42
Messages
2,887
Reaction score
5,133
Location
Australia
Vehicles
CybrBEAST
Occupation
retired
Country flag
If Legacy were to optimize their truck for maximum efficiency, they would slowly transform it into a Cybertruck. 🤣


anionic1

Well-known member
First Name
Michael
Joined
Apr 30, 2021
Threads
29
Messages
1,644
Reaction score
1,982
Location
California
Vehicles
Cybertruck
Occupation
Estimator
Country flag
It’s not technically a wind tunnel. I would call it a semi-controlled airflow simulator. A wind tunnel is: (1) a tunnel, (2) generally closed, (3) the airflow is highly controlled, and (4) the device is highly instrumented. The facility at Giga Austin is a mobile unit to get ad hoc measurements at manufacturing facilities rather than sending them out to a real wind tunnel. They need not be accurate as they are intended for manufacturing tweaks.
I wonder if this kind of test is good for a general overall real life drag coefficient.


cvalue13

Well-known member
Joined
Aug 17, 2022
Threads
74
Messages
7,131
Reaction score
13,725
Location
Austin, TX
Vehicles
F150L
Occupation
Fun-employed
Country flag
I wonder if this kind of test is good for a general overall real life drag coefficient.
see above

It’s not for aerodynamics

It’s for aeroacoustics

It can be outdoors and in this setup because they’re testing for whether cabin noise is generated by air across its envelope.

Which is also why it’s on a turntable:

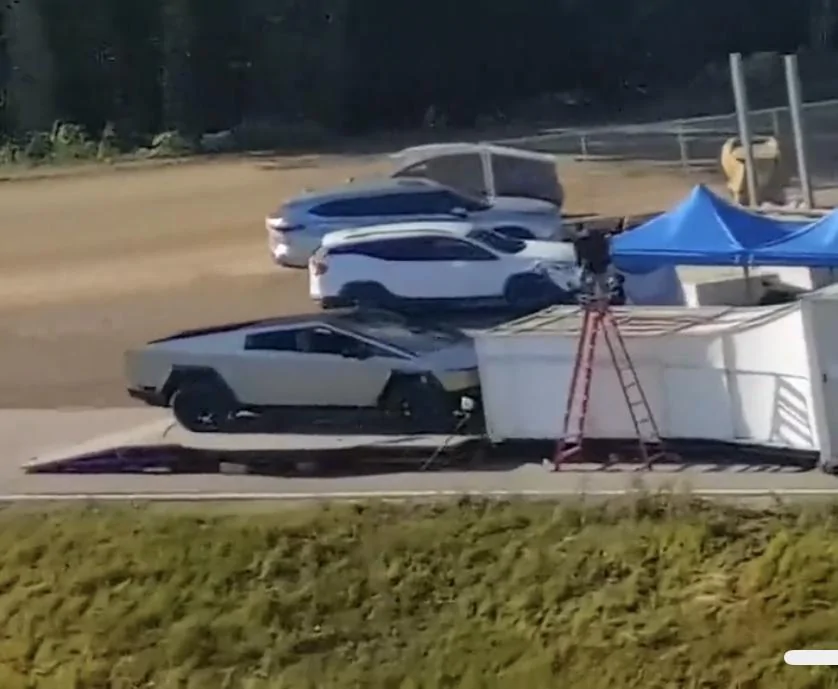

Tesla Cybertruck Cybertruck Spotted in Wind Tunnel / Airflow Simulator at Giga Texas (4.12.23) FCE7760E-0746-4D78-A868-B02D79CBE2F9
