The volume inside the sails storage is directly above the tyre, which is a difficult place for a shock tower without a super high hub knuckle. Better off having a F1 style pushrod setup with horizontal shock and spring inboard and keep it compact and tidy by integrating all the mounting points into the rear cast.

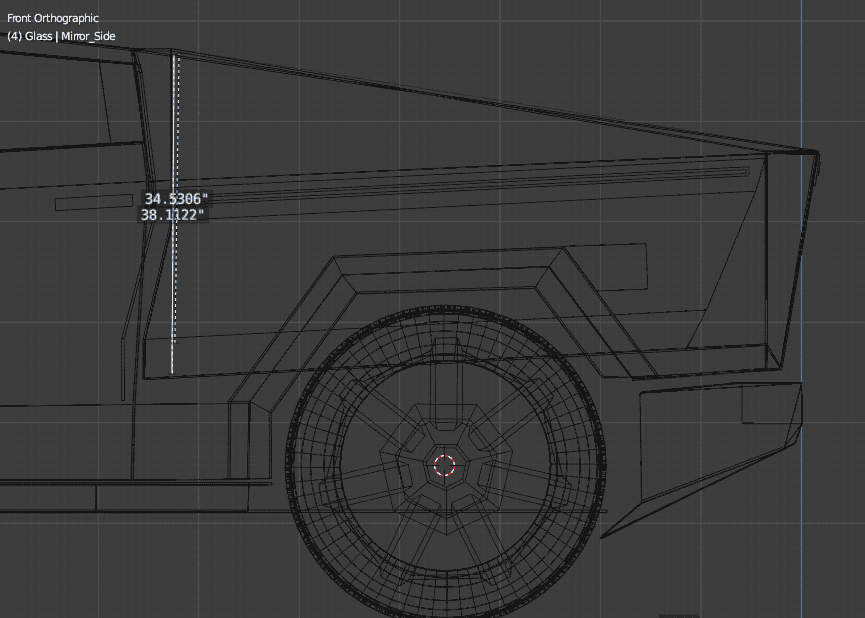

Critically, notice that the floor of the rear bed is below tire height occupying space needed to accommodate F-1 cantilever.
Notice, the 2X distance above the wheel arch as opposed to terminating up-travel at the wheel arch(i.e. conventional). Tesla owns the structural framework above the tire all the way to the top chord of sailplane.

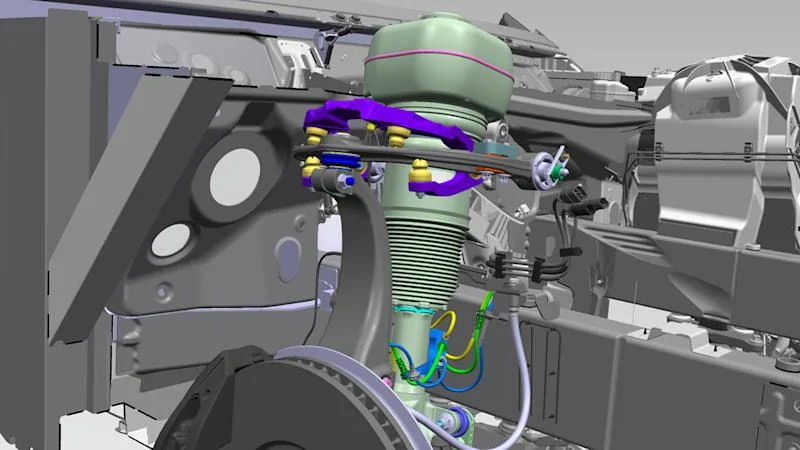

This M-B air suspension shock is illustrative of double wishbobe and a dynamic air/shock type device. Takeaway, if you will, that the mounting system chosen for this embodiment does not surface mount at the top terminus. Tesla mounts at the top of its car air/shock. SO it’s not using the full degree of freedom afforded by the exoskeleton if it mounts car air/shocks.
Thus Tesla could use the additional distance above the tire-to-top of sailplane for wheel/shock travel at the rear wishbones. By using the structural casting as the mount point for the shock a taller shock can be used extending up and into the sailplane free space. All shock and bearing load occurs on the casting(prob. steel fishplate reinforced). Cybertruck gains wheel travel(read droop) and affords larger air reservoirs required.
Lastly, since structurally, nothing has changed the integrity of the design engineering remains intact. Cybertruck gains wheel travel, more shock working length(read stroke) and air reserve.
-Deleted- are the shock/air top mount embodiment used in cars.
