Jesus hope it's not like this....some very interesting comments could definitely be made here...lmao
add my tow hitch nuts from my previous post and you have a full package with perones.
Sponsored


OP
OP
Bigmac

Bigmac

Member
First Name
Scott
Joined
Feb 10, 2021
Threads
2
Messages
11
Reaction score
24
Location
Ontario, CANADA
Vehicles
VW Passat, HD Street Glide & NISSAN Frontier
Occupation
Communications Technician
Country flag
Thanks very good insight. I couldn't agree more I believe in Elon and Tesla and think they will make it super engineered while respecting the standards that have been developed and true over the years. Appreciate your comments just makes me breath a little easier. So excited for the CT but also honestly a little apprehensive. Cheers.


OneLapper

Well-known member
First Name
Mark
Joined
Dec 3, 2019
Threads
12
Messages
457
Reaction score
930
Location
NE Conn
Vehicles
BMW 328d Sportswagon
Country flag
That’s the same as the Model 3 (euro at least). The socket is usually up in the hole too, oriented vertically. I think that’s cumbersome to switch to and from. In that case we might as well get an electric folding tow hitch, assuming they can tow equally as much. (At 0:37)

Good grief! That thing must cost a fortune!

The US spec "euro style" hitch for my BMW 328d wagon was around $600. Totally invisible when not in use.

I bought a "concealed crosstube" setup from eTrailer.com for $125. Most never even notice it.

I guess we'll have to wait and see what Tesla offers


LoPro

Well-known member
Joined
Jan 1, 2021
Threads
7
Messages
251
Reaction score
351
Location
Norway
Vehicles
Tesla Model 3 DM LR
Country flag
Good grief! That thing must cost a fortune!

The US spec "euro style" hitch for my BMW 328d wagon was around $600. Totally invisible when not in use.

I bought a "concealed crosstube" setup from eTrailer.com for $125. Most never even notice it.

I guess we'll have to wait and see what Tesla offers
The electric folding variant is pretty common on premium SUVs here. But of course it’s baked into the prices of those, and Tesla can’t sell the single motor CT for its entry price with all sorts of fancy doohickeys. On the other hand they usually don’t have many options. So we’ll see what they deem to be the best.


OneLapper

Well-known member
First Name
Mark
Joined
Dec 3, 2019
Threads
12
Messages
457
Reaction score
930
Location
NE Conn
Vehicles
BMW 328d Sportswagon
Country flag

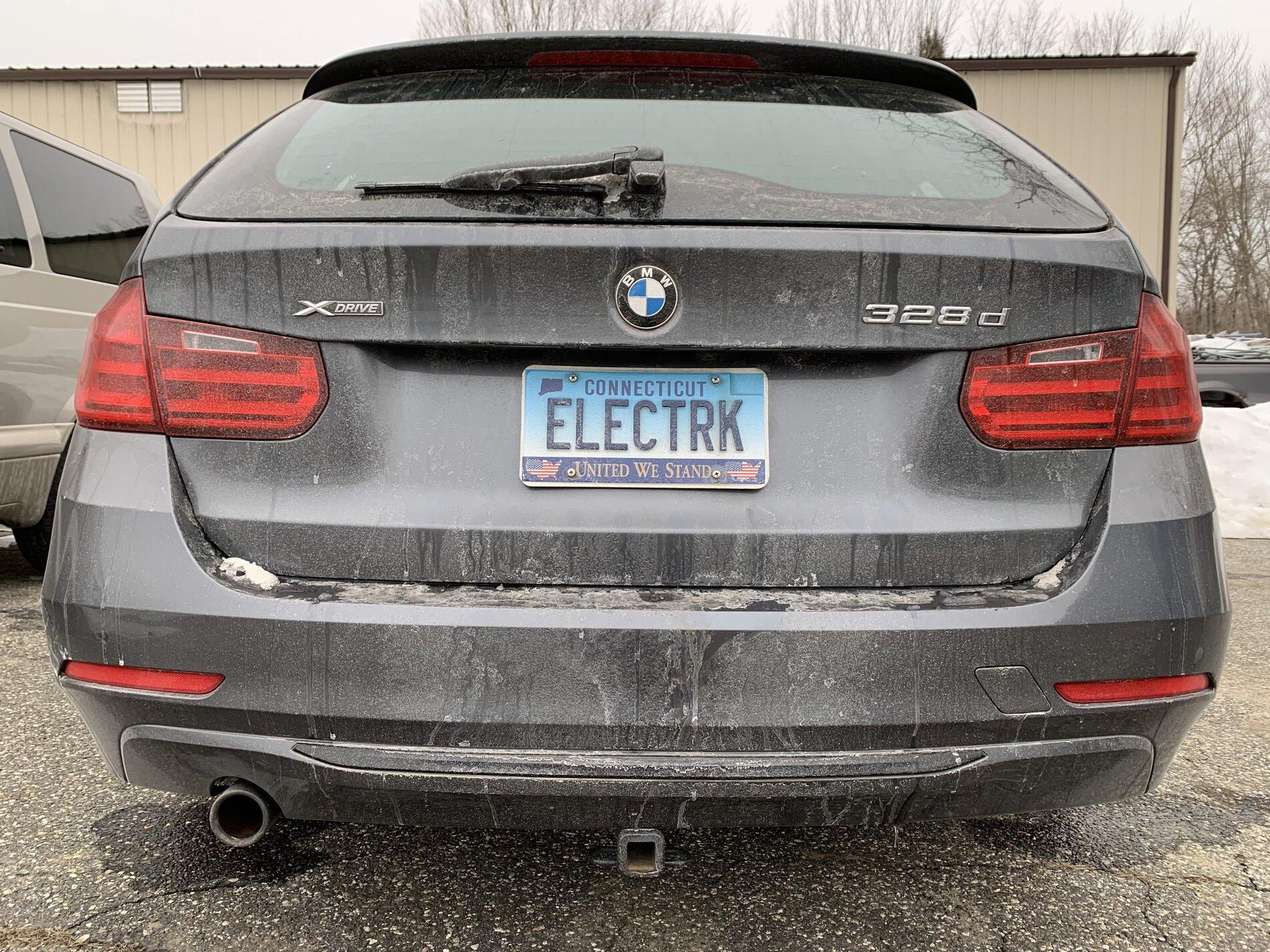

Here’s my ‘non’ hidden receiver on my car.

Tesla Cybertruck Tow hitch, electrical connection and in cab brake controller A69D61E1-F697-4B2B-910E-6F526E79DEBF



LoPro

Well-known member
Joined
Jan 1, 2021
Threads
7
Messages
251
Reaction score
351
Location
Norway
Vehicles
Tesla Model 3 DM LR
Country flag
Here’s my ‘non’ hidden receiver on my car.

I honestly had no idea how that US tube receiver worked, but I see from this “towing 101” site that you most often slide in a ball attachement if not a plintle hitch (?). A bit more versatile than the standard euro ball but also several different tube sizes I see.

https://www.curtmfg.com/types-trailer-hitches


OneLapper

Well-known member
First Name
Mark
Joined
Dec 3, 2019
Threads
12
Messages
457
Reaction score
930
Location
NE Conn
Vehicles
BMW 328d Sportswagon
Country flag
I honestly had no idea how that US tube receiver worked, but I see from this “towing 101” site that you most often slide in a ball attachement if not a plintle hitch (?). A bit more versatile than the standard euro ball but also several different tube sizes I see.

https://www.curtmfg.com/types-trailer-hitches
A pintle is common for equipment trailers. They are universal and very robust. Camper trailers would not use a pintle hook. But, since you can slide anything into the receiver tube, it's common to need three different ball sizes for different trailers!

The euro ball/hitch combos usually have a exchangeable balls, right?

Yes, different tube sized depending on capacity. My car has a 1.5" tube with a max rating of 3500 pounds.


LoPro

Well-known member
Joined
Jan 1, 2021
Threads
7
Messages
251
Reaction score
351
Location
Norway
Vehicles
Tesla Model 3 DM LR
Country flag
A pintle is common for equipment trailers. They are universal and very robust. Camper trailers would not use a pintle hook. But, since you can slide anything into the receiver tube, it's common to need three different ball sizes for different trailers!

The euro ball/hitch combos usually have a exchangeable balls, right?

Yes, different tube sized depending on capacity. My car has a 1.5" tube with a max rating of 3500 pounds.
As far as I know there is only one ball size here, and detachable is a newer thing since having a tow hitch used to mean a permanently attached ball (with a little plastic cup cover). Then there’s of course other systems for very large commercial trucks, tractors and semis (plintle, fifth wheel, bolt).

Capacity is determined by how the tow hitch is fastened and what car it is attached to, but can’t be seen on the attachment (ball).

Last edited:

ldjessee

Well-known member
First Name
Lloyd
Joined
Apr 22, 2020
Threads
14
Messages
1,148
Reaction score
1,359
Location
Indiana, USA
Vehicles
Nissan Leaf, MYLR, Kaw 1700 Vaquero
Occupation
Business Intelligence Manager & Analyst
Country flag
I always get 2" ball and have never used anything else on my personal vehicles. I used pintle style in the Army, but their design constraints are not mine.


SSonnentag

Well-known member
First Name
Shawn
Joined
Feb 24, 2020
Threads
6
Messages
407
Reaction score
886
Location
Arizona
Vehicles
2018 MX and 2023 MYP
Occupation
IT Specialist
Country flag
It pretty much has to be a Class 5, 2" or 2.5" receiver to meet the requirements for the stated capacities here in the US. This also makes it an inexpensive and versatile solution.



Neo

Well-known member
First Name
Neo
Joined
Jan 25, 2021
Threads
4
Messages
71
Reaction score
72
Location
Arizona
Vehicles
Porsche Cayenne Turbo | Toyota Highlander Hybrid
Occupation
Professional
Country flag
I am extremely interested in finding out additional information on towing trailers, how the electrical connection will look at the rear of Cybertruck and the in cab brake switch for trailer.
Any insight out there?
Outside of getting into the Tesla Ecosphere, this is my second driving factor to buy the Cybertruck over the Rivian... I'm building a 8.5x20' Toy Hauler Conversion to weigh in at 7,000 lbs.

Last edited:

Firetruck41

Well-known member
First Name
Ben
Joined
Jan 1, 2021
Threads
0
Messages
248
Reaction score
454
Location
SW Washington
Vehicles
2013 Leaf, 2017 Bolt, 2010 Ram 2500 Megacab
Country flag
It pretty much has to be a Class 5, 2" or 2.5" receiver to meet the requirements for the stated capacities here in the US. This also makes it an inexpensive and versatile solution.
Agreed. I can't imagine how a weight distributing hitch works with the Euro style. If there is a WDH available for euro style, it would be much less common than what is generally used in the US, making them more expensive and with fewer brands/models to choose from.


Neo

Well-known member
First Name
Neo
Joined
Jan 25, 2021
Threads
4
Messages
71
Reaction score
72
Location
Arizona
Vehicles
Porsche Cayenne Turbo | Toyota Highlander Hybrid
Occupation
Professional
Country flag
I am extremely interested in finding out additional information on towing trailers, how the electrical connection will look at the rear of cybertruck and the in cab brake switch for trailer.
Any insight out there?
I sincerely hope it isn't a mechanical switch... It should be through the Touch Screen.

Even my 2004 Porsche Cayenne Turbo handles the braking through it's towing computer, no brake booster needed.


scottf200

Well-known member
Joined
Jul 31, 2021
Threads
45
Messages
1,627
Reaction score
2,574
Location
Chicagoland
Vehicles
Tesla Model X
Country flag
The brake controller will be integrated for certain.
I sincerely hope it isn't a mechanical switch... It should be through the Touch Screen.
Well Tesla only supplied a 4 pin connector on the Model X with the tow package.

Rivian and Ford have it integrated.

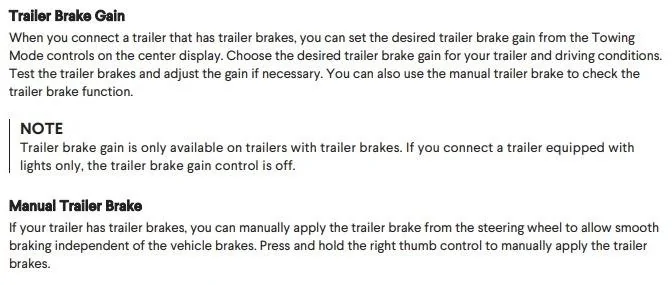

Rivian manual on it. Some video indicate trailer braking doesn't happen during regen (max recover for towing I guess ... obviously manual option as shown below that uses your gain setting ... from my interpretation)
Tesla Cybertruck Tow hitch, electrical connection and in cab brake controller 7JFGn7C



Hopefully this is on the CyberTruck too. Supposedly it was on the Model X IIRC.
Tesla Cybertruck Tow hitch, electrical connection and in cab brake controller rvkQpOI

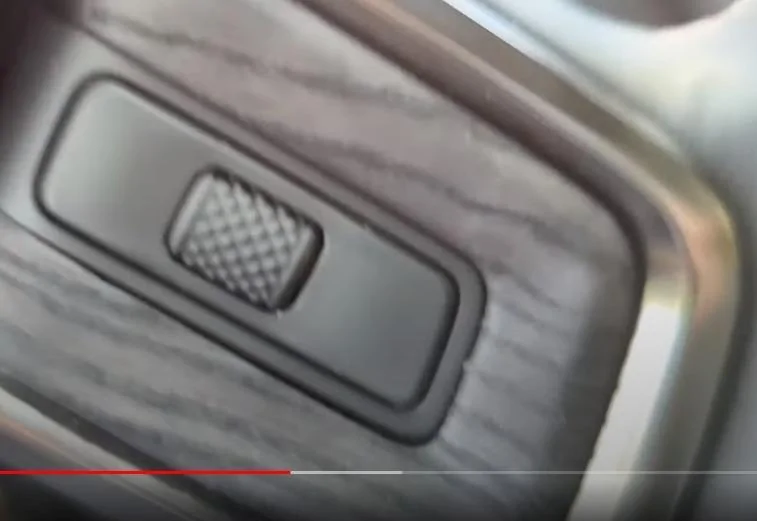

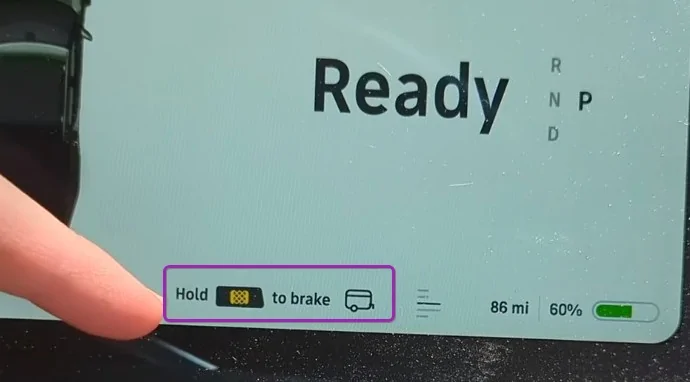

Rivian's is on the steering wheel manual control:
Tesla Cybertruck Tow hitch, electrical connection and in cab brake controller cKxvmcW


Tesla Cybertruck Tow hitch, electrical connection and in cab brake controller BVGH8wO
