Solar built-in panel:
I always said the built-in Solar using the vault cover is not that good of an idea. I want my solar panel to follow the sun, not set in stone on the back of the vault which I constantly need access too.

Vault cover:
I don‘t think it should be a mandatory feature. It should be an option. Looking at the vault cover design, the panel has to fold back from the back of the passenger cabin. It makes it harder to have a fold-down back wall so that passenger can get-through from/to the back & front space.
It won't produce much unless there's some kind of passive solar tracking mode you can park the truck in, but it'll still basically be a trickle charger. I can see why most people wouldn't see the benefit, but it's more just a "rule of cool" thing at the end of the day. It'll be nice for when you leave your CT parked at an airport and things like that, but most people wouldn't even notice the few miles it gains most of the time under normal solar conditions.

As for the pass through, I highly doubt we're getting a fold down there, maybe the rear window will retract down for a pass through, but as it stands with the patent filings it looks like the tonneau track will run up the spine of the backseat. Even if it comes standard you can always just leave it rolled up.
Advertisement



JBee

Well-known member
First Name
JB
Joined
Nov 22, 2019
Messages
434
Reaction score
435
Location
6000
Vehicles
Cybertruck
Country flag
@Diehard and @Crissa (and @BillyGee on the subject of leaving the vault open)



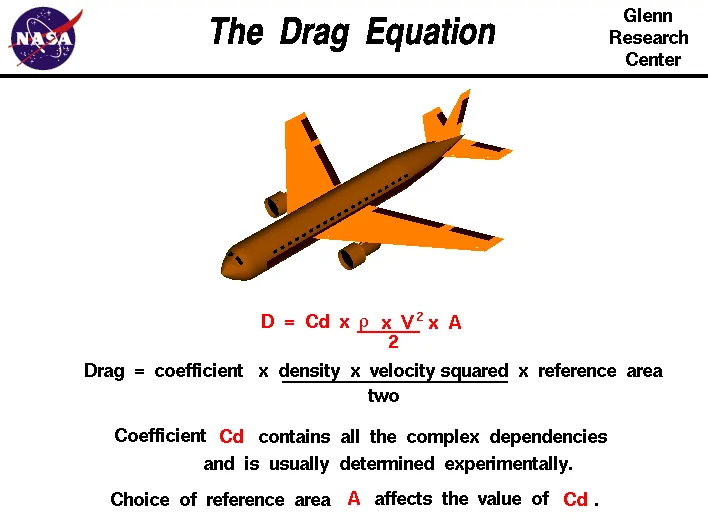

As above, there are only two variables in the vehicle structure that can be varied to reduce aerodynamic drag, either the frontal area, which is the total largest cross section of the vehicle
(typically occurs a the apex of the F150 and CT roof and is a easy to verify value because it can be directly measured) and the Cd drag co-efficient that is due to its shape which is normally calculated experimentally.

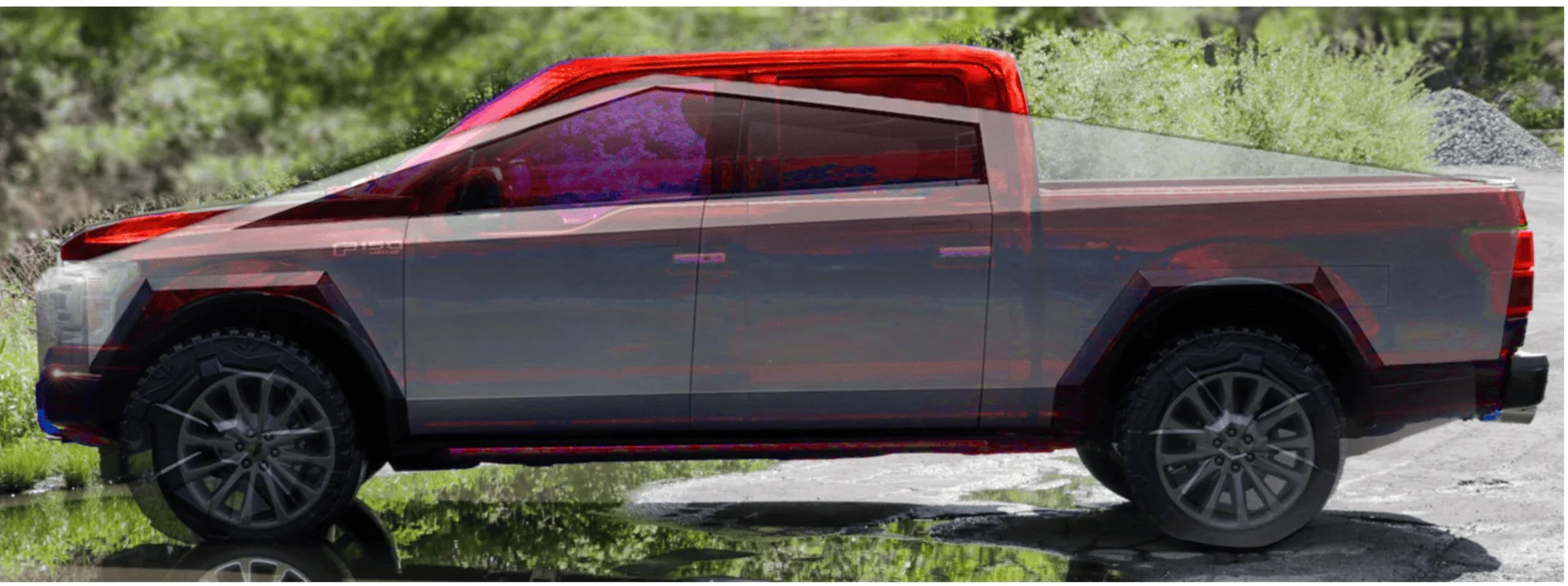

Hence removing the F150 frunk, hood, and even the whole front assembly will have zero impact on reducing the cross sectional area of the F150. So we can ignore that part. The skin resistance drag at highway speeds is also irrelevant on smooth surfaces of this length.

That leaves us with induced drag and parasitic drag as "form" drag.

The CT most definitely will have some induced drag, especially if it is driven around like we have seen in videos with about 260mm (10") of ground clearance. That is because the CT profile is essentially a Stealth bomber wing shape and will produce upward lift if enough airflow is deflected. That lift will reduce the lower the CT is set to the ground, but it's pretty clear it will have some lift. Lift is not always a bad thing though, because it also reduces rolling resistance, especially with knobby off road tyres, but at the cost of downforce and traction. Downforce is probably something that won't matter to most truck drivers cruising on a straight highway, and given it could actually help boost range, probably a beneficial tradeoff anyway.

That leaves us with form drag, which is a direct result of the shape that is used to change the oncoming airflow and is a large part of the Cd value in vehicles that don't want to fly:



As you can see from the air flow lines in blue, form drag is typically the result of the airflow either changing direction to fast or not being able to stay laminar whilst navigating the object resulting in what is known as turbulent flow.

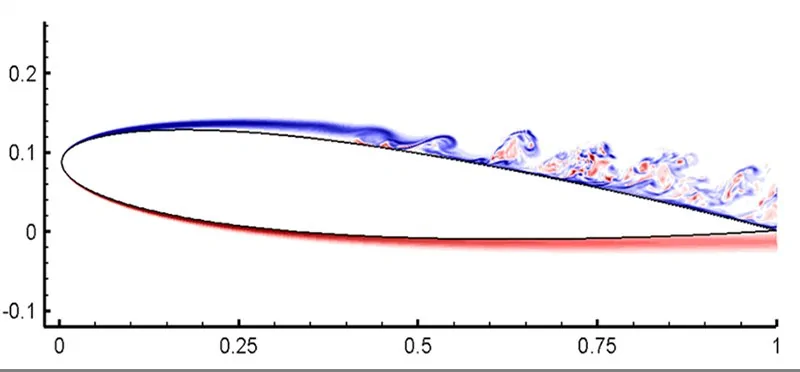

Turbulent flow is caused by the separation of the smooth laminar airflow over a surface, (as can be seen on top right of the airfoil above) into little vortices that in turn drag as they in turn retard the passing air further away from the body essentially increasing the objects cross section.

BTW This is one of the reasons the CT wants to get rid of the mirrors, because their apparent drag can be visualized as being some 3-4x the size of the mirrors themselves. (See Cd of cone above).
Technically a video camera setup and screen will likely result in better peripheral rear facing vision anyway if done correctly.

This leads us to a CT Vs standard truck comparison (from a fan btw, as there is little no aero info from Ford n Co)

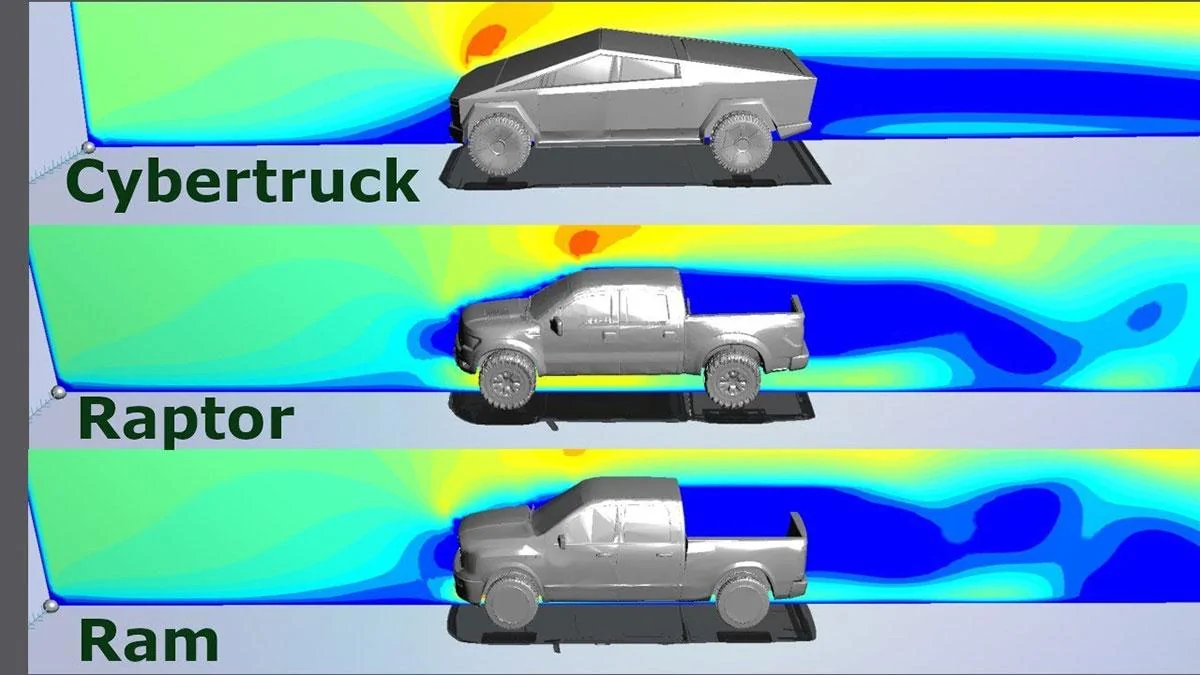

If you compare the Cd shapes image with the one above it becomes clear what is the main cause for improved range on the CT in comparison to Ford n Co. is actually the tapered closed vault of the CT that reduces the drag, not the "pointiness" of the front of the vehicle. This is because on a standard truck design airflow already becomes turbulent at the rear window and does not more smoothly flow back together like on the CT. You can even see the blobs of blue turbulence in the simulation. As above with the wing this turbulence results in vortices that cause even more drag and retard the vehicle.

This phenomenon is clearly evident when F1/Nascar cars or semi trucks slipstream eachother by driving close behind eachother. In fact slipstreaming trucks is known to improve the efficiency of both trucks, even the one in front, as the turbulent drag component is displaced behind the rear of the last truck. (see AU roadtrains for comparisons)

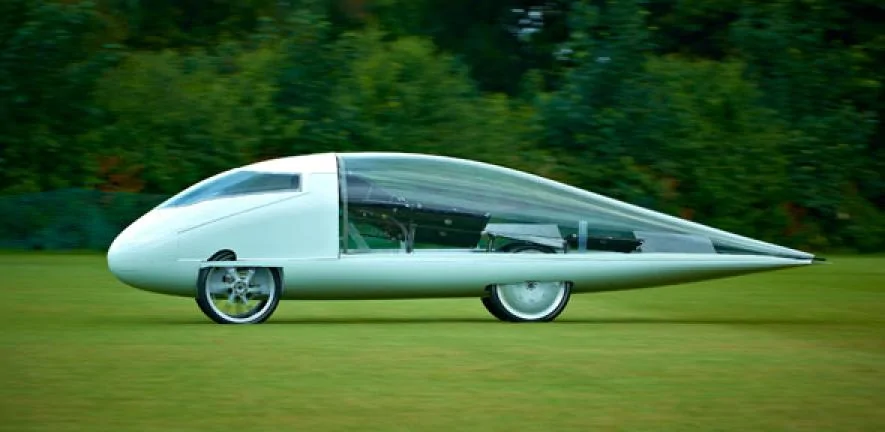

A solar car like above has a Cd of around 0.1. Ct is about 0.3. This photo further proves that a blunt nose is ok so long the rear is tapered to minimize flow separation.

This is the main purpose of the sloping CT rear design, including side wings, and inclusion of the vault cover.

Once again what is housed underneath the exterior skin of the vehicle, be that frunk, cabin or whatever, is irrelevant to drawing conclusions about its capability to reduce drag.

Last edited:
