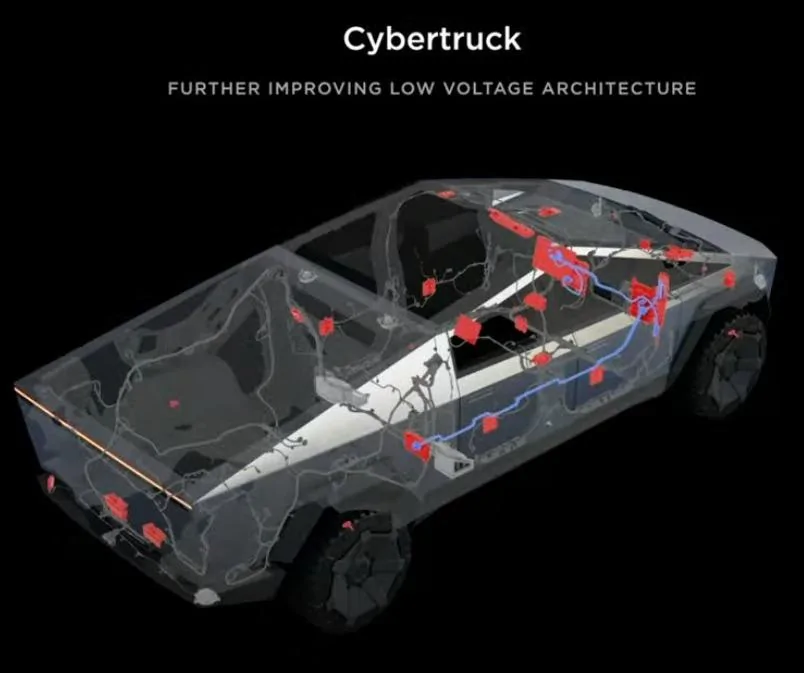

Yeah, exactly. That red block was not present in their Model 3 diagrams. Doesn't mean it's a display, but could very well be. The rear screen is highlighted red.
Here is the Model 3 image for comparison.
Tesla Cybertruck 48v Battery for Cybertruck! 48v low voltage 2023 Investor Day - YouTube

Tesla Cybertruck 48v Battery for Cybertruck! 9jJXUjw


cvalue13

Well-known member
Joined
Aug 17, 2022
Threads
74
Messages
7,130
Reaction score
13,724
Location
Austin, TX
Vehicles
F150L
Occupation
Fun-employed
Country flag
I think you may have been

multiple photo and attendant confirmations that there’s no driver display

and the angle of the schematic as the rear-view located technology cluster right where you might think it’s instead transposed on the dash ahead of the driver

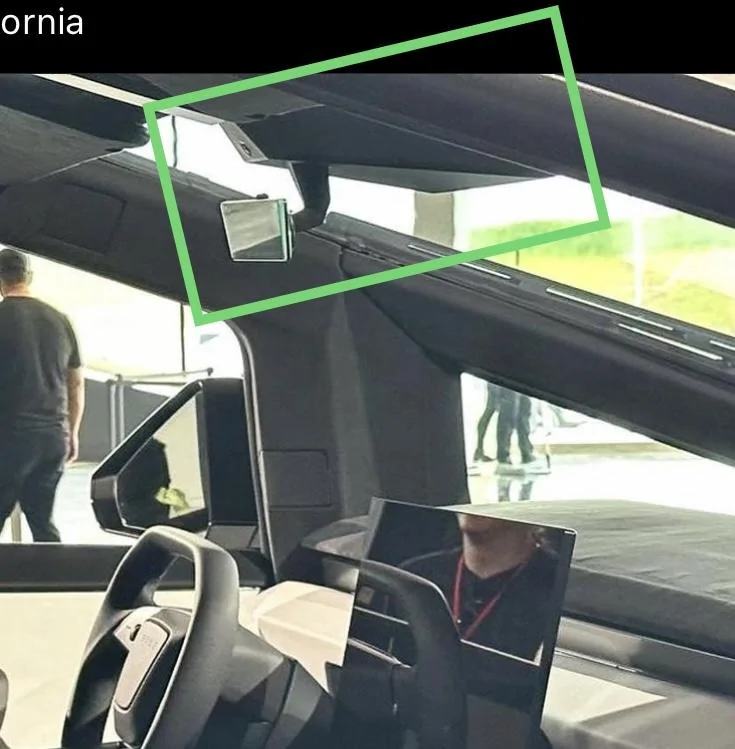

I’m viewing at all this (in green) exists on the centerline of the vehicle, the smaller red toward the front the front-facing cameras, the larger one toward the passengers another tech cluster including the mirror (video?), a cabin-facing camera (it appears - for viewing the back seat, because the “mirror” is video?)

Tesla Cybertruck 48v Battery for Cybertruck! 31641B9F-6AEB-4525-871B-C804D8ABE7A8
Tesla Cybertruck 48v Battery for Cybertruck! 68F90679-374D-4F4B-9093-D315C5942A65



TheLastStarfighter

Well-known member
Joined
Jul 6, 2020
Threads
7
Messages
1,371
Reaction score
3,491
Location
Canada
Vehicles
Dodge Challenger, Tesla Model 3
Occupation
Industrial Engineer
Country flag
Isn't that the mirror?
No, the mirror would be more forward. It's in 3D, so that red rectangle is either on the driver side dash, or the "peak" of the car. So it's a driver display, the light bar, or something else with a lot of wiring in front of the driver.


TheLastStarfighter

Well-known member
Joined
Jul 6, 2020
Threads
7
Messages
1,371
Reaction score
3,491
Location
Canada
Vehicles
Dodge Challenger, Tesla Model 3
Occupation
Industrial Engineer
Country flag
Something I just noticed in this image: Is that the windshield wiper mounted at the center base of the windshield? I guess at one point it was a consideration?

Good catch! Looks like the were/are looking at a semi-style setup?!?


SSonnentag

Well-known member
First Name
Shawn
Joined
Feb 24, 2020
Threads
5
Messages
391
Reaction score
861
Location
Yuma, Arizona
Vehicles
2018 X100D and 2023 YP
Occupation
IT Specialist
Country flag
'red block' behind steering wheel location?

48v low voltage 2023 Investor Day - YouTube.jpg
I don't know about the steering location, but it could be for a driver display and a HUD on the dash. Or I could just be wishing. :D

In the rear though, we could be looking at a brake controller and a 48V-to-12V converter for trailering purposes.


Don Kedick

Well-known member
Joined
Jul 22, 2022
Threads
2
Messages
131
Reaction score
445
Location
Fort Worth
Vehicles
M3LR, Escalade
Country flag
In all my other cars the power outlets have been capped at 400w. Does this mean we might get a 1600w so I can power standard household appliances? I’m not saying I’ve always wanted to use an air fryer on the way home from the grocery store but maybe I want to eat some ragoons before I get back.



TheLastStarfighter

Well-known member
Joined
Jul 6, 2020
Threads
7
Messages
1,371
Reaction score
3,491
Location
Canada
Vehicles
Dodge Challenger, Tesla Model 3
Occupation
Industrial Engineer
Country flag
I think you may have been

multiple photo and attendant confirmations that there’s no driver display

and the angle of the schematic as the rear-view located technology cluster right where you might think it’s instead transposed on the dash ahead of the driver

I’m viewing at all this (in green) exists on the centerline of the vehicle, the smaller red toward the front the front-facing cameras, the larger one toward the passengers another tech cluster including the mirror (video?), a cabin-facing camera (it appears - for viewing the back seat, because the “mirror” is video?)

Nope. Drawing a straight line from our point of view the the long rectangular object in the wiring diagram, the object is either on the point of the top of the vehicle, or in front of the driver. The camera/rear view mirror that you are highlighting is a foot or two down the glass. The driver when seated can not see the "peak" of the vehicle.

Actually, if you look at the zoomed in version Paradox just posted, it's explicit that this piece of electronics is in the dash in front of the driver, whatever it is.


SSonnentag

Well-known member
First Name
Shawn
Joined
Feb 24, 2020
Threads
5
Messages
391
Reaction score
861
Location
Yuma, Arizona
Vehicles
2018 X100D and 2023 YP
Occupation
IT Specialist
Country flag
I really hope there isn't a 48V battery. There's already a huge traction battery and voltage regulators can easily drop the voltage to 48V. What purpose would a separate battery serve?


scottf200

Well-known member
Joined
Jul 31, 2021
Threads
37
Messages
1,481
Reaction score
2,438
Location
Chicagoland
Vehicles
Tesla Model X
Country flag
I really hope there isn't a 48V battery. There's already a huge traction battery and voltage regulators can easily drop the voltage to 48V. What purpose would a separate battery serve?
This has been discussed ad nauseam on these electric cars (ie. not just Tesla) for over a decade.. They don't want to keep the high-voltage battery contacts open continuously.

Google search: why is there a 12v battery in an electric car
https://www.google.com/search?q=why+is+there+a+12v+battery+in+an+electric+car


Don Kedick

Well-known member
Joined
Jul 22, 2022
Threads
2
Messages
131
Reaction score
445
Location
Fort Worth
Vehicles
M3LR, Escalade
Country flag
I really hope there isn't a 48V battery. There's already a huge traction battery and voltage regulators can easily drop the voltage to 48V. What purpose would a separate battery serve?
Remember when the model S was new and they didn’t have a 12v battery and this guy left his car until the battery drained 100% and bricked and couldn’t charge again and the battery pack had to be replaced? That’s why they have a regular car battery. The 48v is just modernizing with the times. We don’t use cigarette lighters and 12v gadgets hardly at all anymore. Some cars don’t even come with a 12v outlet these days. Or CD players. Or 8 tracks if you could believe. It’s just outdated and with Tesla being in the front of change in the auto industry the dinosaurs are going to have to finally adapt or go broke. This is good for all of us even those who don’t own Teslas. This opens the possibility of so many new things, or better versions of the same things.
