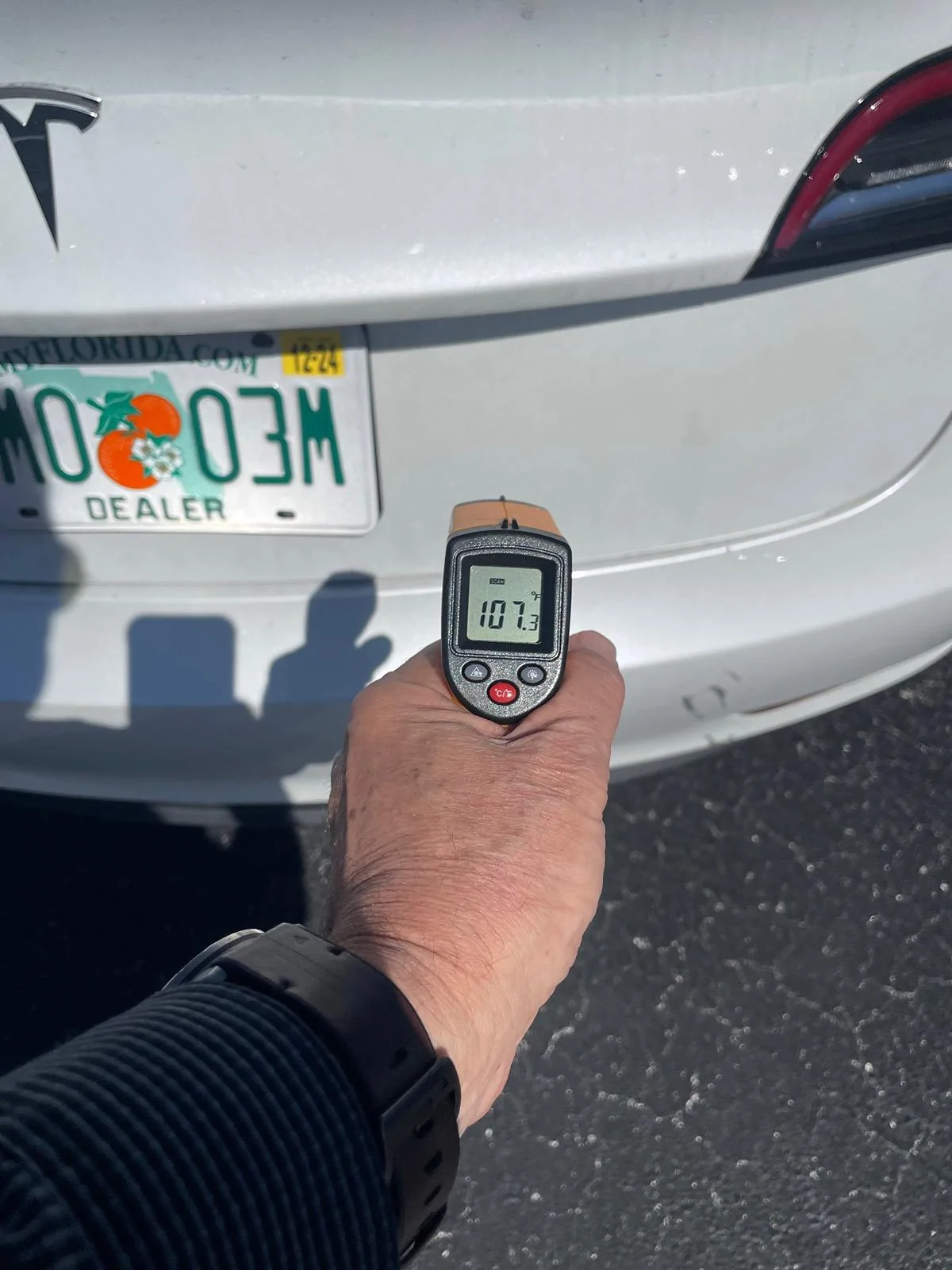

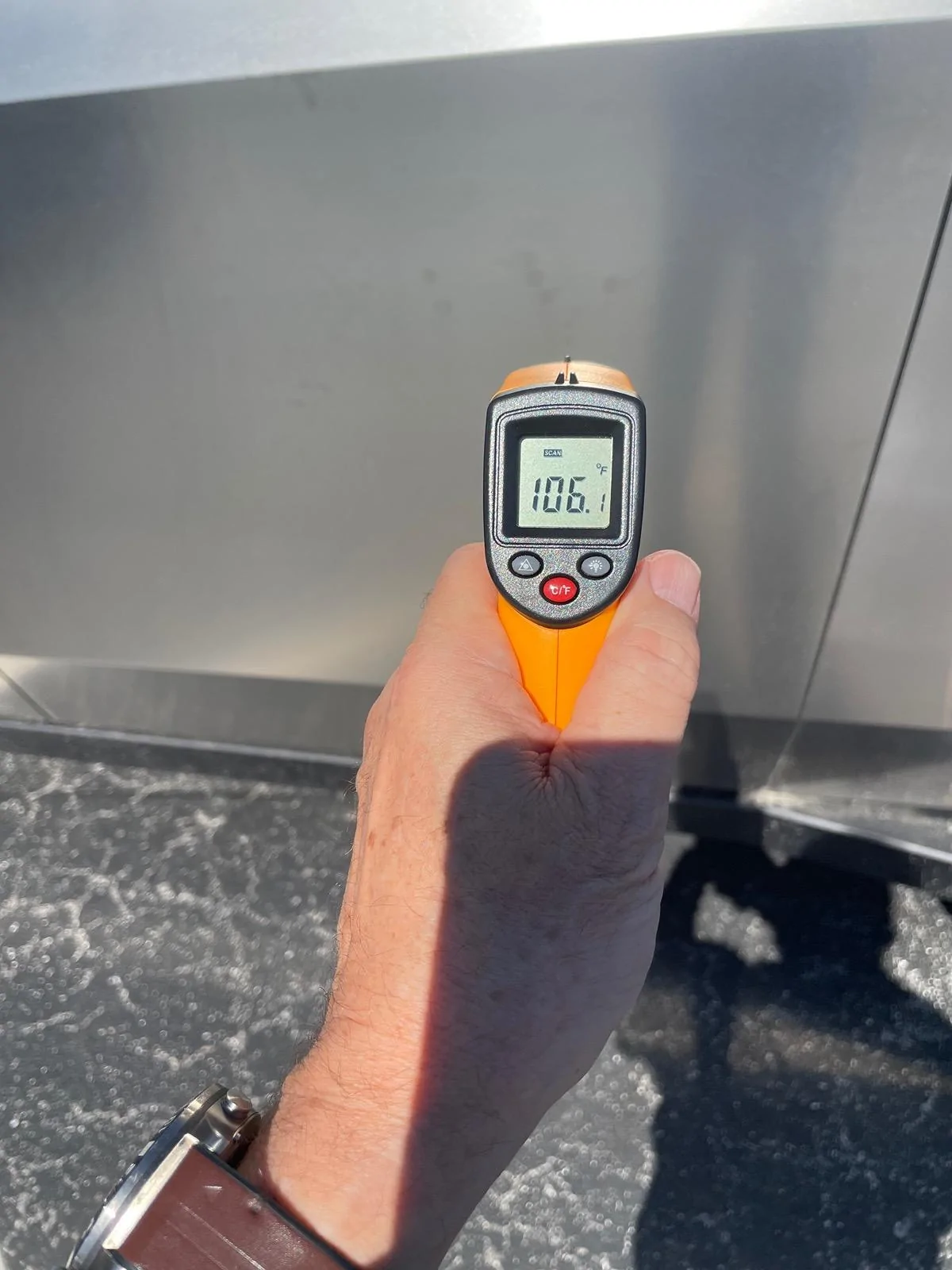

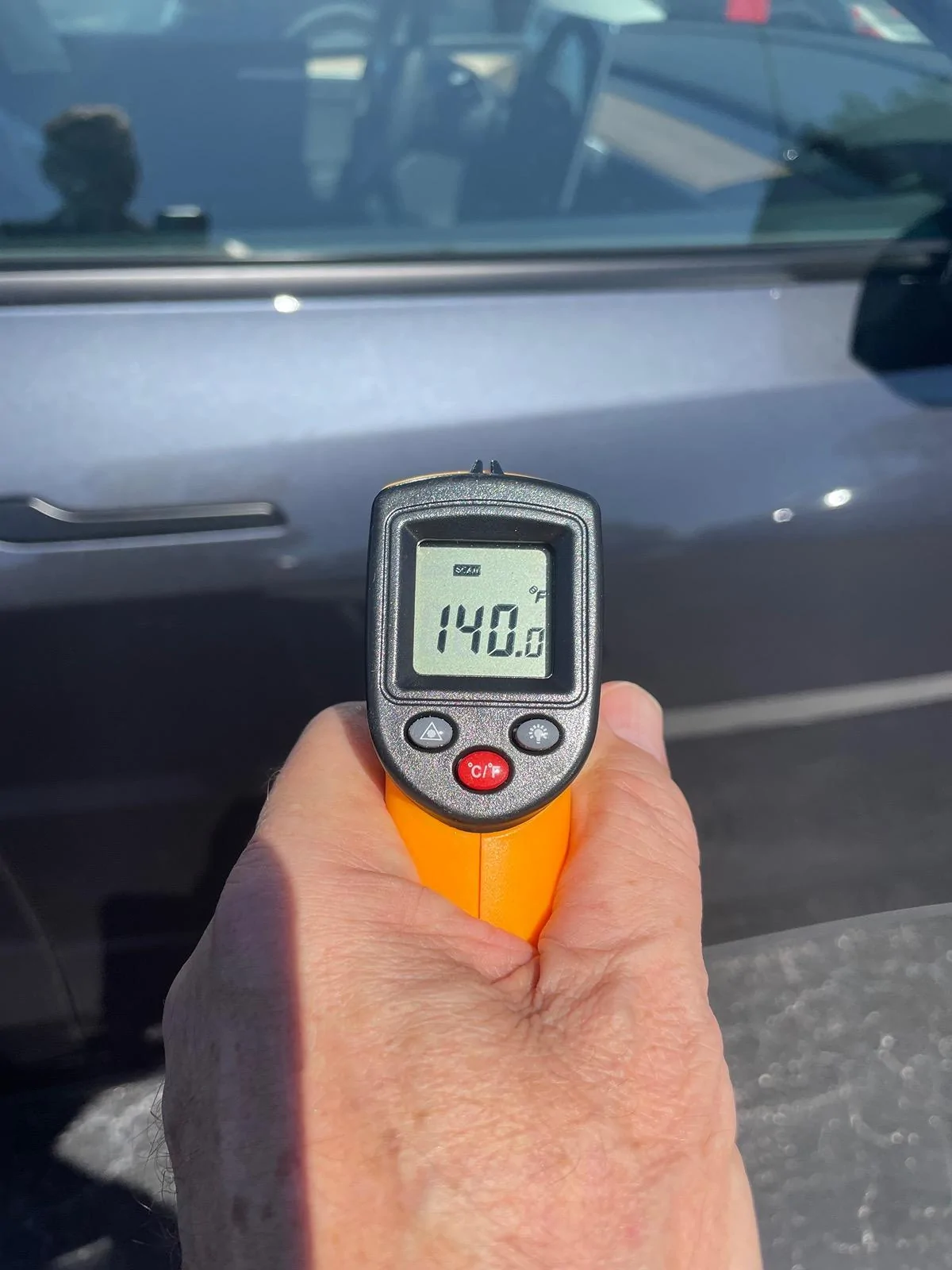

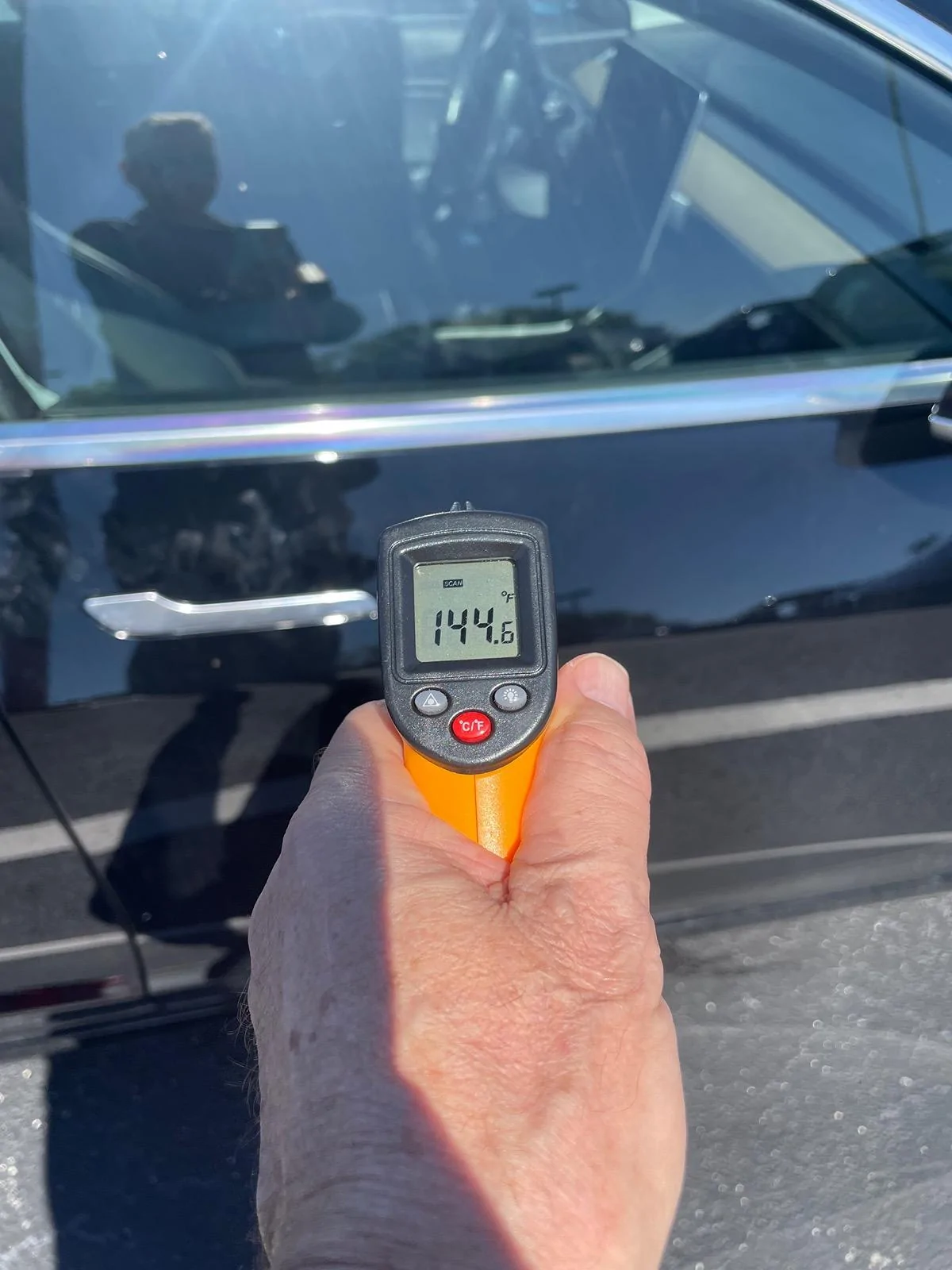

There’s been some discussion over the years about how hot the CT would be, both inside and out. Well the Merritt Isle. SC has another customer CT in the parking lot and I noticed that the sun’s reflection from the CT felt quite hot on my face. I then hesitantly put my hand on the hood and it was damn hot. I did the same to the black S parked next to it and it actually seemed hotter. But I knew that wouldn’t be good enough for this group so I went home and returned with my IR temp sensor and shot the temp of the panel perpendicular to the sun and replicated the same angle as best I could with black, MSM, and white Teslas parked nearby. Here are the results in degrees F:

CT = 106
Black = 144
MSM = 140
White = 107








Thank you for your thourough, and (as far as I'm concerned) scientific test. It's good to know the Cybertruck was the coolest of all!


TexasRaider

Well-known member
First Name
JR
Joined
Jan 10, 2023
Threads
18
Messages
468
Reaction score
402
Location
Denton
Vehicles
Cybertruck + MS
Occupation
Civil
Country flag
There’s been some discussion over the years about how hot the CT would be, both inside and out. Well the Merritt Isle. SC has another customer CT in the parking lot and I noticed that the sun’s reflection from the CT felt quite hot on my face. I then hesitantly put my hand on the hood and it was damn hot. I did the same to the black S parked next to it and it actually seemed hotter. But I knew that wouldn’t be good enough for this group so I went home and returned with my IR temp sensor and shot the temp of the panel perpendicular to the sun and replicated the same angle as best I could with black, MSM, and white Teslas parked nearby. Here are the results in degrees F:

CT = 106
Black = 144
MSM = 140
White = 107








Why isn’t this breaking news? 😝 jk



neights

Well-known member
Joined
May 26, 2020
Threads
1
Messages
59
Reaction score
90
Location
San Diego, CA
Vehicles
2024 CT AWD, 2023 MY LR, 2012 Lotus Evora S
Occupation
Architect
Country flag
This is one concern I have about a matte black wrap, some good points made here though. Thanks for the good info, all!


toybuilder

New member
Joined
Mar 29, 2024
Threads
0
Messages
1
Reaction score
2
Location
Southern California
Vehicles
99 MB E320 Wagon with 250K on it.
Country flag
Careful: Thermal spotters, like thermal cameras, will read the wrong temperature on reflective surfaces, especially metal. Thermal signature will be a mix of small amount of emissions from the metal and much more of the sky or other objects nearby.


Tesla Cybertruck Cybertruck stainless steel surface temperature vs. painted — MEASURED DATA 1711793886393-c4

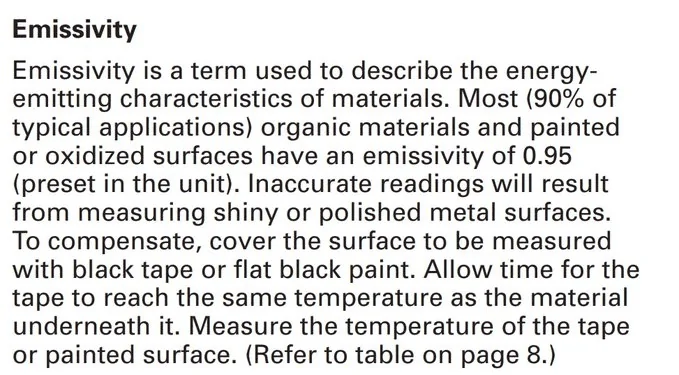

https://pim-resources.coleparmer.com/instruction-manual/20250-05.pdf

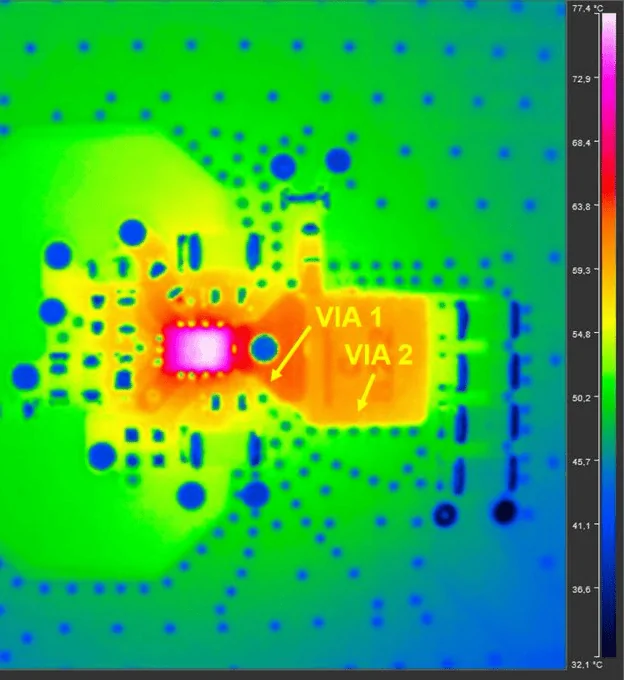

In this image of a circuit board, the board is more or less uniformly hot (except for the actual heat source in the center) - but the parts of the boards that are "unpainted" (lack soldermask) look much cooler as it looks more like the ambient room temperature it is reflecting.


Tesla Cybertruck Cybertruck stainless steel surface temperature vs. painted — MEASURED DATA 1711793700097-3x


Often, the metal surface will show cooler than what it actually is. But not always -- If you were to hold a cold piece of metal and then have it reflect a hot source (inside of an oven for example), the metal will show hotter than it actually is.


Trekboy

Well-known member
First Name
Mark
Joined
Sep 1, 2023
Threads
0
Messages
100
Reaction score
162
Location
Redding, CA USA
Vehicles
Tesla Model 3, Toyota 4Runner, Cybertruck
Country flag
Careful: Thermal spotters, like thermal cameras, will read the wrong temperature on reflective surfaces, especially metal. Thermal signature will be a mix of small amount of emissions from the metal and much more of the sky or other objects nearby.



https://pim-resources.coleparmer.com/instruction-manual/20250-05.pdf

In this image of a circuit board, the board is more or less uniformly hot (except for the actual heat source in the center) - but the parts of the boards that are "unpainted" (lack soldermask) look much cooler as it looks more like the ambient room temperature it is reflecting.




Often, the metal surface will show cooler than what it actually is. But not always -- If you were to hold a cold piece of metal and then have it reflect a hot source (inside of an oven for example), the metal will show hotter than it actually is.
Excellent. After watching the video I was thinking about using a small amount of electrical tape on the various surfaces to even them out. To be really accurate, does anyone know what the emissivity of black vinyl electricians tape is?


HaulingAss

Well-known member
Joined
Oct 3, 2020
Threads
17
Messages
6,916
Reaction score
14,219
Location
Western Washington, USA
Vehicles
Cybertruck DM, 2010 F-150, 2018 Performance Model 3, 2024 Performance Model 3
Country flag
Excellent. After watching the video I was thinking about using a small amount of electrical tape on the various surfaces to even them out. To be really accurate, does anyone know what the emissivity of black vinyl electricians tape is?
It would be close to .95 EMS. But the sampling area is bigger than you might expect when using a run-of-the-mill IR thermometer so you will need a larger target to get the accuracy you want. I think masking tape, the wide stuff, put on two wide will give you better results.


TickTock

Well-known member
Joined
Jul 27, 2023
Threads
23
Messages
515
Reaction score
1,007
Location
Phoenix, AZ
Vehicles
`11 Nissan Leaf; '18 Model 3; '18 Model S; '24 Beast
Occupation
Electrical Engineer
Country flag

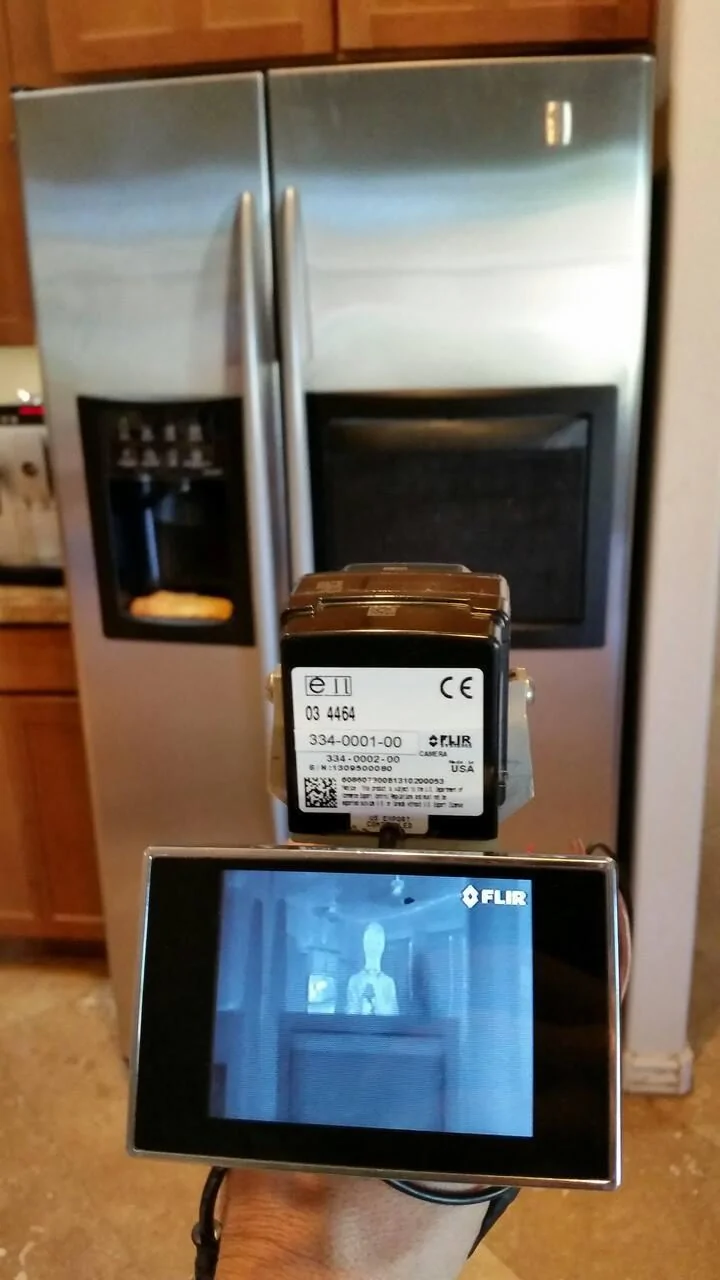

Here is a selfie I took of my reflection in my brushed SS fridge. You can see how the SS nicely diffuses the visible spectrum but acts like a polished mirror to IR. It is a very good chance any IR thermometer is seeing reflected IR more than what is actually emitted from the material itself.
Tesla Cybertruck Cybertruck stainless steel surface temperature vs. painted — MEASURED DATA fridge_selfie



FutureTruck

Banned
Well-known member
Banned
Joined
Mar 19, 2024
Threads
4
Messages
404
Reaction score
416
Location
GA- USA
Vehicles
Tesla MX P, Lucid Air GT
Big takeaway here is careful on the equipment you use to measure reflective surfaces, and big surprise........................if you are worried about heat stay away from black.


Crissa

Well-known member
First Name
Crissa
Joined
Jul 8, 2020
Threads
137
Messages
18,472
Reaction score
30,183
Location
Santa Cruz
Vehicles
2014 Zero S, 2013 Mazda 3
Country flag
Big takeaway here is careful on the equipment you use to measure reflective surfaces, and big surprise........................if you are worried about heat stay away from black.
Black is... A double-edged sword. It'll absorb more, but that also means only half that gets through. With paint and films, that's important! You can end up with a much better temperature gradient through the composite with a black opaque layer than a white translucent one.

-Crissa


HaulingAss

Well-known member
Joined
Oct 3, 2020
Threads
17
Messages
6,916
Reaction score
14,219
Location
Western Washington, USA
Vehicles
Cybertruck DM, 2010 F-150, 2018 Performance Model 3, 2024 Performance Model 3
Country flag
Here is a selfie I took of my reflection in my brushed SS fridge. You can see how the SS nicely diffuses the visible spectrum but acts like a polished mirror to IR. It is a very good chance any IR thermometer is seeing reflected IR more than what is actually emitted from the material itself.
Wow! You don't look anything like your profile pic!


firsttruck

Well-known member
Joined
Sep 25, 2020
Threads
204
Messages
2,740
Reaction score
4,404
Location
mx
Vehicles
none
Country flag
Here is a selfie I took of my reflection in my brushed SS fridge. You can see how the SS nicely diffuses the visible spectrum but acts like a polished mirror to IR. It is a very good chance any IR thermometer is seeing reflected IR more than what is actually emitted from the material itself.
Wow! You don't look anything like your profile pic!
Hey, I agree. But I also think I have seen him before too.

Didn't he appear in a TV episode of "The Outer Limits" or "Twilight Zone" or maybe it was some SciFi movie?

Last edited:
OP
OP
Stuck4ger

Stuck4ger

Well-known member
Joined
Dec 6, 2019
Threads
41
Messages
1,053
Reaction score
1,852
Location
Cape Canaveral, FL
Vehicles
Cyberbeast
Occupation
Aerospace
Country flag
It would be close to .95 EMS. But the sampling area is bigger than you might expect when using a run-of-the-mill IR thermometer so you will need a larger target to get the accuracy you want. I think masking tape, the wide stuff, put on two wide will give you better results.
I’d think getting the temperature of tape-covered stainless would have its own measurement accuracy issues. I’m surprised folks aren’t suggesting an array of RTDs glued to the inside surface 🙄.
